Place of Origin: | China |
---|---|
Brand Name: | ZON PACK |
Certification: | CE Certification |
Model Number: | ZH-BL10 |
Minimum Order Quantity: | 1 Set |
Price: | 22000-28000USD per set |
Packaging Details: | Wooden case |
Delivery Time: | 25-30 Working days |
Payment Terms: | L/C, T/T, D/P, Western Union |
Supply Ability: | 199 Set per month |
Name: | Snack Food Packaging Machine | Application: | Chemical, Commodity, Food, Machinery & Hardware |
---|---|---|---|
Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag | Packing Material: | Laminated Film Such As POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
Function: | Filling ,Weighing,Sealing | Multi-language: | Yes |
Driven Type: | Electric | Weighing Range: | 5000g |
High Light: | 2200W Snack Food Packaging Machine,0.10mm Snack Food Packaging Machine,5000g chocolate bar packaging machine |
Food industry packaging line 10 heads weigher chocolate filling packing machine /
chocolate bar packaging machine
Technical Feature
1. All machine parts in contact with the products are made of 304 stainless steel.
2. The bag type is diversified, and it can provide customers with pillow bags, gusset bags, hanging hole bags,
and block bottom bags.
3. The machine's operating instructions are programmed into the PLC controller,easy to operate.
4. A variety of automatic alarm protection functions are used to minimize losses.
Technical Specification | |
Model | ZH-BL10 |
Packing Speed | 30-70 Bags/Min |
System Output | ≥8.4 Ton/Day |
Packing Accuracy | ±0.1-1.5g |
Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
Range of measuring (g) | 5000 |
Thickness of film (mm) | 0.04-0.10 |
Power Parameter | 220V 50/60Hz 2.2KW |
Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application of Machine
It is suitable for weighing candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins, dried fruits,
frozen foods, snack foods, hardwares, meatballs, etc.

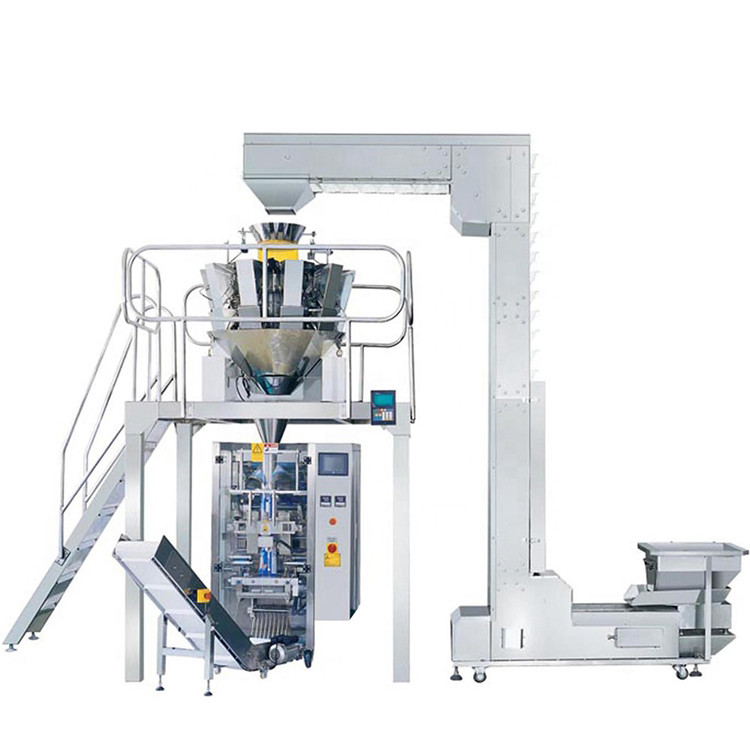

System Construction
1. Infeed bucket conveyor:
Raise material to multihead weigher which controls the start and stop of the hoister.

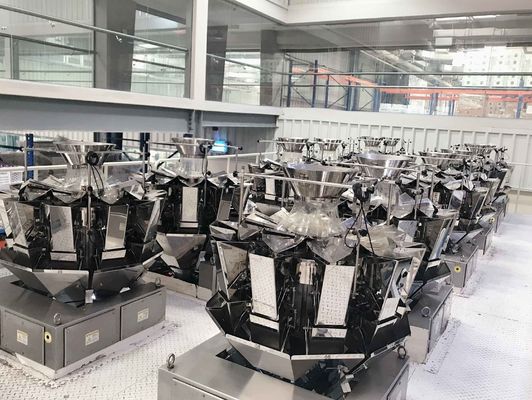

2. 10 heads multi weigher:
Used for quantitative weighing.
3. Working platform:
Support the 10 heads multi weigher.

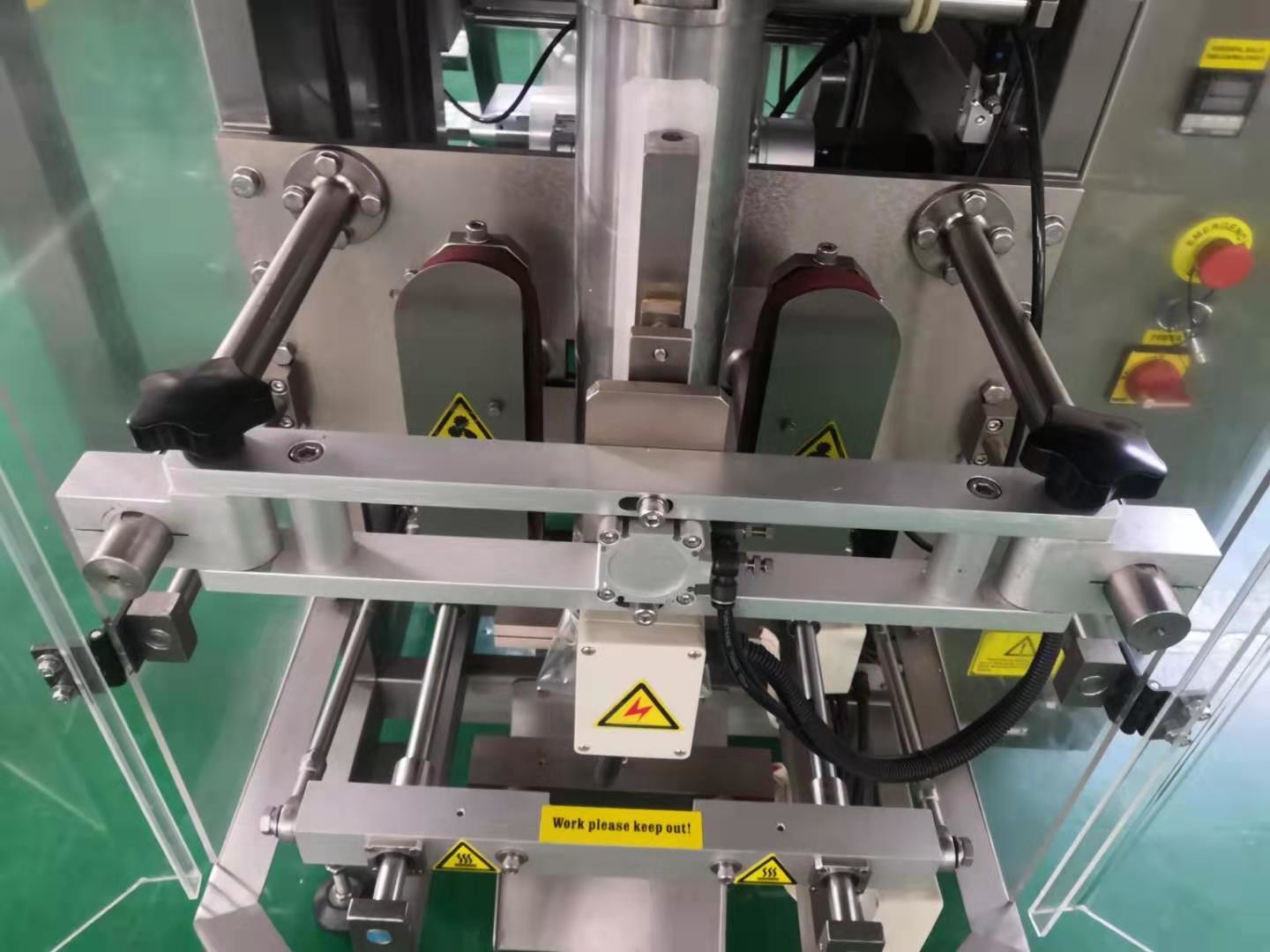

4. Vertical packing machine:
Pack the material with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Take off conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our Cases:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Content:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
