Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Puffed Food Packing Machine | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Function: | Filling ,Weighing,Sealing | Packing Material: | Laminated Film ,PE Film |
| Customed Made: | Yes | Application: | Chemical, Commodity, Food, Machinery & Hardware |
| Packing Speed: | 30-70 Bags/Min | Packing Accuracy: | ±0.1-1.5g,it Depends On Your Product |
| High Light: | 0.1g automatic chips packing machine,5000g automatic chips packing machine,0.1g vertical packing machine |
||
Multi-functional servo driven automatic chips vertical packing machine
Technical Feature
1. PLC computer control system. PLC by Siemens brand to work reliable and convenient.
2. Big touch is also by Siemens. Easy to operate and control the machine .
3. High precise positioning with servo film transporting system Servo motor from Japan brand Mitsubishi.
4. Warn protection function
5. The machine will automatically complete all packaging processes from measuring, feeding, filling,
printing ,finished bag .
| Technical Specification | |
| Model | ZH-BL10 packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application of Machine
It is suitable all kinds of grain material, sheet material, strip material and abnormity material such as candy,
melon seeds,chips, peanut, nutlet, preserved fruit, jelly, biscuit, saffron, confect, camphor ball, currant, almond,
chocolate, filbert, corn,potato crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.

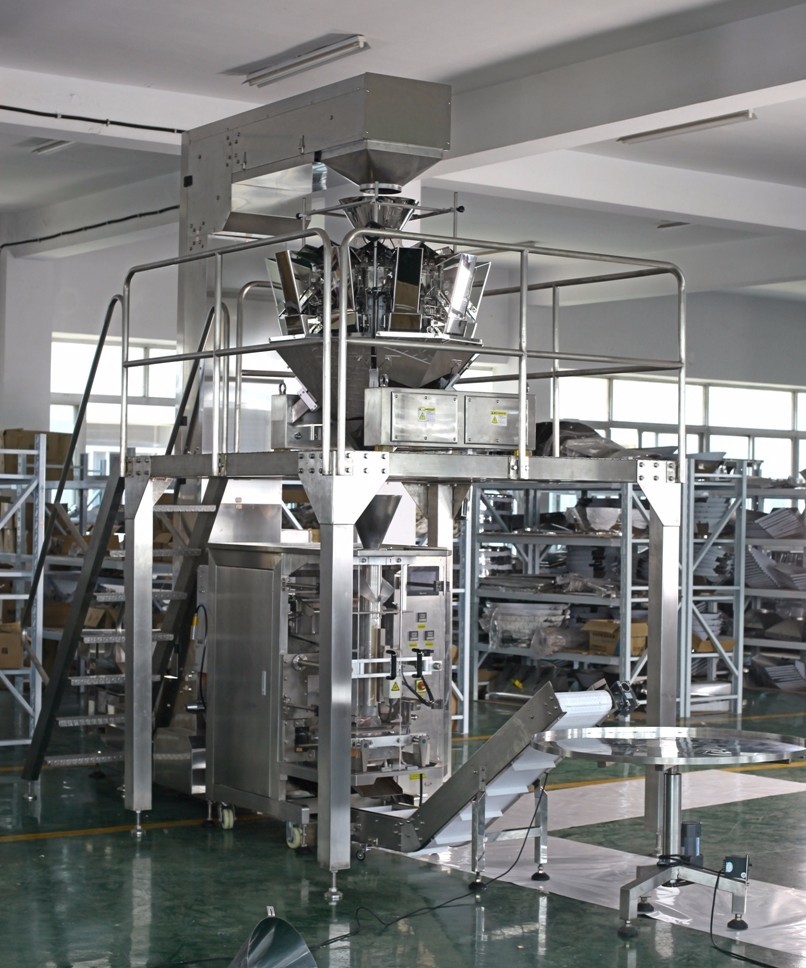

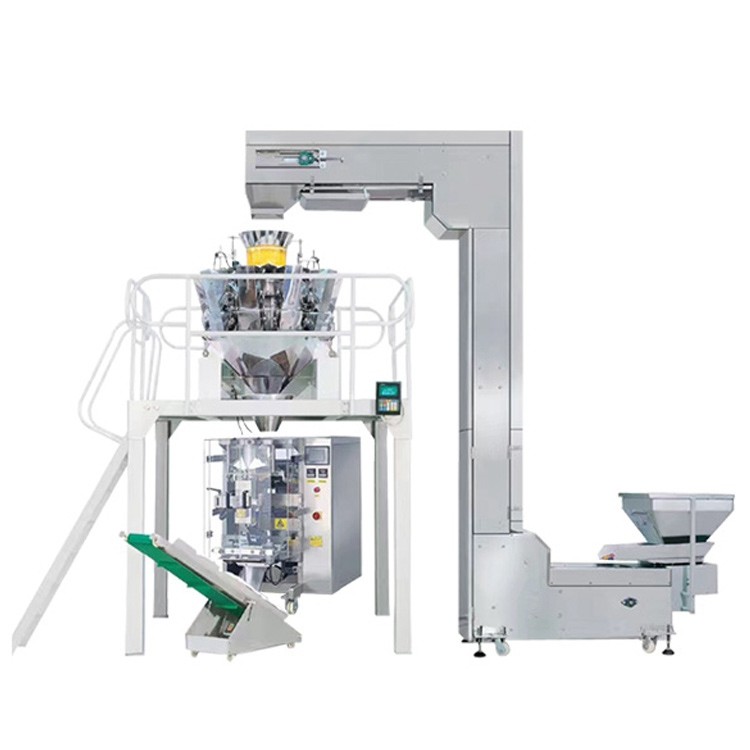

System Construction
1. Infeed bucket conveyor:
For feeding multihead weigher.

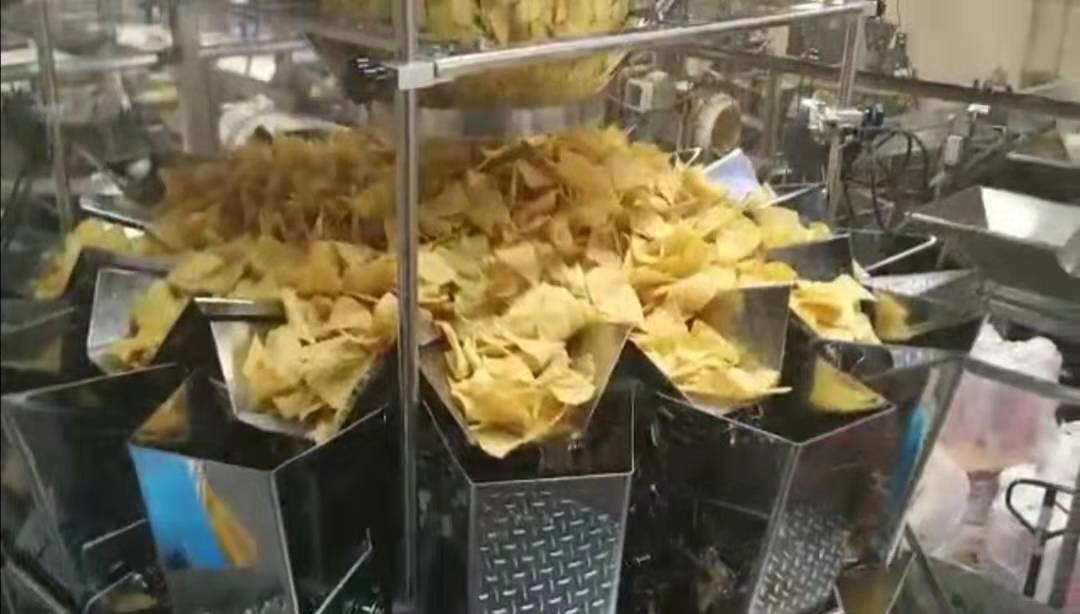

2. 10 heads multi weigher:
For product weighing.
3. Working platform:
Support the 10 heads multi weigher.
4. Vertical packing machine:
Pack the material with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
