Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Machine Name: | Puffed Food Packing Machine | Function: | Filling ,Weighing,Sealing |
|---|---|---|---|
| Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag | Packing Material: | Laminated Film ,PE Film |
| Power Parameter: | 220V 50/60Hz 2.2KW | Control: | PLC |
| System Output: | ≥8.4 Ton/Day | Range Of Measuring (g): | 5000 |
| High Light: | 5000g Puffed Food Packing Machine,ZON Puffed Food Packing Machine,5000g vertical form fill seal packing machine |
||
24H Online service 14 heads weigher vertical form fill seal puffed food packing machine
Technical Feature
1. Packaging Machine are used in the consumer products industry for a wide variety of packaging applications.
The bag material is flexible and typically laminated film. feeding,weighting,filling,bag forming,date print and sealing all in one.
2. Film driving by servo motor and a sensor tracking through the bag former, top end and back sealing temperature can adjustable.
3. Operation is more simple by tochscreen and with multilingual version. can stored ten sets different parameters for different
products or weight.
4. Packaging material can be PE/polyethylene,PE/aluminum plating, pet/PE, pp, etc.
5. More funtion such as bag can with euro hole, bag filling of nitrogen, bag linked,etc.
| Technical Specification | |
| Model | ZH-BL10 packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application of Machine
It is suitable to use in packing the high accuracy and easy fragile material and bulk objects, such as: puffy food,
cryspy rice, jelly,candy, pistachio, nuts, fruit slices, dumpling, chocolate, medicine, pet food, small hardwares
and so on.

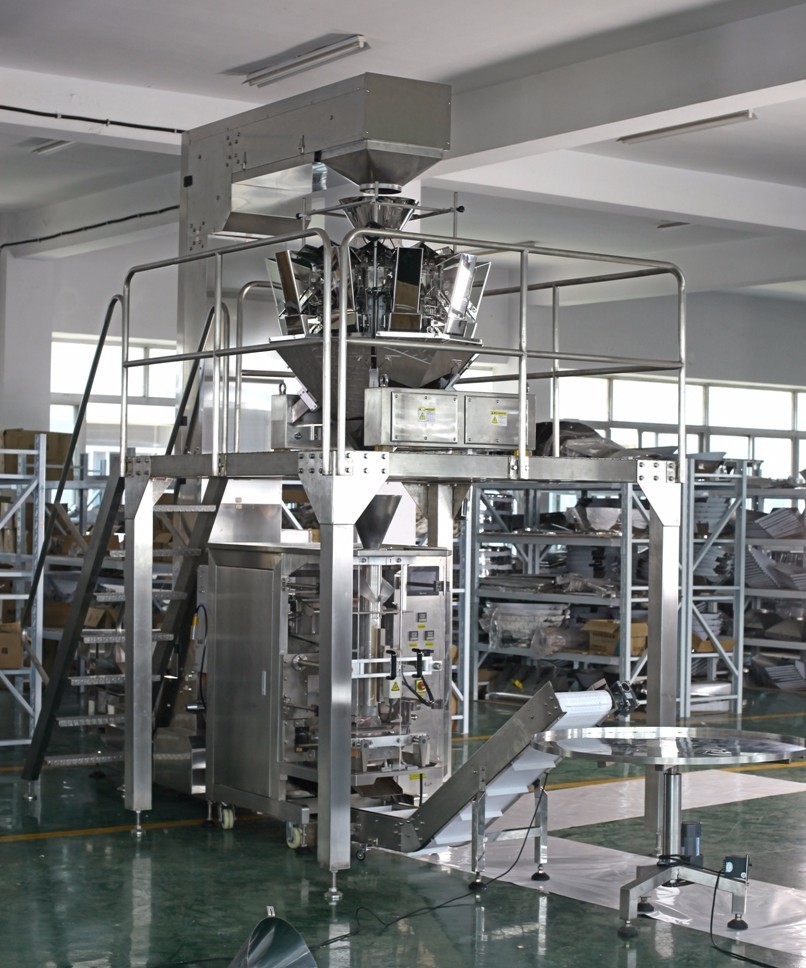

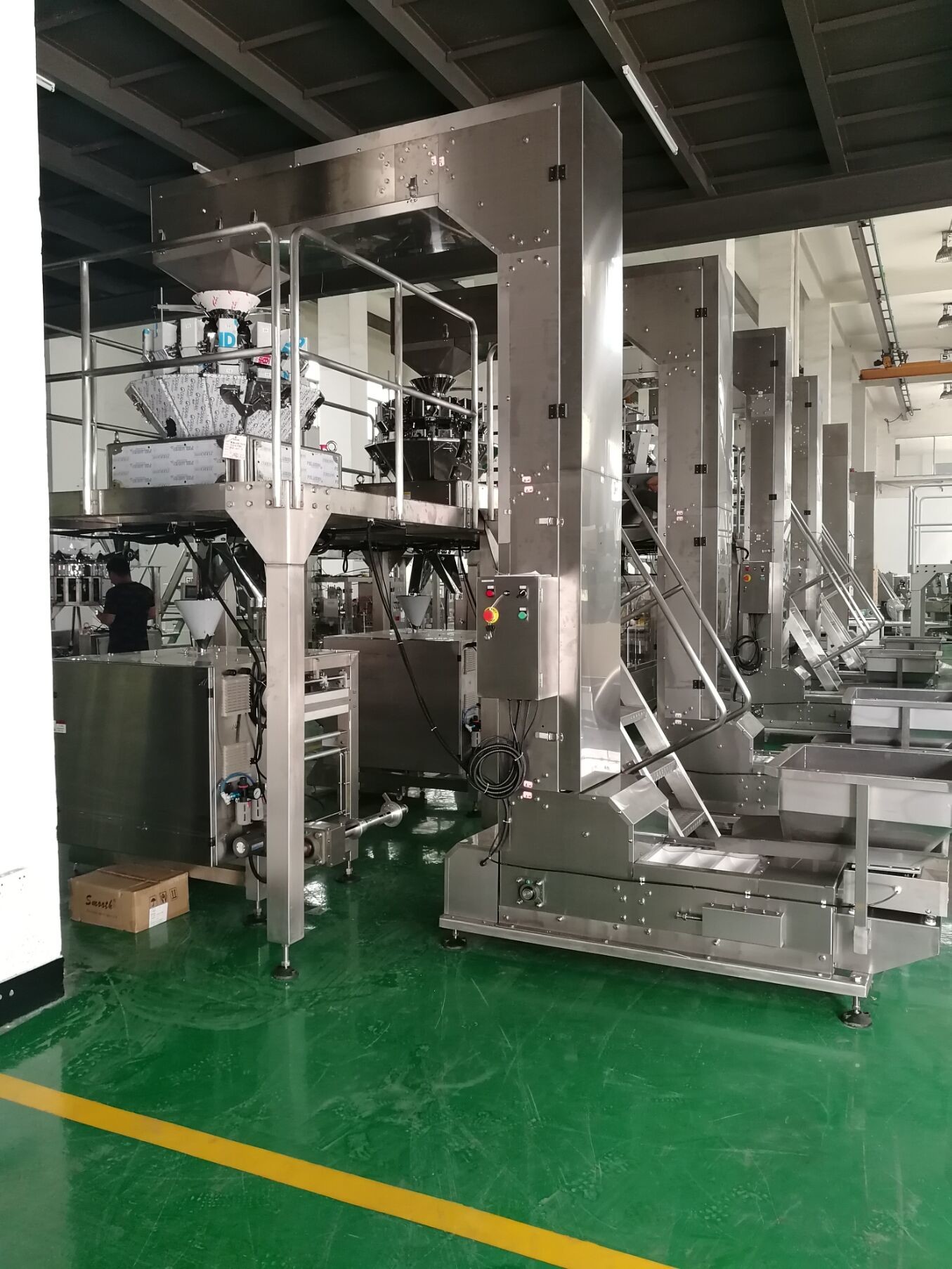

System Unit:
1. Infeed bucket conveyor:
Convey the product to multihead weigher

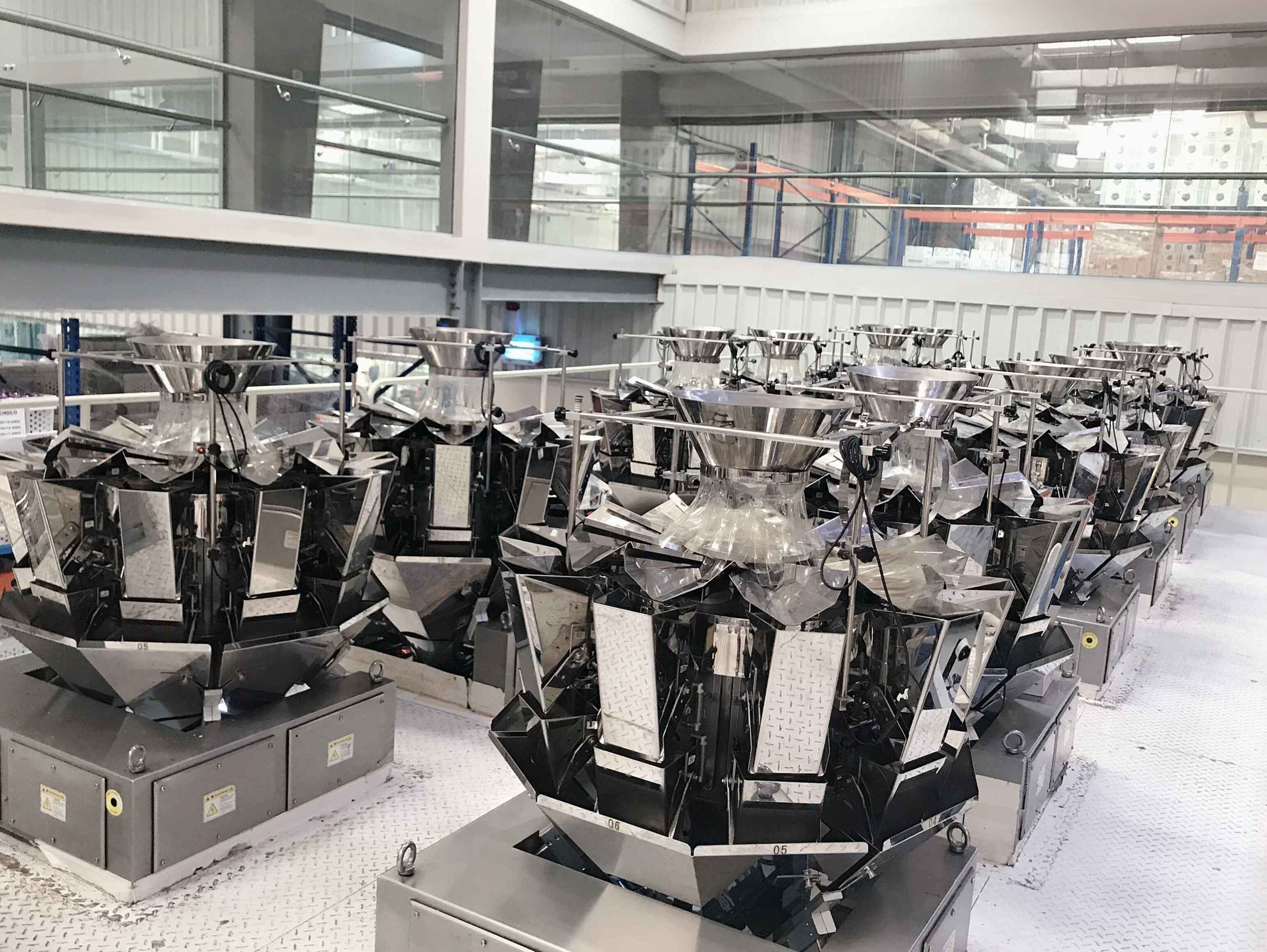

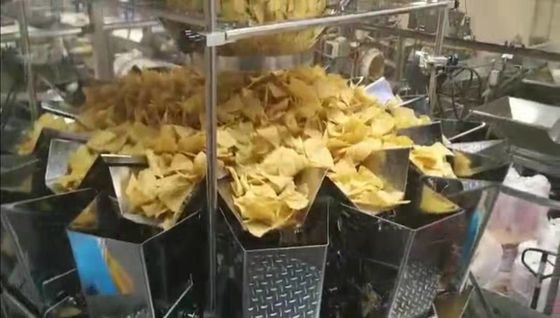

2. 10 heads multi weigher:
For product weighing.
3. Working platform:
Support the 10 heads multi weigher.
4. Vertical packing machine:
For bag forming and bag sealing.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
