Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Automatic Food Packing Machine | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Function: | Filling ,Weighing,Sealing,Packing |
| Power Parameter: | 220V 50/60Hz 2.2KW | VFFS: | V620 |
| Bag Width: | 100-300mm | Bag Length: | 100-400mm |
| High Light: | V620 Automatic Food Packing Machine,300mm Automatic Food Packing Machine,V620 plastic pouch packing machine |
||
Automated 14 heads vegetable packing machine pouch packing machine line
Technical Feature
1. Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working,
saving time and saving films.
2. Human-machine operation, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
| Technical Specification | |
| Model | ZH-BL10 packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 620: (W) 100-300 (L)100-400 |
Application of Machine
It is suitable to use in packing all kinds of grain material, sheet material, strip material and abnormity material which such
as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate,
filbert, corn, Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.

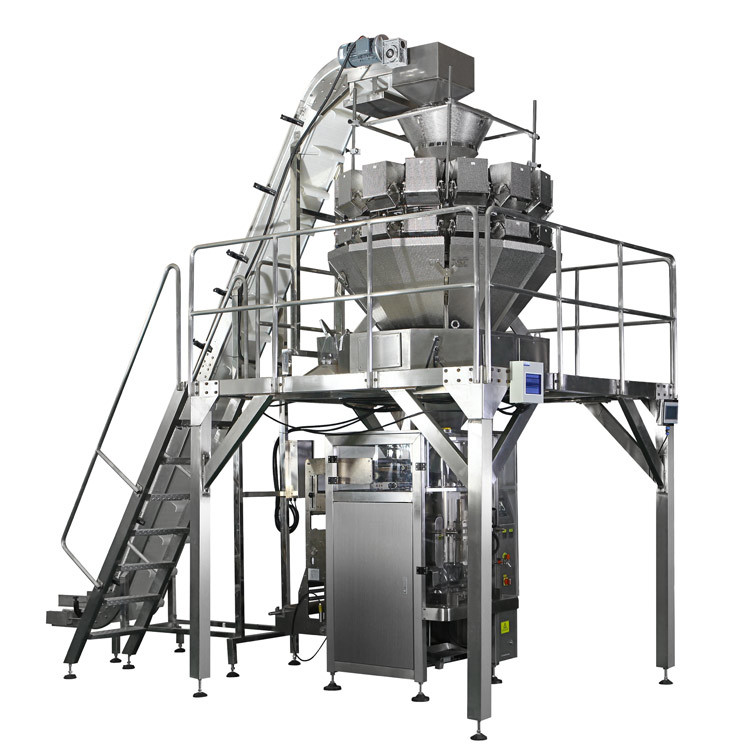

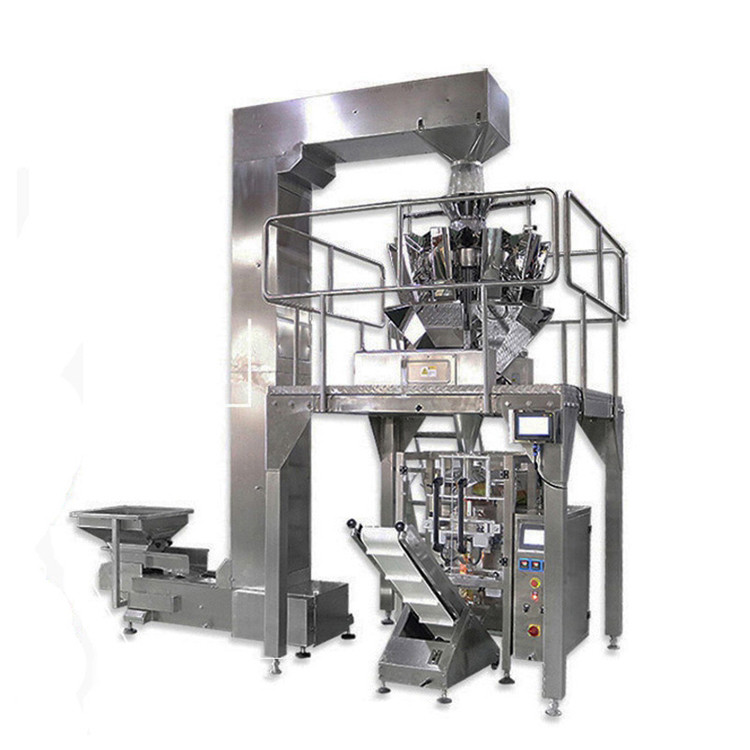

System Construction
1. Infeed bucket conveyor:
Convey the product to multihead weigher

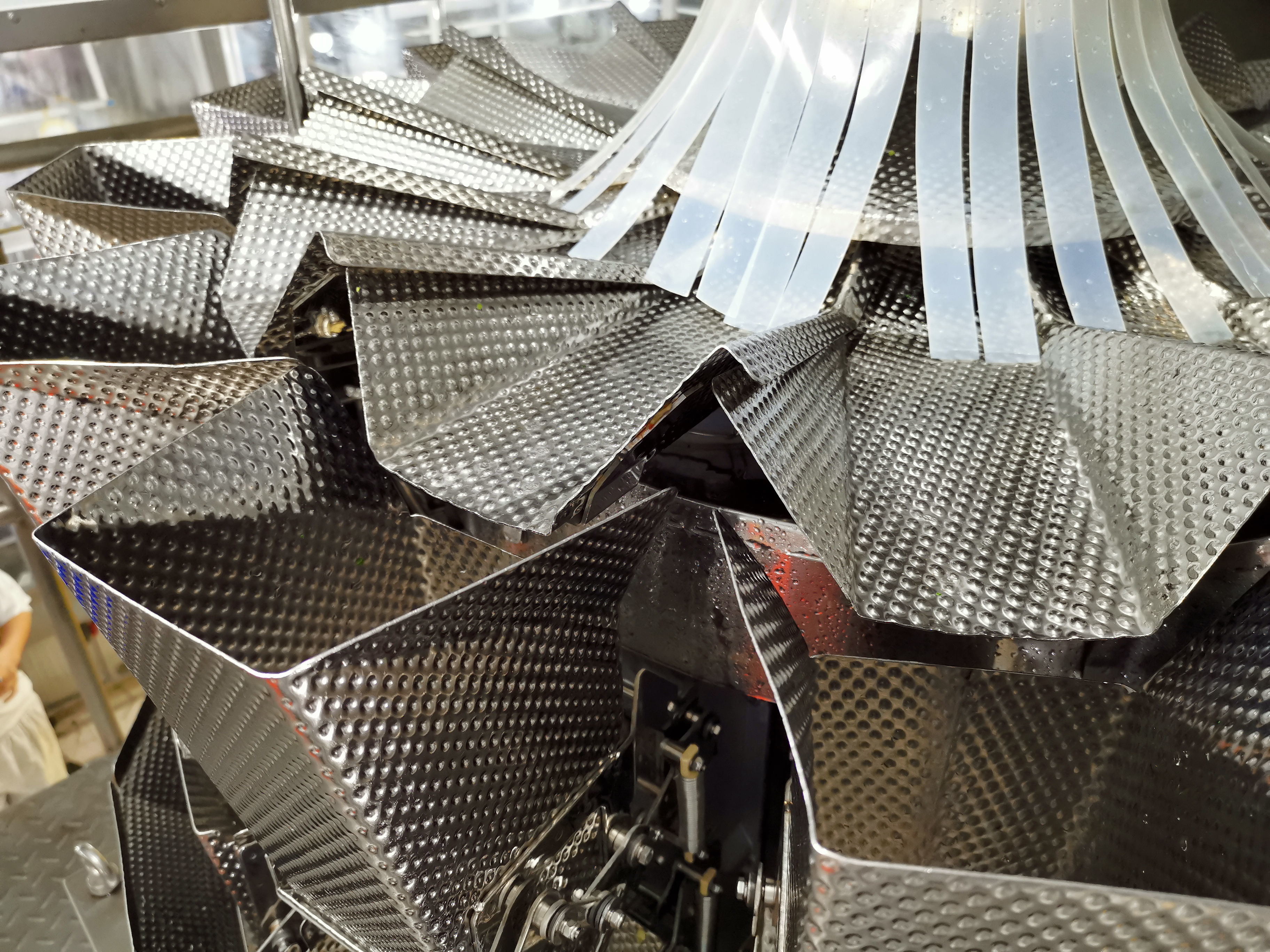

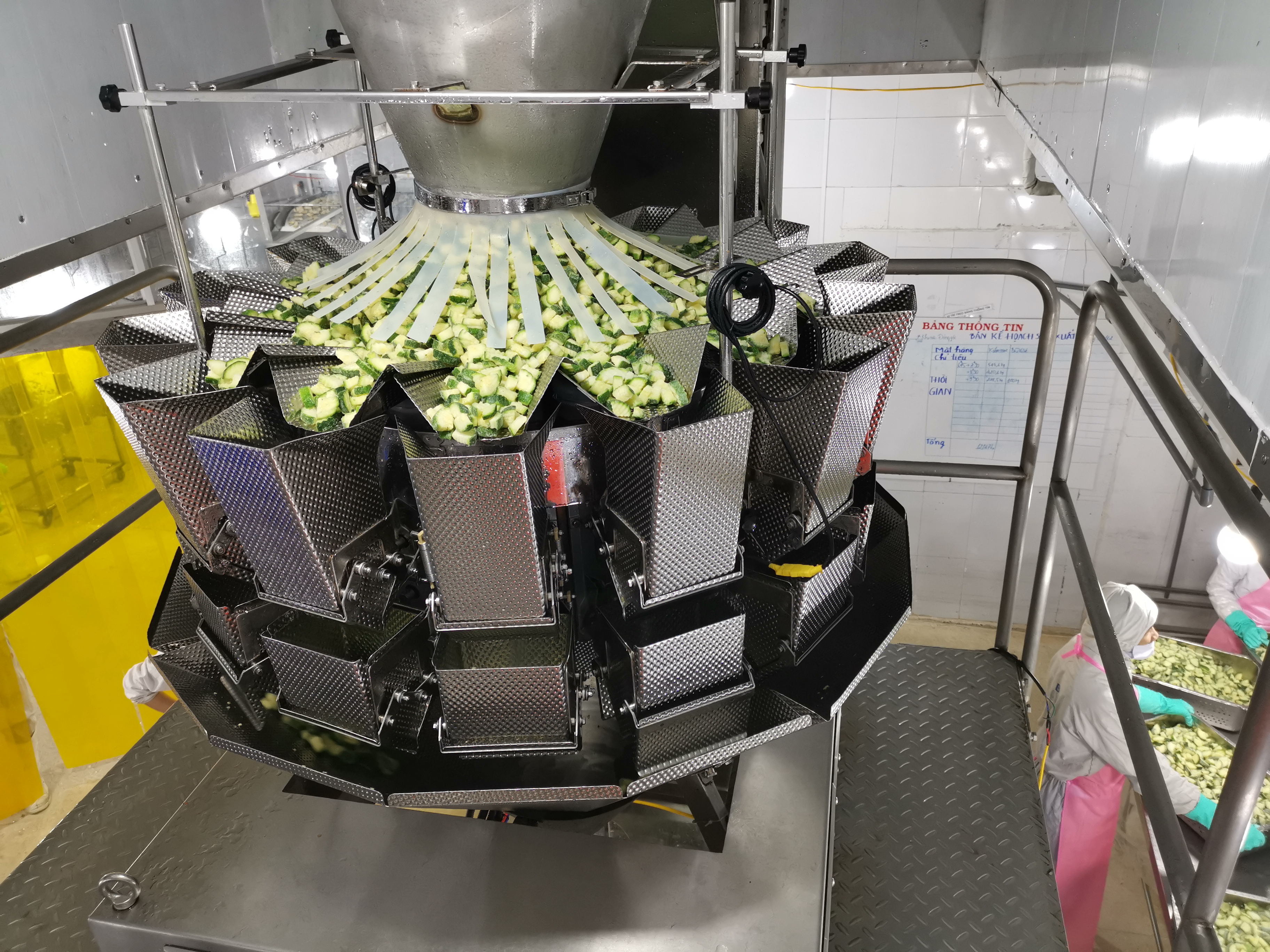

2. 10 heads multi weigher:
For product weighing.
3. Working platform:
Support the 10 heads multi weigher.
4. Vertical packing machine:
For bag forming and bag sealing.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
