Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Multihead Weigher Packing Machine | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Thickness Of Film (mm): | 0.04-0.10 |
| Function: | Feeding ,Filling ,Weighing,Sealing | Packing Speed: | 30-70bag/min,depends On Your Product |
| Control: | PLC | Language: | Multi-language |
| Servo: | Siemens | Weighing Range: | 5000g |
| High Light: | 1.6L auto weighing filling and sealing machine,5000g auto weighing filling and sealing machine,1.6L auto weighing packaging machine |
||
CE Certification 10 heads 1.6L hopper weighing and packing machine / auto weighing
filling and sealing machine
Technical Feature
1. Adopts the exporting PLC and touch screen, Humanity design and easy to operate.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Filmpulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance.
Belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
| Technical Specification | |
| Model | ZH-BL10 packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application of Machine
Applicable to the production of melon seeds, peanuts, roasted seeds and nuts, seeds, desiccant, sugar,
monosodium glutamate and other granular materials, chips, nuts, bread and other leisure food, milk powder,
coffee powder...ect.

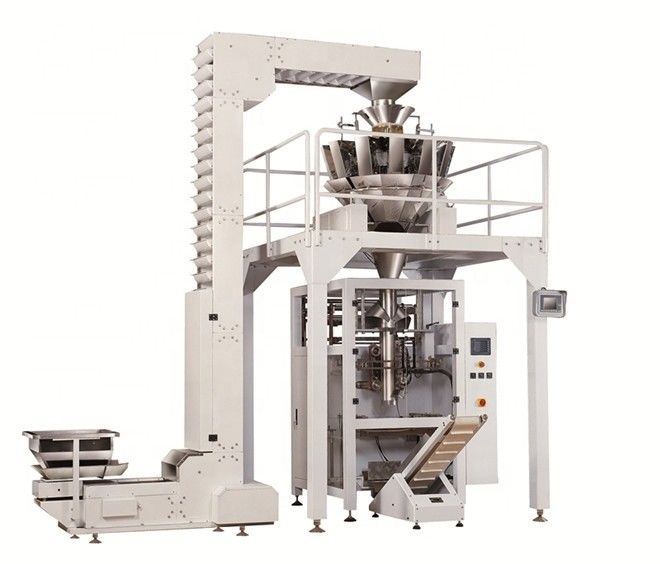

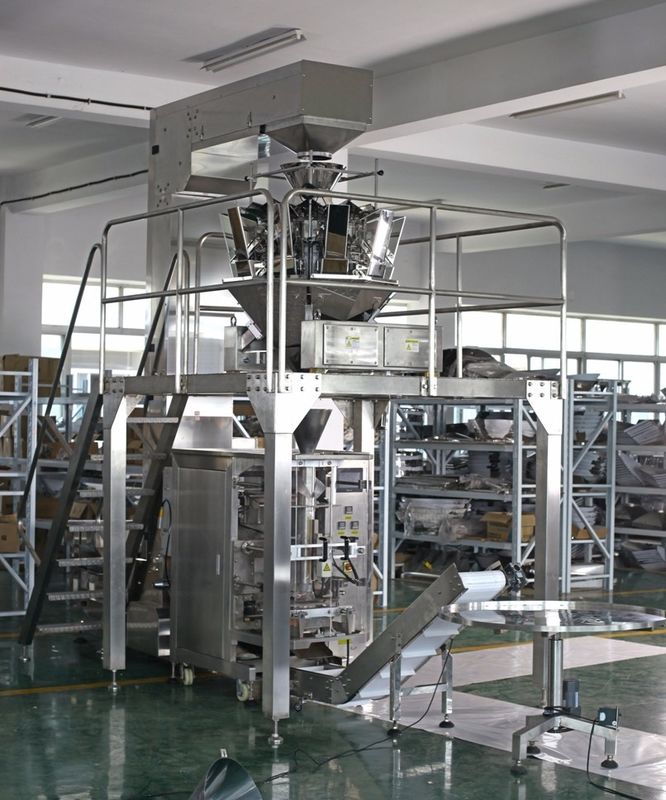

System Composition
1. Infeed bucket conveyor:
Feed material to multihead weigher
2. Multihead weigher:
For product weighing.There are different heads of multihead weigher.For example,10 heads,14 heads.
3. Working platform:
Support multi weigher.
4. Vertical packing machine:
Pack the material with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
