Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Puffed Food Packing Machine | It Can Make: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Weighing Range: | 5-2000g |
| Control: | Simemes PLC | Servo: | Siemens Brand |
| Accuracy: | +/-0.1g-1.5g | Vffs Model: | 520 |
| Bag Size: | 90-250mm 80-350mm | Maximum Film Width: | 520mm |
| High Light: | 5g Puffed Food Packing Machine,520mm Puffed Food Packing Machine,5g plantain chips packaging machine |
||
Easy operation 10 heads plantain chips packaging machine for food pouch
Technical Feature
1. High weighing accuracy: it can effectively solve the contradiction between speed and accuracy.
2. Fast packaging speed: bagging unloading does not affect the feeding measurement, saving 1/3 of
the working time.
3. Easy and fast operation: the instrument or touch screen can set parameters quickly.
4. Compact structure and easy installation: floor type installation structure, connected to the power and air
source can work.
| Technical Specification | |
| Model | ZH-BL10 puffed food packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET;PE film |
| Range of measuring (g) | 5-5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 520: (W) 90-250 (L)80-350 |
| Multihead weigher it can match | 10 heads 14 heads 20 heads weigher |

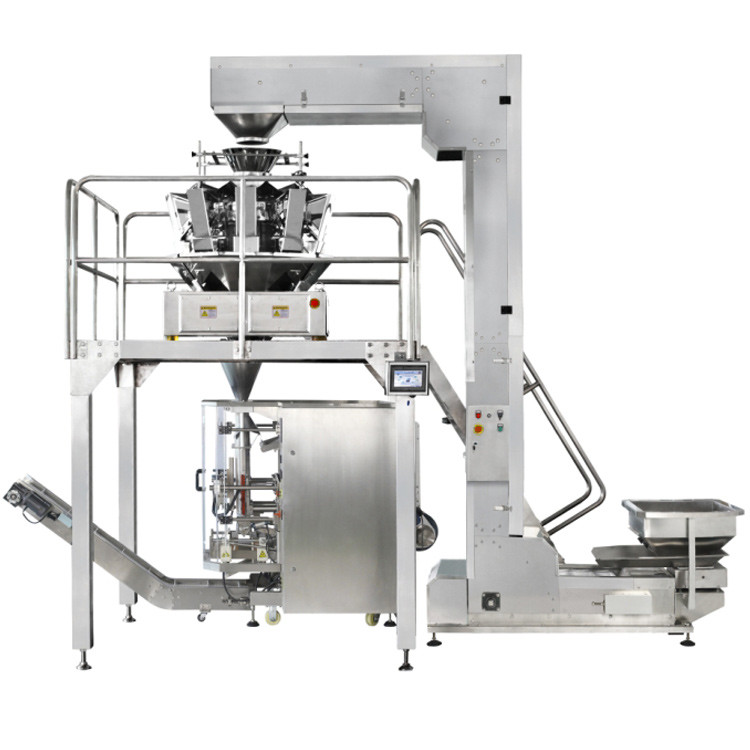

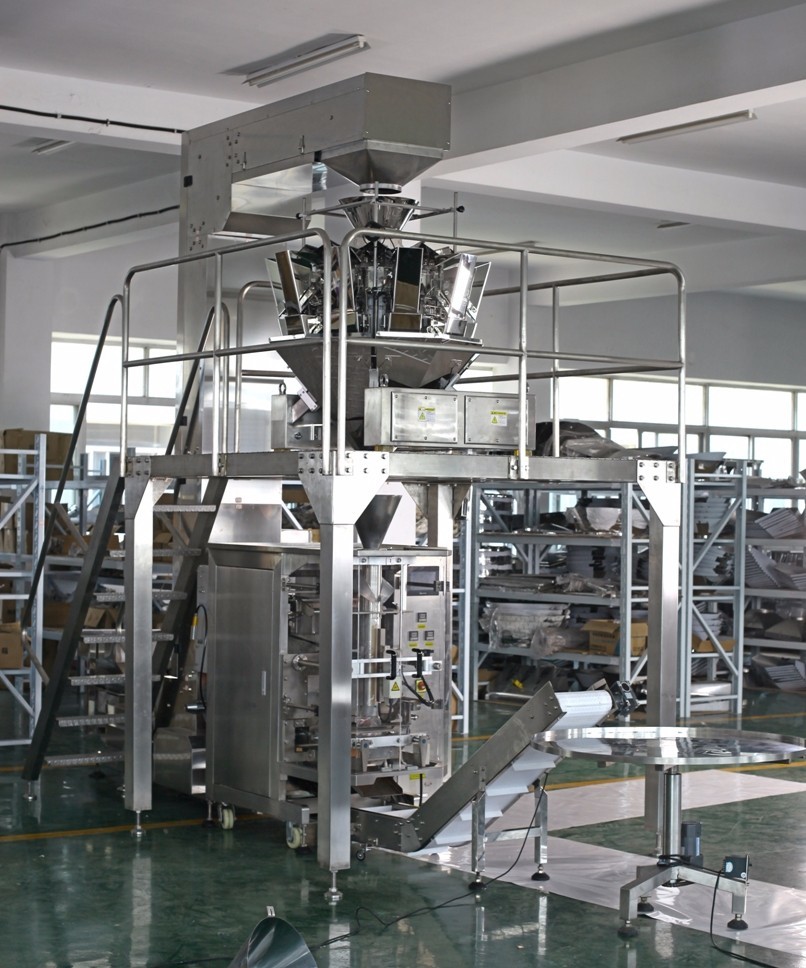

Whole packing line:
1. Infeed bucket conveyor:
Feed product to multihead weigher

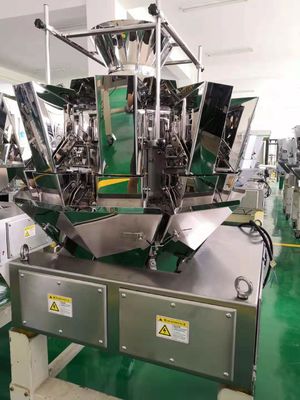

2. Multihead weigher:
For product weighing.There are different heads of multihead weigher.
3. Working platform:
Support multihead weigher.
4. Vertical packing machine:
Pack the product with high speed, and date printed, sealing-off and bag cutting is completed automatically.
5. Finishe bag conveyor:
Convey the finished bag to rotary table.

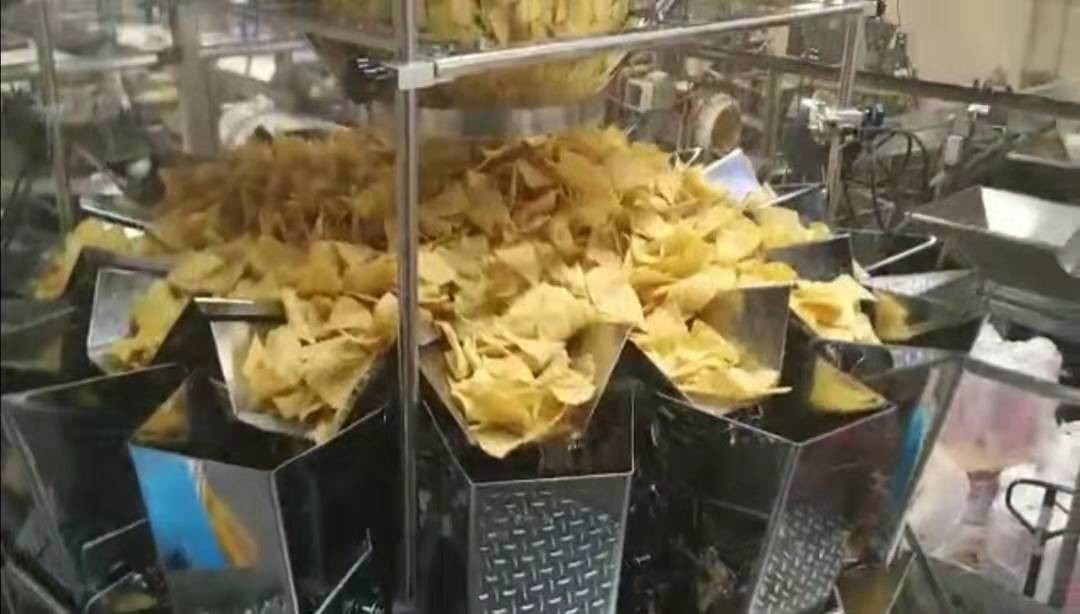

Application of Machine
Machine Details

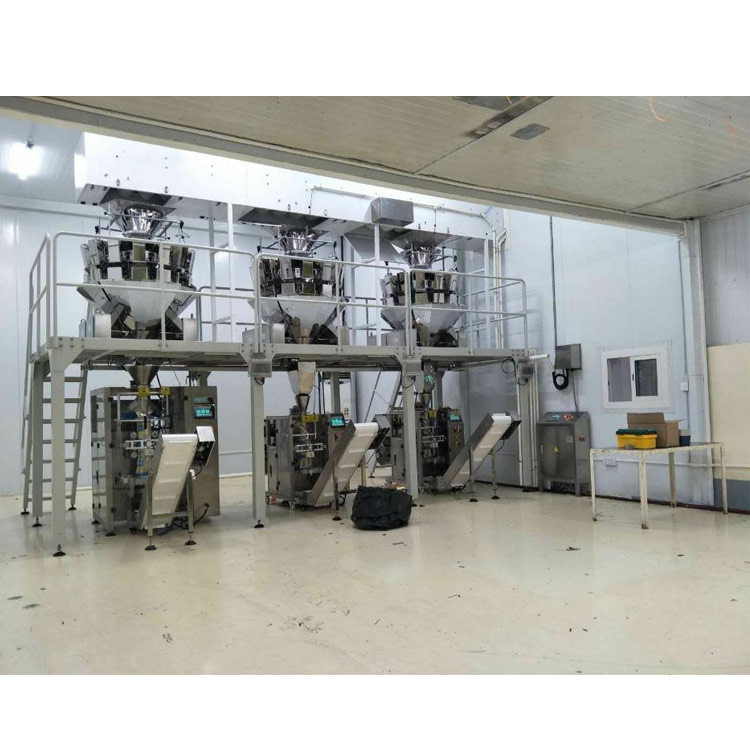

Our projects in the world
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
