Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BG10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 35000-40000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-35 Working days |
| Payment Terms: | L/C, D/A, Western Union, D/P, T/T |
| Supply Ability: | 199 Sets per month |
| Name: | Multihead Weigher Packing Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Packaging Type: | Flat Pouch,stand-up Pouch ,zipper Bag | Function: | Filling ,weighing ,sealing |
| Packing Speed: | 30-50bags/min | Packaging Accuracy: | ±0.1-1.5g |
| Working Position: | Six Or Eight | Power: | 380V 50/60HZ |
| High Light: | 5g automatic weighing and bagging machine,0.1g automatic weighing and bagging machine,5g premade pouch packaging machine |
||

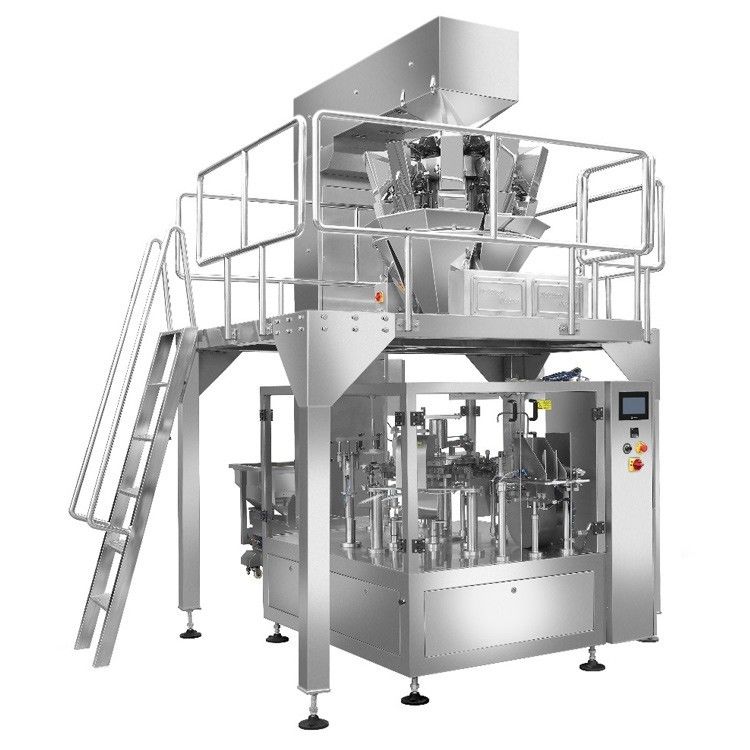

Multifunction industrial multihead weigher packing machine for premade pouch
Technical Feature
1. Wide applications: various state and nature of solid(granule);
2. A wide range of pouches: all kinds of pre-made pouches;
3. Easy to operate: PLC controller, HMI system makes easy operation;
4. Easy to adjust: change different pouches within 10 minutes;
5. High automation: unmanned in weighing and packing process, machine alarm automatically when failure;
6. Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing,
so the bags can be reused and the product is not wasted thus save the production cost;
7. The product contact parts are adopted SUS304 to ensure sanitation and safety, meet the GMP standard;
8. Imported engineer plastic bearings, no need to oil, no contamination;
9. Vacuum generator: low consumption, high efficiency, cleaness, and long useful life;
10. Pre-made bag packing: perfect sealing quality, upgrade the finished product.
| Technical Specification | |
| Model | ZH-BG10 |
| Packing Speed | 30-50 Bags/Min |
| Packaging Accuracy | ±0.1-1.5g |
| System Output | ≥8.4 Ton/Day |
| Bag types | stand up bag,zipper bag,flat bag |
| Target weight | 5-5000g |
Application of Machine
All kinds of grains and solids material, like candy, nuts, raisins, peanuts, melon seeds, nuts,nutlet, chocolate,
preserved fruit,potato chips,biscuits,confect, camphorball, currant, almond,potato crisps, pet food, dilatant food etc
can be weighed by the ration. It is also suitable for weighing small hardware and plastic component.

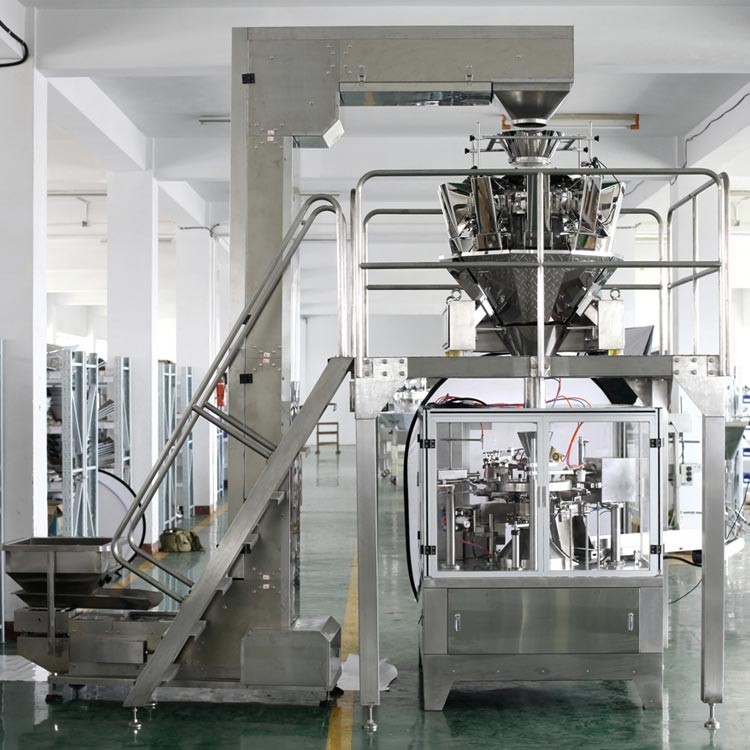

Unit system
1. Infeed bucket conveyor:
For feeding the product to multihead weigher.

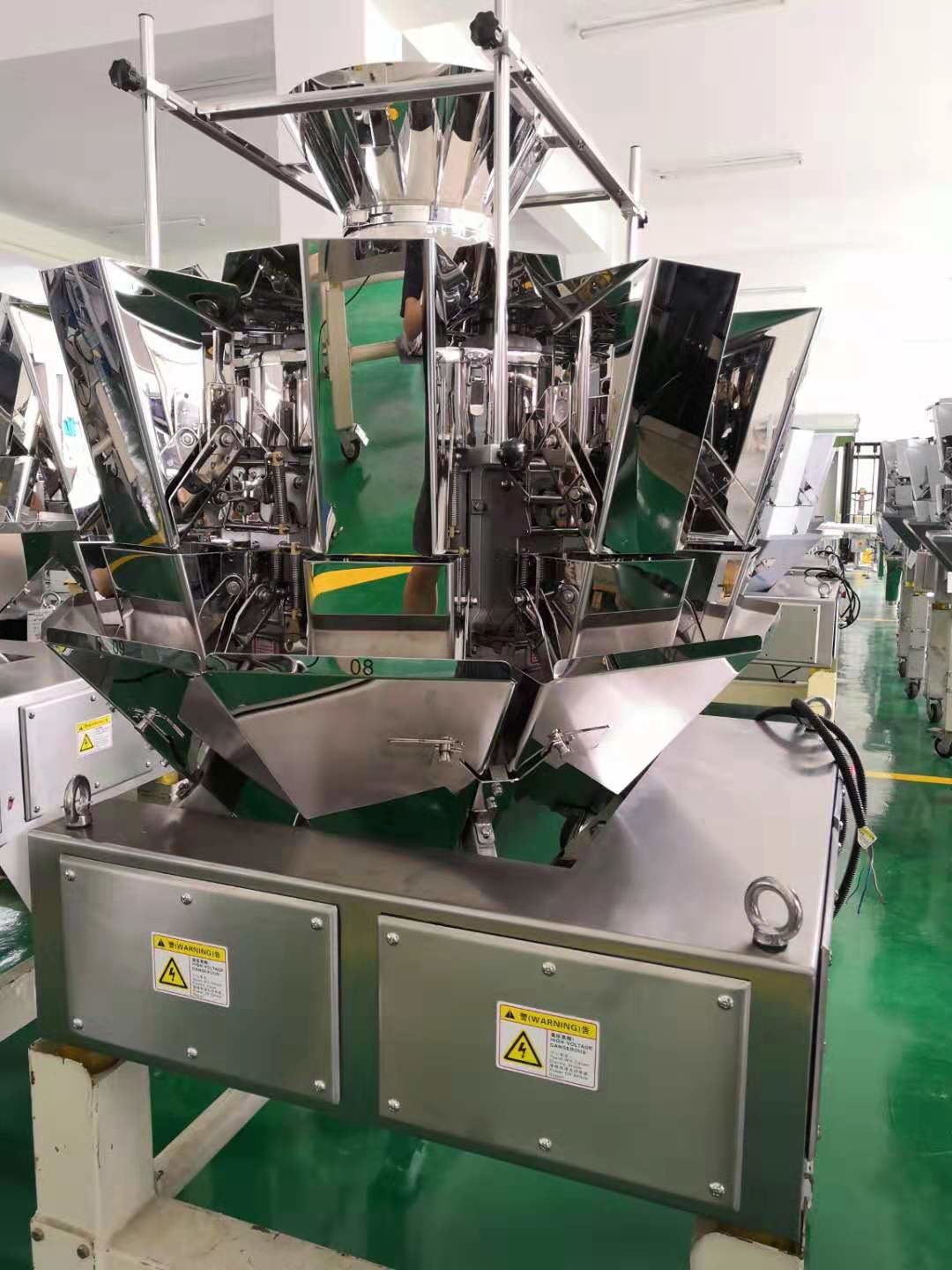

2. Multihead weigher:
For weighing the product.
3. Working platform:
For supporting the multihead weigher.
4.Rotary packing machine:
For premade bag sealing .
Bag type of machine:
More details of machine
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
