Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BG10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 35000-40000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-35 Working days |
| Payment Terms: | L/C, D/A, Western Union, D/P, T/T |
| Supply Ability: | 199 Sets per month |
| Name: | Multihead Weigher Rotary Packing Machine | Packaging Type: | Flat Pouch,stand-up Pouch ,zipper Bag |
|---|---|---|---|
| Application: | Chemical, Commodity, Food, Machinery & Hardware | Working Position: | Six Or Eight |
| Control: | PLC | Function: | Filling ,weighing ,sealing |
| Language: | Multi-language | Packing Speed: | 30-50bags/min |
| Packaging Accuracy: | ±0.1-1.5g | Power: | 380V 50/60HZ |
| High Light: | 5g Multihead Weigher Packing Machine,400mm Multihead Weigher Packing Machine,ZH-BG10 cereal packing machine |
||

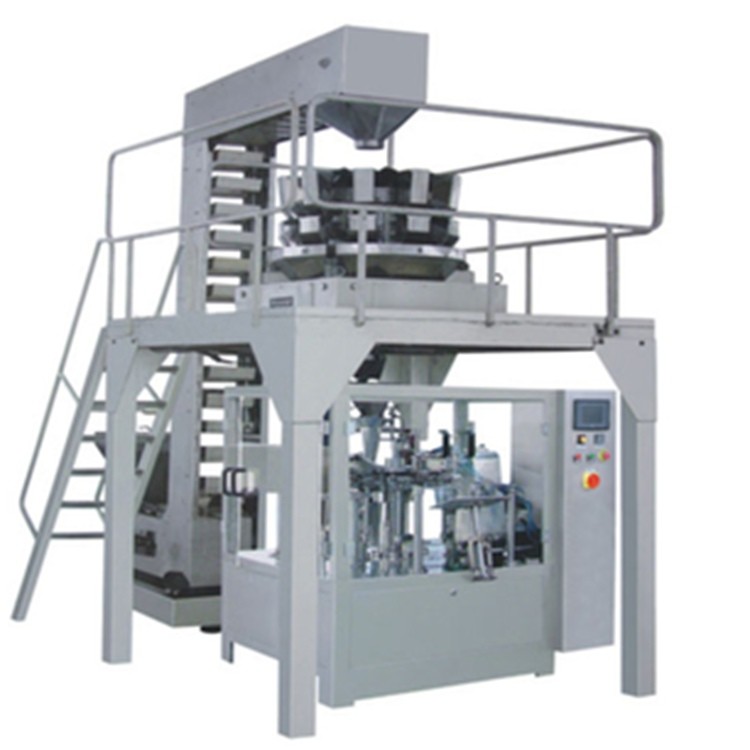

Multi-language ZH-BG10 multihead weigher rotary packing machine for cereal rice
Technical Feature
1) Easy to operate and maintance,running faster and more stable .
2) Low failure and energy consumption, Durability and wear resistance .
3) PLC Control the failing action of measuring device for no waste of material.
4) Running in a high automatization and intellectualization,no pollution
5) Empty bag sealing prevention control to save bags.
6) Customized professional solutions for clients customization service .
| Technical Specification | |
| Model | ZH-BG10 |
| Packing Speed | 30-50 Bags/Min |
| Packaging Accuracy | ±0.1-1.5g |
| System Output | ≥8.4 Ton/Day |
| Bag Size |
Width:100-300 Length:150-400mm
|
| Bag types | All kinds of compound bags, such as...Stand up pouch, Flat pouch, PE pouch, Gusset pouch,Zipper pouch, Paper pouch,etc. |
| Target weight | 5-5000g |
Application of Machine
It is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy,
chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts,
coffee bean, chips ,raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable,
dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc.
Unit system
1. Infeed bucket conveyor:
For feeding the product to multihead weigher.
2. Multihead weigher:
For weighing the product.
3. Working platform:
For supporting the multihead weigher.
4.Rotary packing machine:
For premade bag sealing .

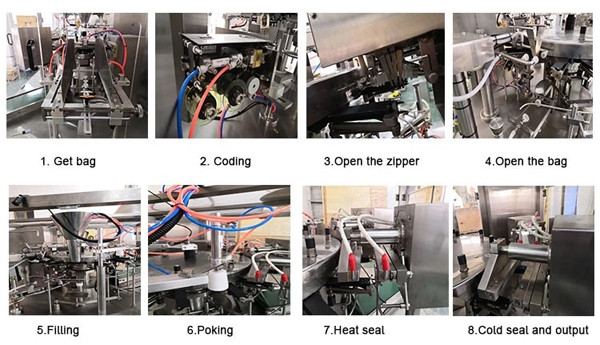

Station process:
1. Bag Feeding 2. Date Coding 3. Bag Opening 4. Filling
5. Filling 6. Stand by 7.Heat Sealing 8.Forming & Output
More details of machine

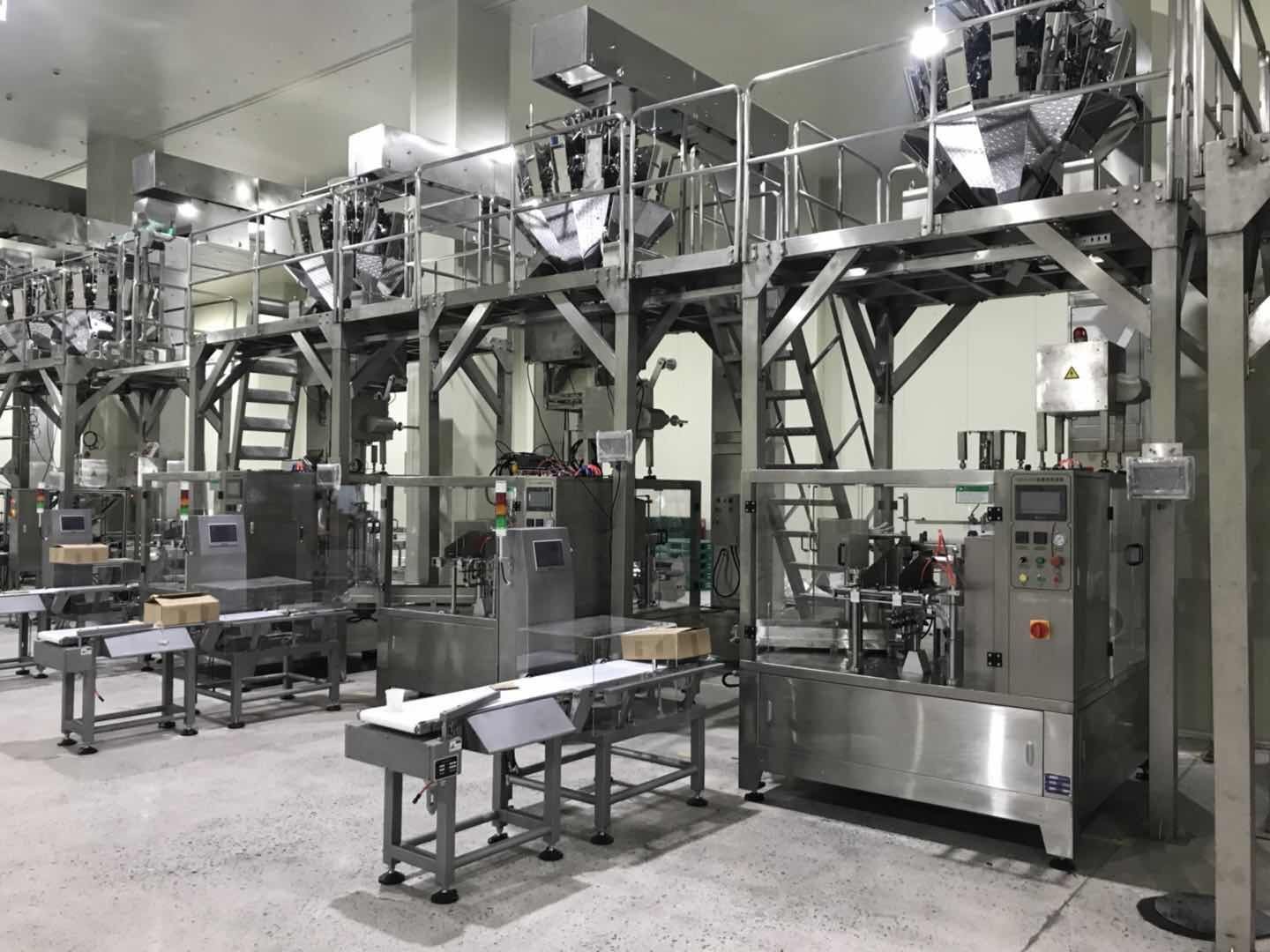

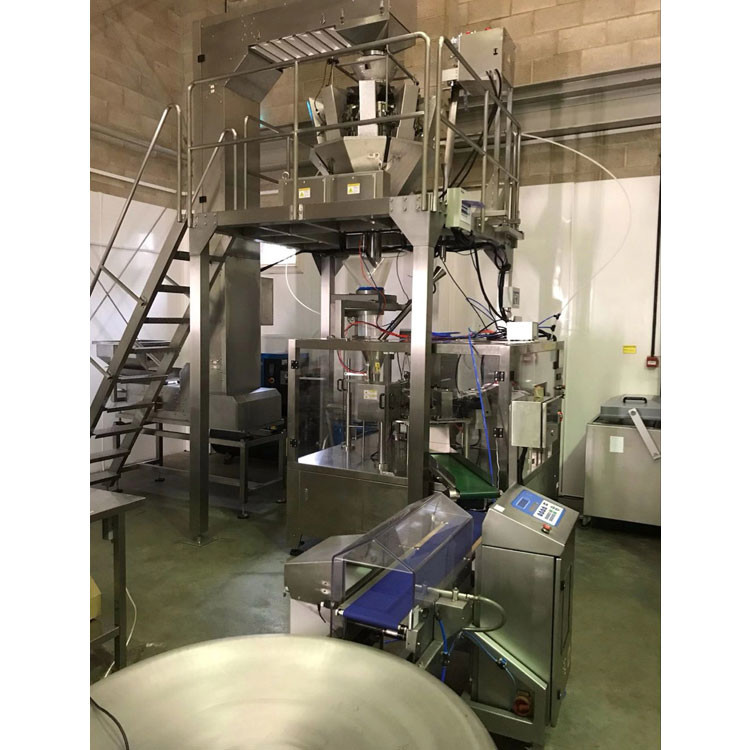

Our cases
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
