Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD+23000USD+per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-40 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 99+ Set+ per+ month |
| Material: | 304SS | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Function: | Feeding,Filling ,Weighing,Sealing |
| Name: | Fully Automatic Vertical Packing System | Speed: | 20-65bags/min |
| Accuracy: | ±0.1-1.5g | Feature: | High Weighing Precision And Efficiency |
| System Output: | 8.4Ton/Day | ||
| High Light: | 0.04mm Nuts Packing Machine,1.5g Nuts Packing Machine,0.04mm potato chips packing machine |
||

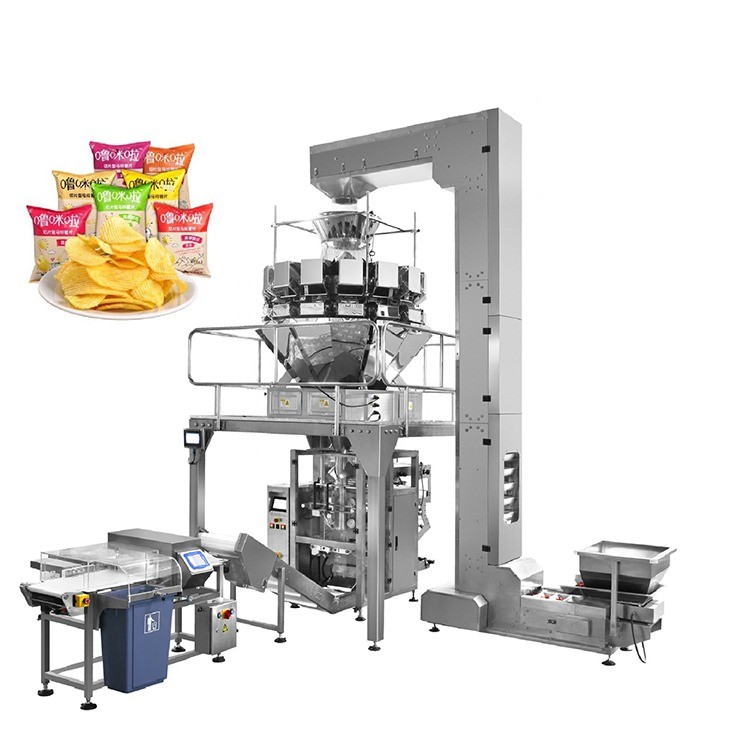

15 year experence Automatic weighing snacks popcorn potato chips vertical packing machine with nitrogen
| Technical Specification | |
| Model | ZH-BL10 / ZH-BL14 |
| Packing Speed | 25-60 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag,linked bag |
| Packing Material | laminated film ,PE film |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Technical Feature :
1. 304/316 stainless steel frame
5. Intelligent: Packing speed and bag size can be set through the screen without part changes;
6. Packaging diversification, such as pillow bag, gusseted bag, hole punched bag etc.
7. Full automation from bag forming, filling, sealing, cutting and date printing.
8. Profession: Independent temperature controller with heat balance enables different packing materials;
9. Characteristic: Automatic stop function, with safe operation and saving the film;

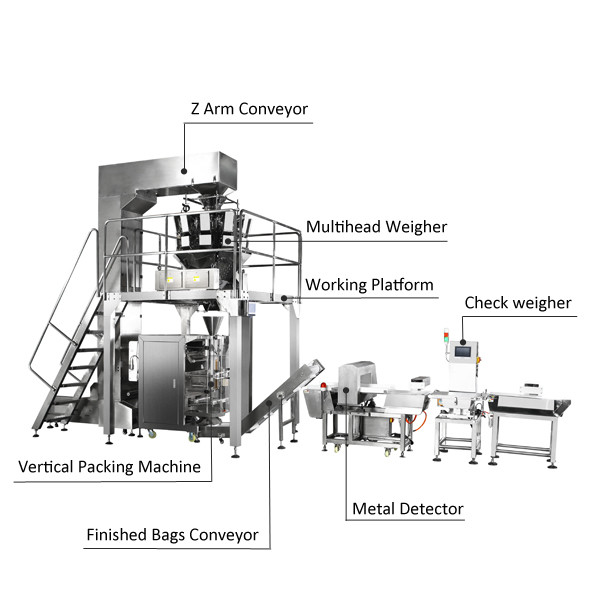

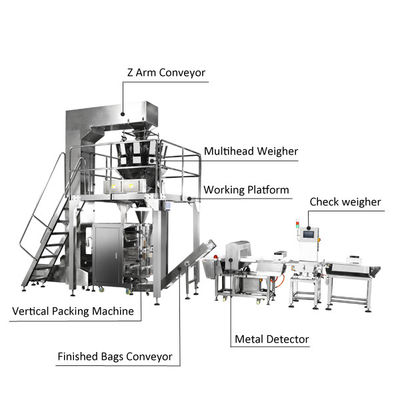

System Compostion :
1. Infeed bucket conveyor:
Feed nuts to multihead weigher which controls the start and stop of the hoister.
2. 10 heads multi weigher:
Used for nuts weighing.
3. Working platform:
Support the 10 heads multi weigher.
4. Vertical packing machine:
Pack nuts with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Take off conveyor:
Convey nuts finished bag to next step.
Application of Machine
It is suitable for weighing and packing sunflower seeds, peanut, nuts, beans, potato chips, popcorn, almond, dry fruit, vegetable salad, frozen food, jelly, biscuit, chocolate, filbert, corn, pet food, dilatant foodstuff, hardware, etc.
Food Materials and Bag Type :

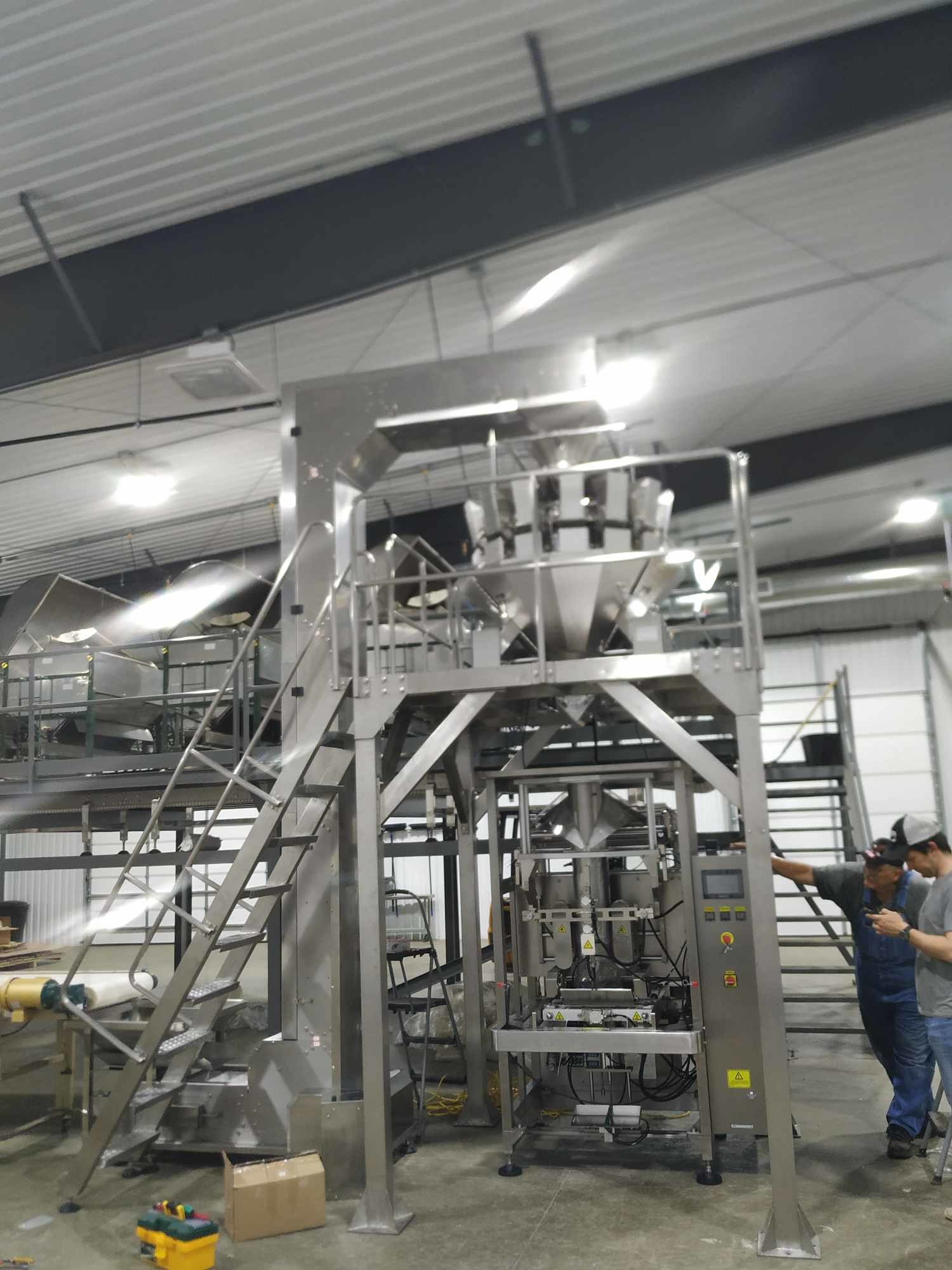

Some Project :
Our Factory:
