Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China,zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-A4 |
| Minimum Order Quantity: | 1SETS |
| Price: | USD+3800+Sets |
| Packaging Details: | wooden case |
| Delivery Time: | 10-20working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 99+sets+per month |
| Automatic Grade: | Automatic | Condition: | New |
|---|---|---|---|
| Driven Type: | Electric | Application: | Food, Commodity, Medical, Chemical, Machinery & Hardware |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support | Power: | 220V / 50/60HZ / 8A/ 800W |
| Name: | ZH-A4 Linear Weigher | Weighing Range: | 10-2000g |
| Feature: | It Have Plate Type And Dimple Type | Frame: | 304SS 316SS |
| High Light: | 3000ml 4 head packing machine,ZH-A4 4 head packing machine,3000ml 4 head linear weigher |
||

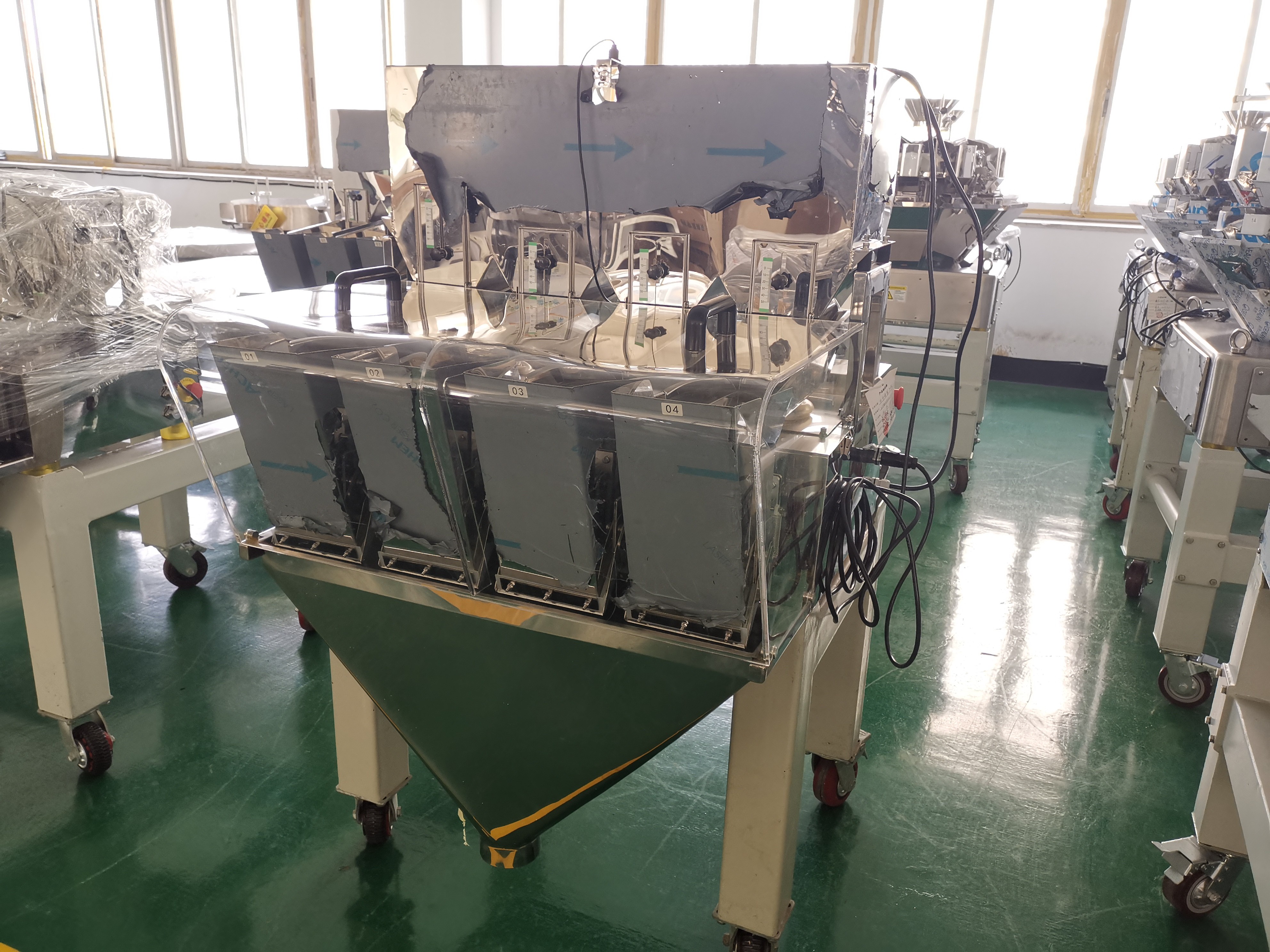

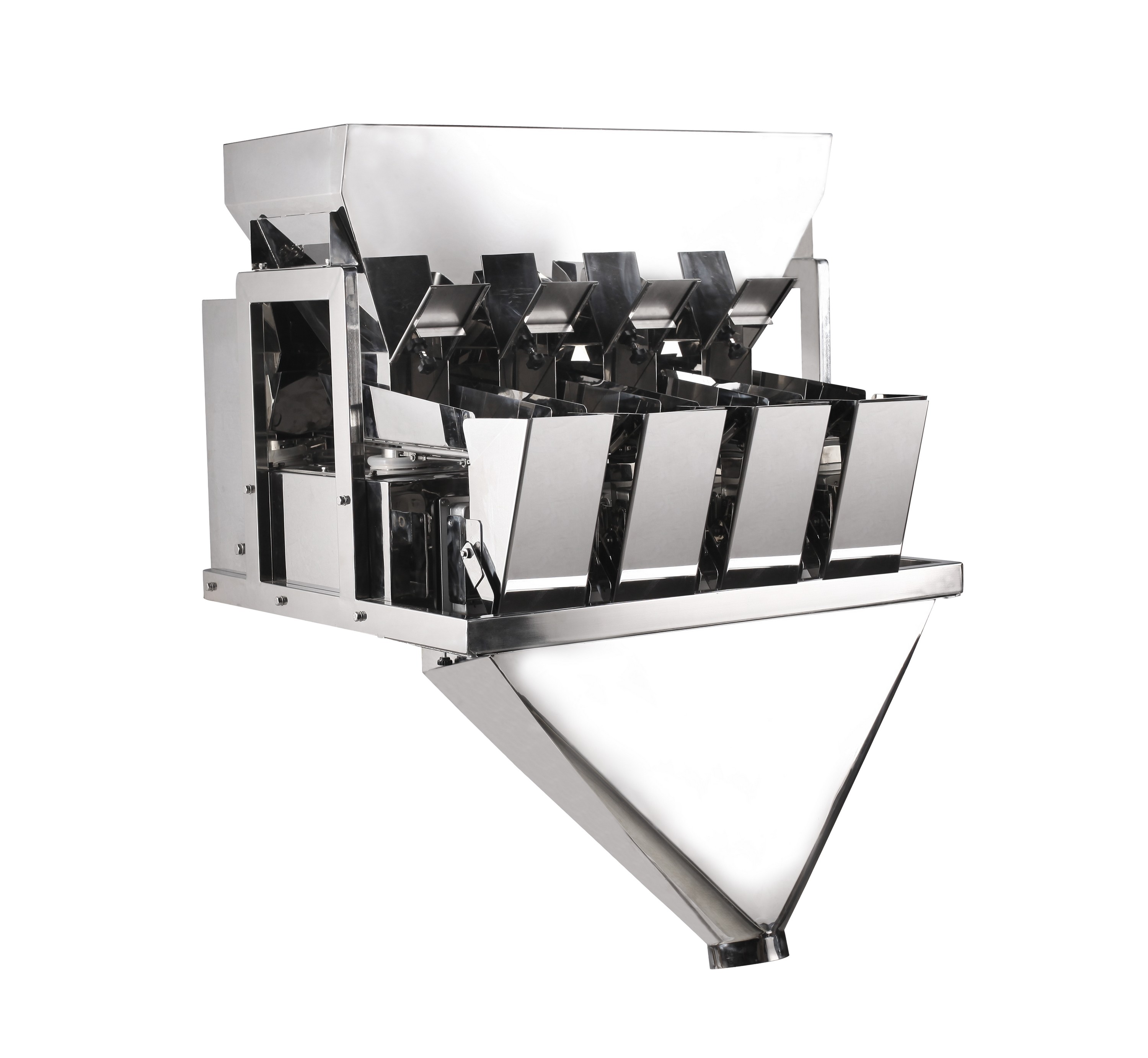

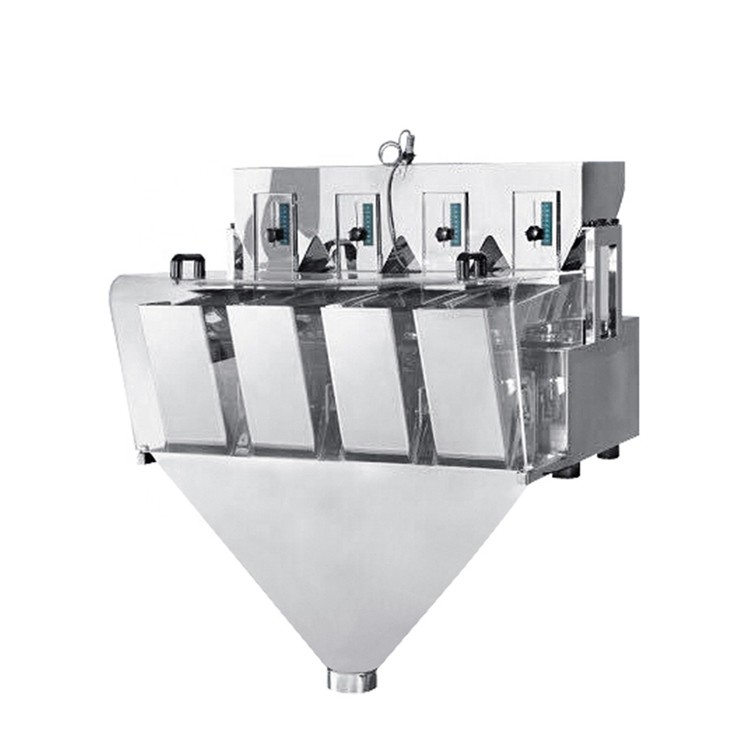

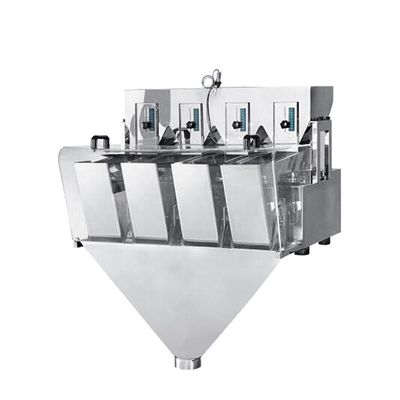

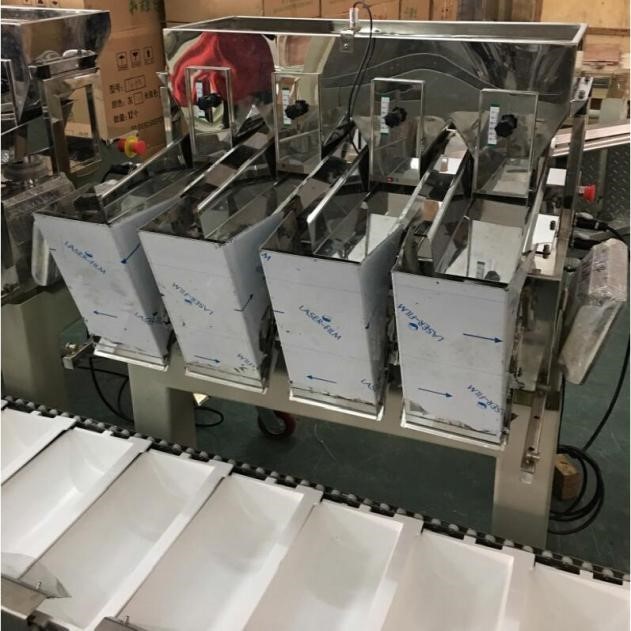

1 year warranty ZH-A4 linear weigher for tea nuts dry fruit peanut packaging machine
1 .Parameters
| Model | ZH-A4 |
| Weighing Range | 10-2000g |
| Max Weigh Speed | 60 Bags/Min |
| Accuracy | 0.2-2g |
| Hopper Volume | 3000ml |
| Max Products | 4 |
| Interface | 5.4"HMI |
| Power | 220V / 50/60HZ / 8A/ 800W |
| Dimension(mm) | 1010(L)*960(W)*1207(H) |
2 . Application of ZH-A4 4 Head Linear weigher
ZH-A4 is developed for precise and high-speed quantitative weighing packaging system. It is suitable for weighing material of small grain with good uniformity, such as oatmeal, sugar, salt, seeds, rice, sesame, milk powder coffee, etc.In addition, this type of weigher is often used for semi-automatic applications such as filling preformed bags, jars and dishes.
3 . Main function
1 . Adopt high precision digital load cell, famous brand PLC, stable operation.
2 . Touch screen with human-based interface.
3 . Chinese/English/Spanish multi language operation system can be selected basing on customer’s requests.
4 . The 4head linear weigher can work with different type packing machine,It's very easy to install and opeartion.
5 . Linear weigher Scale,There are two moldels with either 2 heads or 4 heads .
6.The hoppers are easy to remove without tool.
Our factory :
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support.
* Training how to install the machine, training how to use the machine.
* Sample testing support.
* Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to providing
customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted
