Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-CQ1 |
| Minimum Order Quantity: | 1 Set |
| Price: | 3500-4500USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 299 Sets per month |
| Name: | Incline Conveyor | Baffle Distance: | 254mm |
|---|---|---|---|
| Baffle Height: | 75mm | Capacity: | 3-7m3/h |
| Power: | 0.75KW | Belt Material: | PP Plate Or PU/PVC |
| Output Height: | 3100mm | Top Height: | 3500mm |
| High Light: | 3500mm Incline Conveyor With Hopper,3100mm Incline Conveyor With Hopper,3500mm incline belt conveyors |
||

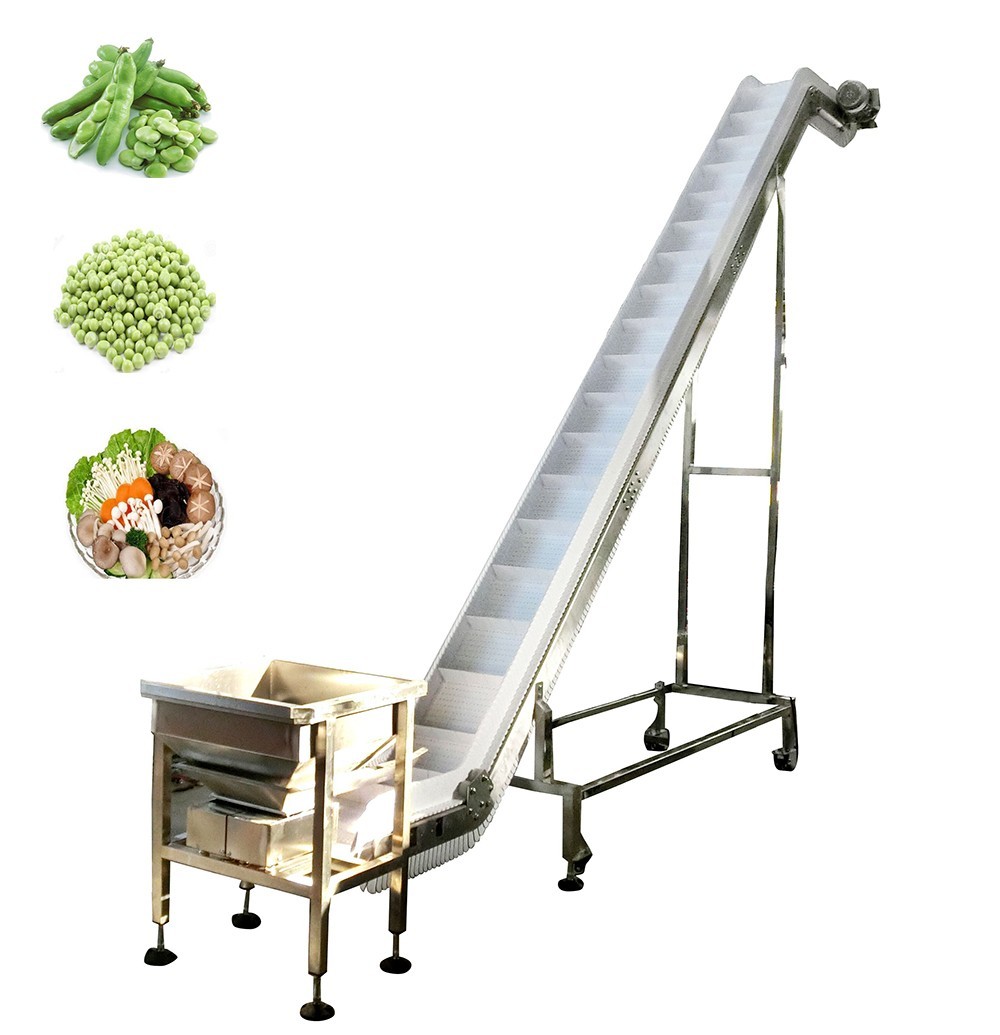

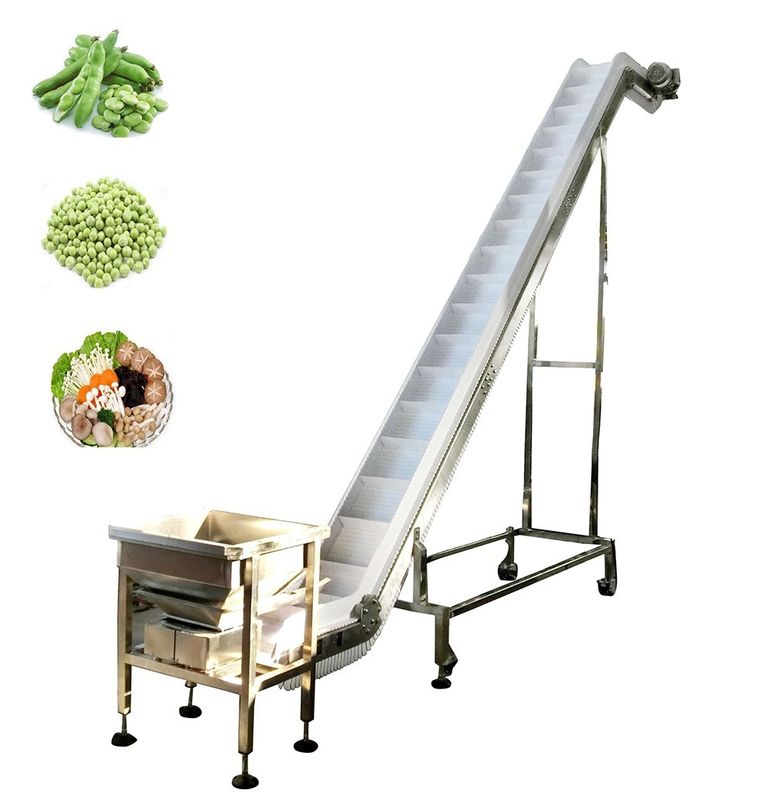

High capacity PVC PU belt incline conveyor with hopper for granule
Technical Feature
1. The incline conveyor are made of a food grade reinforced polypropylene, molded in one piece and
can handle temperatures from -10 to 120 degrees Fahrenheit.
2. The incline elevators allow for controlled feeds at one or more locations and can easily interface.
| Technical Specification | |||
| Model | ZH-CQ1 | ||
| Baffle Distance | 254mm | ||
| Baffle Height | 75mm | ||
| Capacitance | 3-7m3/h | ||
| Output Height | 3100mm | ||
| Top Height | 3500mm | ||
| Frame Material | 304SS | ||
| Power | 750W/220V or 380V/50Hz | ||
| Weight | 350kg | ||
| Storage hopper size | 650mm*650 mm/ 800 mm *800 mm/ 1000 mm *1000 mm | ||
Machine Application:
The conveyor is applicable for conveying vegetable and fruit .

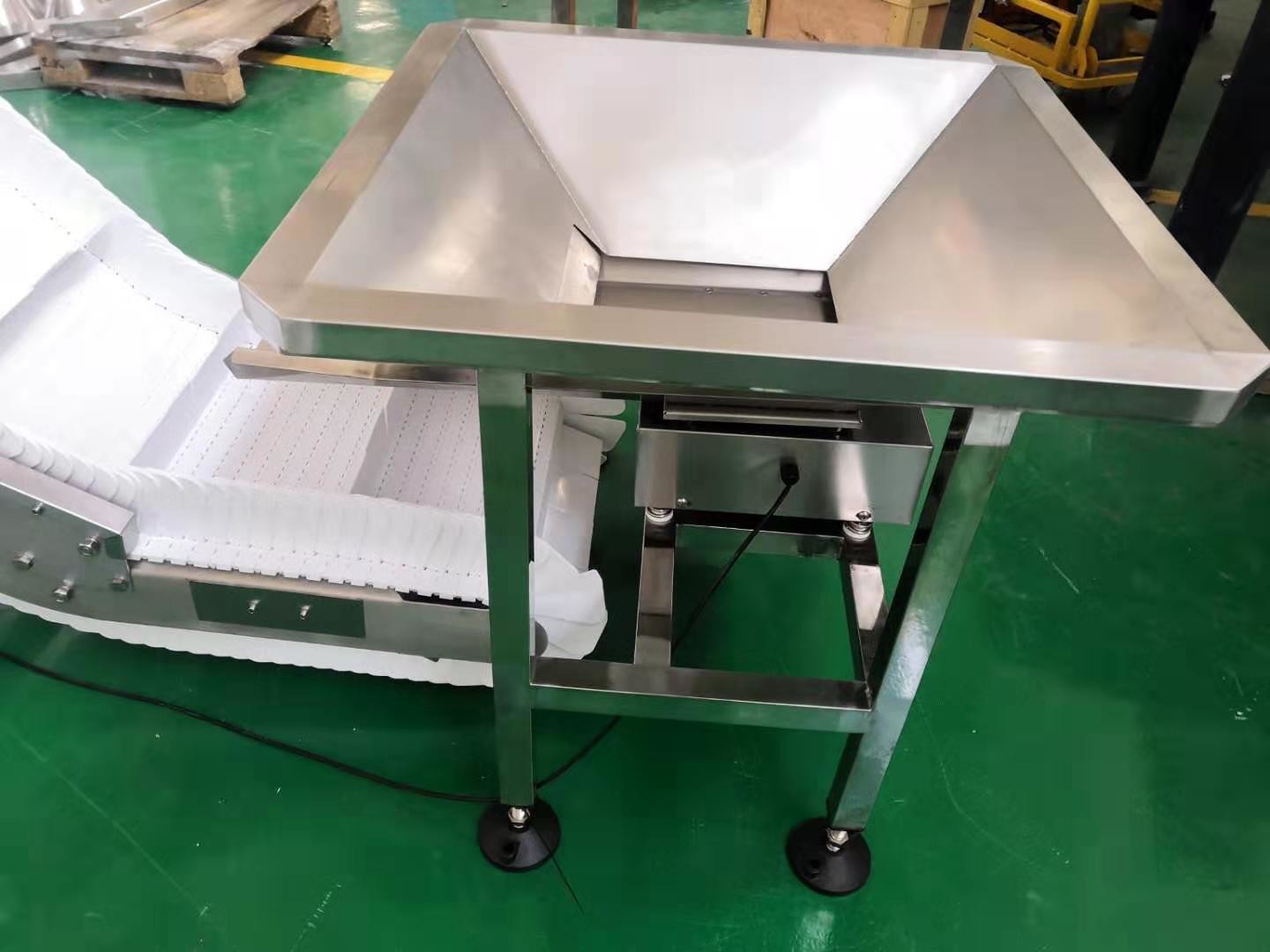

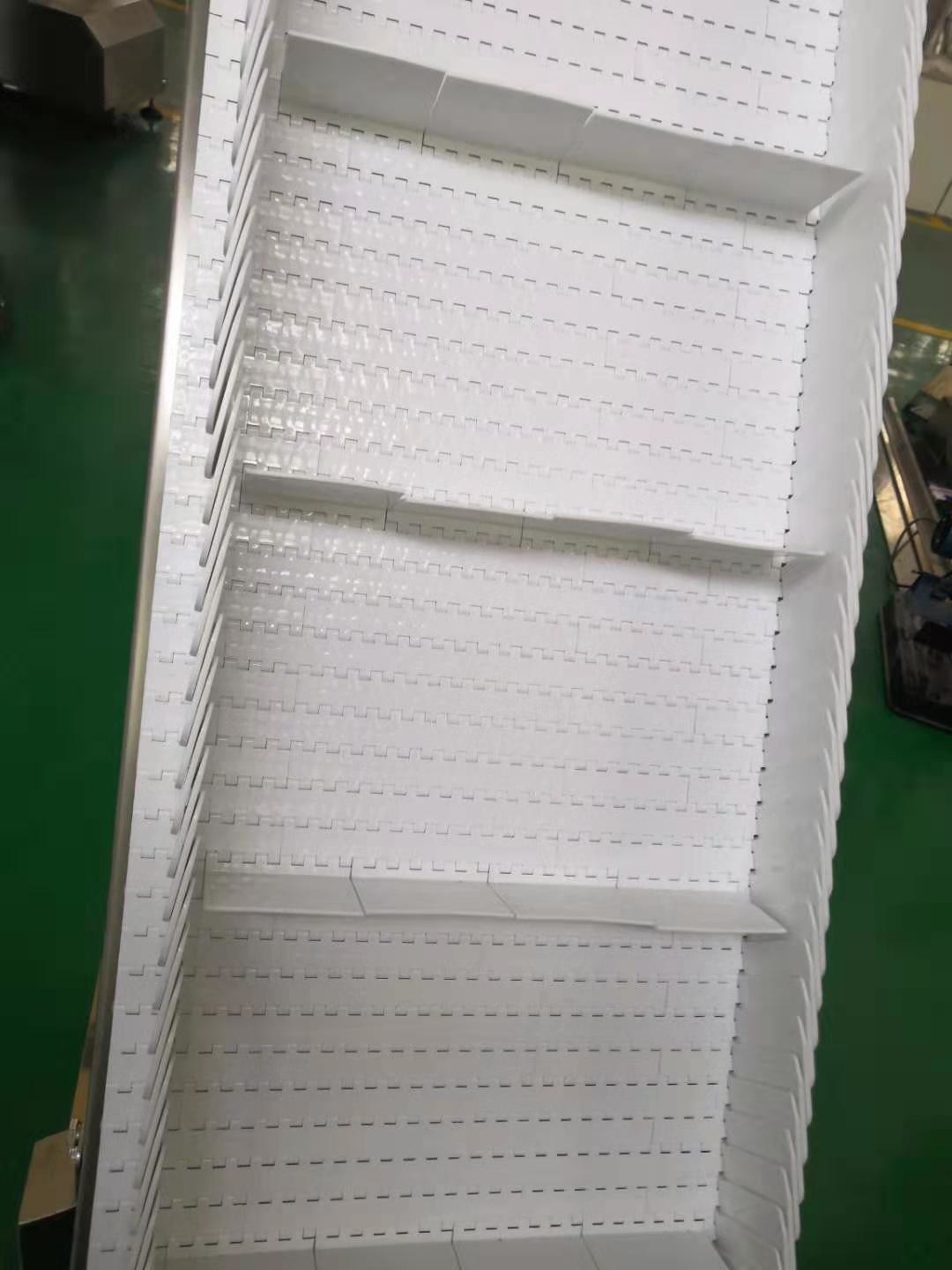

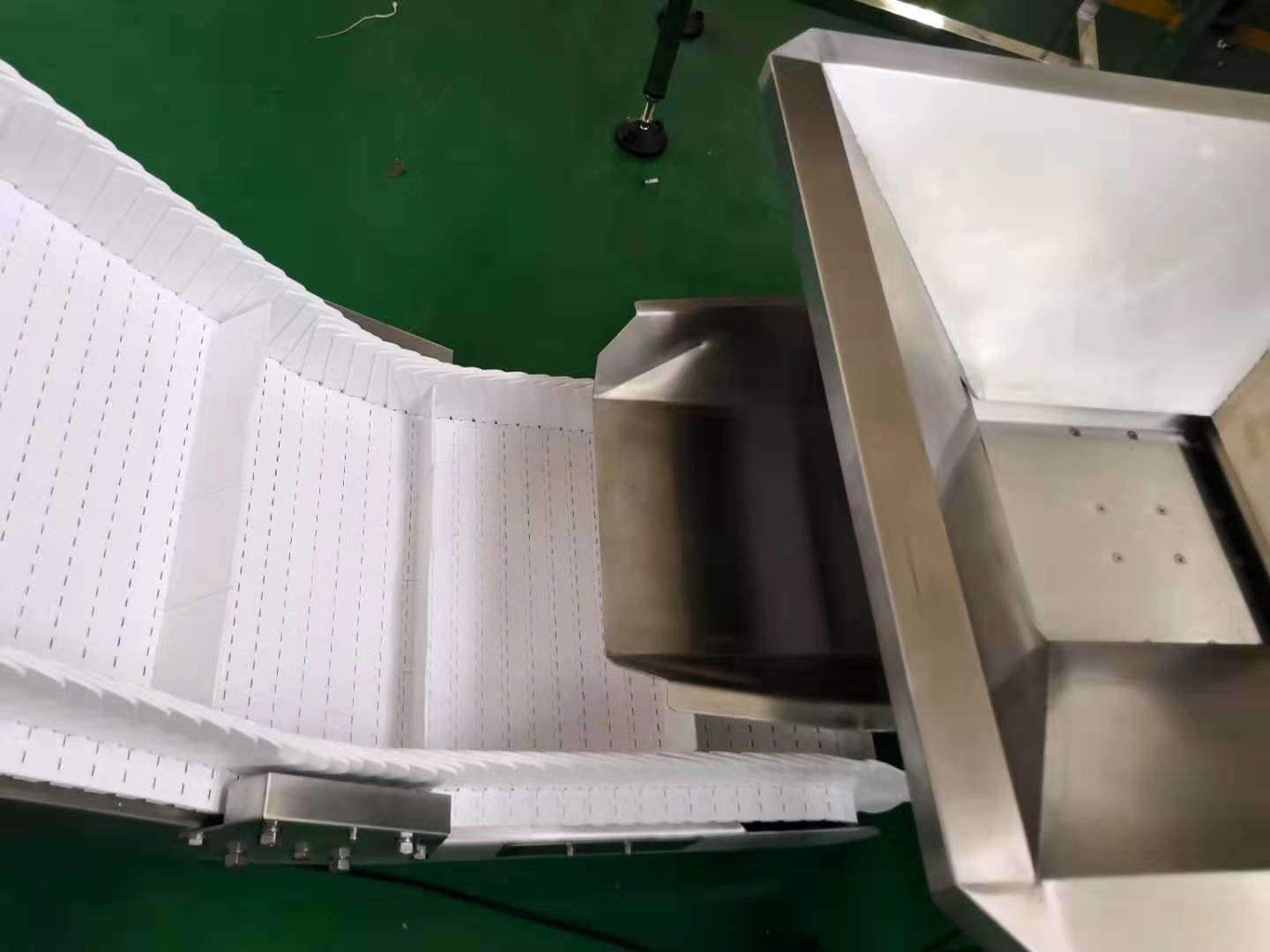

Machine Details
Case Shows
