Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Zhejiang，China |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE,SGS |
| Model Number: | ZH-BR10 |
| Minimum Order Quantity: | 1 set |
| Price: | USD+15000-18000 per set |
| Packaging Details: | wooden case |
| Delivery Time: | 20-25working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199+sets+per |
| Type: | Multi-Function Packaging Machine | Function: | FILLING, Laminating, Sealing, BOXING |
|---|---|---|---|
| Packing Accuracy: | 0.1-1.5g | Material: | Stainless Steel 304 |
| Packaging Material: | Plastic, Paper, Metal, Glass, Wood | Dimension(L*W*H): | 2100X1700X1750 |
| Production Capacity: | 15-35bags/min | Usage: | Stand Up Pouch Bag Packaging Machine |
| Keyword: | Packing Machine | ||
| High Light: | Material Conveying Semi Automatic Packaging Machine,35bags/min Semi Automatic Packaging Machine,Stainless Steel 304 semi packing machine |
||

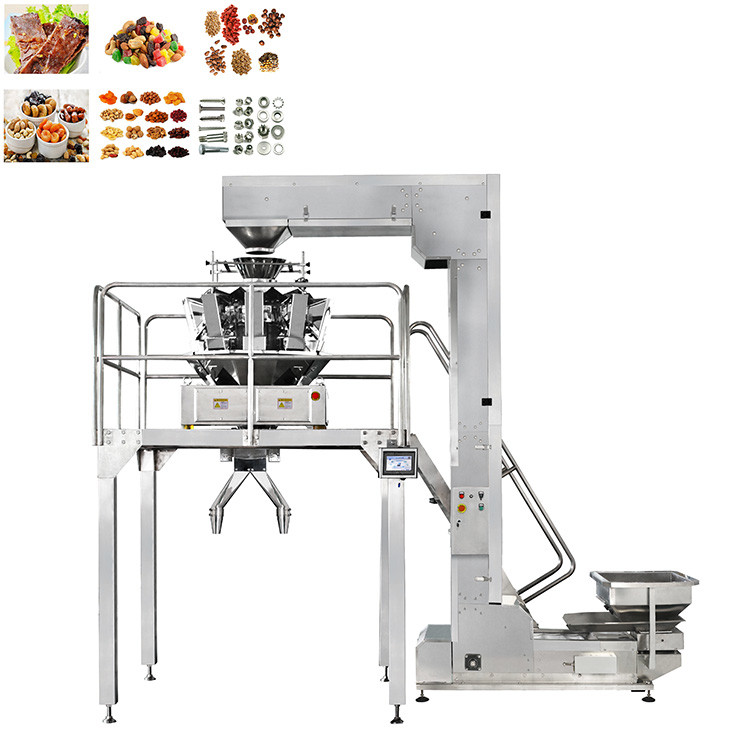

ZH-BR10 Artificial Material Semi-Automatic Packing Machine System For Grain Stick Slice Packaging Machine
High efficient ZH-BR10 semi automatic weighing and packing machine for sugar
| Technical Specification | |
| Model | ZH-BR10 sugar packing machine |
| System Output | ≥4.8 Ton/Day |
| Packing Speed | 15-35 Bags/Min |
| Packing Accuracy | ±0.1-1.5g |
| Technical Features |
| 1. Material conveying, weighing are completed automatically. |
| 2. High precision weighing and material dropping is controlled by manual with low cost system. |
| 3. Easy to upgrade to automatic system. |
| 4. Human-machine operation, convenient and quick parameter setting. |
Application of this machine
It can pack all kinds of grain material, sheet material, strip material and abnormity material ,which such as
candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond,
chocolate, filbert, corn, potato crisps, pet foodstuff, dilatant foodstuff, hardware and plastic.
Machine system
1.Infeed bucket conveyor:
For feeding the product to multihead weigher.

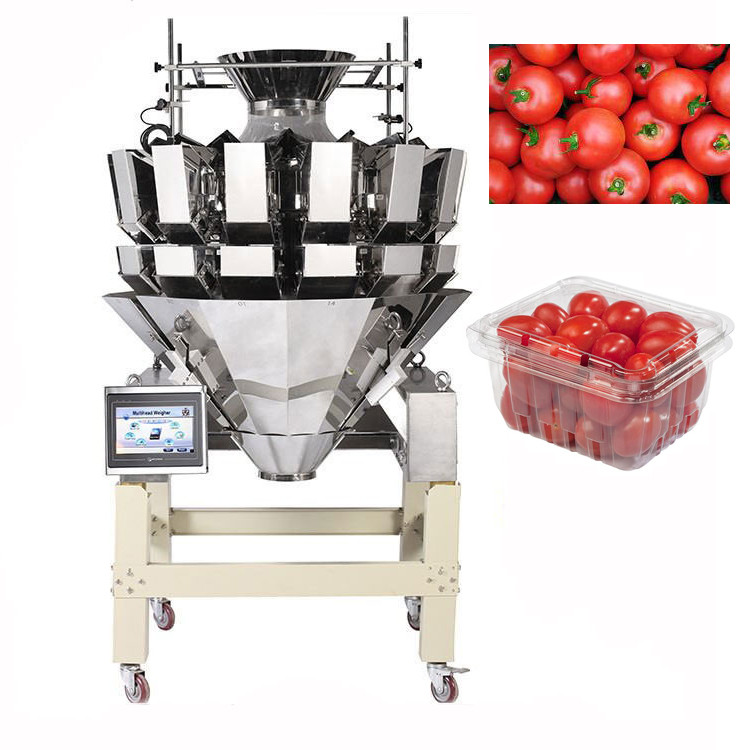

2. Multihead weigher:
For weighing the product.

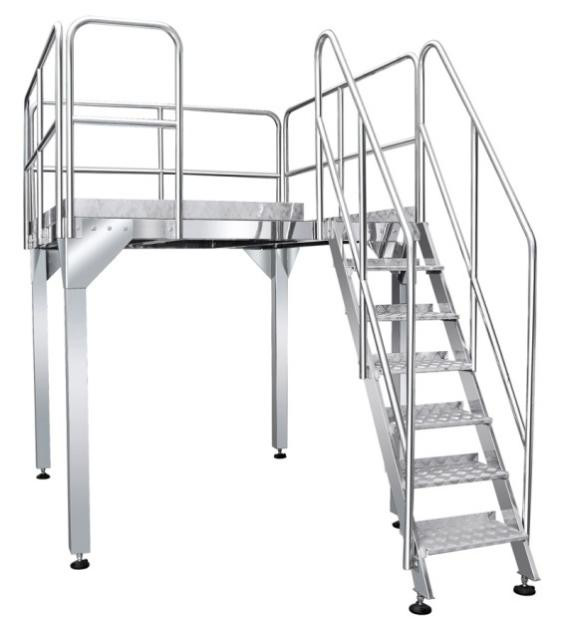

3. Working platform:
For supporting the multihead weigher.The standard size is 1.9*1.9*1.8m
4.Timing hopper with dispenser:
Timing hopper for collecting the product,and dispenser for discharging the product,it can suit for your
bag or jars mouth.

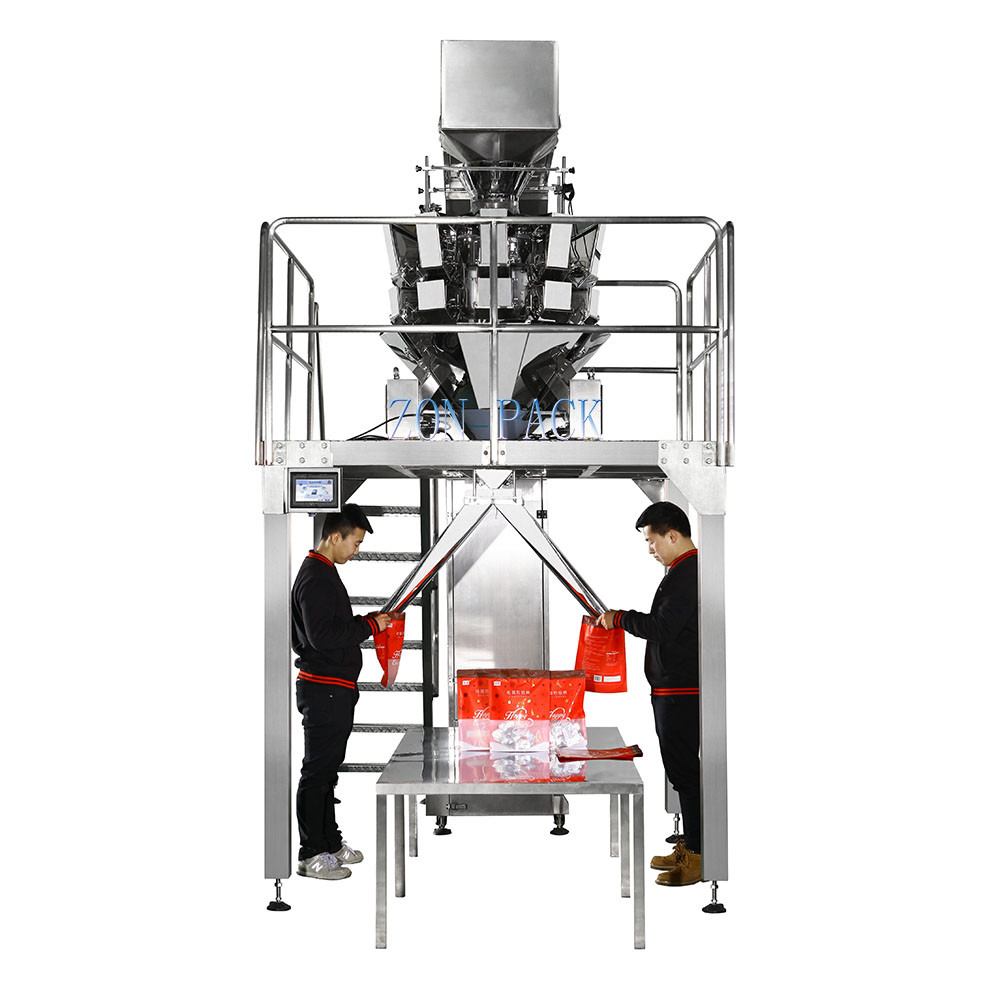

Machine Photos

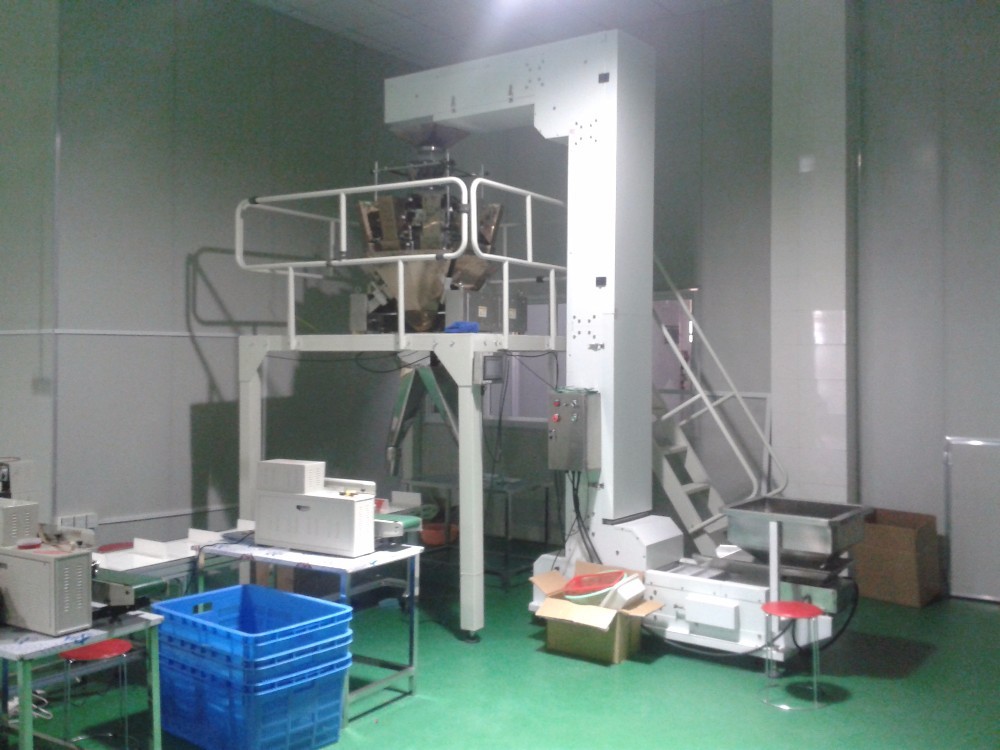

Our Cases
Our Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
