Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Hangzhou,Zhejiang,China |
|---|---|
| Brand Name: | Zonpack |
| Certification: | CE |
| Model Number: | ZH-V420 |
| Minimum Order Quantity: | 1Sets |
| Price: | USD8600-16000/Set |
| Packaging Details: | Wooden cases |
| Delivery Time: | 30-40days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 99sets/month |
| Application: | Packing Products | Feature: | Eaay To Operate |
|---|---|---|---|
| Technical Feature: | Perfect Alarm System | Packing System: | 35-50bags/min |
| Pouch Material: | BOPP/CPP | Bag Type: | Pillow Bag,Gusset Bag |
| Max Film Width: | 420mm | Net Weight: | 450kg |
| High Light: | Potato Chips Vertical Packing Machine,Gusset Bag Vertical Packing Machine,70Bags/Min Vertical Packing Machine |
||

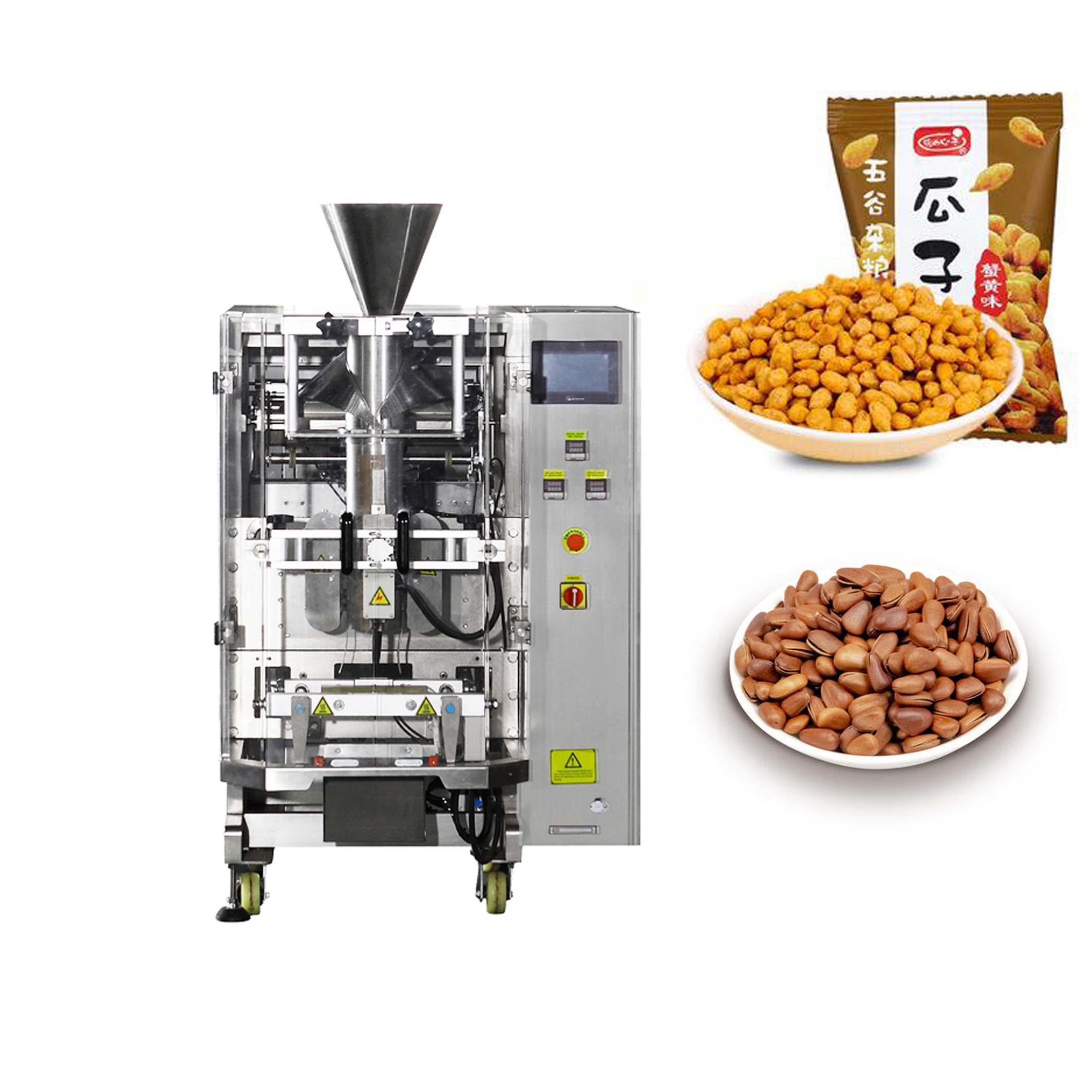

Multi-Function Potato Chips Nuts Packing Pillow Bag Gusset Bag Vertical Packing Machine
CE Automatic Food Pouch Packing Machine For Cereals Biscuit Dates Packing Machine ZH-V420
I . Technical Feature
1 . Computer control and English-Chinese touch screen for easy operation without stopping the unit
2 . Packaging diversification, such as pillow bag, gusseted bag, hole punched bag etc.
3 .Full automation from bag forming, filling, sealing, cutting and date printing.
4 .Intelligent temperature controller for easy adjustment and good application to various laminated film.
5 .Multi-heads scale filling system for filling accuracy and good application to various kinds of products.
II . Technical Specification
| Model | ZH-V420 |
| Packing speed | 25-70 Bags / Min |
| Bag size(mm) | (W) 60-200 (L) 60-300 |
| Bag size(mm) |
ZH-V320 (W) 60-150 (L) 50-200 ZH-V520 (W) 90-250 (L) 80-350 ZH-V620 (W) 100-300 (L) 100-400 ZH-V720 (W) 120-350 (L) 100-450 |
| Bag making mode |
Pillow bag, standing bag (gusseted), punch, Linked bag |
| Maximum width of packing film (mm) | 420 |
| Thickness of film (mm) | 0.04-0.09 |
| Air consumption | 0.4m3/min 0.6MPa |
| Packing Material |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET, |
| Power Parameter | 220V 50/60Hz 3KW |
| Package Volume (mm) | 1530(L)×970(W)×1700(H) |
| Gross Weight (kg) | 450kg |
III . Application of ZH-V420 Vertical Packing Machine
It is suitable for packing is suitable for pack all kinds of grain material, sheet material, strip material and abnormity material which such as candy, sunflower seeds, peanut, nuts, beans, potato chips, popcorn, almond, dry fruit, vegetable salad, frozen food, jelly, biscuit, chocolate, filbert, corn, pet food, dilatant foodstuff, hardware and plastic can be weighed by the ration.
Bag Type of Vertical Packing Machine :
Some case :
Our Factory :
Why choose ZONPACK :
ZonPack have professional great and experience engineer team to service each customer.One Designer and one technical engineer to serve one customer team.
Over 15 years experience of weighing and packing solution.
60 countries customer choices.
