Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Hangzhou,Zhejiang,China |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE |
| Model Number: | ZH-BL |
| Minimum Order Quantity: | 1Sets |
| Price: | USD21000-26000/SET |
| Packaging Details: | Wooden cases |
| Delivery Time: | 30-40days |
| Payment Terms: | L/C, D/A, T/T, MoneyGram, Western Union |
| Supply Ability: | 99sets/month |
| Application: | Weighing And Packing | Feature: | Easy To Operate |
|---|---|---|---|
| Technical Feature: | High Weighing Precision | System Output: | ≥8.4Ton/day |
| Packing Speed: | 30-70Bags/min | Packing Accuracy: | ±0.1-1.5g |
| Bag Type: | Pillow Bag,Gusset Bag,Punching Bag | ||
| High Light: | 10heads Pillow Bag Packing Machine,VFFS Vertical Packing Machine,30Bags/min Pillow Bag Packing Machine |
||

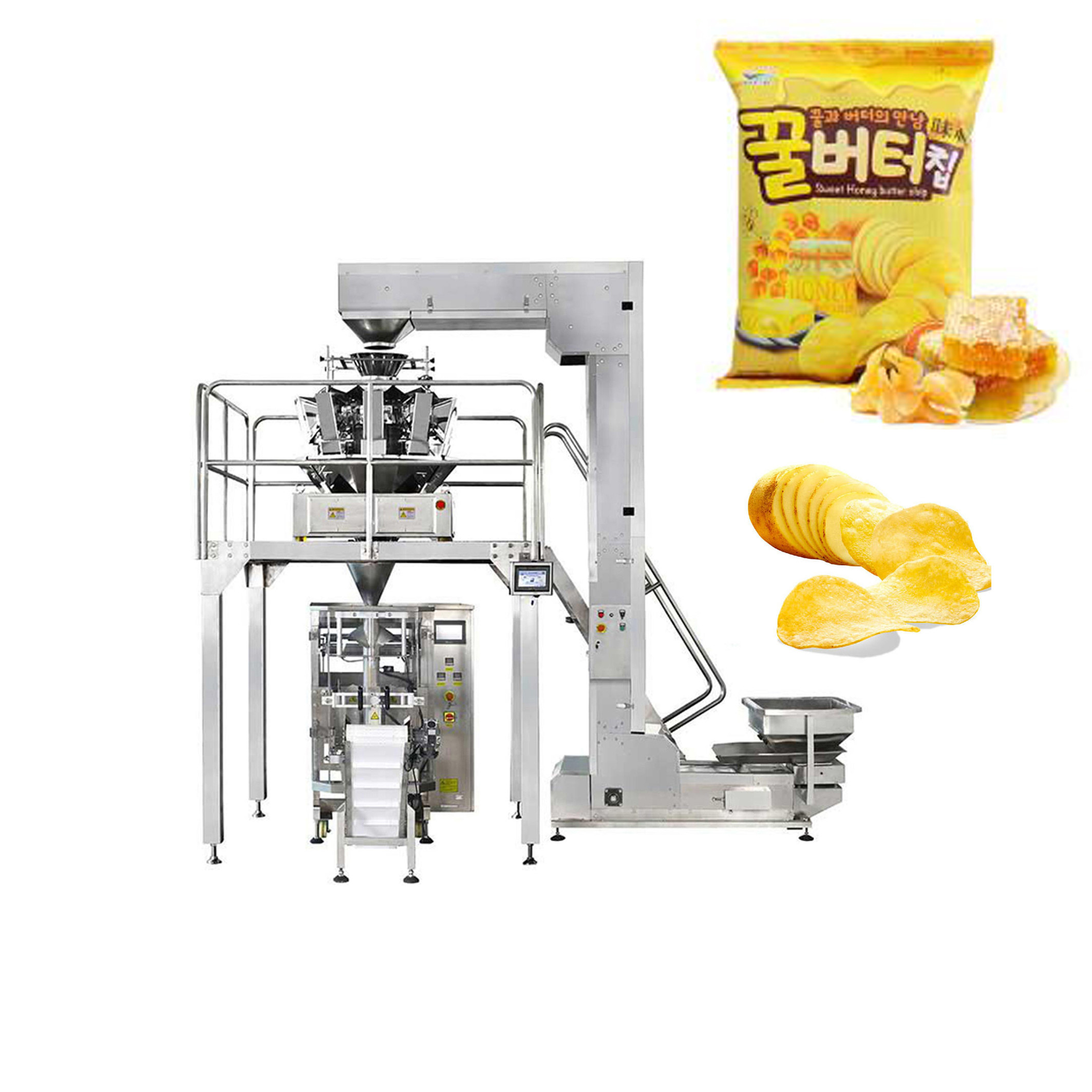

Multi-Function Chips Weighing 50g 100g Pillow Bag Vertical Packing Machine With Nitrogen Charging Device
Automatic Multi Head Weigher Puffed Rice Potato Chips Pouch Packing Machine
Multi-language VFFS collar type popcorn bagging machine/ chips pouch packing machine
It is suitable for weighing and packing grain,stick,slice,globose,irregular shape products,such,as,candy,chocolate,jelly,pasta,melon,seeds,roasted,seeds,peanuts,pistachios,almonds,cashews,nuts,coffee,bean,chips,raisins,plum,cereals and other leisure foods,pet food,puffed food,vegetables,dehydrated vegetan;es,fruits,sea food,frozen food,small hardware,etc.
| Technical Specification | |
| Model | ZH-BL10 puffed food packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET;PE film |
| Range of measuring (g) | 5-5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) |
VFFS 320: (W) 60-150 (L)50-200 VFFS720: (W) 120-350 (L)100-450 |
| Multihead weigher model | 10 heads 14 heads 20 heads weigher |
Technical Feature
1. Sevro motor driving system is adopted in the packaging machine.
2. To ensure the same length of each bag, high sensitive electro-optical sensor system is provide to the
realize automatic a lignment on the packing film.
3. The packaing machine is equuipped with a computer control system.
4. We have installed constant temperture heating system ensuring stable temperture and keep temperature is +/-1°c.
5. The electroic and pneumatic components of the machine are all supplied by reliable supplier copperating with us for
several years, which can ensure the quality of machine and save the cost of purchese meantime.
6. The bag size and packaging number can be customized by customers.

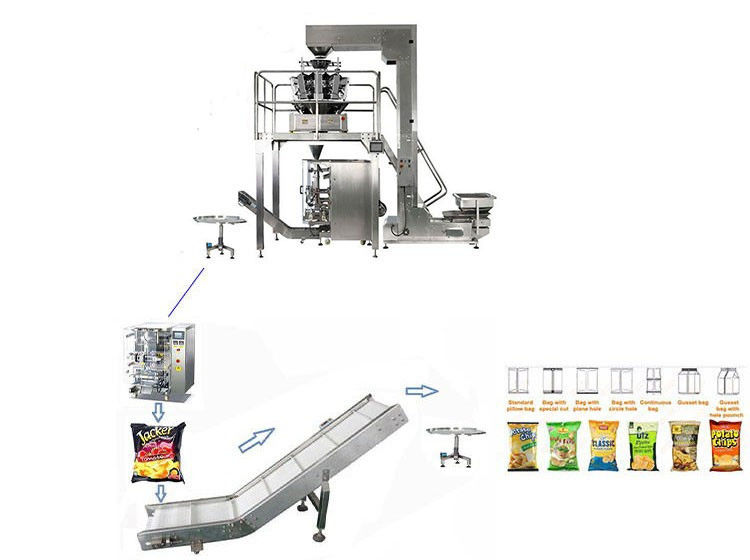

Whole packing line:
1. Infeed bucket conveyor:
Feeds the products to the elevator and transport them to multi-head weigher
2. Multihead weigher:
Weighing and filling materials to packing machine
3. Working platform:
Support multihead weigher.
4. Vertical packing machine:
Pack the product with high speed, and date printed, sealing-off and bag cutting is completed automatically.
5. Finishe bag conveyor:
Convey the finished bag to rotary table.
6. Rotary table:
For finished bag collecting.
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
