Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Zon Pack |
| Certification: | CE |
| Model Number: | ZH-DM |
| Minimum Order Quantity: | 1Set |
| Price: | USD4500-5000/SET |
| Packaging Details: | Wooden cases |
| Delivery Time: | 30-40days |
| Payment Terms: | L/C D/A D/P T/T Western Union MoneyGram |
| Supply Ability: | 99sets/month |
| Name: | Metal Detector | Detection Width: | 300mm |
|---|---|---|---|
| Belt Speed: | 25m/min | Belt Type: | Food Grade PVC |
| Rejector: | Air Blow, Pusher ,Shifte | Machine Frame: | 304SS |
| Model: | ZH-DM300 | Max Weight: | 5kg |
| High Light: | 304SS Food Grade Metal Detector,25m/min Food Grade Metal Detector,PVC Belt Industrial Metal Detector |
||

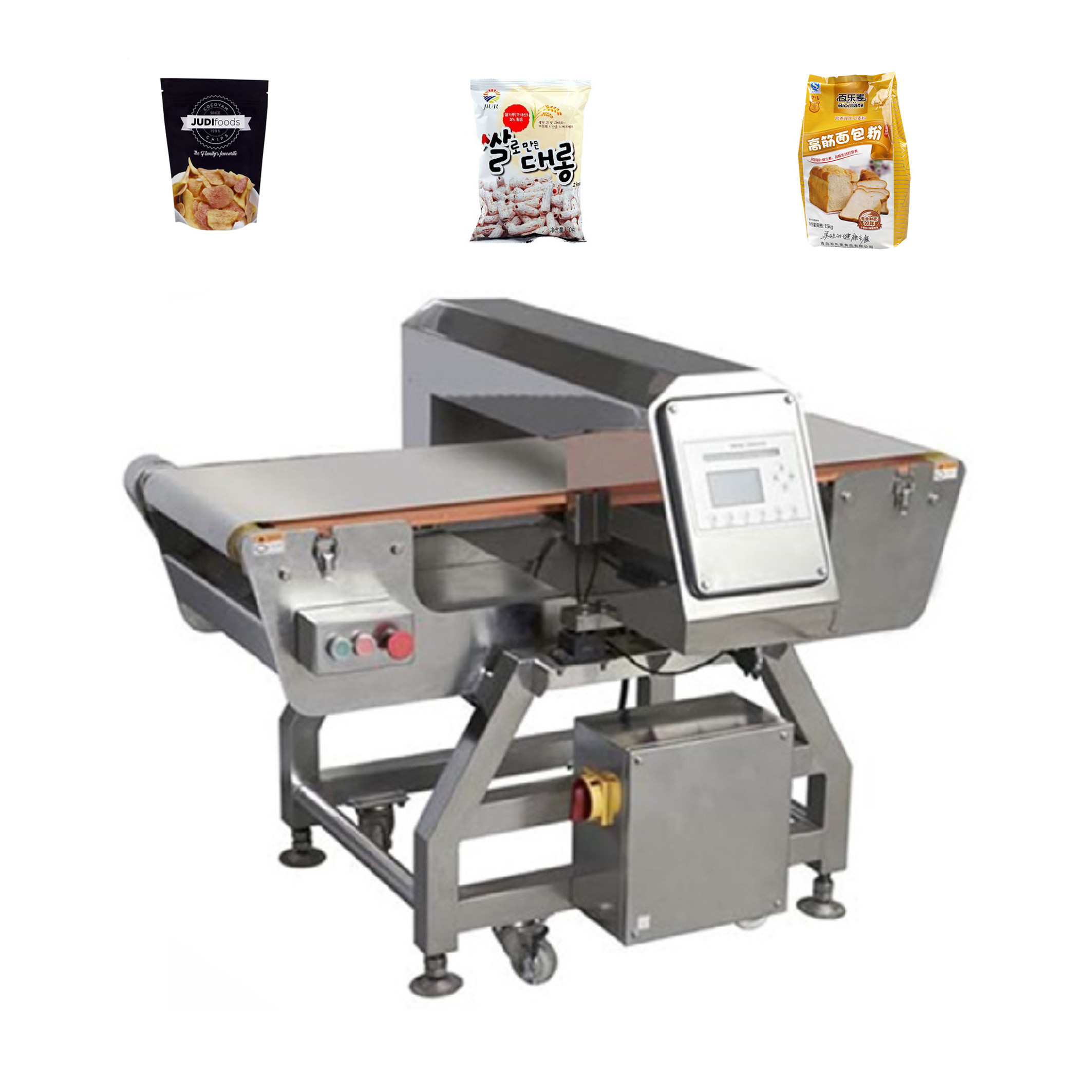

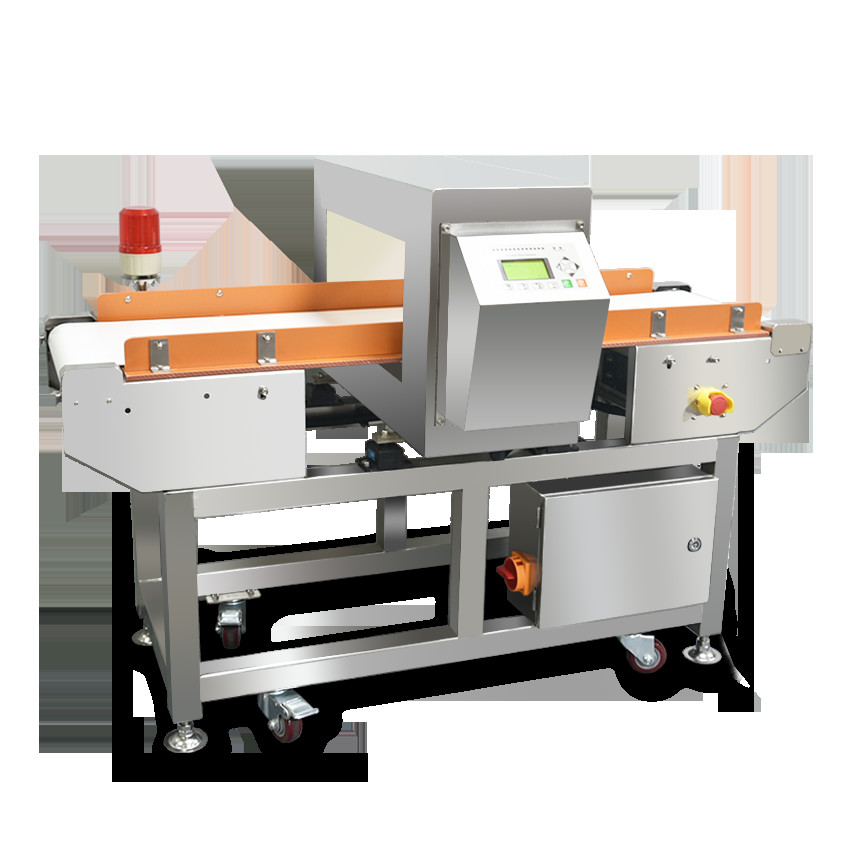

High Accuracy Food Security Detection Conveyor Belt Industrial Gold Metal Detectors Machine
Automatic Program Sensitivity Belt Conveyor Food Grade Metal Detector
Technical Feature
1.Stable and high sensitivity
Mature phase adjustment technology, avoiding shortcomings like no phase of LC analog circuit, low stability,
without products suppression function and machine aging caused by time and temperature.
2. Auto-setting function
Fast learn product character automatically and finish Auto-setting process.
3. User friendly function
Automatic rewind function, dispense with handling large products.
52 products can be restored in database.
LCD, Chinese-English menu, easy operation
| Technical Specification | |||
| Model | ZH-DM | ||
| Type | 3008/3012/3015/3018 | 4008/4012/4015/4018 | 5015/5020/5025/5030 |
| Window Width | 300mm | 400mm | 500mm |
| Window Height | 80/120/150/180mm | 80/120/150/180mm | 200/250mm |
| Sensitivity for Fe | Φ0.7/0.7/0.7/0.8mm | Φ0.7/0.7/0.7/0.8mm | Φ0.8/1/1.2/1.5mm |
| Sensitivity for SS | Φ1.2/1.5/1.5/2.0mm | Φ1.2/1.5/1.5/2.0mm | Φ2.0/2.0/2.5/3.0mm |
| Belt Width | 280mm | 360mm | 460mm |
| Max Weight | 5Kg | 10kg | 50kg |
| Monitor | LCD | ||
| Belt Material | Food grade PVC, Options for PU and chain plate | ||
| Belt Speed | 25m/min | ||
| Alarm | Stop or rejector | ||
| Rejector | Air blow, Pusher, Shifter | ||
| Power Parameter | 220V/110V 50/60Hz | ||
| Protection Level | IP30/IP54/IP66 | ||
| Frame Material | SUS304 | ||
Application
Detecting all metal contaminants in packaged and non-packaged food, Including ferrous metal(Fe),
non-ferrous metals(Copper, Aluminum etc.) and stainless steel.

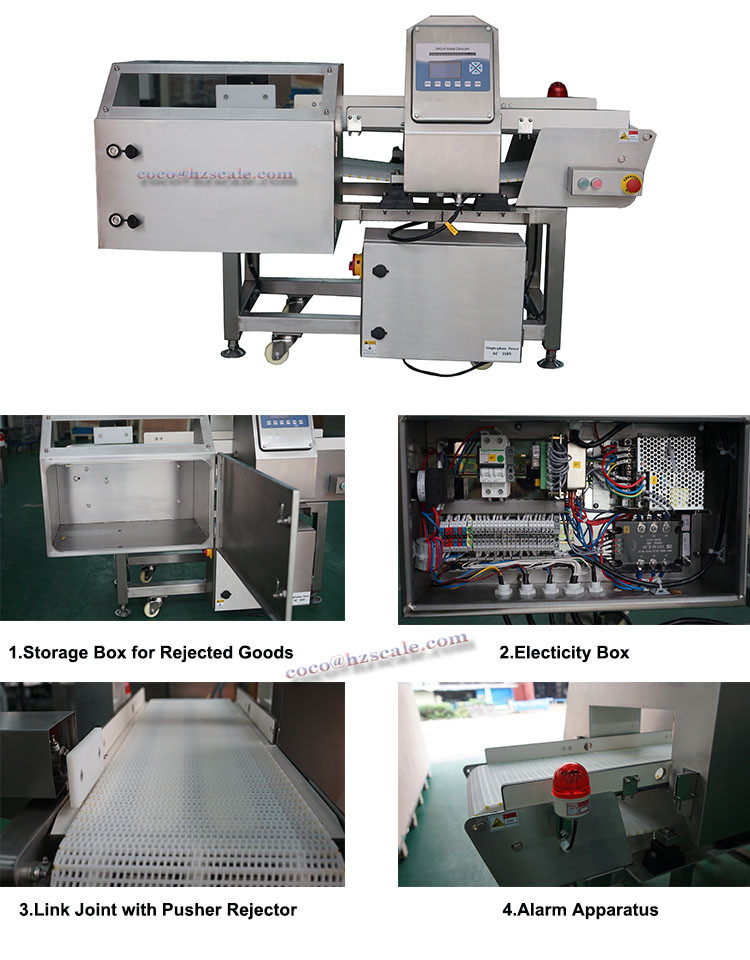

Machine Details
