Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Zon Pack |
| Certification: | CE |
| Model Number: | ZH-DW230 |
| Minimum Order Quantity: | 1Set |
| Price: | USD4500-4900/SET |
| Packaging Details: | Wooden cases |
| Delivery Time: | 30-40days |
| Payment Terms: | L/C D/A D/P T/T Western Union MoneyGram |
| Supply Ability: | 99sets |
| Machine Name: | Check Weigher | Weighing Range: | 20-2000g |
|---|---|---|---|
| Best Accuracy: | ±0.2g | Max Speed: | 155pcs/min |
| Scale Interval: | 0.1g | Belt Speed: | 70m/min |
| Product Size: | 350mm(L)*220mm(W) | Weighing Platform Size: | 450mm(L)*230(W) |
| High Light: | SUS304 Frame High Accuracy Checkweigher,155pcs/min Automatic Check Weigher,Zero Tracking Automatic Check Weigher |
||
High Accuracy Automatic Weight Checker With Rejector Check Weigher Detector Machine
High Accuracy Automatic Check Bag Weight Check Pouch Detector Machine
High Accuracy Food Products Weight Check Series Check Weigher in Packing Line
Food industrial application high speed check weigher with 400mm belt width
Technical Feature
1. High precision digital load cell; adopt high-speed digital filtering processing technology;
2. Automatic zero tracking function;
3. Automatic belt speed adjustment according to different product choice;
4. Accurate and efficient rejection system.
5. Self-learning function of the product physical property.
6. Belt disassembling without tools, which is easier to clean;
7. Install emergency switch at the size of machine, user friendly operation;
| Technical Specification | |||||||
| Model | ZH-DW160 | ZH-DW230S | ZH-DW230L | ZH-DW300 | ZH-DW400 | ZH-DW500 | ZH-DW600 |
| Weighing Range | 10-600g | 20-2000g | 20-2000g | 50-5000g | 0.2-10kg | 0.5-20kg | 10-50kg |
| Scale Interval | 0.05g | 0.1g | 0.1g | 0.2g | 1g | 1g | 5g |
| Best Accuracy | ±0.1g | ±0.2g | ±0.2g | ±0.5g | ±1g | ±2g | ±5g |
| Max Speed | 250 pcs/min | 200 pcs/min | 155pcs/min | 140pcs/min | 105pcs/min | 75pcs/min | 75pcs/min |
| Belt Speed | 70m/min | 70m/min | 70m/min | 70m/min | 70m/min | 60m/min | 60m/min |
| Product Size | 200mm (L) 150mm (W) |
250mm (L) 220mm (W |
350mm (L) 220mm (W) |
400mm (L) 290mm (W) |
550mm (L) 390mm (W) |
700mm (L) 490mm (W) |
1000mm (L) 590mm (W) |
| Weighing Platform Size |
280mm (L) 160mm (W) |
350mm (L) 230mm (W) |
450mm (L) 230mm (W) |
500mm (L) 300mm (W) |
650mm (L) 400mm (W) |
800mm (L) 500mm (W) |
1200mm (L) 600mm (W) |
| No. of Sorting Segment | 2 Segments or 3 Segments | ||||||

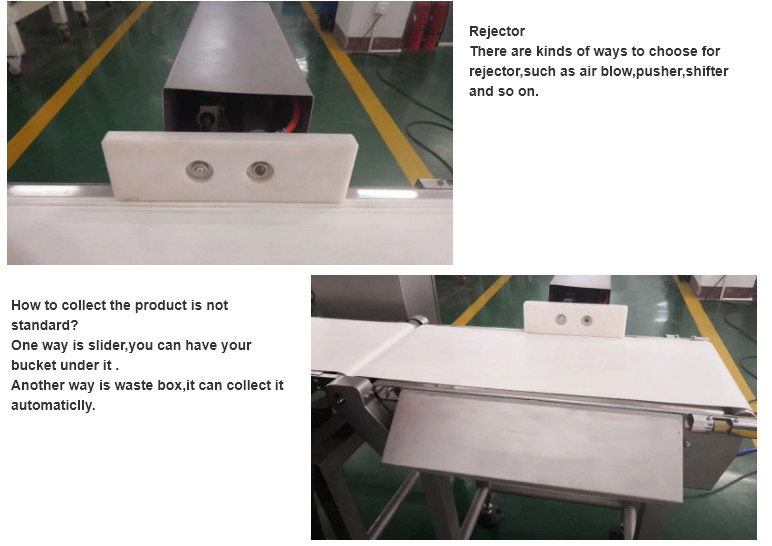

| Rejector | air blow, Pusher, shifter | ||||||
| Power Parameter | 220V/110V 50/60Hz | ||||||
| Protection Level | IP30/IP54/IP66 | ||||||
| Frame Material | SUS304 | ||||||
Application:
checkweigher systems are built to suit your specific applications and environment, as well as your regulatory
and industry requirements. We deliver productivity and profitability via the most comprehensive line of checkweighers
for the food, beverage, pharmaceutical, chemical and non-food industries.
A wide range of sizes and configurations (such as multi-lane checkweighers, different types of rejectors,
belt-designs and product guiding systems) are available to handle nearly any container type or package design,
even at high production rates, to ensure accurate product delivery, reduced giveaway, and optimized production.

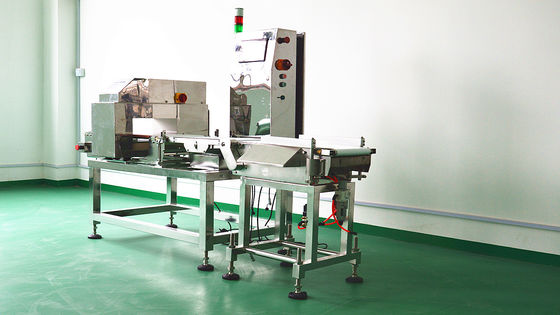

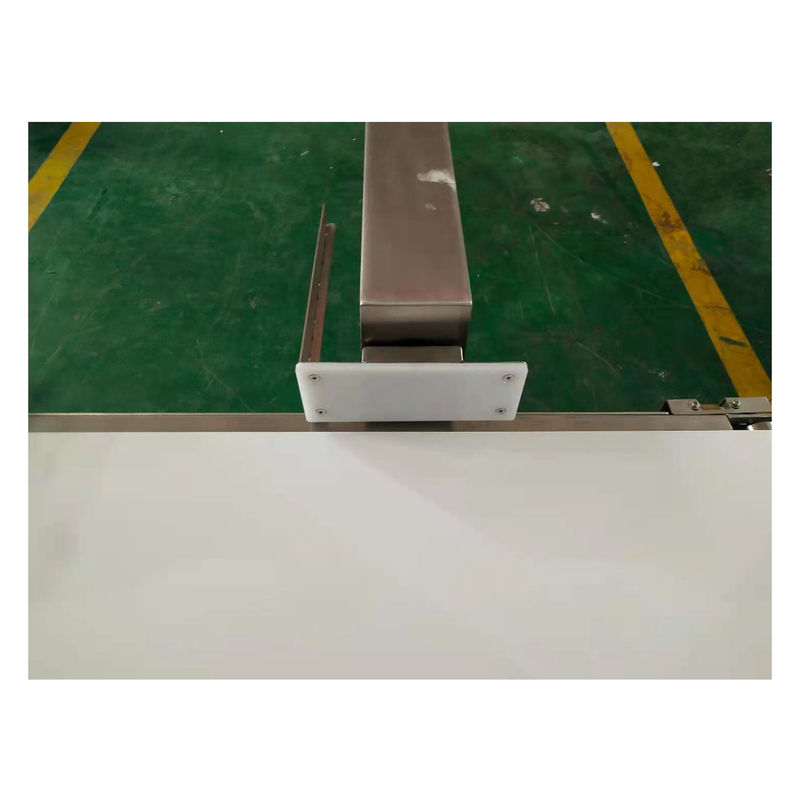

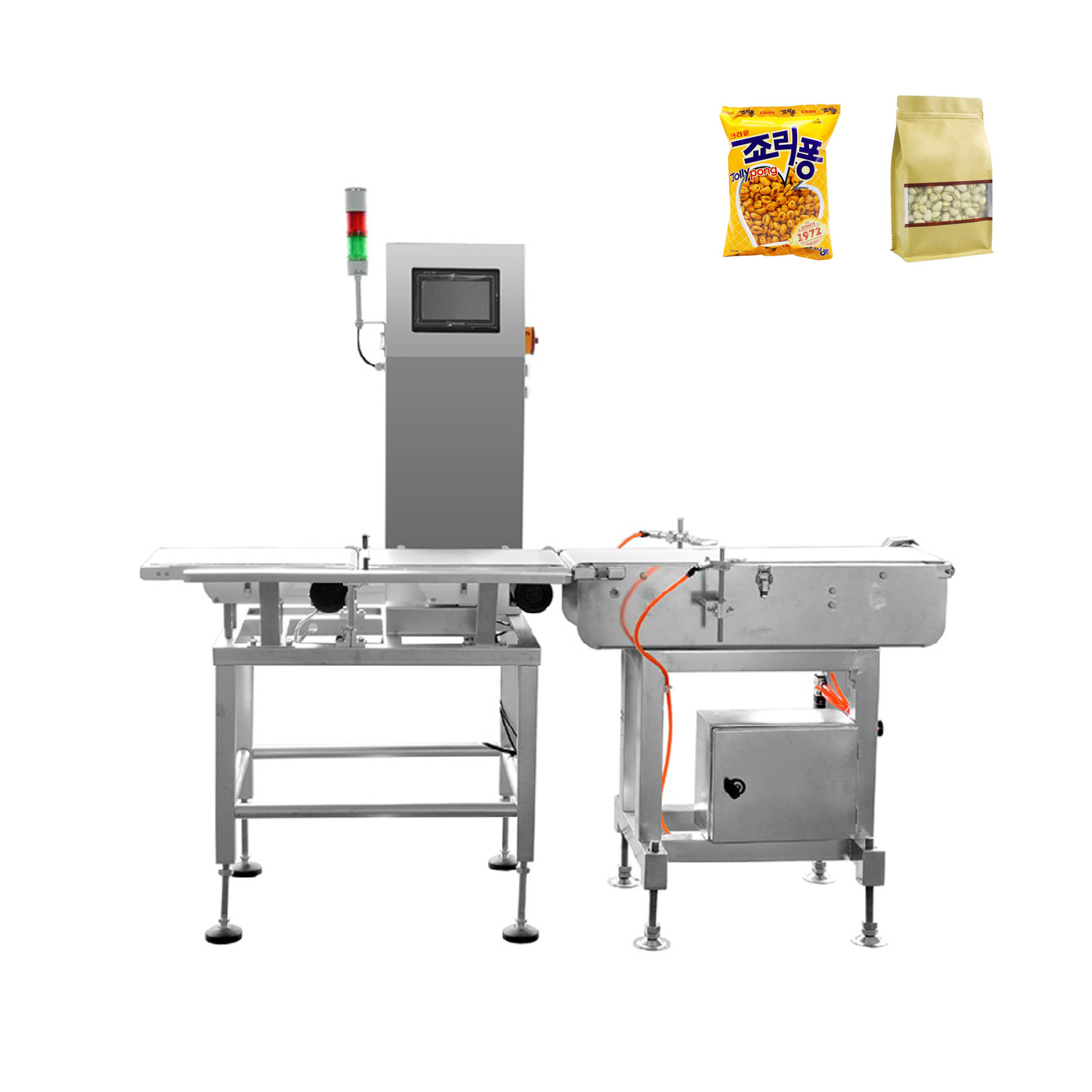

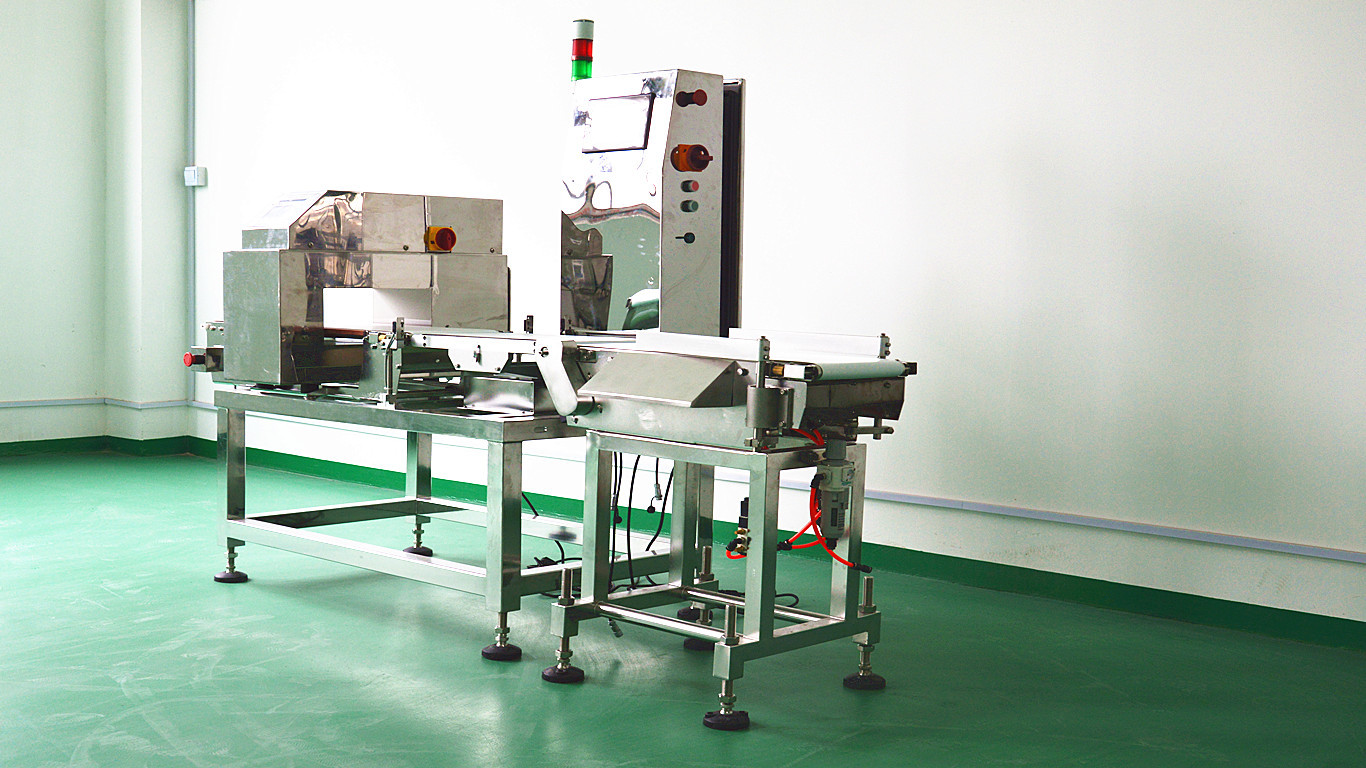

Machine Details:
Our Cases:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
