4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type
4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type
4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type
Basic Information
Place of Origin: CHINA
Brand Name: ZONPACK
Certification: CE
Model Number: ZH-BL10
Minimum Order Quantity: 1Sets
Price: USD5000-23000/SET
Packaging Details: wooden cases
Delivery Time: 35-50working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99sets/month
Get Best Price Contact Now
Product Name: Automatic Vertical Packing System Bag Type: Pillow Bag
Usage: Bag Making Main Function: Weighing Forming Filling Sealing
Packing Speed: 30-60 Bags/min Feature: High Accuracy
Product Keywords: Multi-function Packing Machine
High Light:

MultiFunction VFFS Packaging Machine

,

4 Side Seal VFFS Packing Machine

,

Pillow Type VFFS Packing Machine

Multi-Function Automatic Pillow Type 4 Side Seal VFFS Packing System
Products Description

Application

It is suitable for weighing and packing grain, stick, slice, globose, irregular shape products such as puffy food, snacks,candy,jelly,seeds,almonds, chocolate, nuts, pistachio, pasta, coffee bean, sugar, chips, cereals, pet food, fruits, roasted seeds,frozen food,vegetable,fruits, small hardware, et


4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 0


TECHNICAL SPECIFICATION

Model

ZH-BL10

System Output

≥ 8.4 Ton/Day

Packing speed

30-70 Bags / Min

Packing Accuracy

± 0.1-1.5g

Bag size(mm)

(W) 60-200 (L)60-300 for 420VFFS(W) 90-250 (L)80-350 For 520VFFS
(W) 100-300 (L)100-400 For 620VFFS
(W) 120-350 (L)100-450 For 720VFFS

Bag type

Pillow bag, standing bag (gusseted), punch, Linked bag

Range of measuring (g)

5000

Thickness of film (mm)

0.04-0.10

Packing Material

laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET,

Power Parameter

220V 50/60Hz 6.5KW
Main Features
1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
3. Single-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
4. Perfect alarm system to make problem solved quickly.
5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
6. Machine can make pillow bag and standing bag (gusseted bag) according to customer's requirements. Machine also can make bag with punching hole & linked bag from 5-12 bags and so on.
7. Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor, process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically.
4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 1

Main Parts


4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 2

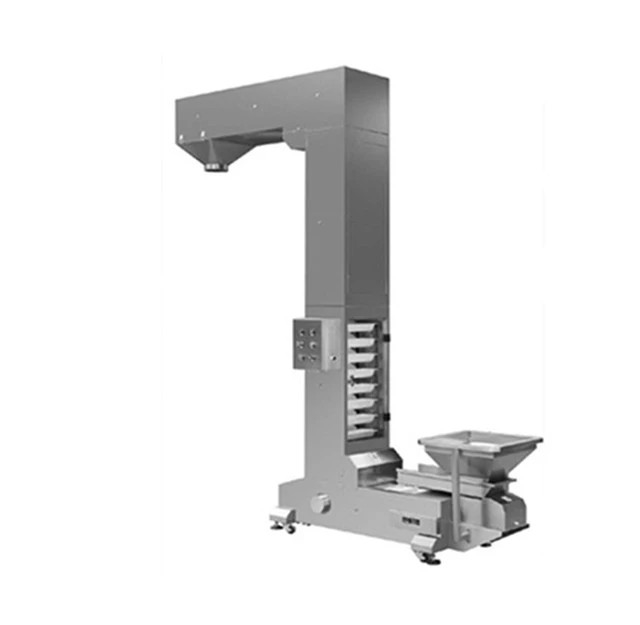

Z Arm Conveyor
304SS frame,2L PP bucket, 304SS chain, 0.75kw motor, VFD control, 3.6m

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 3
Working Platform
304SS frame,
1.9m(L)×1.9m(W)×1.8m(H

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 4

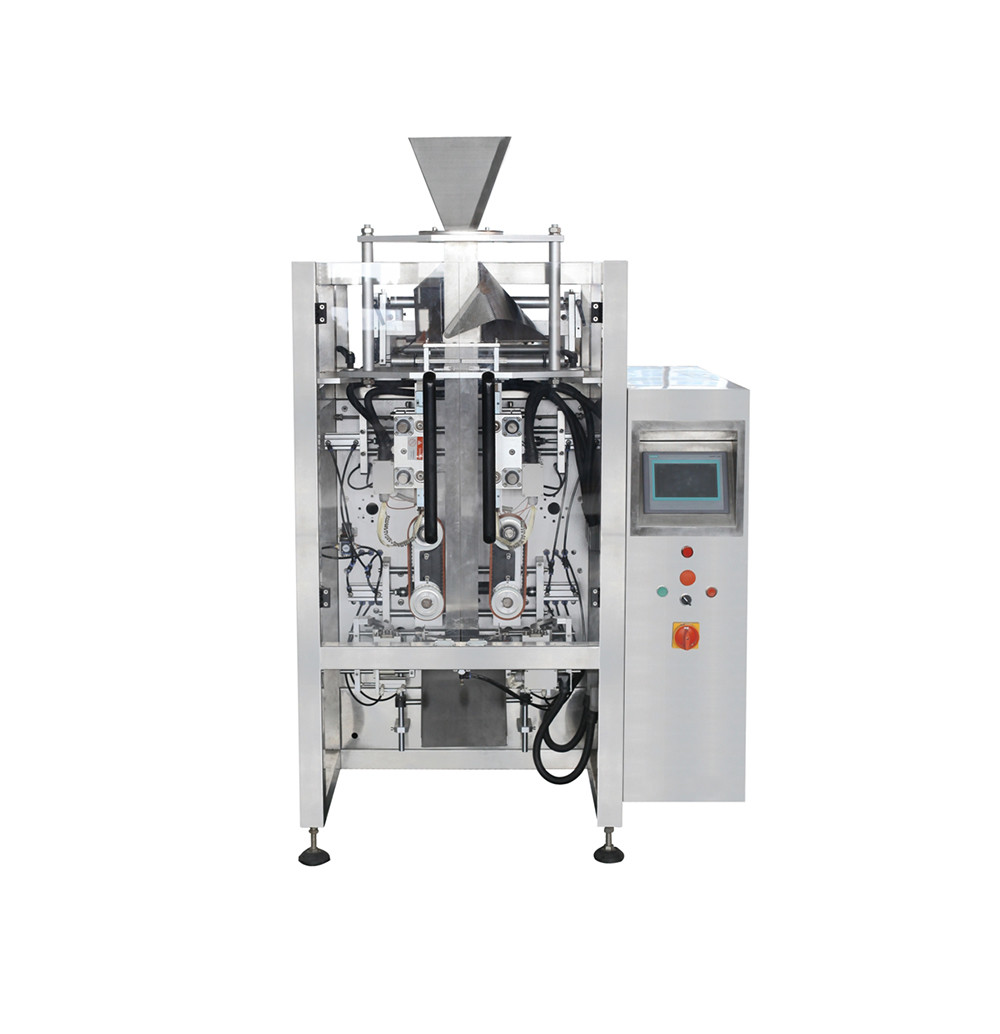

Vertical Packing Machine

Bag making type :Pillow bag, standing bag (gusseted), punch, Linked bagpeed:50 bags/min
Material:304ss

Vertical packing machine detail image

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 5

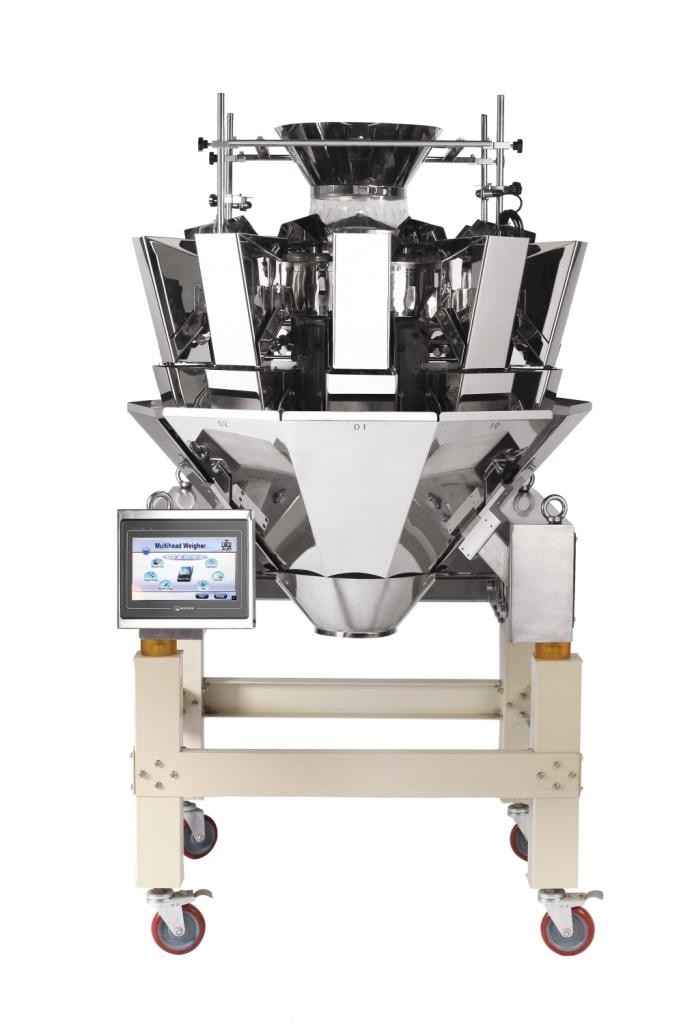

Weighing machine
It is for weighing products weight before filling in bags,can.The weighing range is from 10g-5000g
Accuracy:0.1-1.5g
Material:304ss
Max Weighing speed:65/120/130 bags/min


4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 6


Weighing machine detail image

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 7


4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 8
Finished- conveyor
PP material, motor control,
Translae bag more conveniently which was packaged.

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 9
Rotary collected table

304SS Frame
Collecte the bag in the table, and save time to people to pick bag up.

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 10

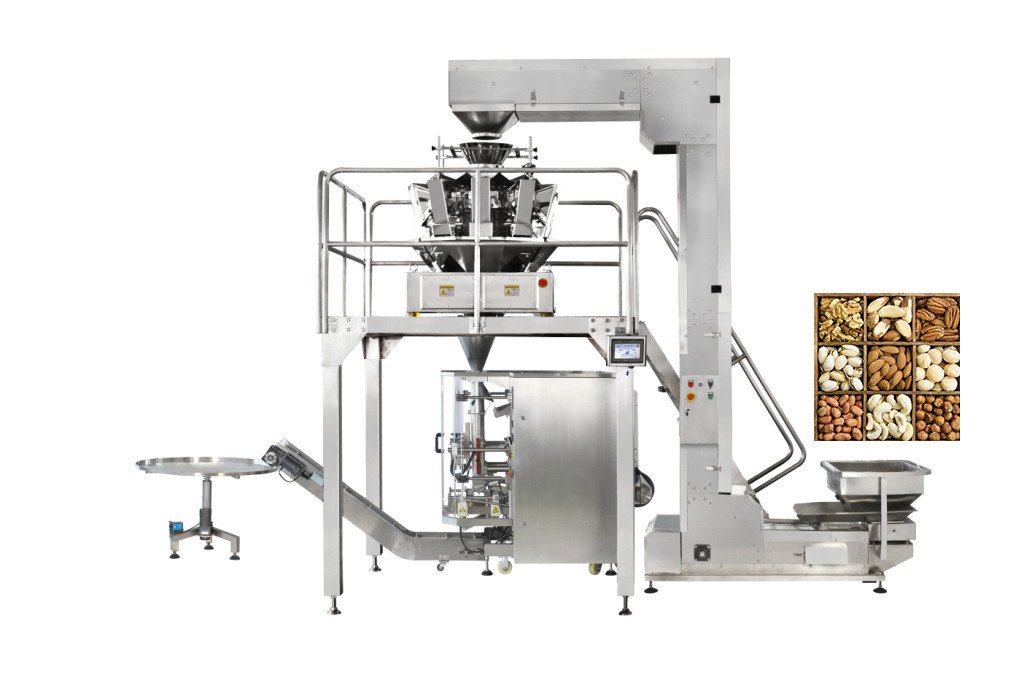

Full packing machine with multihead weigher,VFFS,metal detector and check weigher
Language:English ,Spanish ,korean and other language you need


4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 10
Full packing machine with multihead weigher,VFFS,metal detector and check weigher
Language:English ,Spanish ,korean and other language you need







4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 12
Metal detector

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 13
Check weigher

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 14
Rotary Packing Machine


Packing & Service

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 15
Packing:
Outside packing with wooden case,inside packing with film.
Delivery:
We usually need 25 days about it.
Shipping:
Sea,air,train.

Our Service

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 16
Pre-sale service
1.Make packing solution according your requirements. 2.Welcome to vist our factory and dicuss face to face about packing solution and testing machines. After-sale service 1.Installing and Training services: We will train your engineer to install our machine. Your engineer can come to our factory or we dispatch our engineer
to your company. 2.Trouble shooting service: Some times if you can not fix the problem in your country, our engineer will go there if you need us to support.Of
course, you need to afford the round trip flight ticket and accommodation fee. 3.Spare Parts replacement: For machine in guarantee period, if spare part are broken, we will send you the new parts free and we will pay the express fee.


Our Cases


4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 17

Company Profile


4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 18


4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 19


4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 20

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 21

FAQ

Q:Can your machine meet our needs well, how to choose the packing machines ? Dear sir,Please kindly response questions of machines before inquiry: 1.What's product to pack and size? 2.What is the target weight per bag?(gram/bag) 3.What's bag type,Please show photos for reference if possible? 4.What's bag width and bag length?(WXL) 5.The speed is required?(bags/min) 6.The room size for putting machines 7.The power of your country(Voltage/frequency) Q:How long of the warranty period? Whole machine 1year. In warranty period, We will send the part free to replace the one that is broken Q:What’s the Payment terms? Our payment is T/T and L/C.40% is paid by T/T as deposit.60% is paid before shipment. Q:Can you provide oversea service? We will dispatch engineer to install the machine if you need, buyer should afford the cost in buyer's country and round-trip air tickets. The compensation for engineer is 100USD/DAY. Q:Do you also offer the wrapping film? Yes, we can offer you the plastic roll film, we have a long term cooperated supplier for roll film and the price is favorable. Q:How can I trust you for the first time business ? Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of transaction.



4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 22

Packing & Service

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 15
Packing:
Outside packing with wooden case,inside packing with film.
Delivery:
We usually need 25 days about it.
Shipping:
Sea,air,train.

Our Service

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 16
Pre-sale service

1. Make packing solution according your requirements.

2.Welcome to vist our factory and dicuss face to face about packing solution and testing machines. After-sale service 1.Installing and Training services: We will train your engineer to install our machine. Your engineer can come to our factory or we dispatch our engineer

to your company. 2.Trouble shooting service: Some times if you can not fix the problem in your country, our engineer will go there if you need us to support.Of
course, you need to afford the round trip flight ticket and accommodation fee. 3.Spare Parts replacement: For machine in guarantee period, if spare part are broken, we will send you the new parts free and we will pay the express fee.


Our Cases



4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 17

Company Profile

4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 18







4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 19


4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 20


4 Side Seal VFFS Packing Machine MultiFunction Automatic Pillow Type 21

FAQ
Q:Can your machine meet our needs well, how to choose the packing machines ?
Dear sir,Please kindly response questions of machines before inquiry:
1.What's product to pack and size?
2.What is the target weight per bag?(gram/bag)
3.What's bag type,Please show photos for reference if possible?
4.What's bag width and bag length?(WXL)
5.The speed is required?(bags/min)
6.The room size for putting machines
7.The power of your country(Voltage/frequency)


Q:How long of the warranty period?
Whole machine 1year. In warranty period, We will send the part free to replace the one that is broken


Q:What’s the Payment terms?
Our payment is T/T and L/C.40% is paid by T/T as deposit.60% is paid before shipment.


Q:Can you provide oversea service?
We will dispatch engineer to install the machine if you need, buyer should afford the cost in buyer's country and round-trip air tickets. The compensation for engineer is 100USD/DAY.


Q:Do you also offer the wrapping film?
Yes, we can offer you the plastic roll film, we have a long term cooperated supplier for roll film and the price is favorable.


Q:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of transaction.
