Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE |
| Model Number: | ZH-DM |
| Minimum Order Quantity: | 1 SET |
| Price: | USD4299-5499/SET |
| Packaging Details: | wooden case |
| Delivery Time: | 25 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 99sets/month |
| Detection Width: | 300mm/400mm/500mm | Detection Height: | 80mm/120mm/150mm/180mm/200mm/250mm |
|---|---|---|---|
| Power Parameter: | 500W 220V/50 Or 60HZ | Monitor: | LCD |
| Model: | ZH-DM | Frame Material: | SUS304 |
| High Light: | Industrial Metal Detector Machine Food Grade,LCD Monitor Metal Detector Machine,SUS304 Metal Detector Machine |
||

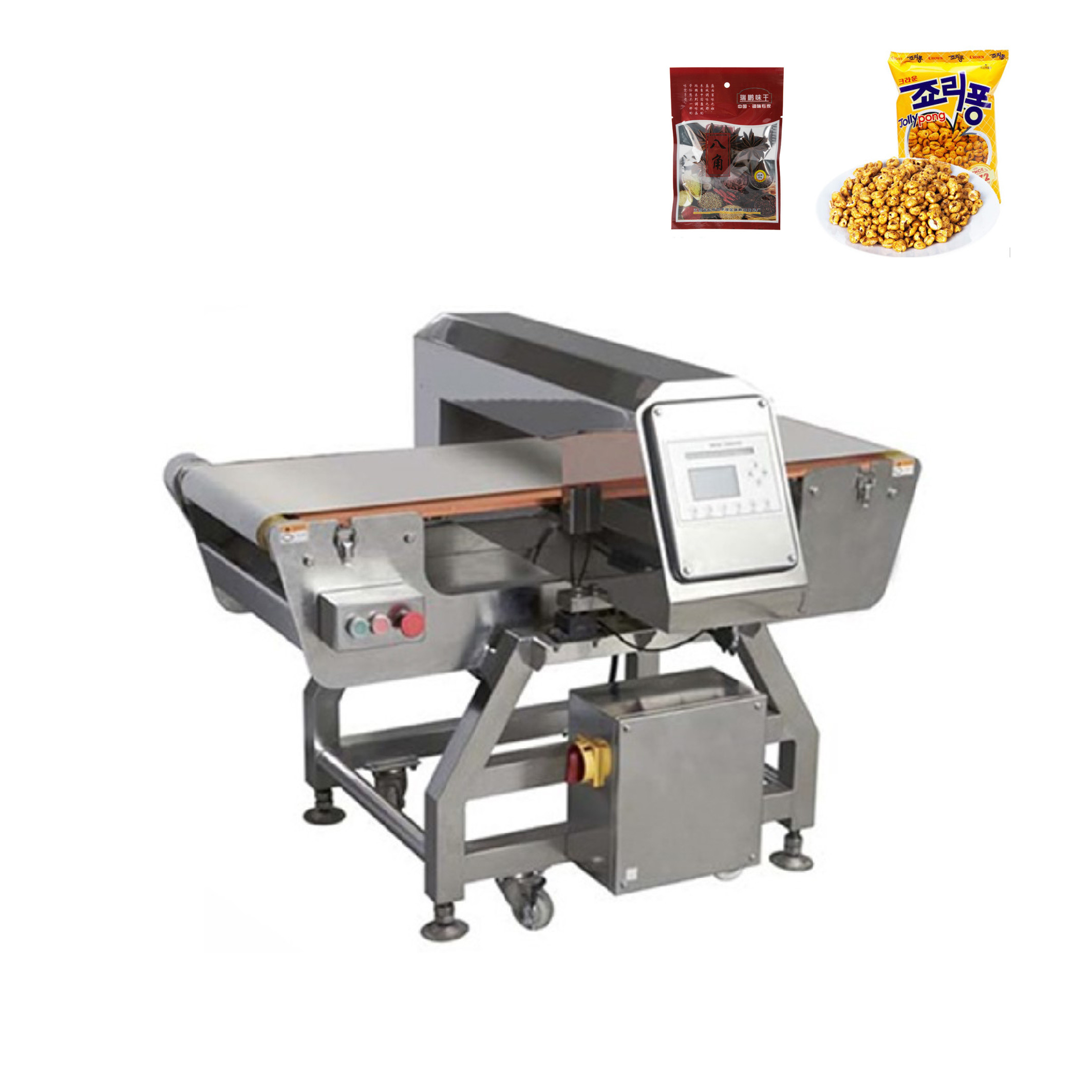

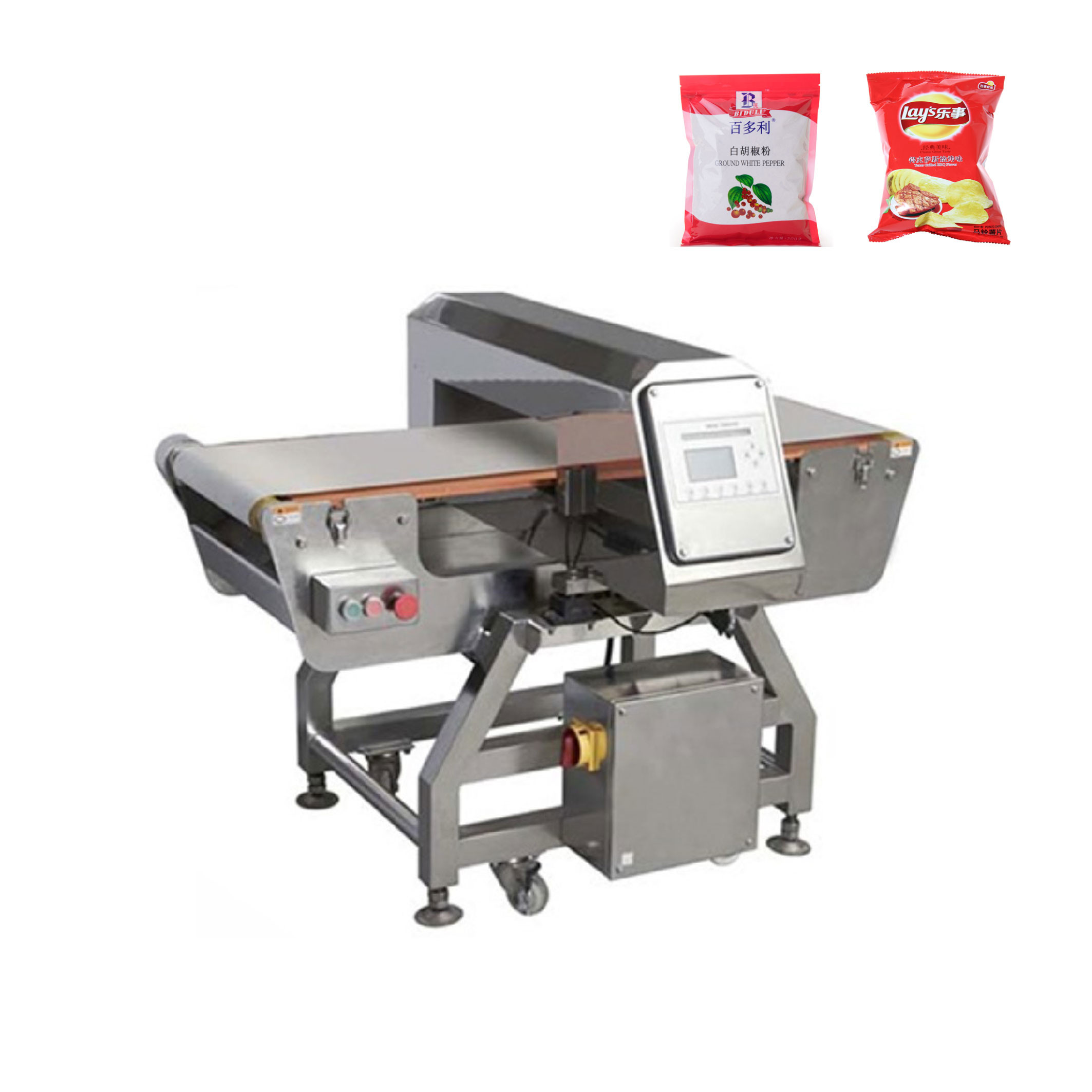

Industrial Metal Detector Machine Food Grade Metal Detector Machine Automatic Metal Detector Machine For Snacks
Automatic Factory Price Food Safety Industry Metal Detector For Food Powder Packaging
Automatic High Speed Industry Gold Food Safety Metal Detector For Spice/Candy Packaging
High Quality Long Deep Range Detecting Gold Industrial Metal Detectors
High Accuracy Food Security Detection Conveyor Belt Industrial Gold Metal Detectors Machine
Automatic Program Sensitivity Belt Conveyor Food Grade Metal Detector
Technical Feature
1. Stable and high sensitivity
Mature phase adjustment technology, avoiding shortcomings like no phase of LC analog circuit, low stability,
without products suppression function and machine aging caused by time and temperature.
2. Auto-setting function
Fast learn product character automatically and finish Auto-setting process.
3. User friendly function
Automatic rewind function, dispense with handling large products.
52 products can be restored in database.
LCD, Chinese-English menu, easy operation
| Technical Specification | |||
| Model | ZH-DM | ||
| Type | 3008/3012/3015/3018 | 4008/4012/4015/4018 | 5015/5020/5025/5030 |
| Window Width | 300mm | 400mm | 500mm |
| Window Height | 80/120/150/180mm | 80/120/150/180mm | 200/250mm |
| Sensitivity for Fe | Φ0.7/0.7/0.7/0.8mm | Φ0.7/0.7/0.7/0.8mm | Φ0.8/1/1.2/1.5mm |
| Sensitivity for SS | Φ1.2/1.5/1.5/2.0mm | Φ1.2/1.5/1.5/2.0mm | Φ2.0/2.0/2.5/3.0mm |
| Belt Width | 280mm | 360mm | 460mm |
| Max Weight | 5Kg | 10kg | 50kg |
| Monitor | LCD | ||
| Belt Material | Food grade PVC, Options for PU and chain plate | ||
| Belt Speed | 25m/min | ||
| Alarm | Stop or rejector | ||
| Rejector | Air blow, Pusher, Shifter | ||
| Power Parameter | 220V/110V 50/60Hz | ||
| Protection Level | IP30/IP54/IP66 | ||
| Frame Material | SUS304 | ||
Application
Detecting all metal contaminants in packaged and non-packaged food, Including ferrous metal(Fe),
non-ferrous metals(Copper, Aluminum etc.) and stainless steel.

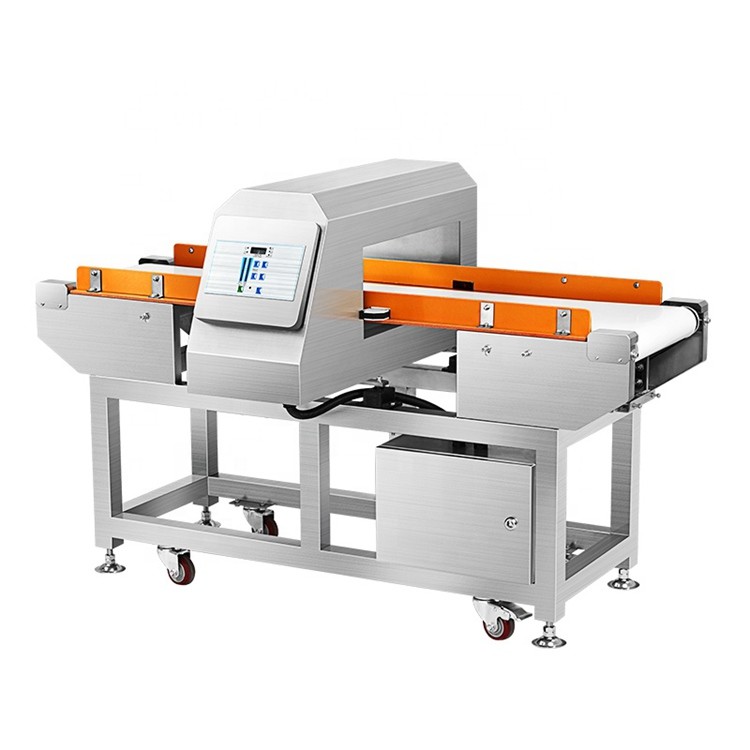

Machine Details
Our Partners:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
