Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE |
| Model Number: | ZH-A10、ZH-A14 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 6000/set |
| Packaging Details: | Film pack inside, Wooden case outside. |
| Delivery Time: | WITHIN 25 WORKING DAYS AFTER PAYMENT CONFIRMATION |
| Supply Ability: | 120 sets per month |
| Product Name: | Multi-Function Packaging Machine | Usage: | Usage |
|---|---|---|---|
| Keyword: | High Speed | Capacity: | 30~60bags/min |
| Material: | Stainless Steel 304/316 | Feature: | High Efficiency |
| Automaticity: | Fully Auto | Power: | 220V 50/60HZ |
| Filling Material: | Snacks | Main Function: | Weighing Forming Filling Sealing |
| High Light: | Automatic 14 Heads Weigher,Grain Packing 10 Heads Multihead Weigher,60bags/min 14 Heads Weigher |
||

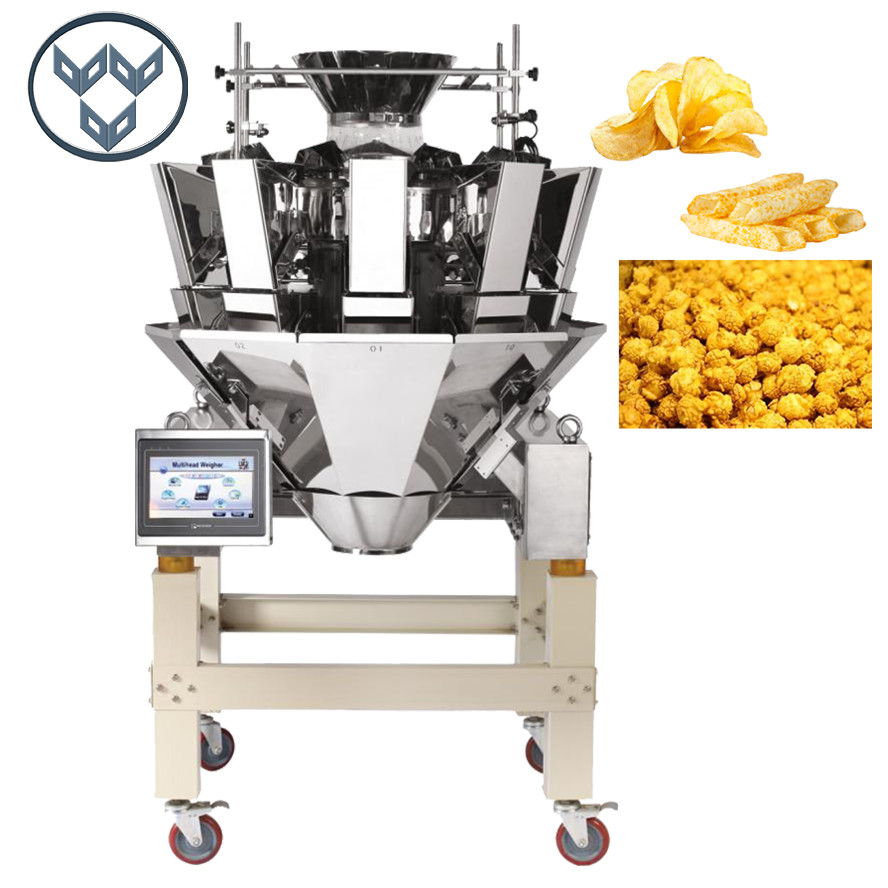

High Precise Automatic Food Snack Multi-Function 10/14 Heads Weigher For Chips Grain Weighing Packing Machine
Products Description

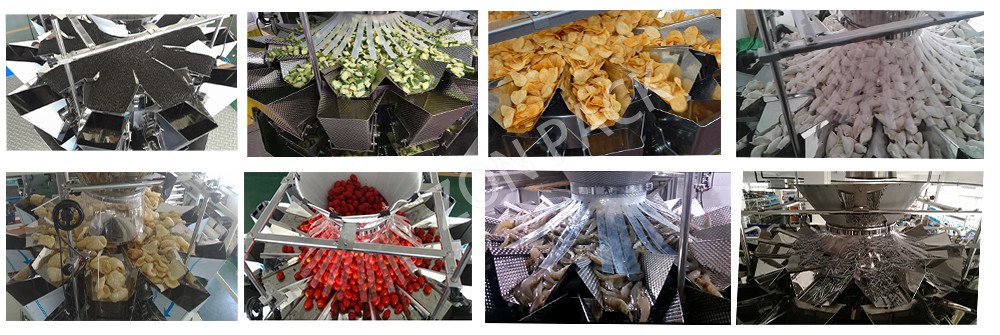

Application
It is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc.

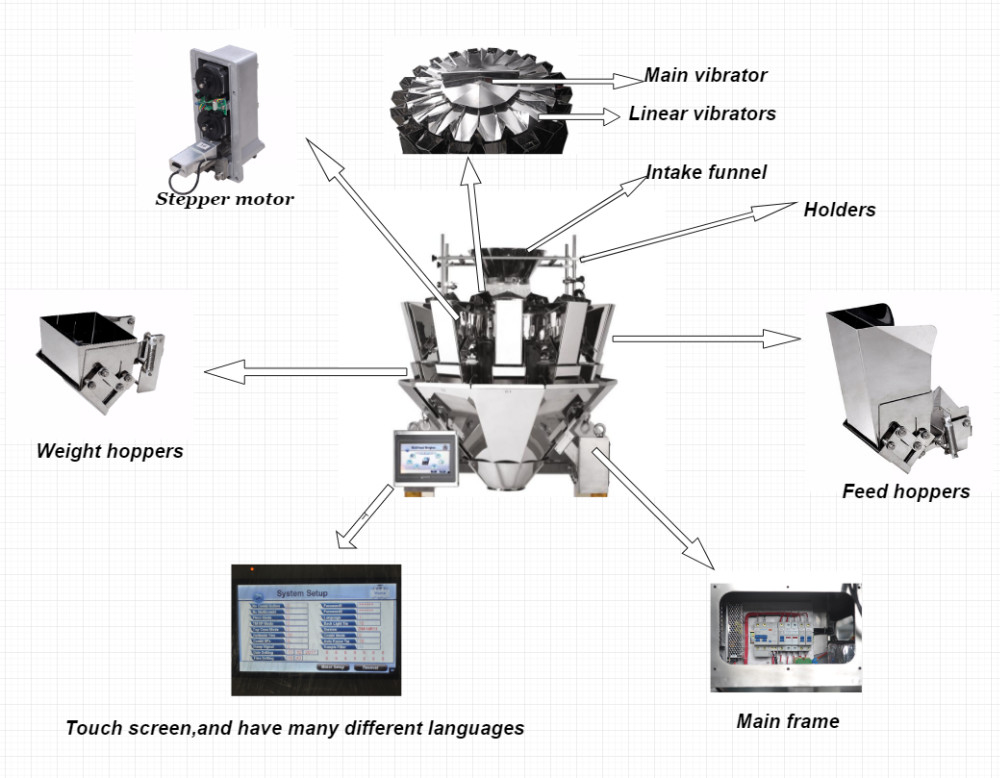

Technical Feature
1. The amplitude of vibrator can be auto-modified for more efficient weighing.
2. High precise digital weighing sensor and AD module have been developed.
3. Multi-drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.
4. Material collecting system with function of unqualified product remove, two direction discharge, counting, restore default setting.
5. Multi-language operation system can be selected basing on customer's requests.

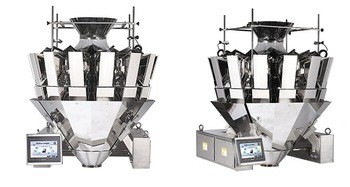

| Model | ZH-A10 | ZH-A14 | ZH-A20 |
|---|---|---|---|
| Weighing Range | 10-2000g | ||
| Max Weigh Speed | 65bags/min | 120bags/min | 130bags/min |
| Accuracy | ±0.1-1.5g | ||
| Hopper Volume | 0.5L/1.6L/2.5L/5L | ||
| Driver Method | Stepper motor | ||
| Option | Timing hopper/Dimple hopper/Overweight Identifier/Rotar top cone | ||
| Interface | 7'HMI or 10"HMIW | ||
| Power Parameter | 220V/50/60HZ 1000W | 220V/50/60HZ 1500W | 220V/50/60HZ 2000W |
| Package Size(mm) | 1650(L)X1120(W)X1150(H) | 1750(L)X1200(W)X1240(H) |
1650(L)X1650(W)X1500(H) |
| Gross Weight(Kg) | 400 | 490 | 880 |
