Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Price: | USD15000/SET |
| Packaging Details: | wooden cases |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 99sets/month |
| Product Name: | ZH-JR | Name: | Filling Machine |
|---|---|---|---|
| Application: | Canned Products | Technical Feature: | Easy To Operate And Maintain |
| Main Feature: | Counting | Can Height: | 30-300 |
| Option: | Capping And Labeling | Gross Weight: | 300kg |
| High Light: | Laundry Detergent Automatic Food Packing Machine,30pcs Laundry Detergent Packing Machine,15pcs Laundry Detergent Packing Machine |
||
Application:
It is suitable for weighing /filling /packing for different products, such as nuts / seeds/candy /coffee Beans , Even can count / weighing packing for the vegetables / Laundry beads / Hardware into Jar / bottle or even case
| Technical Specification | |
| Model | ZH-BC10 |
| Packing speed | 20-45 jars/Min |
| System Output | ≥8.4 Ton/Day |
| Packaging Accuracy | ±0.1-1.5g |
| For Target packing , we have weighing and counting Option | |
| Technical Feature |
| 1. This is automatically packing line , just need one operator, save more cost of labor |
| 2. From Feeding / weighing (Or counting ) / filling /capping /Printing to Labeling , This is fully automatic packing line , it more efficiency |
| 3. Use HBM weighing sensor to weighing Or Counting product , It with more high accuracy ,and save more material cost |
| 4. Using fully packing line , the product will packed more beautiful than Manual packing |
| 5. Using fully packing line , product will be more safe and clear in the packaging process |
| 6. Production and cost will be more easy to control than manual packing |

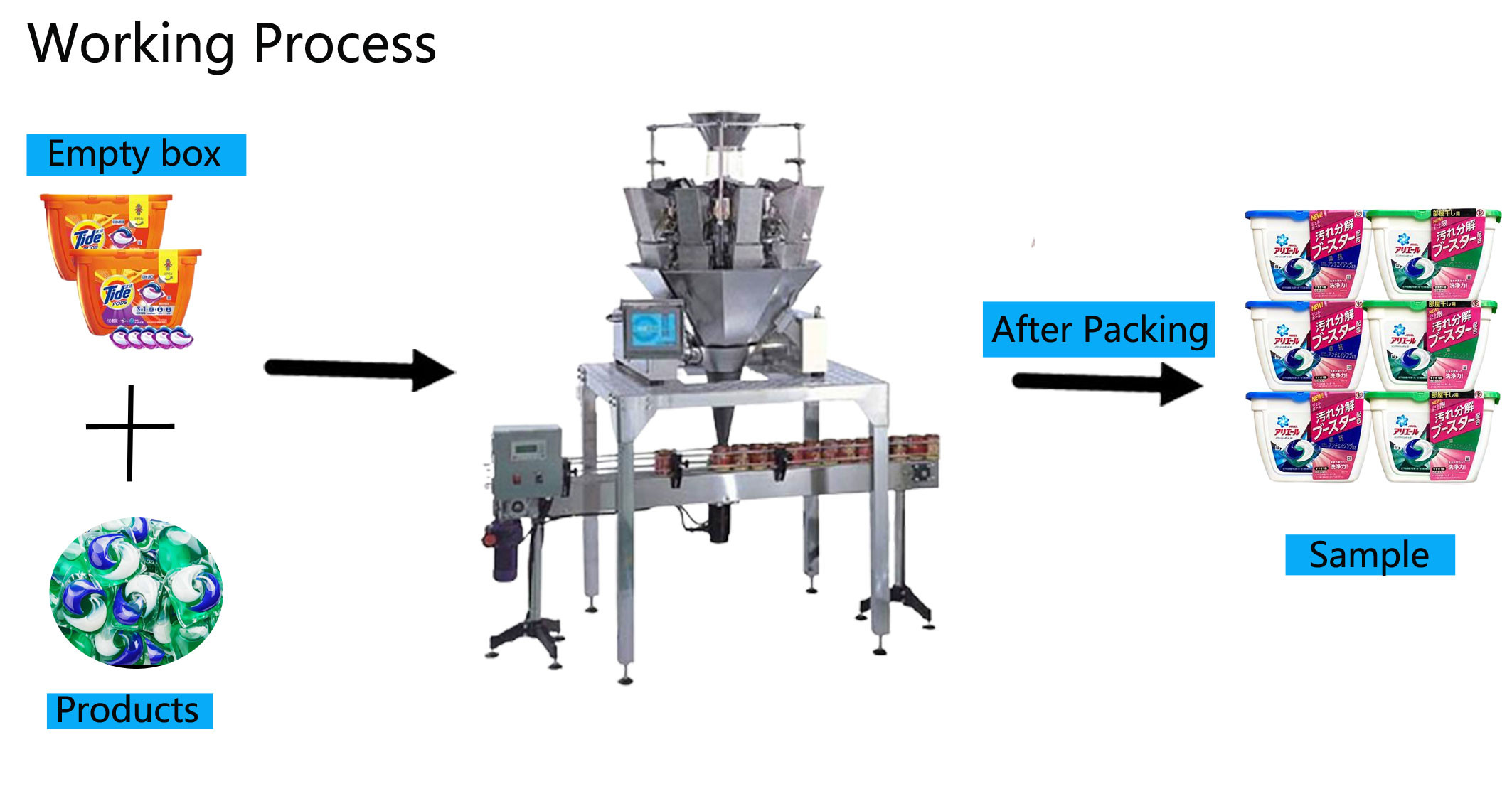

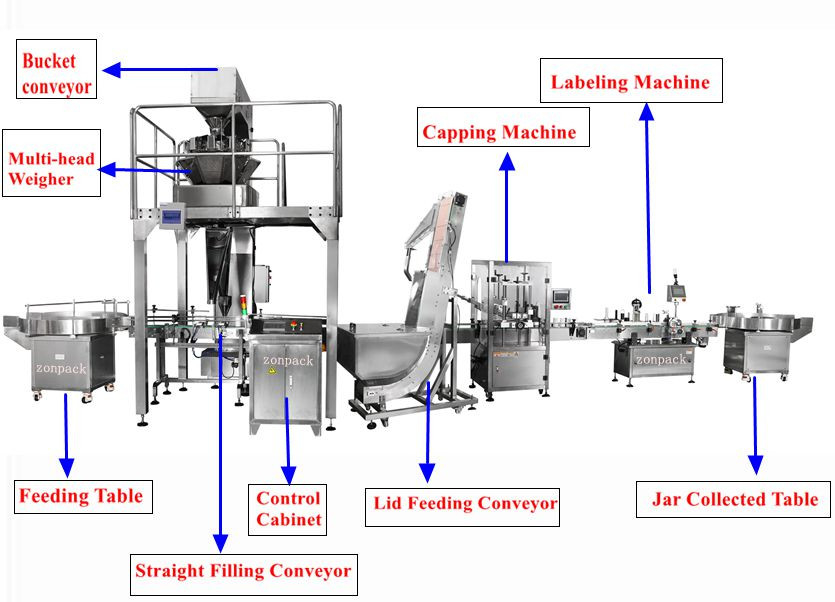

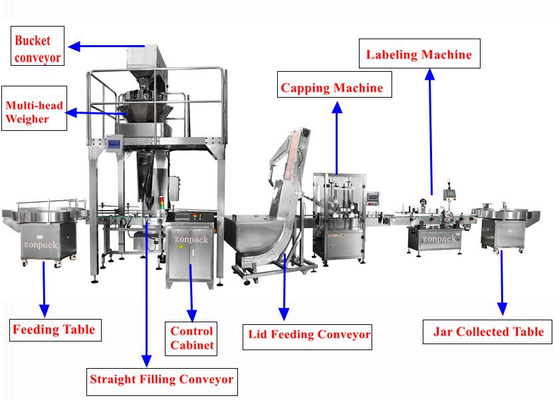

| Working Process Of Whole Packing Line | ||
| Item | Machine Name | Working Content |
| 1 | Feeding Table | Collect the empty jar / bottle /Case, make it line up, and waiting for the filling one by one |
| 2 | Bucket Conveyor | Feeding product into Multi-head weigher continuously |
| 3 | Multi-head Weigher | Use high combination from multi weighing heads to weighing or counting product with high accuracy |
| 4 | Working Platform | Support the Multi-head weigher |
| 5 | Filling Machine | We have a Straight filling machine and Rotary Filling machine option , Filling product into jar / bottle one by one |
|
6(Option)
|
Capping Machine | Lids will line up by conveyor , and it will capping automatically one by one |
| 7(Option) | Labeling Machine | Labeling for the Jar/ bottle /case due to your demand |
| 8(Option) | Date Printer | Print the date or QR code / Bar code by printer |
