Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Model Number: | ZH-VFFSS-01 |
| Minimum Order Quantity: | 1pcs |
| Price: | $20000~35000 per set |
| Packaging Details: | 5 wooden cases |
| Delivery Time: | 50 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
| Automatic Grade: | Automatic | Type: | Multi-Function Packaging Machine,Sealing Machine,Automatic Preformed Pouch Pet Food Packaging Machine Unit,Packaging Line,plastic Bag/1kg Sugar/1kg Bag Packing Machine |
|---|---|---|---|
| Voltage: | 220V,380V,50HZ | Condition: | New |
| Driven Type: | Electric | Packaging Type: | Bags,Film,Pouch |
| Application: | Food,Chemical,Machinery & Hardware,Commodity,Medical | After-sales Service Provided: | Video Technical Support,Online Support |
| Packaging Material: | Plastic,All Kinds Of Heat Sealing Film | Function: | Sealing,Filling,Wrapping,Labeling,Slitting |
| Power: | 3.2KW | Warranty: | 1 Year |
| Packing Speed: | 25-200bags(Depends On Products And Model Etc) | Packing Material: | Heatsealed Composite Film Etc,Flour,etc.,OPP/CPP PT/PE KOP/CPP ALU-FOIL,Capsule |
| Machine Type: | Chips Packing Machine,Vertical Automatic Packing Machine,Automatic Bag Forming Filling Sealing Machine | Bag Width: | 320-720mm(W) |
| Main Function: | Sunflower Seeds Packing Machine,packaging,Bakery Automatic Horizontal Food Packaging Machine,cutting,blanking | ||
| High Light: | 304SS Automatic Packaging Machine,Automatic Packaging Machine For Nut,Multihead Nut Packaging Machine |
||

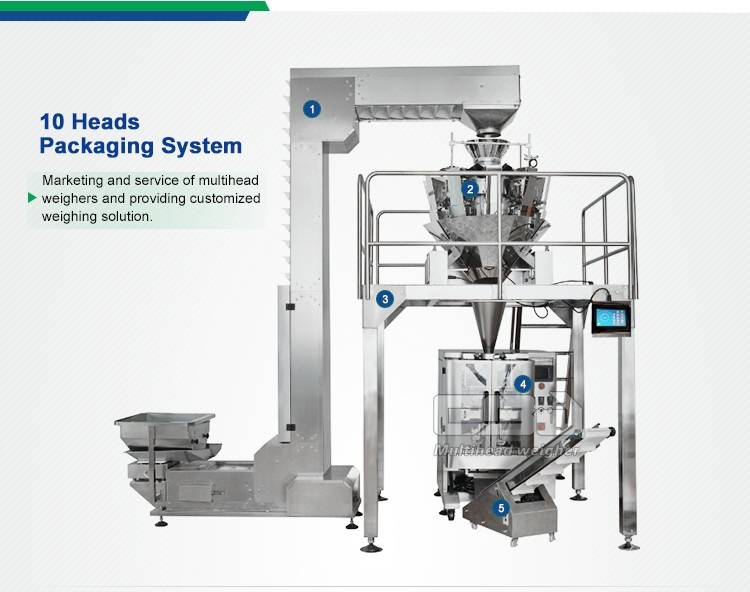

1. Conveyor (Z-type conveyor and inclined type conveyor )
2. Multihead weigher / linear weigher (2/4/10/14/20 heads Multihead weigher)
3. Working platform (304SS, customized dimension)
4. Vertical bag filling and packing machine (VFFPS)
5. Finished product conveyor (belt convryor and chain board conveyor)
Specifications
| Model | ZH-VFFSS-01 |
| Weighing Range | 10-5000 grams |
| Bag Size | 120-400mm(L) ; 220-720mm(W) |
| Bag Style | Pillow Bag; Gusset Bag; Four side seal, Three-side seal |
| Bag Material | Laminated film; Mono PE film |
| Film Thickness | 0.04-0.09mm |
| Speed | 20-100 bags/min |
| Accuracy | + 0.1-1.5 grams |
| Weigh Bucket | 1.6L or 2.5L or 5L |
| Control Penal | 7" or 10" Touch Screen |
| Air Consumption | 0.8Mps 0.4m3/min |
| Power Supply | 220V/50HZ or 60HZ; 18A; 3500W |
| Driving System | Stepper Motor for weighing scale; Servo Motor for packaging machine |

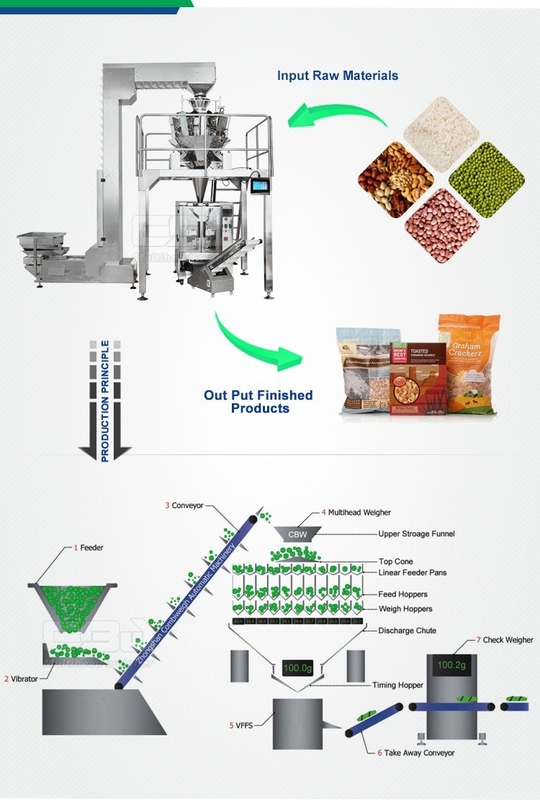

Princple
Product Features
Application
vertical packing machine for coffee bean, grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, alminds, casjews, nuts, coffee bean, chips, raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables,fruits, sea food, frozen food, small hardware etc.
