Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Model Number: | ZH-VFFSS-01 |
| Minimum Order Quantity: | 1set |
| Price: | $20,000~35,000 per set |
| Packaging Details: | wooden crate |
| Delivery Time: | 50 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
| Automatic Grade: | Automatic | Type: | Multi-Function Packaging Machine,Sealing Machine,Automatic Preformed Pouch Pet Food Packaging Machine Unit,Packaging Line,plastic Bag/1kg Sugar/1kg Bag Packing Machine |
|---|---|---|---|
| Voltage: | 220V,380V,50HZ | Condition: | New |
| Driven Type: | Electric | Packaging Type: | Bags,Film,Pouch |
| Application: | Food,Chemical,Machinery & Hardware,Commodity,Medical | After-sales Service Provided: | Video Technical Support,Online Support |
| Packaging Material: | Plastic,All Kinds Of Heat Sealing Film | Function: | Sealing,Filling,Wrapping,Labeling,Slitting |
| Power: | 3.2KW | Warranty: | 1 Year |
| Packing Speed: | 25-200bags(Depends On Products And Model Etc) | Packing Material: | Heatsealed Composite Film Etc,Flour,etc.,OPP/CPP PT/PE KOP/CPP ALU-FOIL,Capsule |
| Machine Type: | Chips Packing Machine,Vertical Automatic Packing Machine,Automatic Bag Forming Filling Sealing Machine | Bag Width: | 320-720mm(W) |
| Main Function: | Sunflower Seeds Packing Machine,packaging,Bakery Automatic Horizontal Food Packaging Machine,cutting,blanking | ||
| High Light: | 60 Bags/Min Vertical Packing Machine,380V 50HZ Vertical Packing Machine,Vertical Packing Machine Multihead |
||

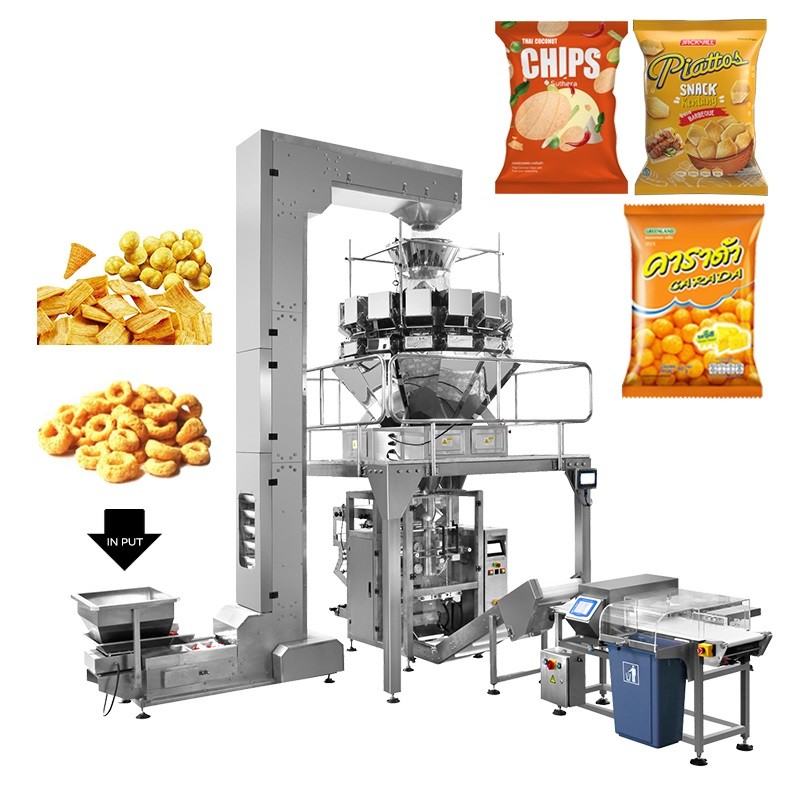

Snack Food Nuts Popcorn Vertical Packing Machine With Bag Forming Machine And Multihead Weigher
Snack food, nuts, popcorn vertical packing machine with bag forming machine and multihead weigher
Speed: 25-60 bags/min
Accuracy: 1.5g
Input: material and roll film
Output: material with finished bag package
popcorn packing machine video
Specifications
|
Model |
ZH-VFFSS |
|
Weighing Range |
10-5000 grams |
|
Bag Size |
120-400mm(L) ; 220-720mm(W) |
|
Bag Style |
Pillow Bag; Gusset Bag; Four side seal, Three-side seal |
|
Bag Material |
Laminated film; Mono PE film |
|
Film Thickness |
0.04-0.09mm |
|
Speed |
25-60 bags/min |
|
Accuracy |
+ 0.1-1.5 grams |
|
Weigh Bucket |
1.6L or 2.5L or 5L |
|
Control Penal |
7" or 10" Touch Screen |
|
Air Consumption |
0.8Mps 0.4m3/min |
|
Power Supply |
220V/50HZ or 60HZ; 18A; 3500W |
|
Driving System |
Stepper Motor for weighing scale; Servo Motor for packaging machine |

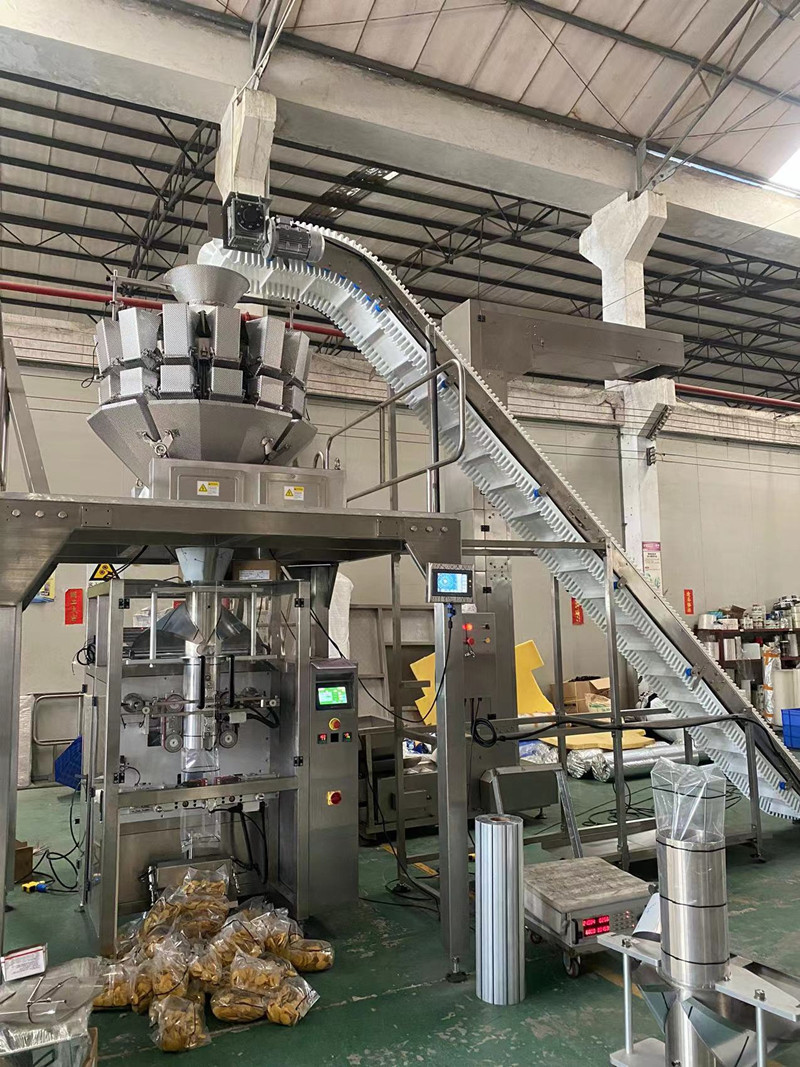

System contains:
1. Conveyor (Z-type and inclined conveyor)
2. Multihead weigher / linear weigher (2/4/10/14/20 heads)
3. Working platform

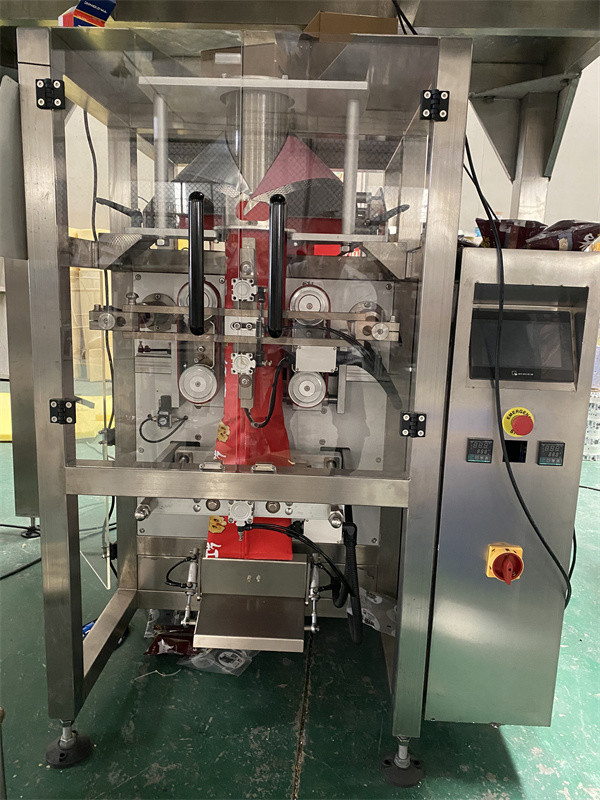

4. Vertical bag filling and packing machine
5. Finished product conveyor (belt type and chain board type)

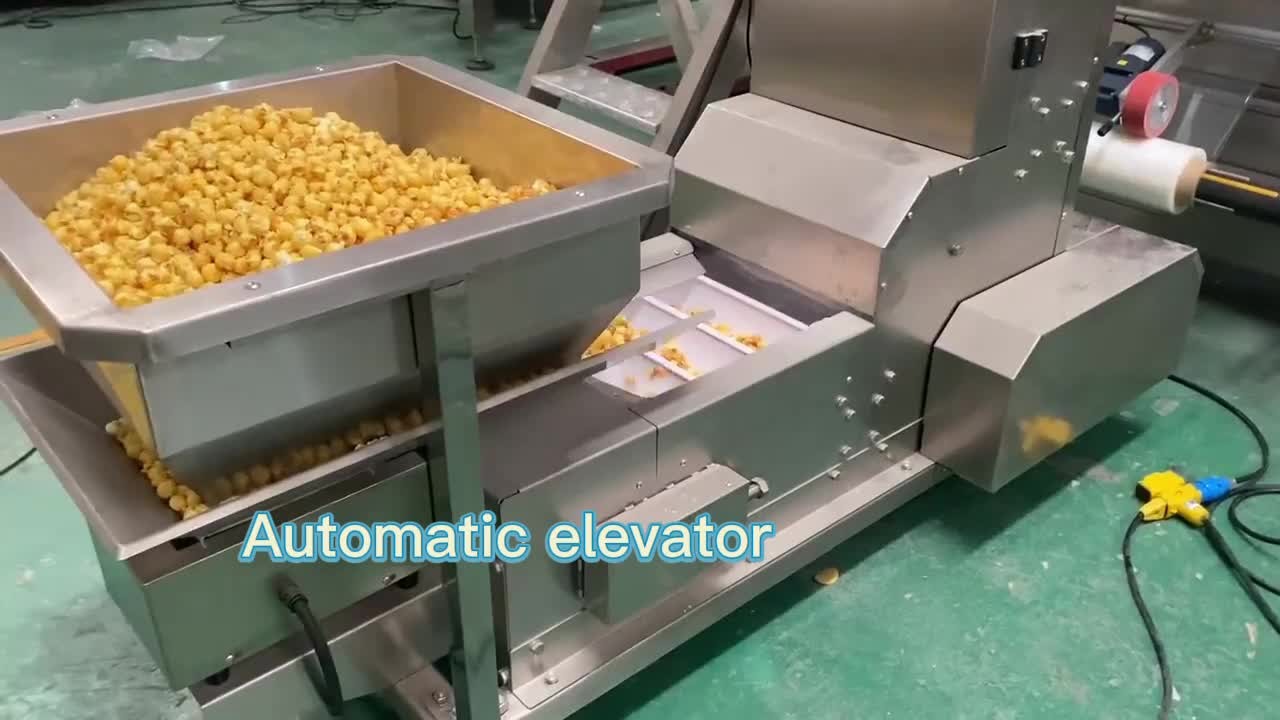

a. Z-type Material Loading Conveyor
It can be docked to the production line to automatically convey materials for packaging. When the material is not available, it will automatically pause the work, and after the material is available, it will automatically start the work, saving the cost of manual loading.

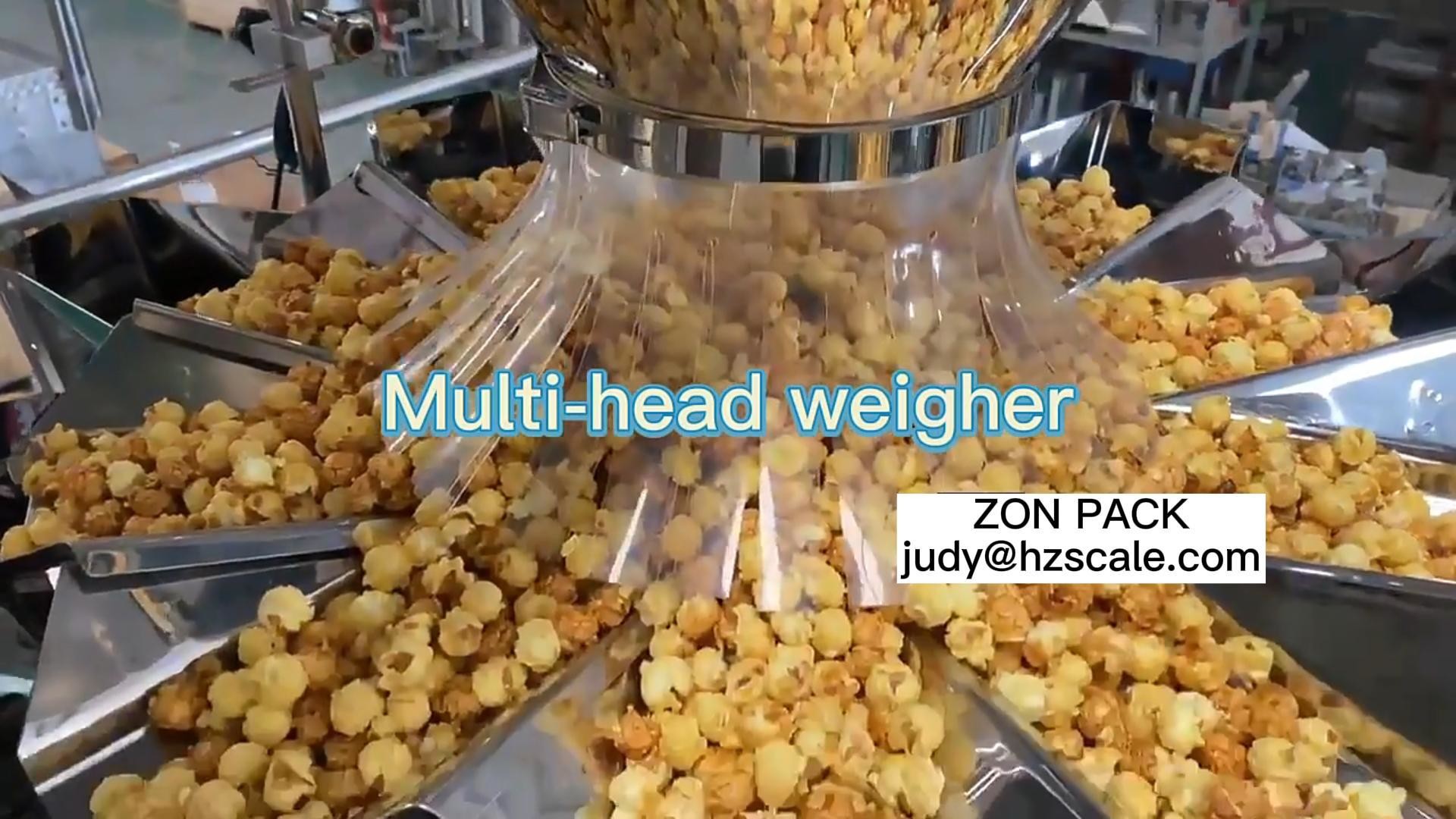

d. 10 heads/ 14heads multihead weigher
Application: coffee bean, grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, alminds, casjews, nuts, coffee bean, chips, raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables,fruits, sea food, frozen food, small hardware etc.
e. option scale: 2 Heads / 4 Heads Linear Weigher
Application: it is a perfect packing machine for coffee bean, sugar, salt, rice and so on.
Bags type can make
Option machines:
nitrogen generator, air compressor, weight checker, metal detector, date printer, finished product conveyor, feeding conveyor
Packing: film wrap inside, wooden crate outside
