Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China , zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-GD8-200 |
| Minimum Order Quantity: | 1sets |
| Price: | 30,000 USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 35working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 99+sets+per month |
| Voltage: | 380V 60Hz | Automatic Grade: | Automatic |
|---|---|---|---|
| Condition: | New | Packaging Type: | Pre-made Bag With Zipper.,flat Bag,stand Up |
| Function: | Filling , Sealing , Wrapping | Application: | Food , Nuts , Jerky Beef, Grain,bean |
| After-sales Service Provided: | Online Support,Video Technical Support,Engineers Available To Service Machinery Overseas | Packing Speed: | 25-50Bags/min |
| Warranty: | 1 Years | Product Name: | Automatic Packing Machine For Pre-made Bag |
| Model: | ZH-GD8-200 | ||
| High Light: | Biltong Fully Automatic Packaging Machine,50Bags/min Fully Automatic Packaging Machine,Biltong Premade Bag Packing Machine |
||

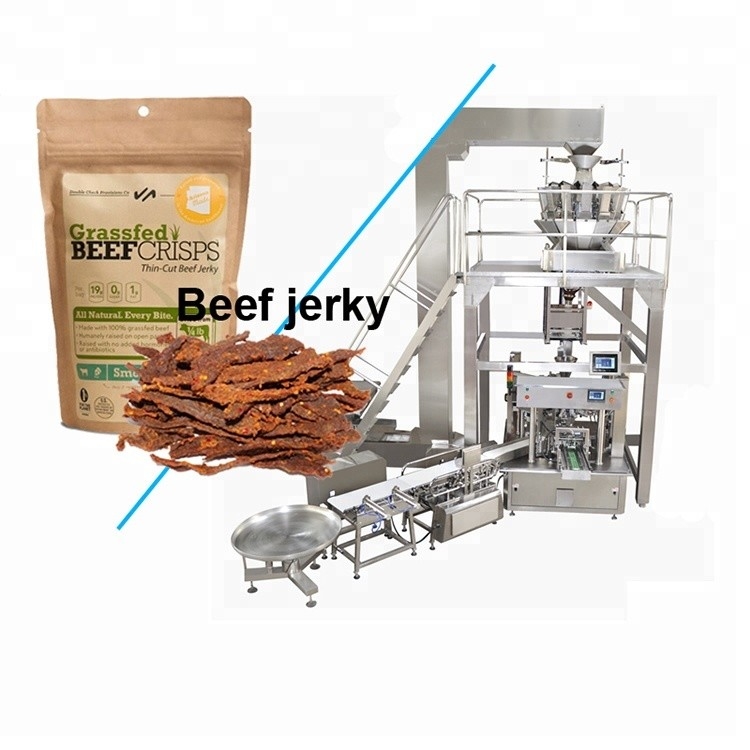

Fully Automatic Multi-Function Packaging Machine For Premade Bag Stand-Up Pouch Dried Meat Biltong Beef Jerky Dry Por
Fully Automatic Multi-function Packaging Machine
For premade bag, stand-up Pouch, Dried Meat Biltong Beef Jerky Dry Pork
Speed: 25-60 bags/min Accuracy: 1.5g
Specification
| Model | ZHP-GD200/250 |
| Weight | 10-2000 grams |
| Speed | 20-65 packs/min |
| Accuracy | 1.5 grams |
| Bag style | Preformed bag |
| Bag size | Width 110-200mm, length 160-330mm |
| Power | 220V/380V, 50HZ/60HZ, 6.75KW |
| Air consumption |
1.5m3/min |
Application
Grain, stick, slice, orbicular, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips, raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables, fruits, sea food, frozen food, small hardware etc.

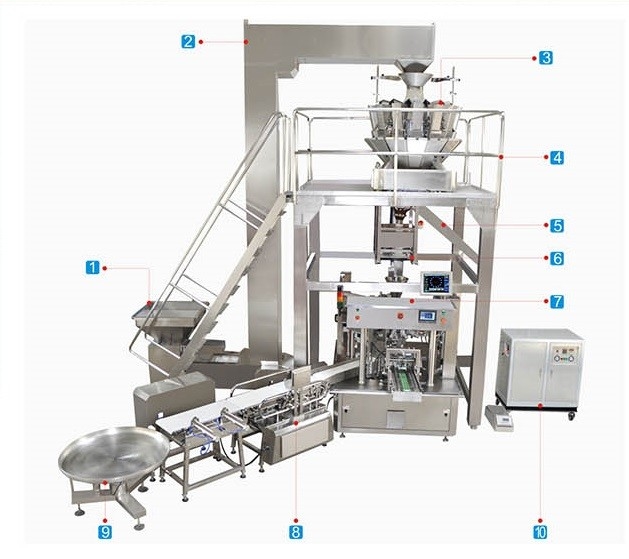

System contains:
a. Conveyor (Z-type conveyor and inclined type conveyor)
b. Multihead weigher / linear weigher (2/4/10/14/20 heads)
c. Working platform
d. Rotary filling and sealing packing machine
e. Weight examine machine and metal detector machine
Packing Process:
picking up bags - coding date - open bag - filling - sealing - out put
Details
|
Different feeding pan and hoppers are designed for different products.. |
|
|
|
• Modular drive (mother boardand driving board) contorol system, stronger data handling ability. Driving board is commonly used between multihead weigher. |
|
Bag storageBelt feed conveyor can load lots of bag, reduce worker to feed bags all the time |
|
|
|
Top electric boxIt is on the top of machine. Easy for dismantling, improve maintenance efficiency.
Windows style operation interface |
|
Fit for multiple bag size
A key set for adjusting all bag width fingures on touch screen. |
|
|
|
Open both bag top & bottom Fully open the pouch ensure well filling and sealing. |
|
Safety doorThe packing machine will stop and alarm if the door is opened, keep operator in safe. |
|
|
|
Water diversion designIt can leak water easily during daily cleaning.
Reduce cleaning time. |
Package and Delivery
