Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE |
| Model Number: | ZH-A10 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD6800/SET |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 woking days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 99sets/month |
| Product Name: | Multihead Weigher | Usage: | Weight Measuring |
|---|---|---|---|
| Main Function: | Weighing Filling Sealing | Keyword: | High Speed |
| Packing Material: | CPP | Material: | Stainless Steel 304 |
| Feature: | High Efficiency | Product Keywords: | Full-Auto |
| Item: | Food Packer Machine | Automaticity: | Touch Screen Control |
| High Light: | 10 Head Weighing And Packing Machine,Sheet Food Weighing And Packing Machine,Sheet Food Multihead Combination Weigher |
||

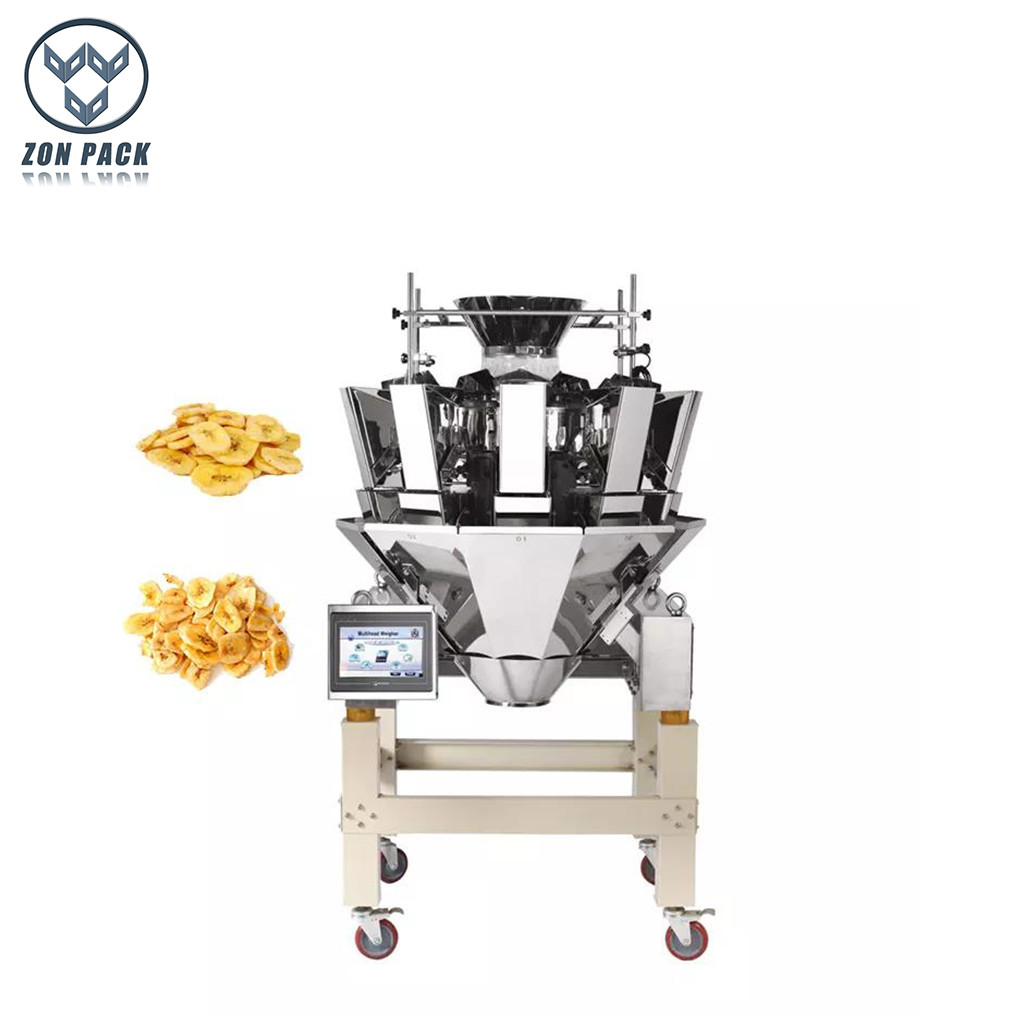

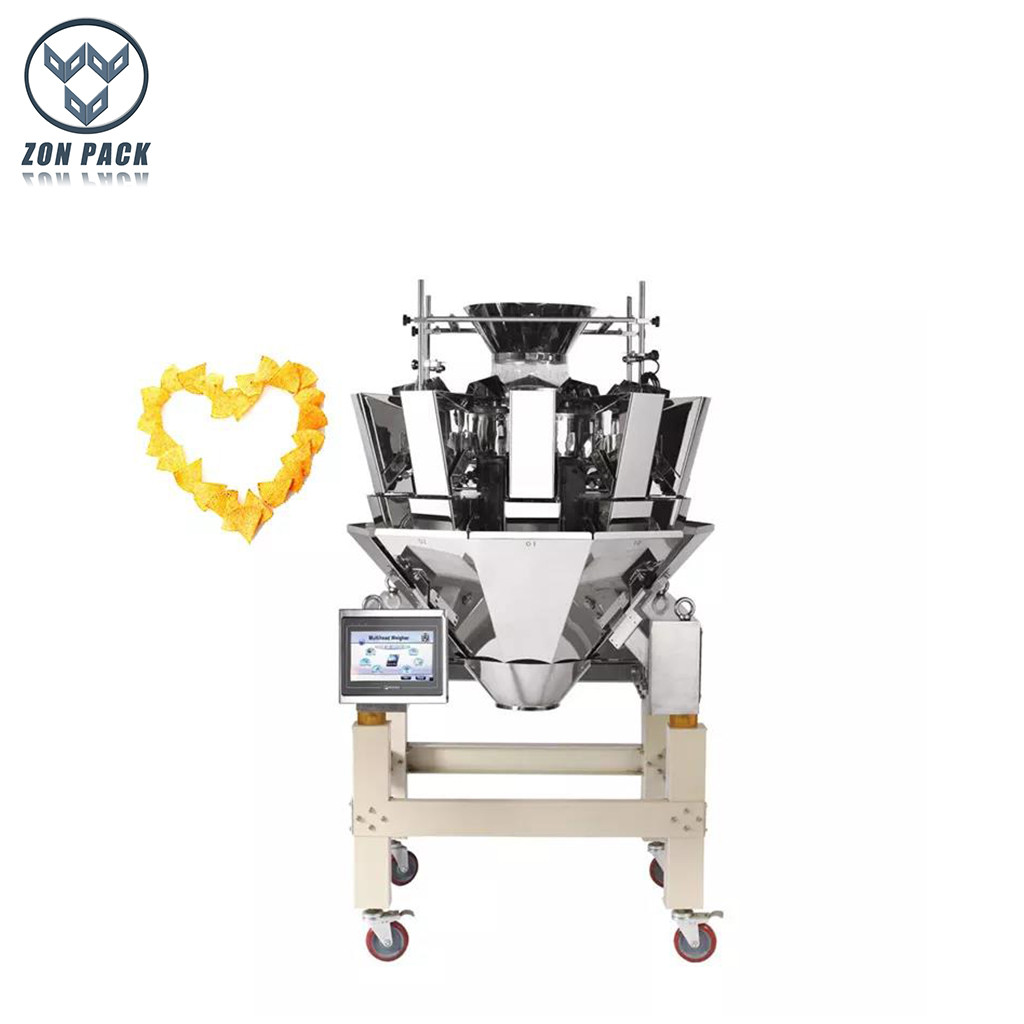

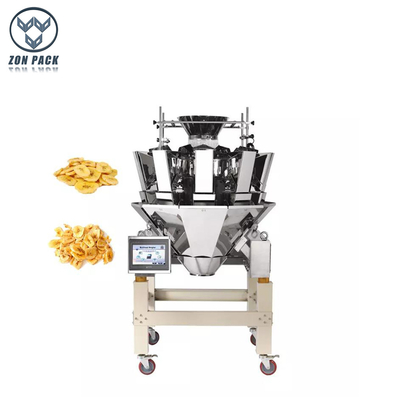

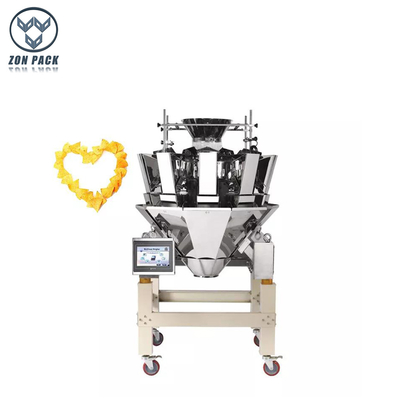

10 Head Weighing and Packing Machine Multihead Combination Weigher Sheet Food Packaging Machine
Product Description
Ⅰ. Main function
1. The amplitude of vibrator can be auto-modified for more efficient weighing.
2. Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal;
3. Multi-time drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.
4. Modify hopper open speed and open angle basing on the characteristics of measured material can prevent material blocking the hopper.
5. No products auto pause function can improve weighing stability and accuracy;
6. 7" / 10 touch screen can meet various requirements;
Ⅱ . Parameters
| Technical Specification | |
| Model | ZH-A14 |
| Weighing Range | 10-2000g |
| Max Weigh Speed | 120Bags/Min |
| Accuracy | ±0.1-1.5g |
| Hopper Volume(L) | 1.6/2.5 |
| Driver Method | Stepper Motor |
| Option | Timing Hopper/ Dimple Hopper/ Printer/ Overweight Identifier / Rotary Top Cone |
| Interface | 7"HMI/10"HMI |
| Power Parameter | 220V/ 1500W/ 50/60HZ/ 10A |
| Package Volume (mm) | 1750(L)×1200(W)×1240(H) |
| Total Weight(Kg) | 490 |

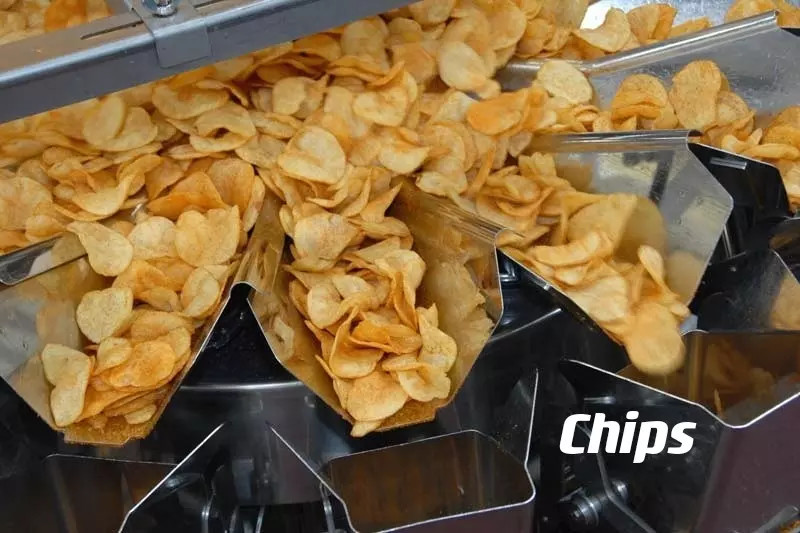

ZH-A14 It is suitable for weighing grain,stick,slice,globose,irregular shape products such as candy,chocolate,jelly,pasta,melon seeds,roasted seeds,peanuts,pistachios,almonds,cashews,nuts,coffee bean,chips,raisins,plum,cereals and other leisure foods,pet food,puffed food,vegetable,dehydrated vegetables,fruits,sea food,frozen food,small hardware,etc.
Our service :
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.

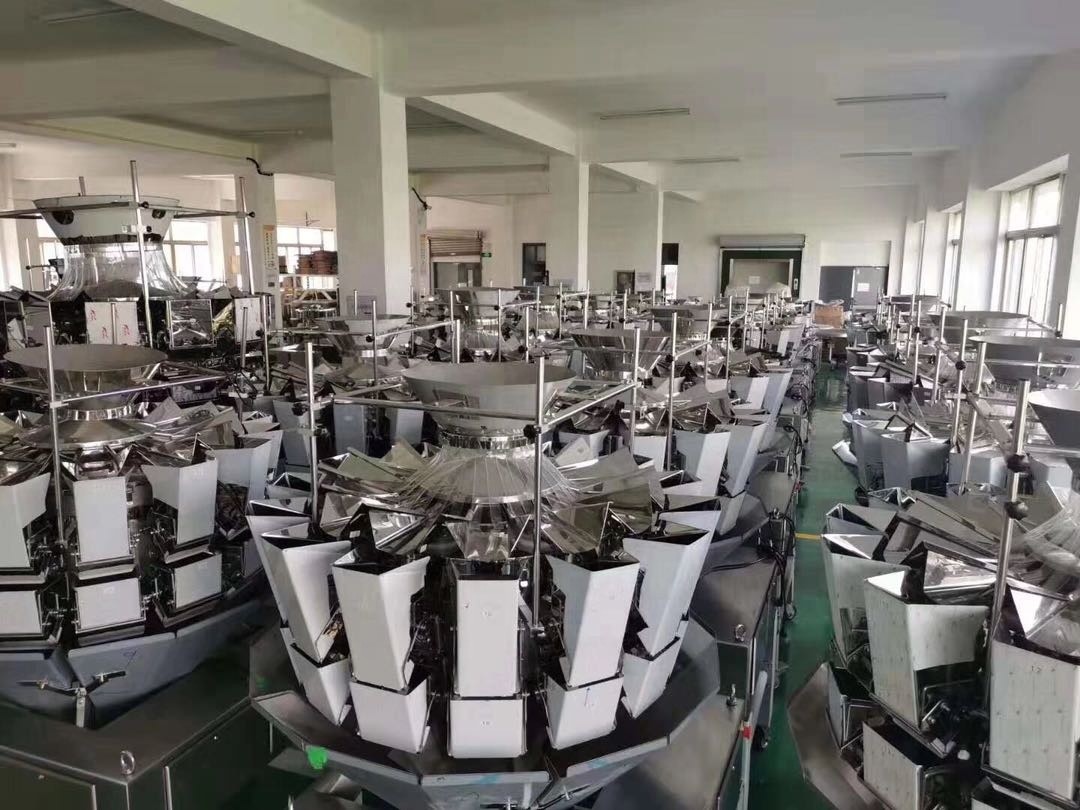

* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
