Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China,Zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-A10 |
| Minimum Order Quantity: | 1Sets |
| Price: | USD7600/Set |
| Packaging Details: | Wooden case |
| Delivery Time: | 10-15working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 99sets per month |
| Type: | Automatic Multihead Weigher | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric | After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Installation |
| Driver Method: | Stepper Motor | Option: | Timing Hopper/Dimple Hopper/Printer |
| Material: | 304 Stainless Steel | Weight: | 400kg |
| High Light: | Waterproof Automatic Multihead Weigher,Waterproof 10 Head Weigher,Plastic Tray 10 Head Weigher |
||

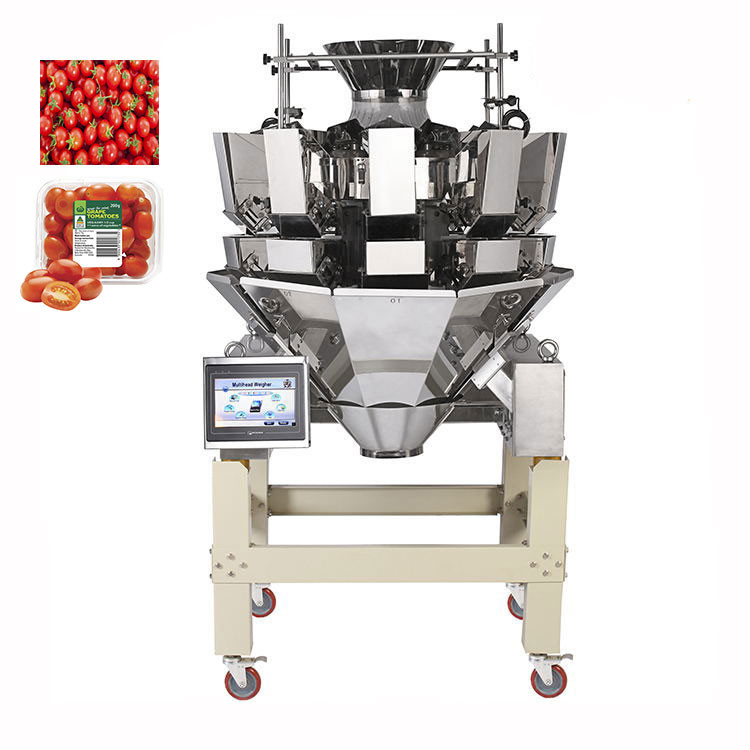

Automatic Waterproof 10 Heads Weigher Cherry Tomato Weighing Equipment For Plastic Tray Clamshells Box
Product Description
Ⅰ. Main function
1. Vibrator modifies the amplitude basing on different target to make material down more equably and get higher combination rate.
2. Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal;
3. Modify hopper open speed and open angle basing on the characteristics of measured material can prevent material blocking the hopper.
4. Multi-time drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.
5. Material collecting process system with difference automatic identified and one drag two function can remove unqualified product and deal with material drop signals from two packaging machines.
6. Components which touch the material are all manufactured with stainless steel. Hermetic and waterproof design has been adopted for preventing particles entering and cleaning easily.
7. Different authority can be set for different operator, which is for easy management.
8. 7" / 10 touch screen can meet various requirements;
Ⅱ . Parameters
| Model | ZH-A10 |
| Weighing Range | 10-2000g |
| Accuracy | ±0.1-1.5g |
| Hopper Volume | 0.5L/1.6L/2.5L/5L |
| Driver Method | Stepper motor |
| Option |
Timing Hopper/ Double door Hopper/ Dimple Hopper/ Printer/ Overweight Identifier / Rotary Vibrator |
| Interface | 7'HMI or 10"HMI |
| Power Parameter | 220V/ 50/60HZ 1000W |
| Package Volume (mm) | 1650(L)×1120(W)×1150(H) |
| Gross Weight(Kg) | 400 |

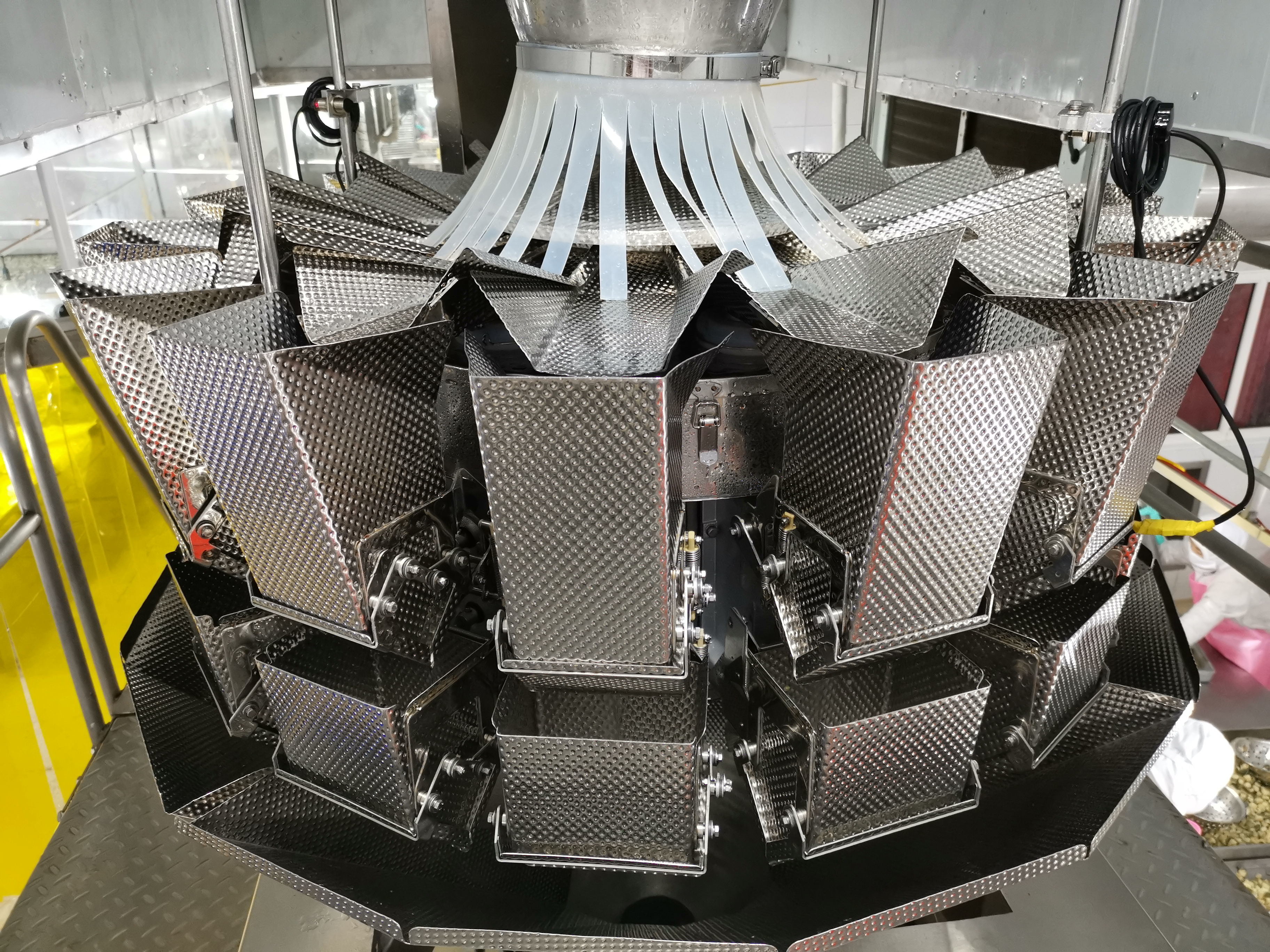

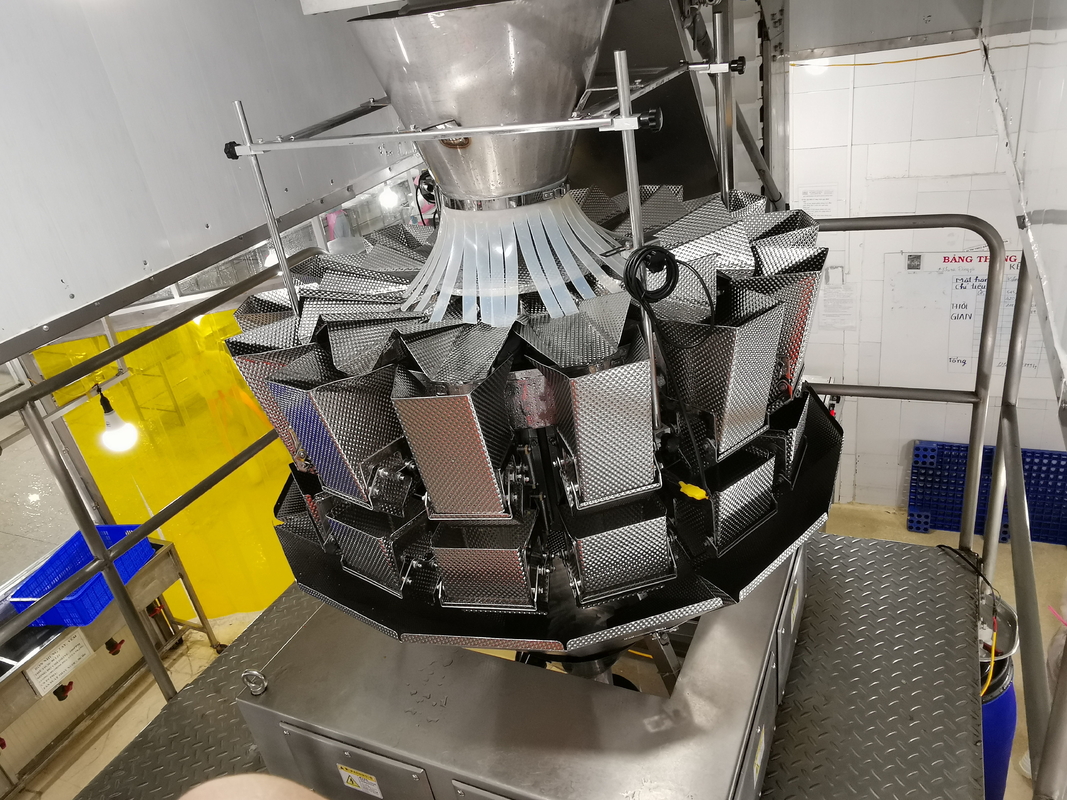

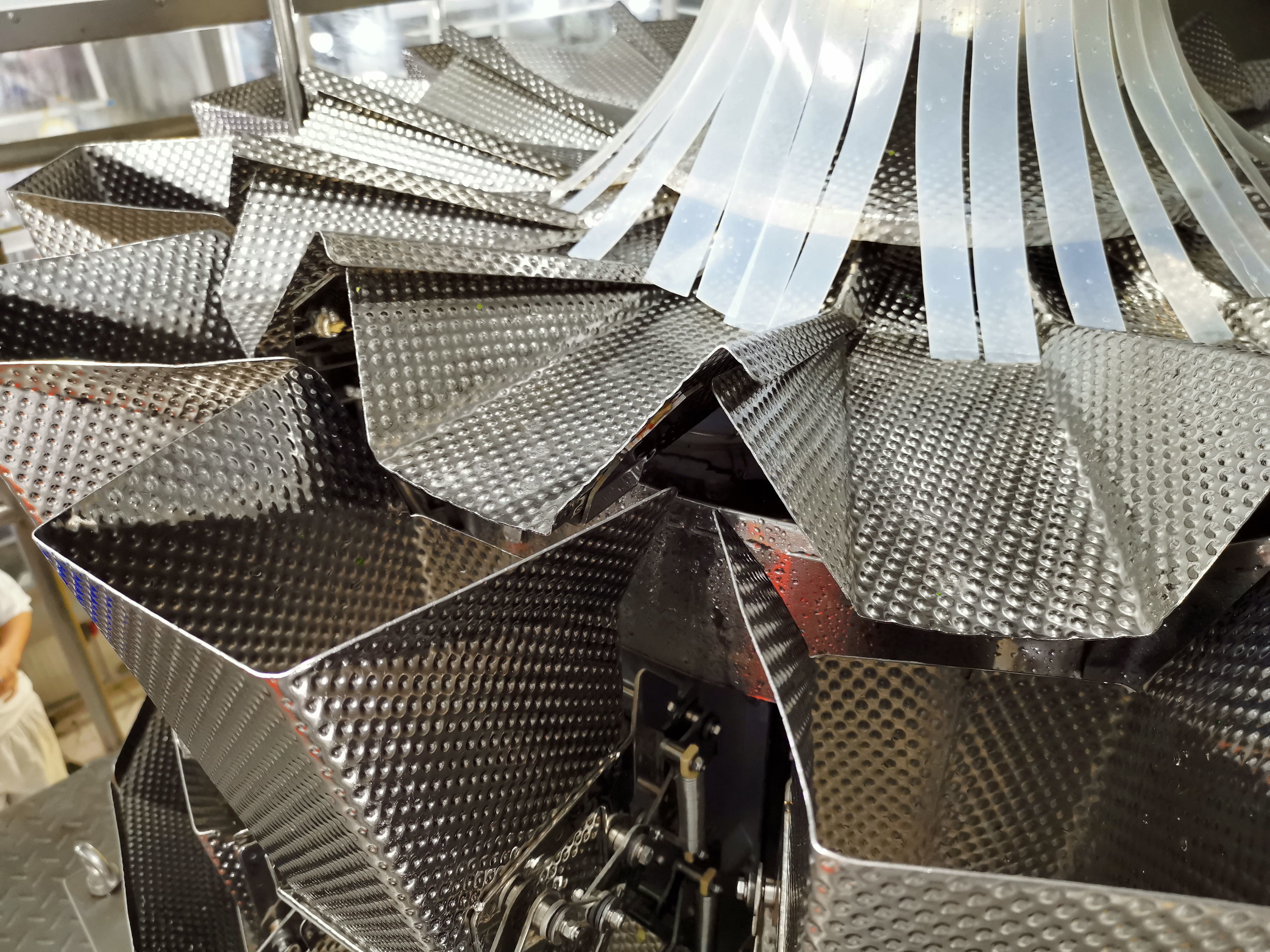

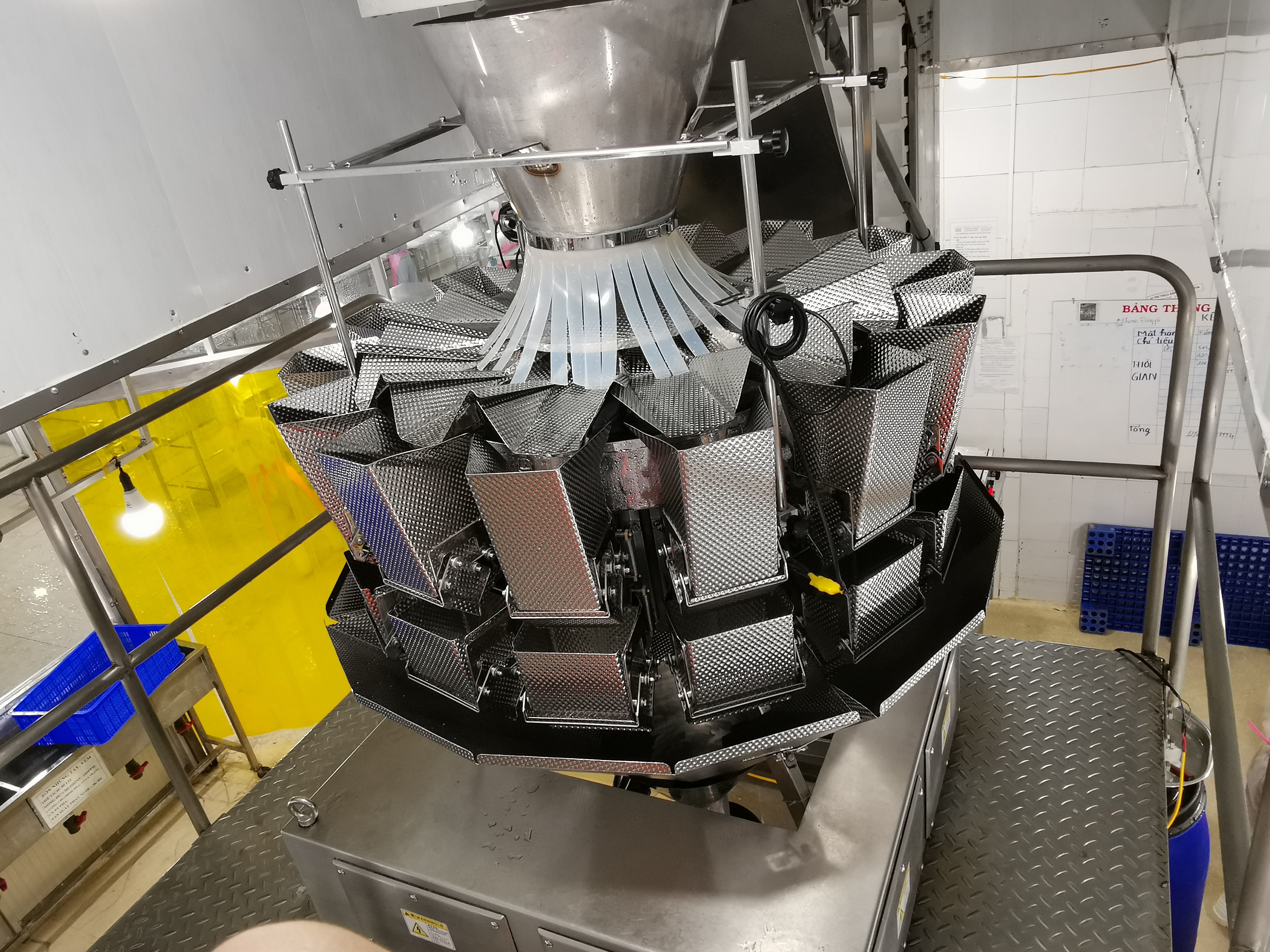

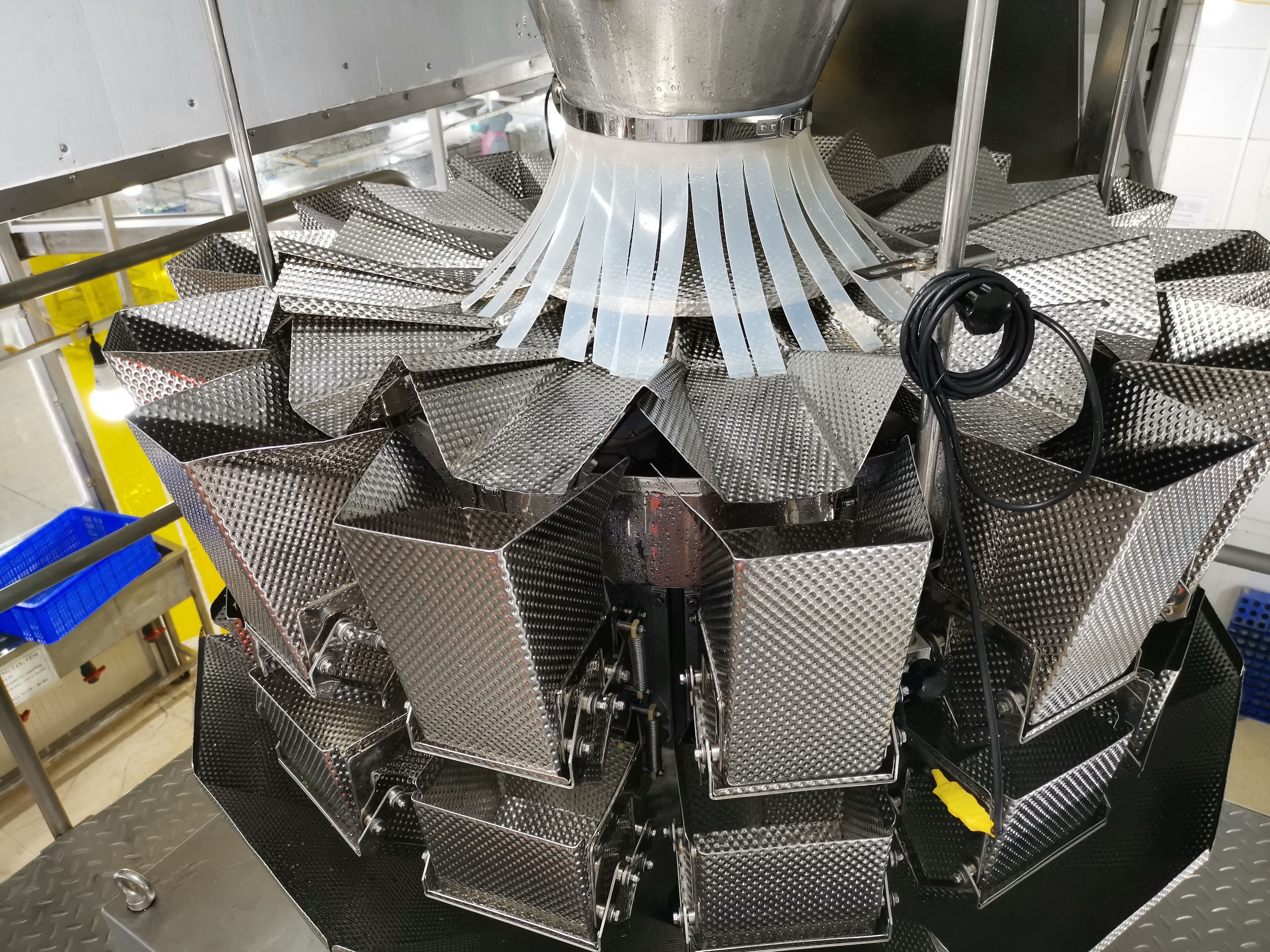

Ⅲ . Machine Details
