Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Puffed Food Packing Machine | Material: | 304SS |
|---|---|---|---|
| Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag | Packing Material: | Laminated Film Such As POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Application: | Chemical, Commodity, Food, Machinery & Hardware | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year | Function: | Filling ,Weighing,Sealing |
| Customed Made: | Yes | Multi-language: | Yes |
| High Light: | 304SS potato chips packing machine,0.1g potato chips packing machine,304SS multi head pouch packing machine |
||
High speed automatic potato chips fruit chips multi head packing machine for bag making
Technical Feature
1. The new design,beautiful appearance,the structure is more reasonable,more advanced technology.
2 .Imported PLC computer control system,color touch screen,easy to operate,intuitive and efficient.
3. The imported servo film transport system,imported color code sensor,accurate positioning and the machine
performance is remarkable,the packing is beautiful .
4. A variety of automatic alarming protective function,maximum limit to reduce wear and tear.
5. Bag shape diversification,can provide customers with pillow bags,gusseted bags,hole punch bag,linking bag,etc.
| Technical Specification | |
| Model | ZH-BL10 packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application of Machine
The high speed packing machine is suitable to pack products with irregular shape, granule, solid state,
such as potato chips,nuts, coffee beans, seeds, Fried peas, Trail Mix, Roasted Snack and so on.

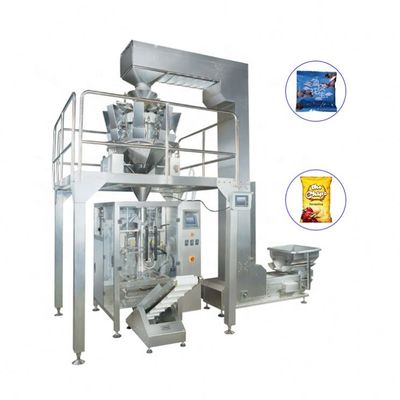

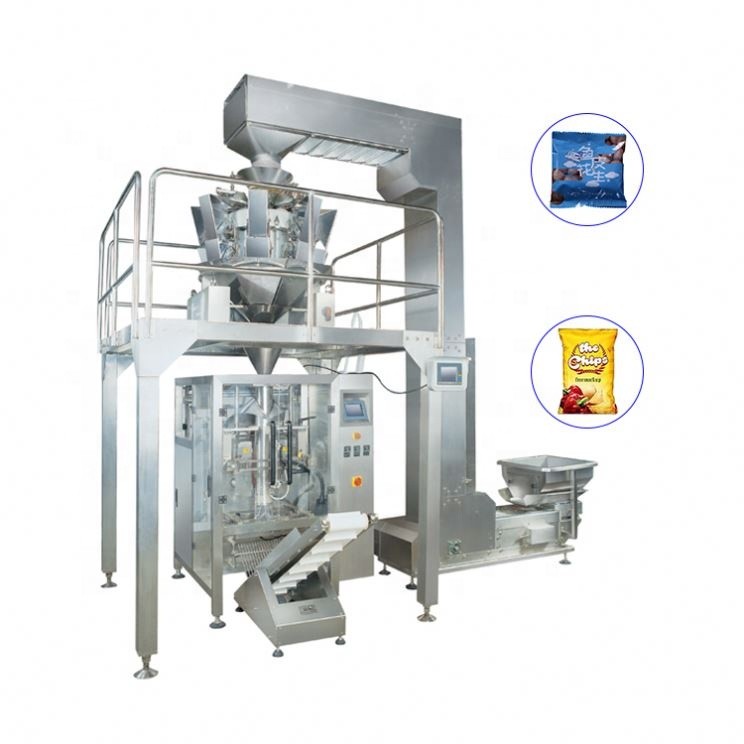

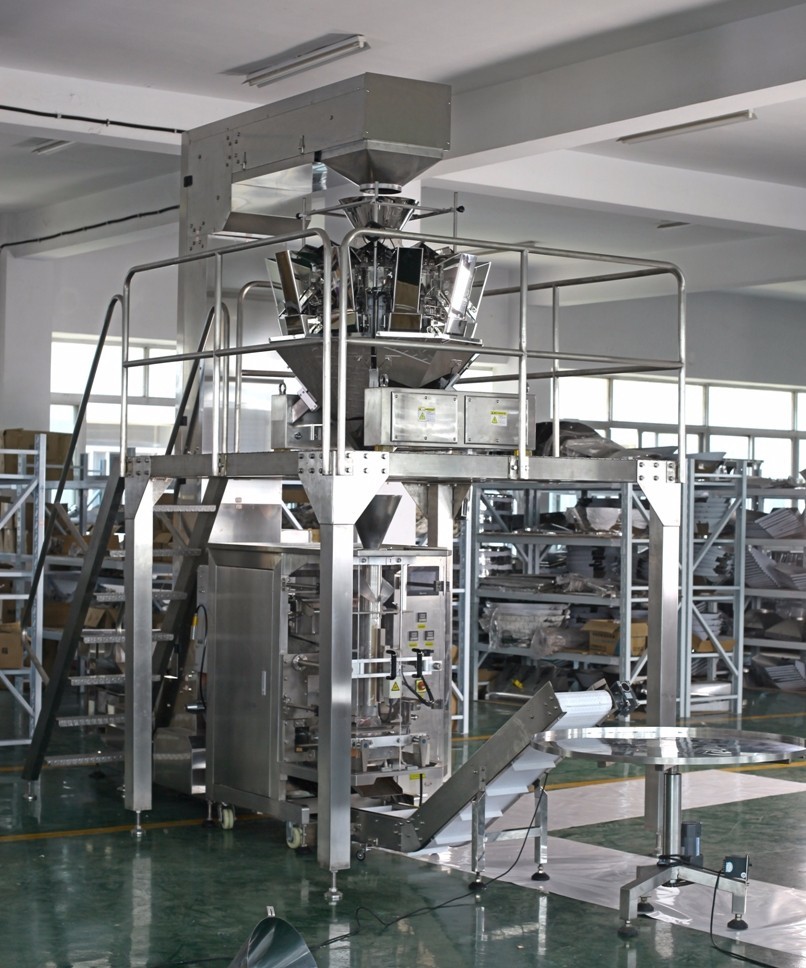

System Construction
1. Infeed bucket conveyor:
Raise material to multihead weigher which controls the start and stop of the hoister.

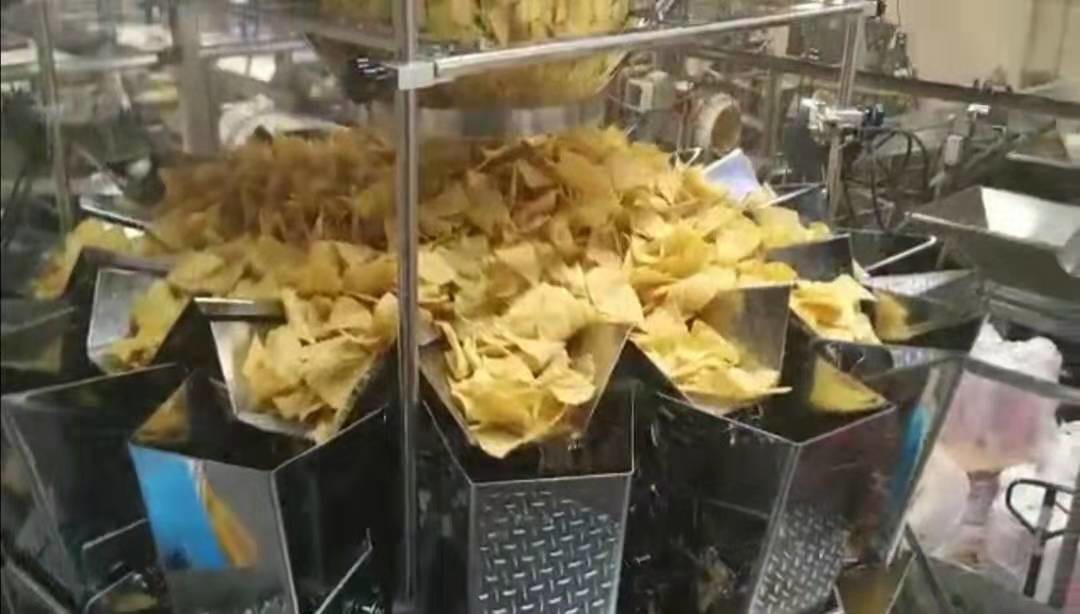

2. 10 heads multi weigher:
Used for quantitative weighing.
3. Working platform: Support the 10 heads multi weigher.
4. Vertical packing machine:
Pack the material with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
