Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China , zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-V420 |
| Minimum Order Quantity: | 1sets |
| Price: | USD+9000+USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 40working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 99+Sets+per month |
| Voltage: | 220V/50Hz | Automatic Grade: | Automatic |
|---|---|---|---|
| Condition: | New | Driven Type: | Electric |
| Function: | Filling , Sealing , Wrapping | Packaging Type: | Pillow Bags , Pouch , Gusseted Bag |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, | Warranty: | 1 Years |
| Frame: | 304SS / 316SS | Feature: | Adopting PLC And Touch Screen |
| High Light: | 304ss automatic granule packing machine,200mm automatic granule packing machine,304ss candy packing machine |
||
304ss frame automatic coffee candy chocolate tea packaging machine for sale

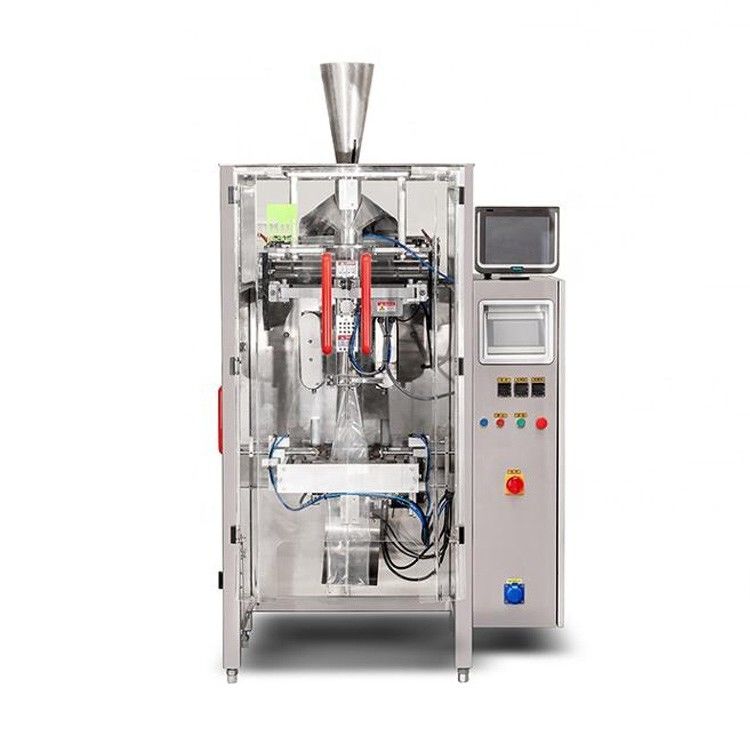

I . Application of ZH-V420 Vertical Packing Machine
lt's suitable to use in packing the high accuracy and easy fragile materia such as: puffy food, crispy rice, jelly, candy, pistachio, apple slices, dumpling, chocolate, pet food, small hardwares. Medicine, etc.
II . Main Function:
1.Imported PLC control system and color touching screen enable easy and efficient operation
2. Perfect alarm system to make problem solved quickly.
2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
3. Double-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
4. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
5. Intelligent: Packing speed and bag length can be set through the screen without part changes;
6. Profession: Independent temperature controller with heat balance enables different packing materials;
7. Characteristic: Automatic stop function, with safe operation and saving the film;
8. Convenient: Low loss, labor saving, easy for operation and maintenance.
III . Technical Specification
| Model | ZH-V420 |
| Packing speed | 25-70Bags/Min |
| Bag size(mm) |
W:60-200mm L:60-300mm |
| Bag making mode | Pillow bag, standing bag (gusseted), Punching bag , Connecting bag |
| Max film width (mm) | 420 |
| Thickness of film (mm) | 0.04-0.09mm |
| Air consumption | 043m3/min 0.8MPa |
| Packing Material |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE ,NY/PE, PET/ PET. |
| Power Parameter | 220V50/60Hz 3KW |
| Dimension(mm) | 1530(L)×970(W)×1700(H) |
|
Gross Weight(kg) |
450 |
Application and Bag Type :

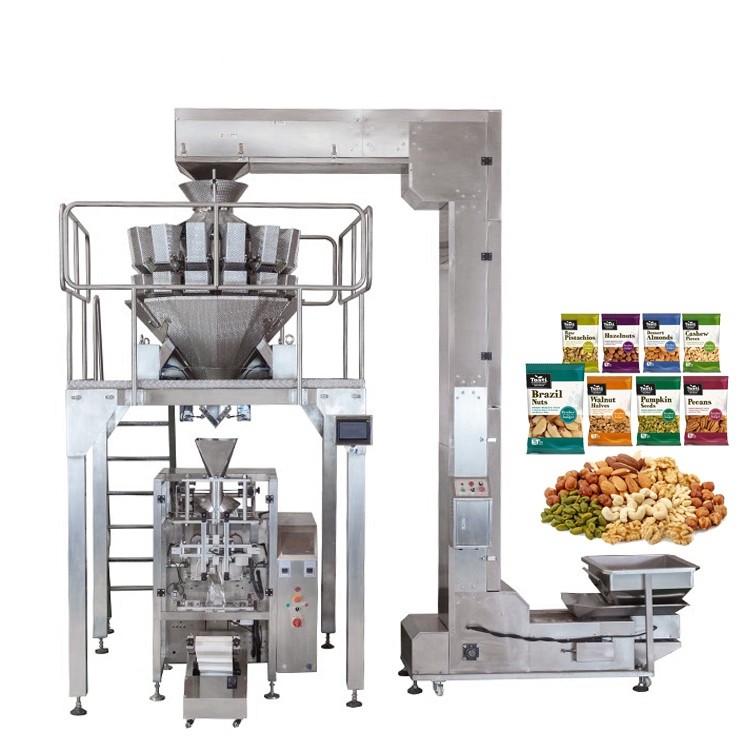

Some Projec of Vertical Packing Machine
