Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Automatic Food Packing Machine | Function: | Filling ,Weighing,Sealing,Packing |
|---|---|---|---|
| Bag Making: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag | Packing Material: | Laminated Film ,PE Film |
| Packing Accuracy: | ±0.1-1.5g | Power Parameter: | 220V 50/60Hz 2.2KW |
| Packing Speed: | 30-70 Bags/Min | Optional: | Air Filling Device/optional Angle Folding Device |
| High Light: | 2kg Automatic Food Packing Machine,1kg Automatic Food Packing Machine,2kg pillow bag packaging machine |
||
OEM 12 months warranty 1kg 2kg all kinds of food packing machine with date printing
Technical Feature
1. This machine can automatically complete the following work: material lifting--multi-head weigher measuring--
coding--bag making--filling--gas injection / exhaust (optional)--sealing--counting-- conveying finished products --
sorting finished products.
2. PLC servo and pneumatic control system, large touch screen forms the core of drive control; high reliability and the
intellectualized degree, and equipped with safety protection.
3. Touch screen can store a variety of different product packaging process parameters, whenreplacing product,
it can be used at any time without resetting.
4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order to be promptly ruled out.
| Technical Specification | |
| Model | ZH-BL10 packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |

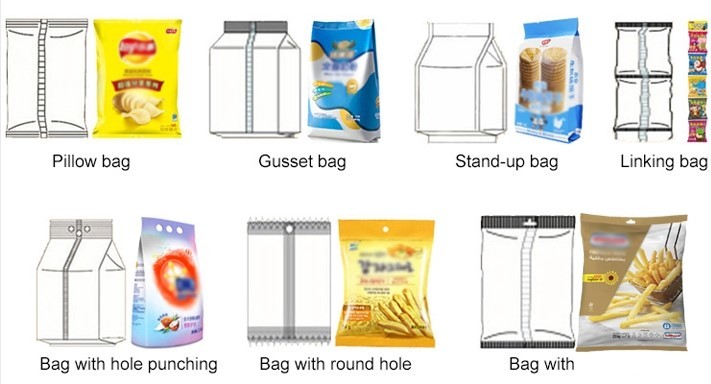

| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application of Machine
All kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds,
chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn,
Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.

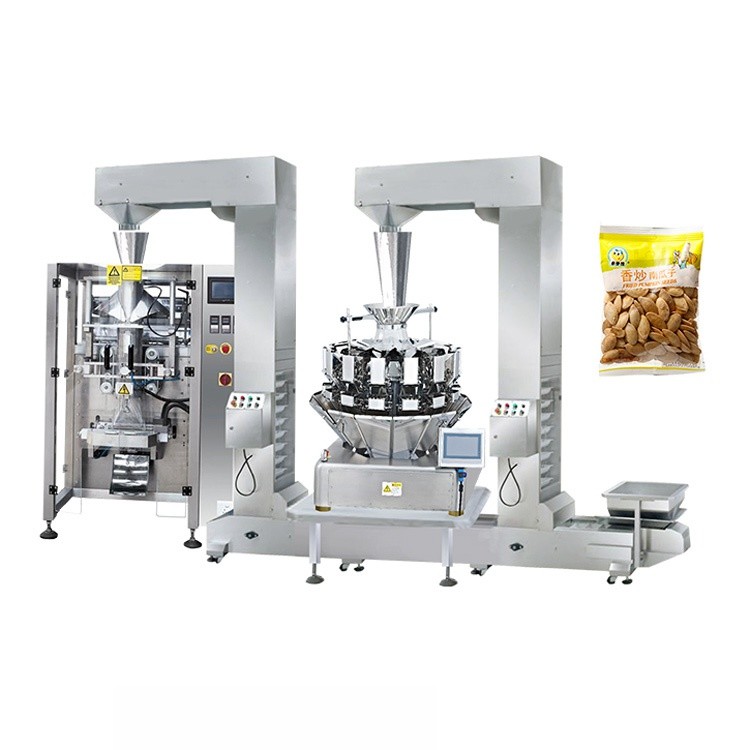

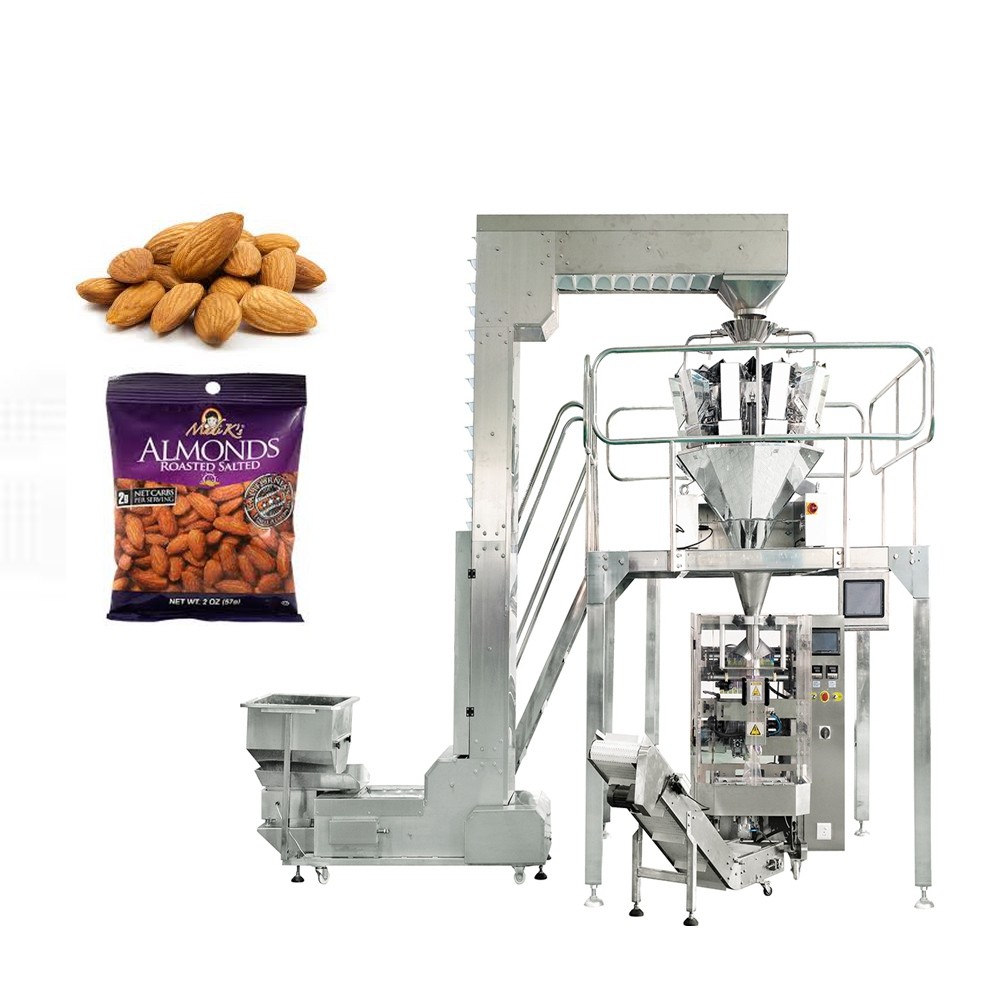

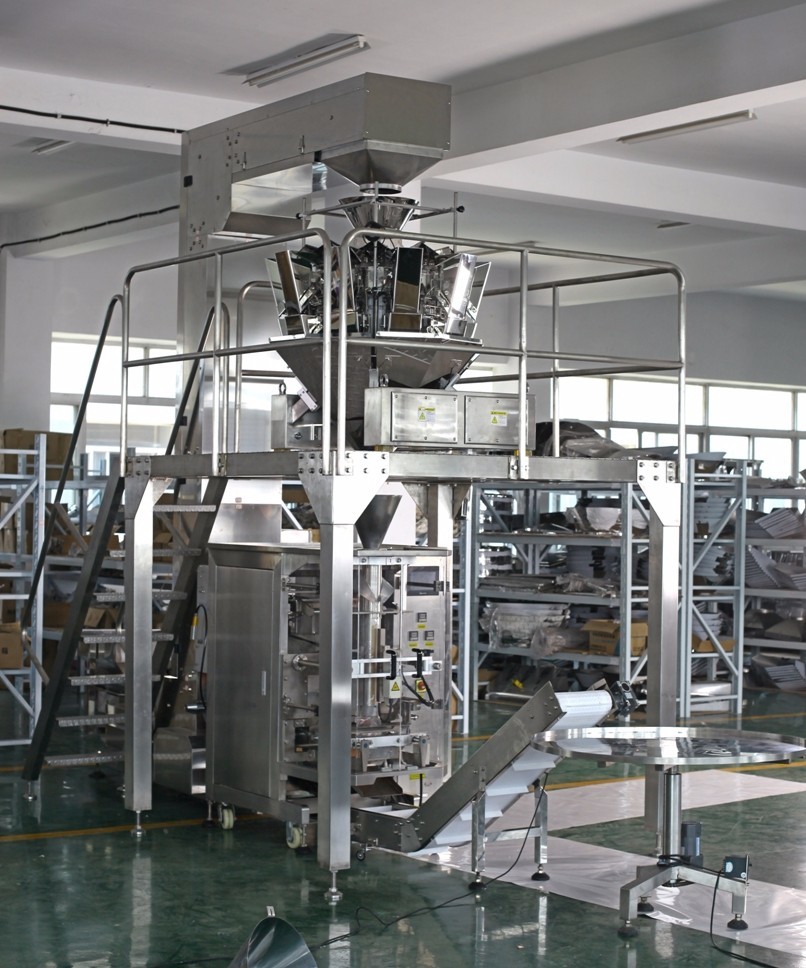

System Construction
1. Infeed bucket conveyor:
Convey the product to multihead weigher

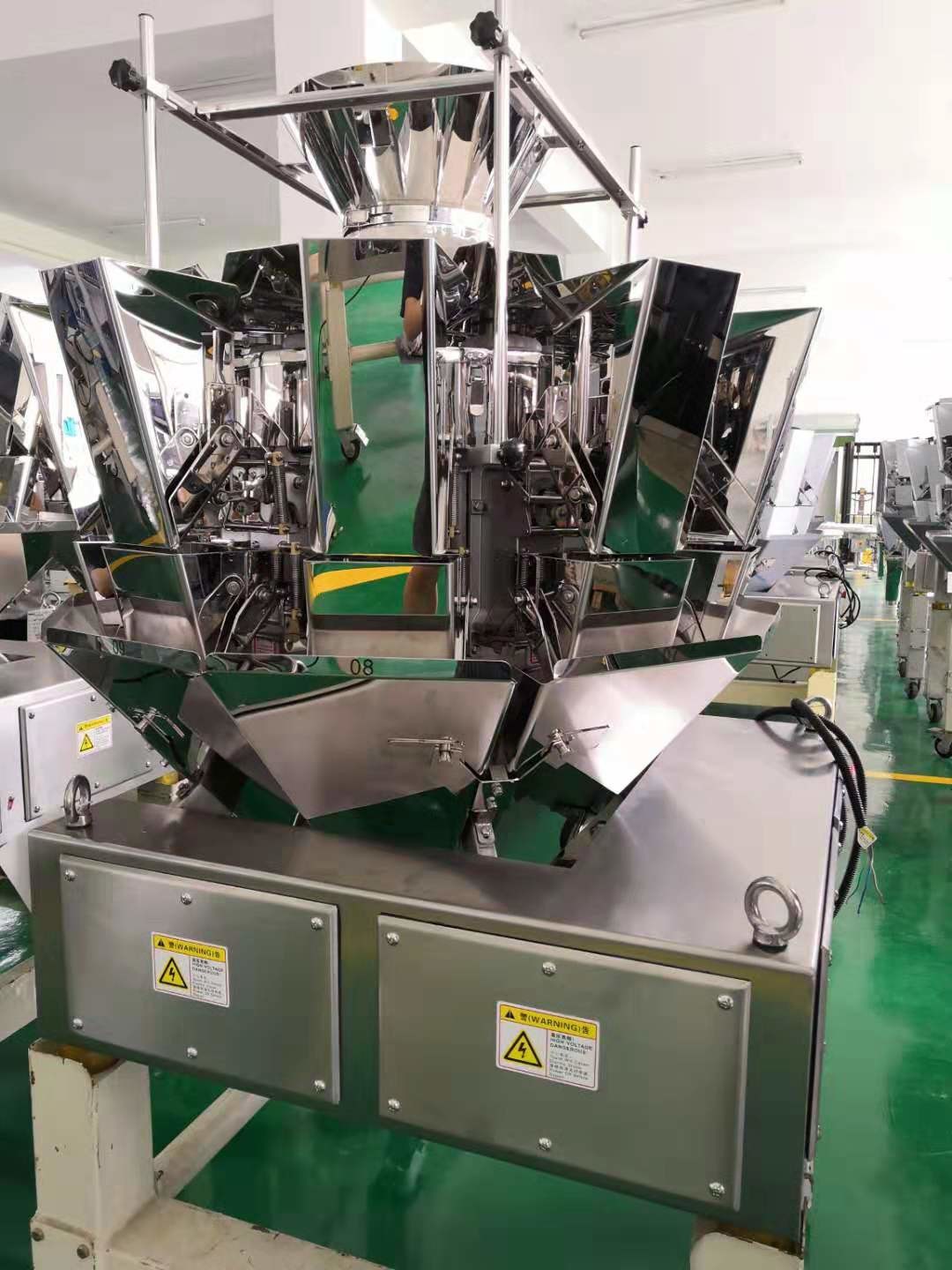

2. 10 heads multi weigher:
For product weighing.
3. Working platform:
Support the 10 heads multi weigher.
4. Vertical packing machine:
For bag forming and bag sealing.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers. We can do:
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
