Place of Origin: | China |
---|---|
Brand Name: | ZON PACK |
Certification: | CE Certification |
Model Number: | ZH-BL10 |
Minimum Order Quantity: | 1 Set |
Price: | 22000-28000USD per set |
Packaging Details: | Wooden case |
Delivery Time: | 25-30 Working days |
Payment Terms: | L/C, T/T, D/P, Western Union |
Supply Ability: | 199 Set per month |
Name: | Automatic Food Packing Machine | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
---|---|---|---|
Language: | Multi-language | Packing Material: | Laminated Film ,PE Film |
Function: | Feeding ,Filling ,Weighing,Sealing | Packing Speed: | 30-70bag/min,depends On Your Product |
Control: | PLC | VFFS: | V320 |
Bag Width: | 60-150 Mm | Bag Length: | 50-200mm |
High Light: | 320mm Automatic Food Packing Machine,V320 Automatic Food Packing Machine,320mm plastic bag packing machine |

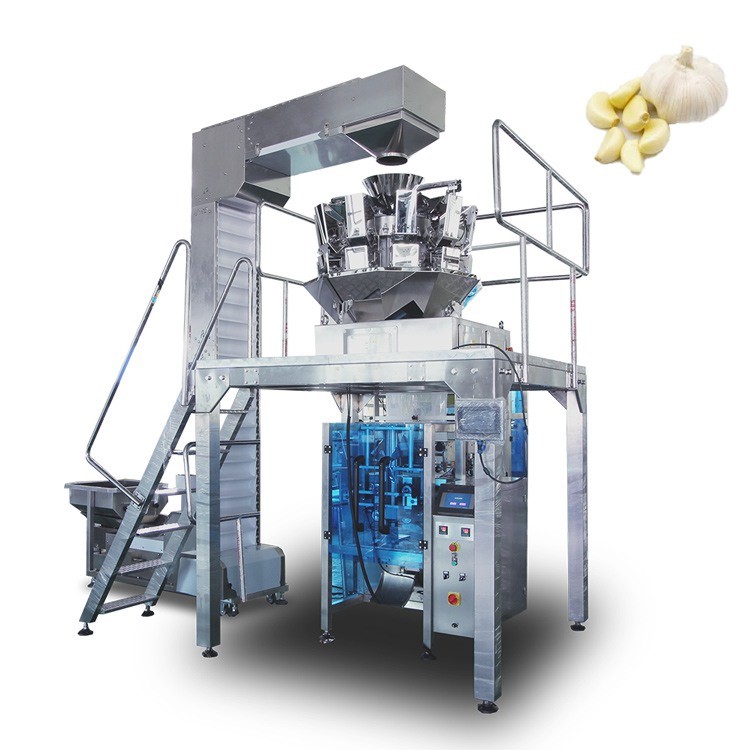

Factory price 320mm bag small food plastic bag packing machine supplier
Technical Feature
1. Material conveying, weighing, filling, bag-making, date-printing, finished product outputting are all completed
automatically.
2. High weighing precision and efficiency.
3. Packing efficiency will be high with vertical packing machine
4. Sever motor drawing film, position accurately.
5. Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
6. Packing type diversification, pillow sealing, standing type, punching etc.
7. Bag-making, sealing, packing, print date in one operation.
Technical Specification | |
Model | ZH-BL10 packing machine |
Packing Speed | 30-70 Bags/Min |
System Output | ≥8.4 Ton/Day |
Packing Accuracy | ±0.1-1.5g |
Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
Range of measuring (g) | 5000 |
Thickness of film (mm) | 0.04-0.10 |
Power Parameter | 220V 50/60Hz 2.2KW |
Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 |
Application of Machine
All kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds,
chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn,
Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.

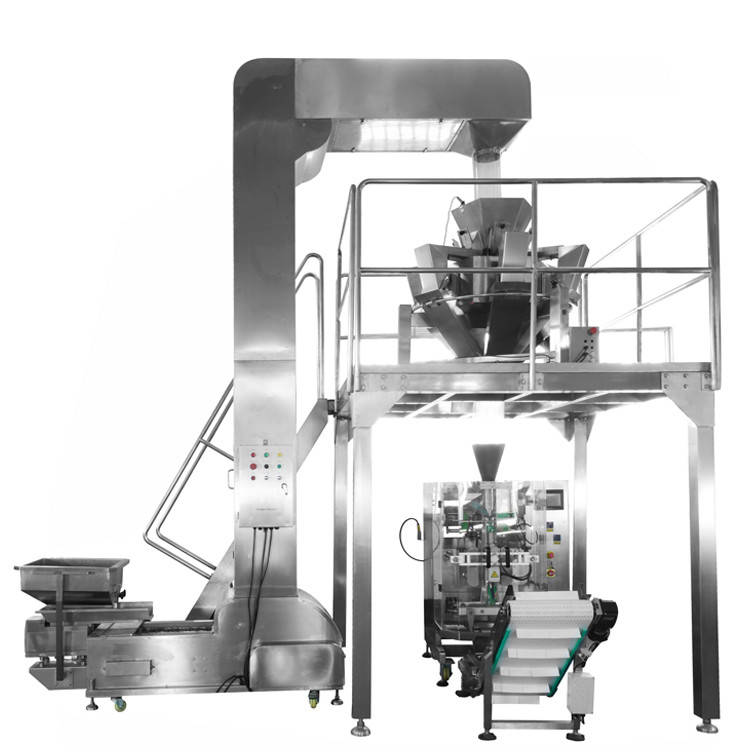

System Composition
1. Infeed bucket conveyor:
Feed material to multihead weigher

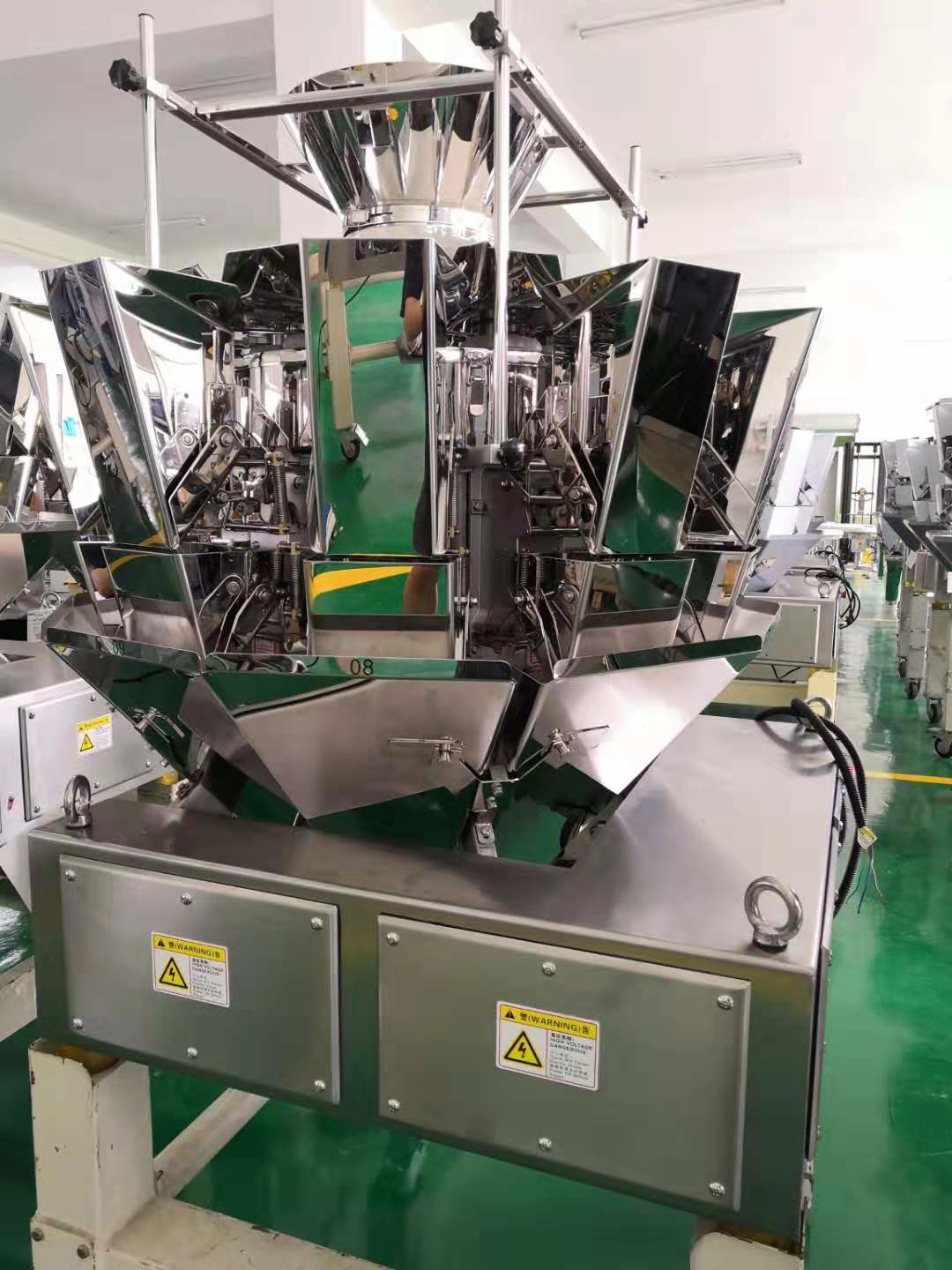

2. Multihead weigher:
For product weighing.
3. Working platform:
Support multi weigher.
4. Vertical packing machine:
Pack the material with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.

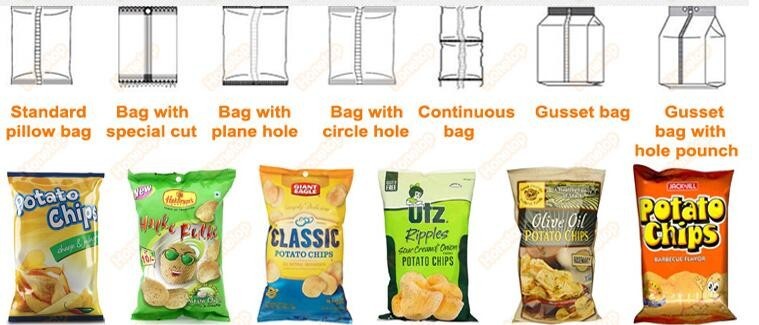

The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
