Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China , zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-V620 |
| Minimum Order Quantity: | 1sets |
| Price: | USD+12300+USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 40working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 20+Sets+per month |
| Condition: | New | Driven Type: | Electric |
|---|---|---|---|
| Function: | Filling , Sealing , Wrapping | After-sales Service Provided: | Online Support,Video Technical Support,Engineers Available To Service Machinery Overseas |
| Type: | Vertical Packing Machine | Packing Speed: | 25-50Bags/min |
| Material: | Stainless Steel 304 | Packaging Type: | Pillow Bag , Punching Bag , Gusseted Bag |
| High Light: | 250mm small cookie packaging machine,SS304 small cookie packaging machine,0.8MPa masala packing machine |
||
Automatic snacks cookies chocolate packaging machine for salt coffee masala packing machine
I . Application of ZH-V620 Vertical Packing Machine
It is suitable for packing grain, stick, slice, globose, irregular shape products such as candy, chocolate, nuts, pistachio, pasta, coffee bean, cereals, pet food, roasted seeds, frozen food, small hardware, etc.
II . Technical Feature
1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
3. Double-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
4. Perfect alarm system to make problem solved quickly.
5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
6. Machine can make pillow bag and standing bag (gusseted bag) according to customer’s requirements. Machine also can make bag with punching hole & linked bag from 5-12bags and so on.
III . Technical Specification
| Model | ZH-V620 |
| Packing speed | 25-50Bags/Min |
| Bag size(mm) | W:90-250mm L:80-350mm |
| Bag making mode | Pillow bag, standing bag (gusseted), Punching bag Connecting bag |
| Max film width (mm) | 620 |
| Thickness of film (mm) | 0.04-0.09mm |
| Air consumption | 0.5 m3/min 0.8MPa |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE ,NY/PE, PET/ PET. |
| Power Parameter | 220V50/60Hz 4KW |
| Dimension(mm) | 1620(L)×1340(W)×2100(H) |
Gross Weight(kg) | 700 |

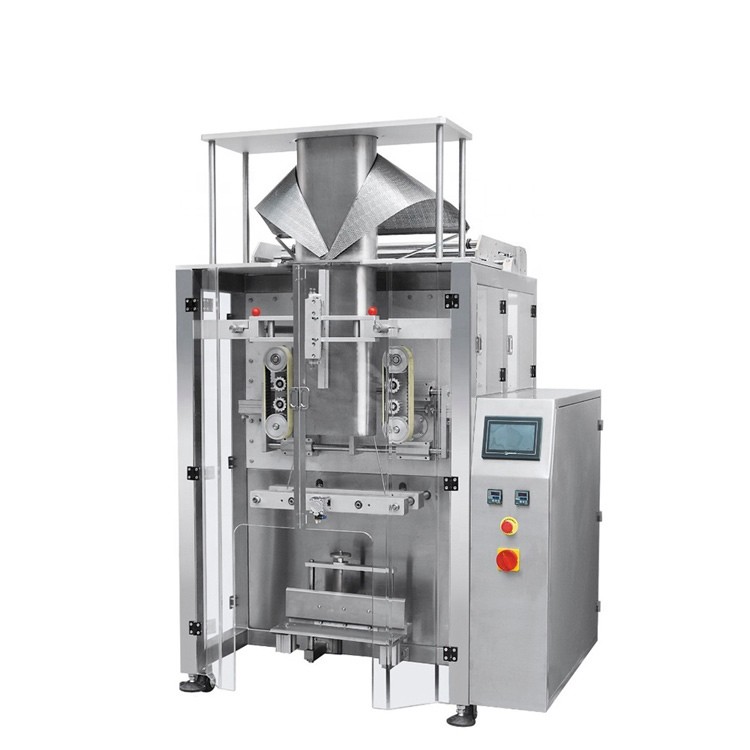

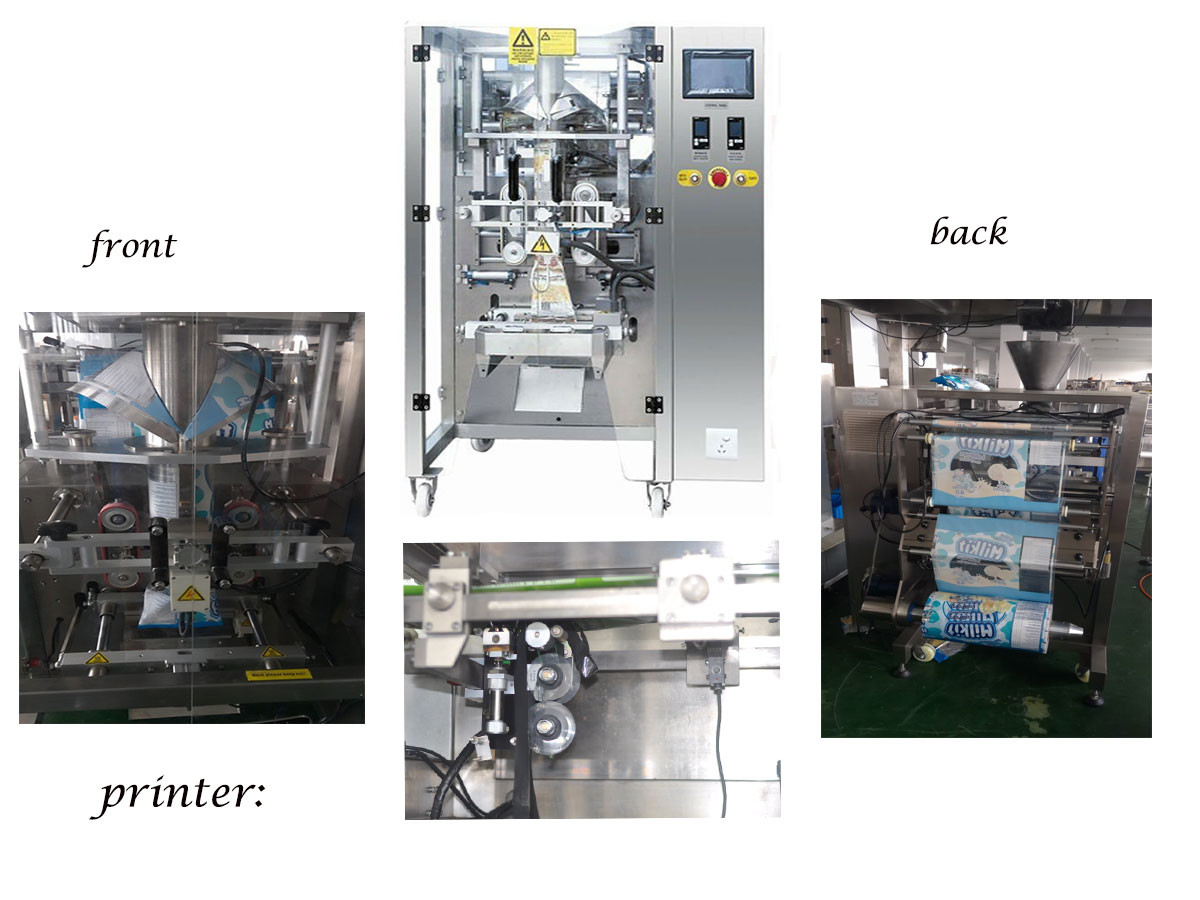

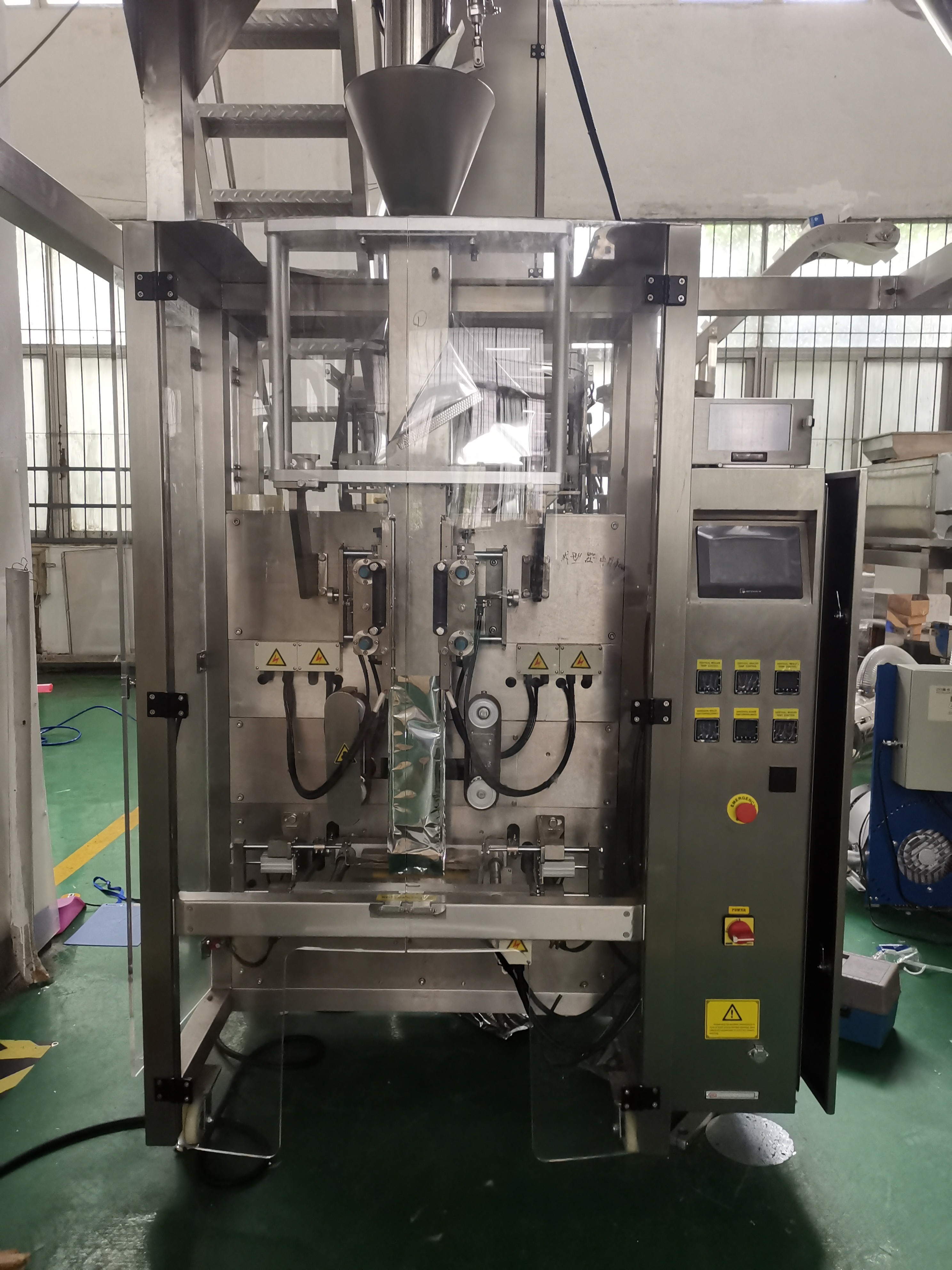

Machine's picture:
Bag Type :
Our Service :
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
