Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Automatic Food Packing Machine | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Function: | Filling ,Weighing,Sealing,Packing |
| Power Parameter: | 220V 50/60Hz 2.2KW | System Output: | ≥8.4 Ton/Day |
| Brand: | ZON PACK | Certification: | CE |
| High Light: | 500g fruit vegetable packing machine,2.2KW fruit vegetable packing machine,500g ice cube packing machine |
||
Manufacturer fruit vegetable packing machine with high speed for 500g
Technical Feature
1. It is for conveying, weighing, filling, bag-making, date-printing, finished product outputting.
2. High precision weighing and efficiency.
3. Packing efficiency will be high with vertical packing machine and easy to operate.
4. All main brand of packing machine is famous in the world.
| Technical Specification | |
| Model | ZH-BL10 packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film ,PE film |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application of Machine
It's suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice ,
potato chips , snacks ,cookies, biscuit, candy , ice cube , ice candy, jelly candy, snack food, pistachio , sugar ,
apple slices , lemon chips,onion rings,dumpling , chocolate , pet food , small wares ,fruit and vegetable etc .

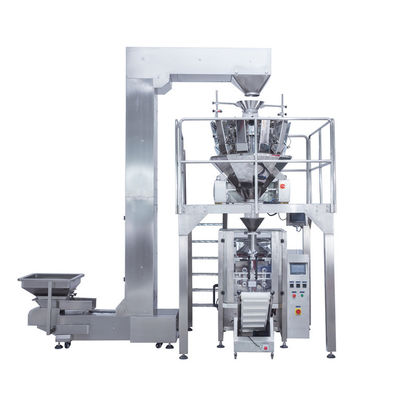

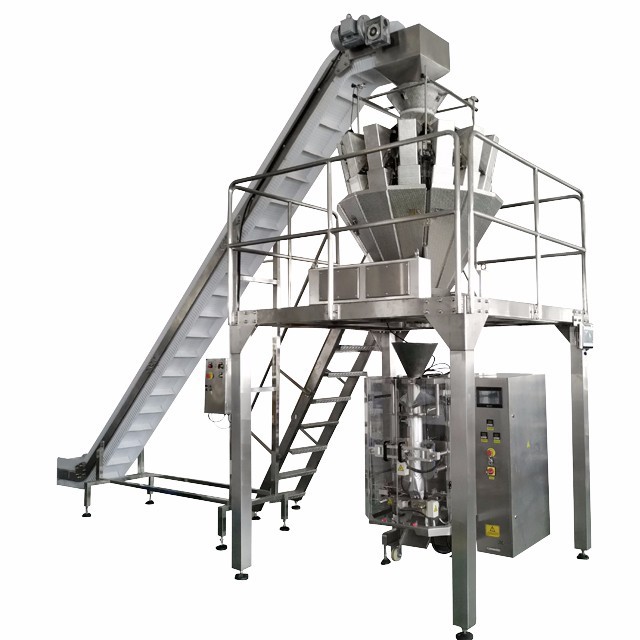

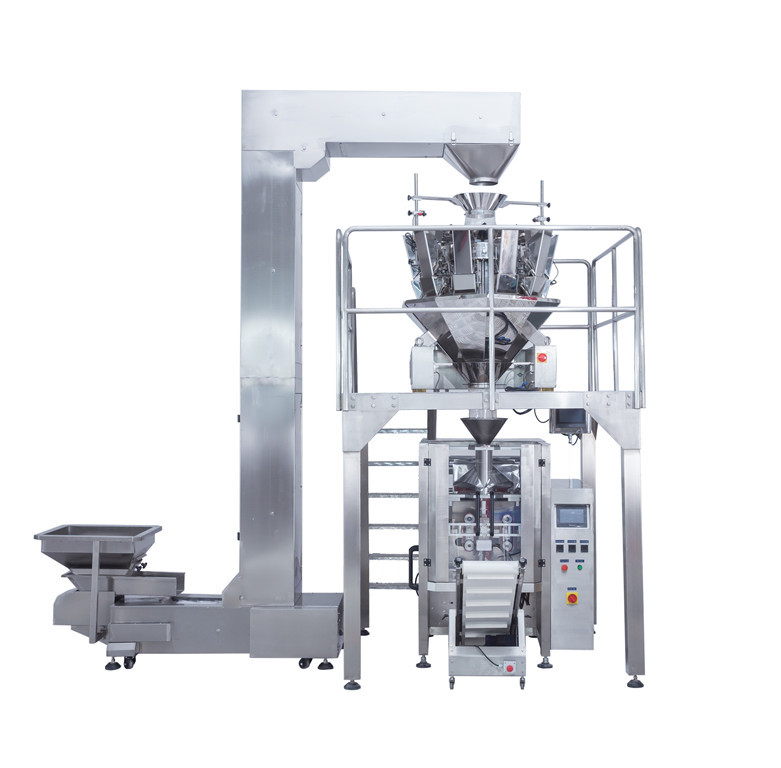

System Construction
1. Infeed bucket conveyor:
Convey the product to multihead weigher

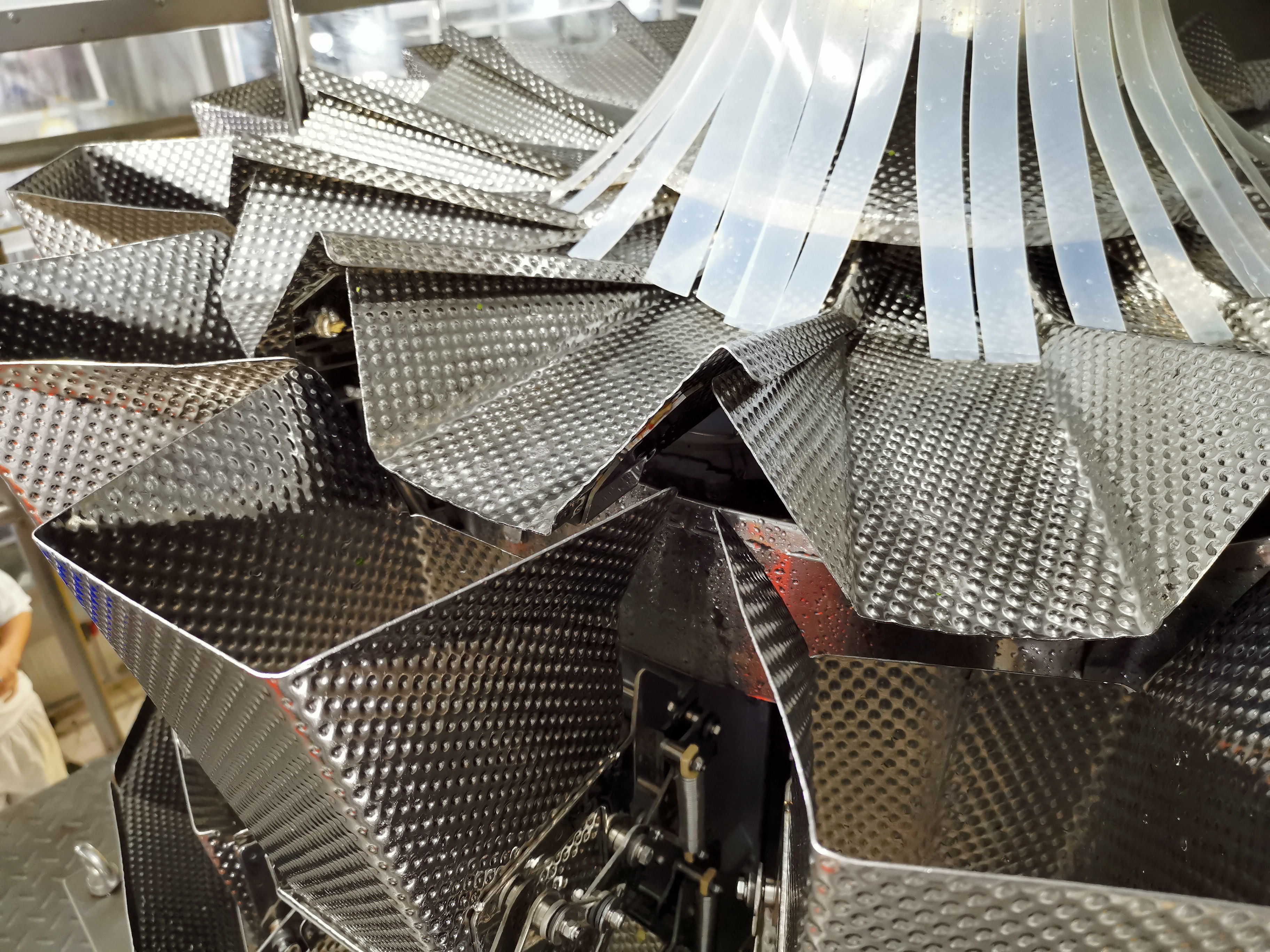

2. 10 heads/14 heads multihead weigher:
For product weighing.
3. Working platform:
Support the 10 heads multi weigher.

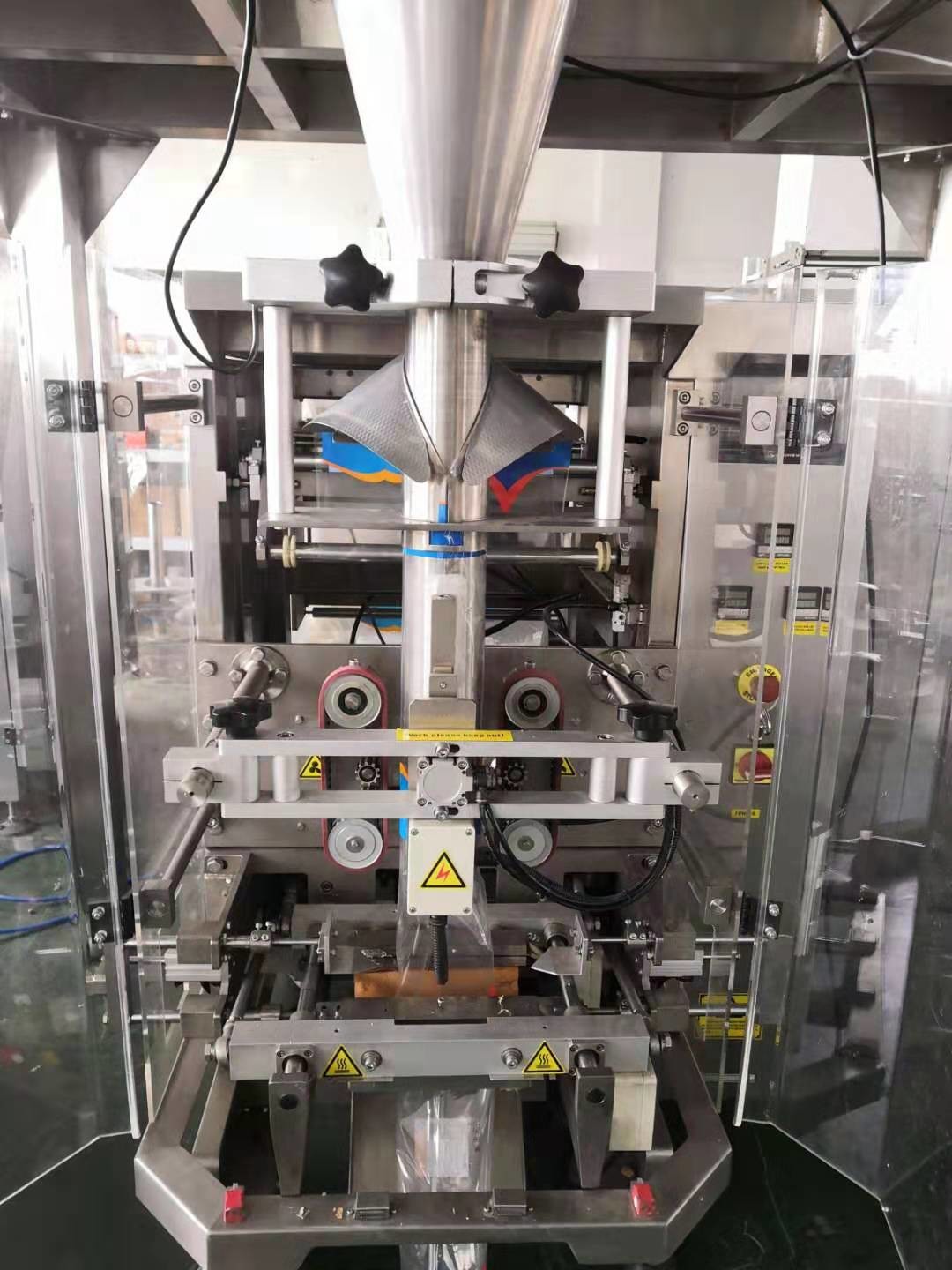

4. Vertical packing machine:
For bag forming and bag sealing.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our Partners:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
