Multi Language 304SS 316SS Coffee Bag Packaging Machine

304SS and 316SS for option small coffee bean / ground coffee bag filling packaging machine



Technical Feature

1.  PLC control, man-machine interface, easy to operate and maintaince.

2.  Driven by servo motor and optical tracking devices to keep accuracy.

3.  Ther frame of machine is made of #304 stainless steel, equiped with auto-stop protection function

   when open the door,.

4. Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.
5. Standard positioning with imported servo film transporting system and mark sensor, superexcellent capability for

  complete machine, perfect packaging.
6. With auto warning protection function to minimize loss.
7. Various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc.





Machine Parameter
Model	ZH-BL10 coffee packing machine
Packing Speed	30-70 Bags/Min
Packing Accuracy	±0.1-1.5g
Bag making mode	Pillow bag, Gusset bag , Punching bag, Connecting bag
Packing Material	laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET.
Range of measuring (g)	5000
Thickness of film (mm)	0.04-0.10
Power Parameter	220V 50/60Hz 2.2KW
Bag size(mm)	VFFS 320: (W) 60-150   (L)50-200 VFFS 420: (W) 60-200   (L)60-300 VFFS520: (W) 90-250    (L)80-350 VFFS 620: (W) 100-300  (L)100-400 VFFS720: (W) 120-350  (L)100-450 VFFS1050:(W) 200-500 (L)100-800



Application of Machine
It is suitable for weighing grain, stick, slice, globose, irregular shape products, such as candy, chocolate, jelly,

pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins,

plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food,

frozen food, small hardware, etc.

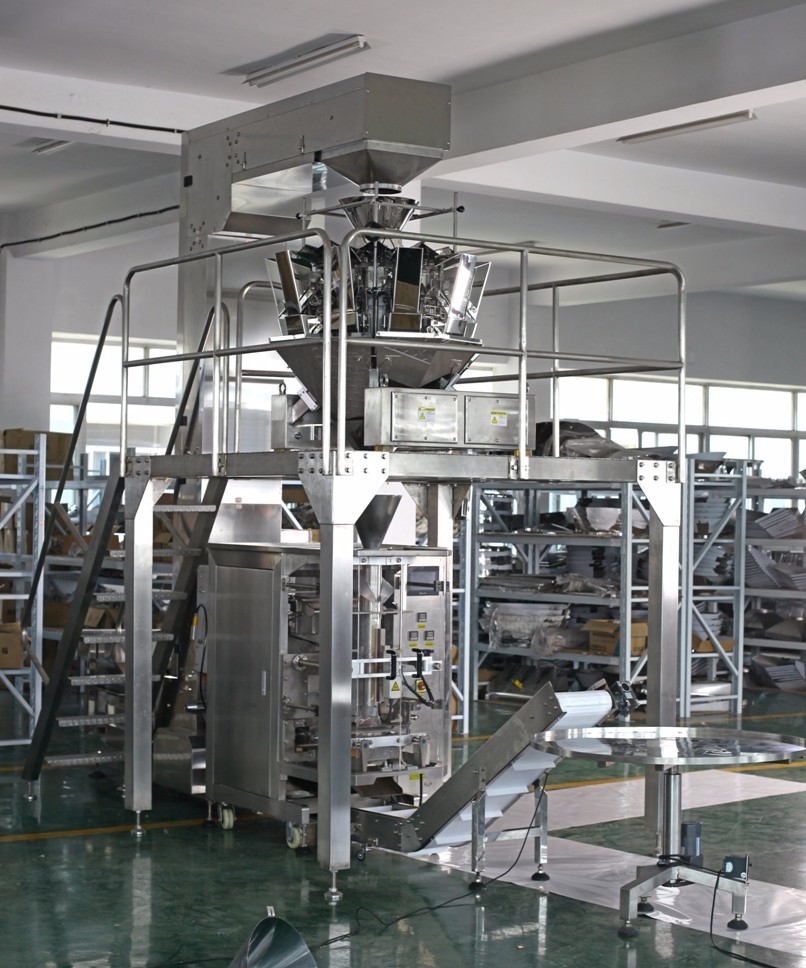

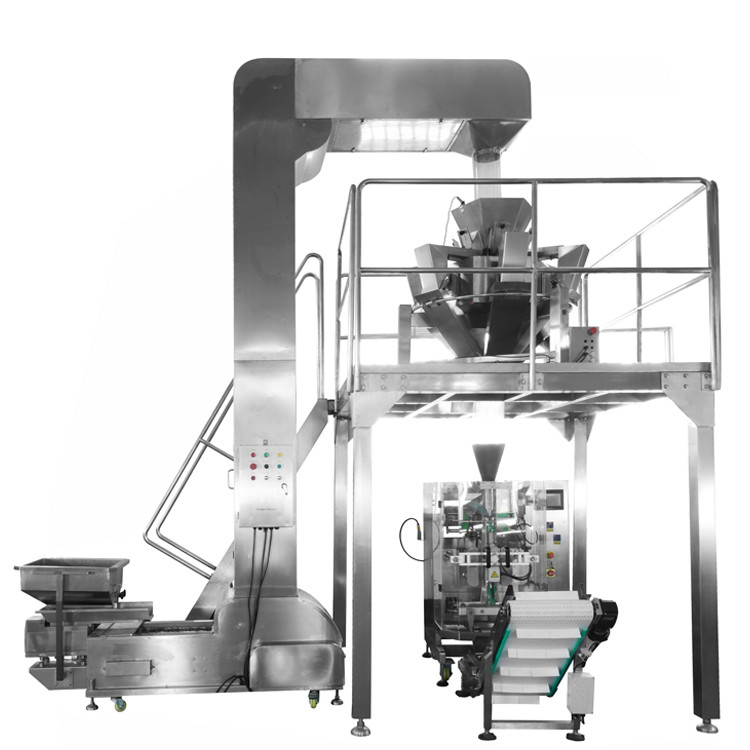

System Construction

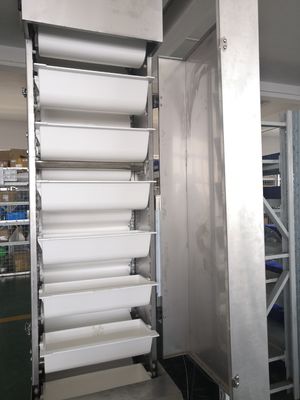

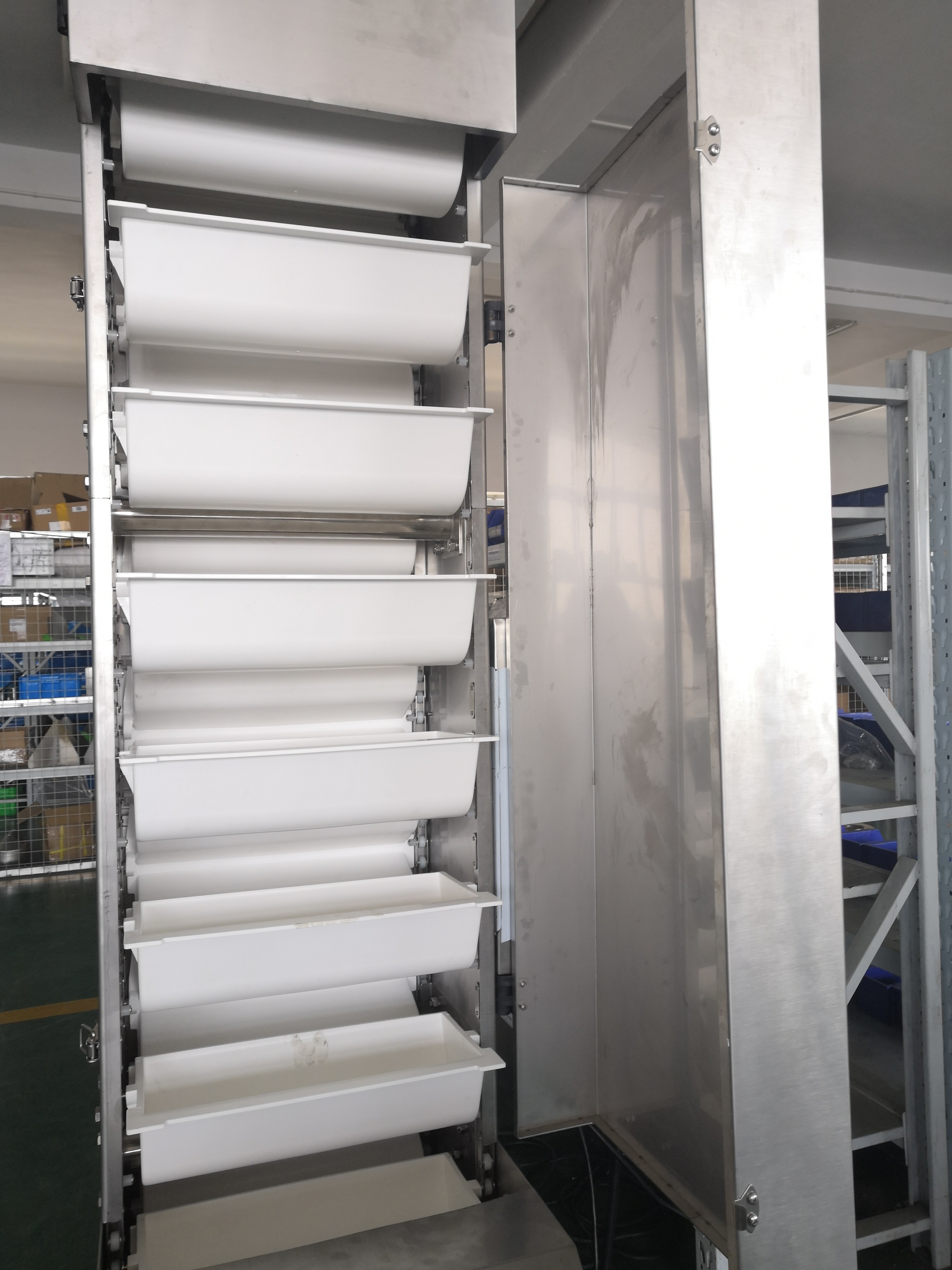

1. Z type bucket conveyor:

    Raise material to multihead weigher which controls the start and stop of the hoister.

2. 10 heads multi weigher:

    Used for quantitative weighing.

3. Working platform:

    Support the 10 heads multi weigher.

4. Vertical packing machine:

    Pack the material with high speed, and data printed, sealing-off and bag cut are completed automatically.

    There are different models you can choose according to your bag width.

5. Take -off conveyor:

    Convey the finished bag to next step.

6. Rotary table:

    For finished bag collecting.





The Bag type:



Our Service:





Pre-Sales Service                                   After-Sales Service
* Inquiry and consulting support.             * Training how to install the machine, training how to use the machine.
* Sample testing support.                        * Engineers available to service machinery overseas.

* View our factory.


Service Terms:

Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to

providing customers with perfect and efficient service.

1. Training service:

We will train your engineer to install our machines and how to fix some small problems.You can send your

engineer to our factory or we can dispatch our engineer to your company.

2. Trouble shooting service:

Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the

way,you need to afford the round trip and accommodation fee.

3.Spare part replacement:

Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.

4.The documents that will be supplied:

1)  Invoice

2)  Packing List

3)  Bill of Lading

4)  Other files that buyer wanted.
