Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Automatic Food Packing Machine | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Function: | Filling ,Weighing,Sealing,Packing |
| Power Parameter: | 220V 50/60Hz 2.2KW | System Output: | ≥8.4 Ton/Day |
| Advantage: | High Precision Weighing And Efficiency | Packing Accuracy: | ±0.1-1.5g |
| Packing Speed: | 30-70 Bags/Min | Control: | Siemens PLC |
| High Light: | 1000g plastic bag packing machine,ZH-BL10 automated food packaging machine,1000g automated food packaging machine |
||

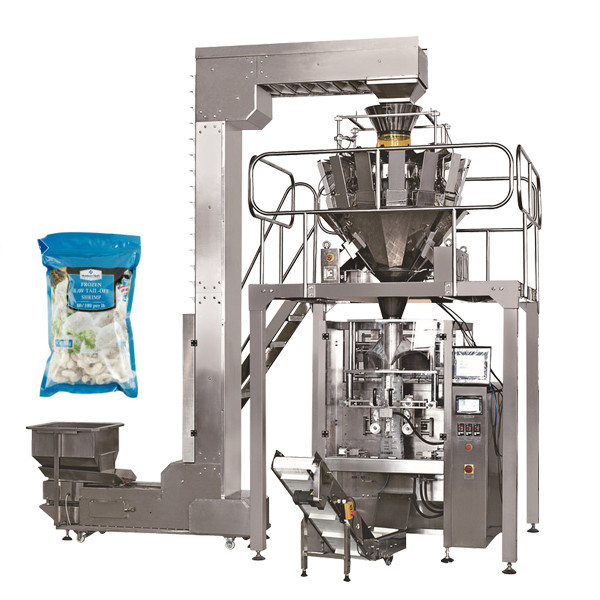

Easy to operate ZH-BL10 500g 1000g sugar salt plastic bag packing machine
Machine Feature
1. It is for conveying, weighing, filling, bag-making, date-printing, finished product outputting.
2. This machine can automatically complete the following work: material lifting--multi-head weigher measuring--coding--
bag making--filling--gas injection / exhaust (optional)--sealing--counting-- conveying finished products --sorting finished products.
3. PLC servo and pneumatic control system, large touch screen forms the core of drive control; high reliability and the
intellectualized degree, and equipped with safety protection.
4. Touch screen can store a variety of different product packaging process parameters, whenreplacing product,
it can be used at any time without resetting.
| Technical Specification | |
| Model | ZH-BL10 automatic packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film ,PE film |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application of Machine
It is suitable for irregular lumpy and granular materials, such as candy, puffed food, small biscuits, fired dried fruit,
sugar, frozen food and hardware and plastic products,etc.

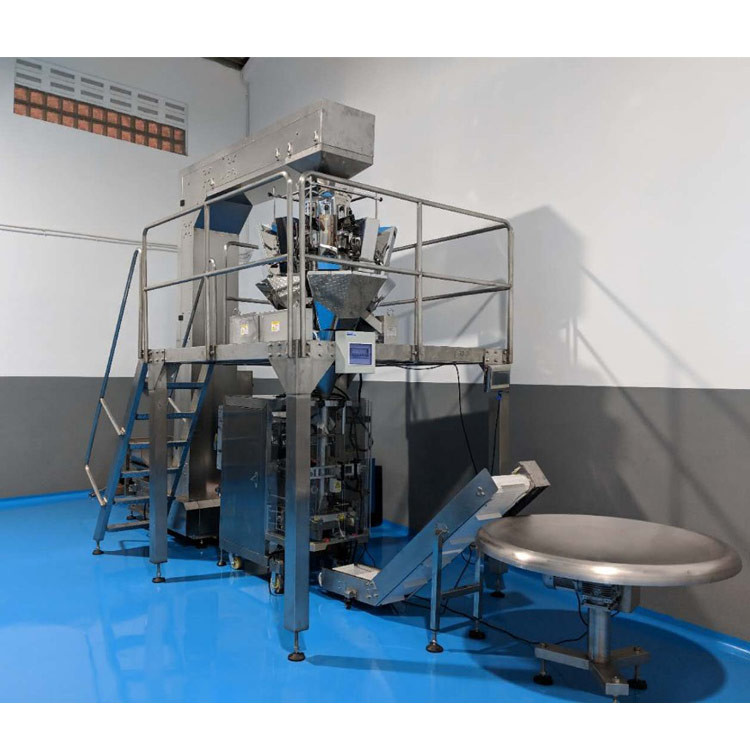

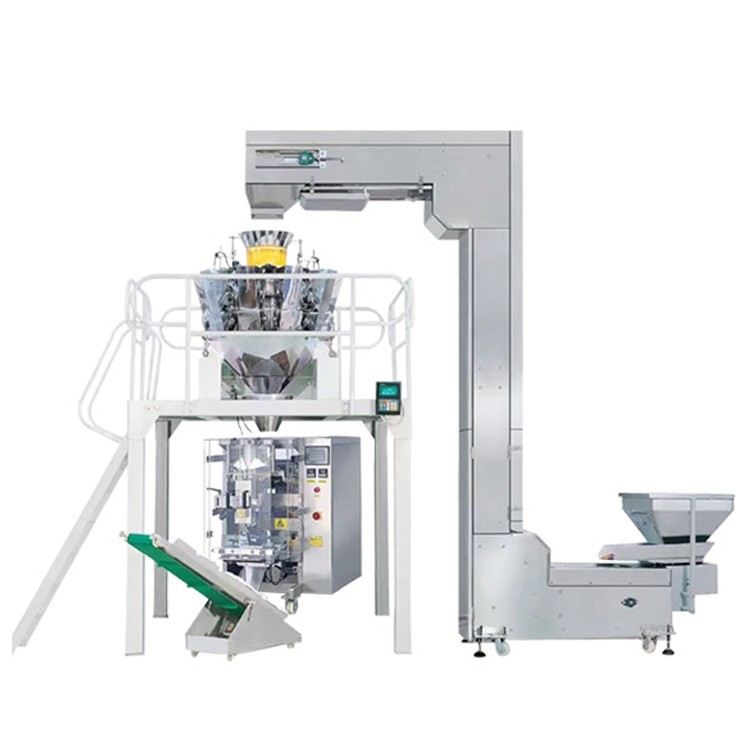

System Construction
1. Infeed bucket conveyor:
Convey the product to multihead weigher.
2. multihead weigher:
For product weighing,to get your targe weight.
3. Working platform:
Support the multihead weigher ,and for better cleaning.
4. Vertical packing machine:
For bag forming and bag sealing.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
