Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Snack Food Nitrogen Packing Machine | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Function: | Feeding ,Filling ,Weighing,Sealing |
| Packing Speed: | 25-70bag/min,depends On Your Product | Control: | Simemes PLC |
| Material: | 304SS Frame | MOQ: | 1 Set |
| High Light: | 120g nitrogen packing machine for snacks,50g nitrogen packing machine for snacks,120g nitrogen filling machine for food packaging |
||
Automatic 50g 120g nitrogen packing machine for snacks food pouch
Technical Feature
1. Color touch screen and PLC control with stable and reliable double axis high-precision output, bag making,
metering, filling, sealing, coding and bag cutting are completed at one time.
2. The gas circuit control and the circuit control electric box are separated independently, with low noise and stable circuit

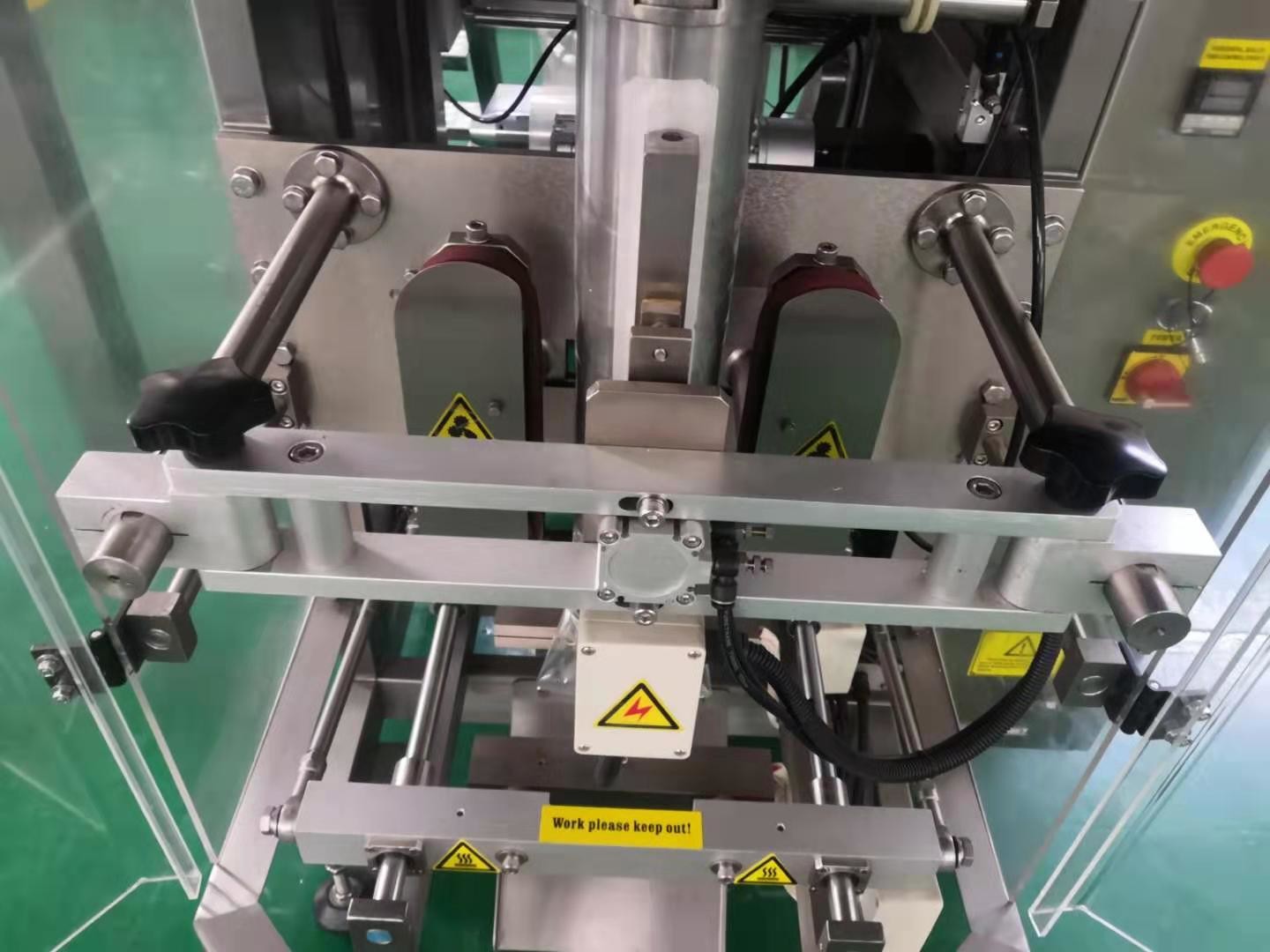

3. Using double belt servo pulling film, with small pulling resistance, the packaging bag is well formed, more beautiful,
and t easy to wear.
4. Servo control is adopted to realize high precision positioning and accurate size.
5. The external film releasing mechanism makes the installation of packaging film easier and easier.
6. The deviation adjustment of packing bag only needs to be adjusted on the touch screen, and simple operation.
7. The whole machine adopts closed mechanism to effectively prevent dust from entering into the machine.
| Technical Specification | |
| Model | ZH-BL10 snack food nitrogen packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET;PE film |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application of Machine
It is widely used in the packaging of granular and irregular products in food, hardware, agricultural products,
daily chemicals, medicine and other industries

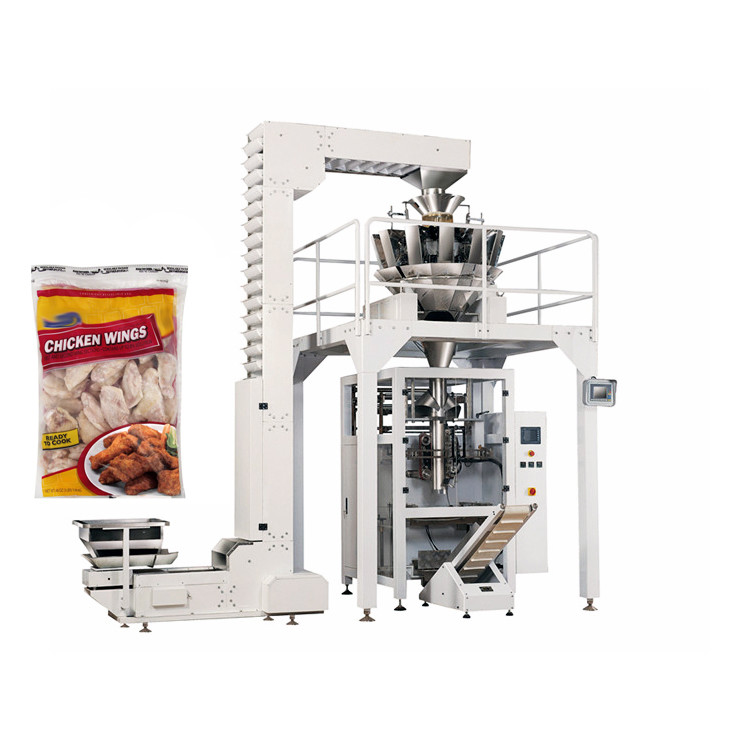

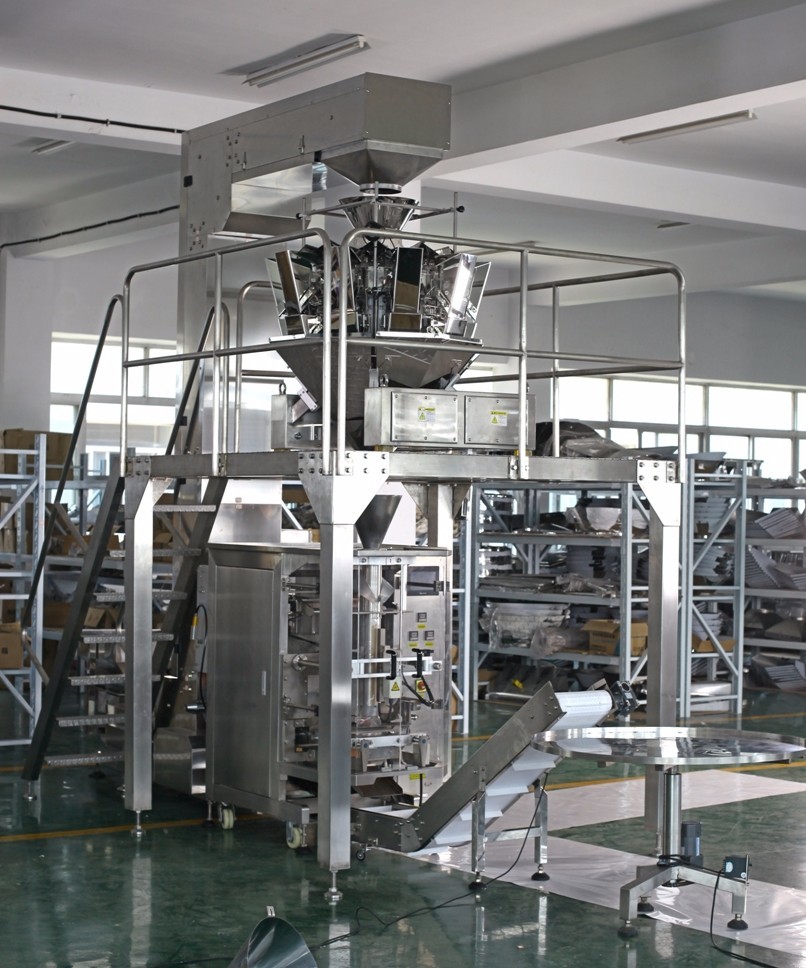

System Composition
1. Infeed bucket conveyor:
Feed product to multihead weigher

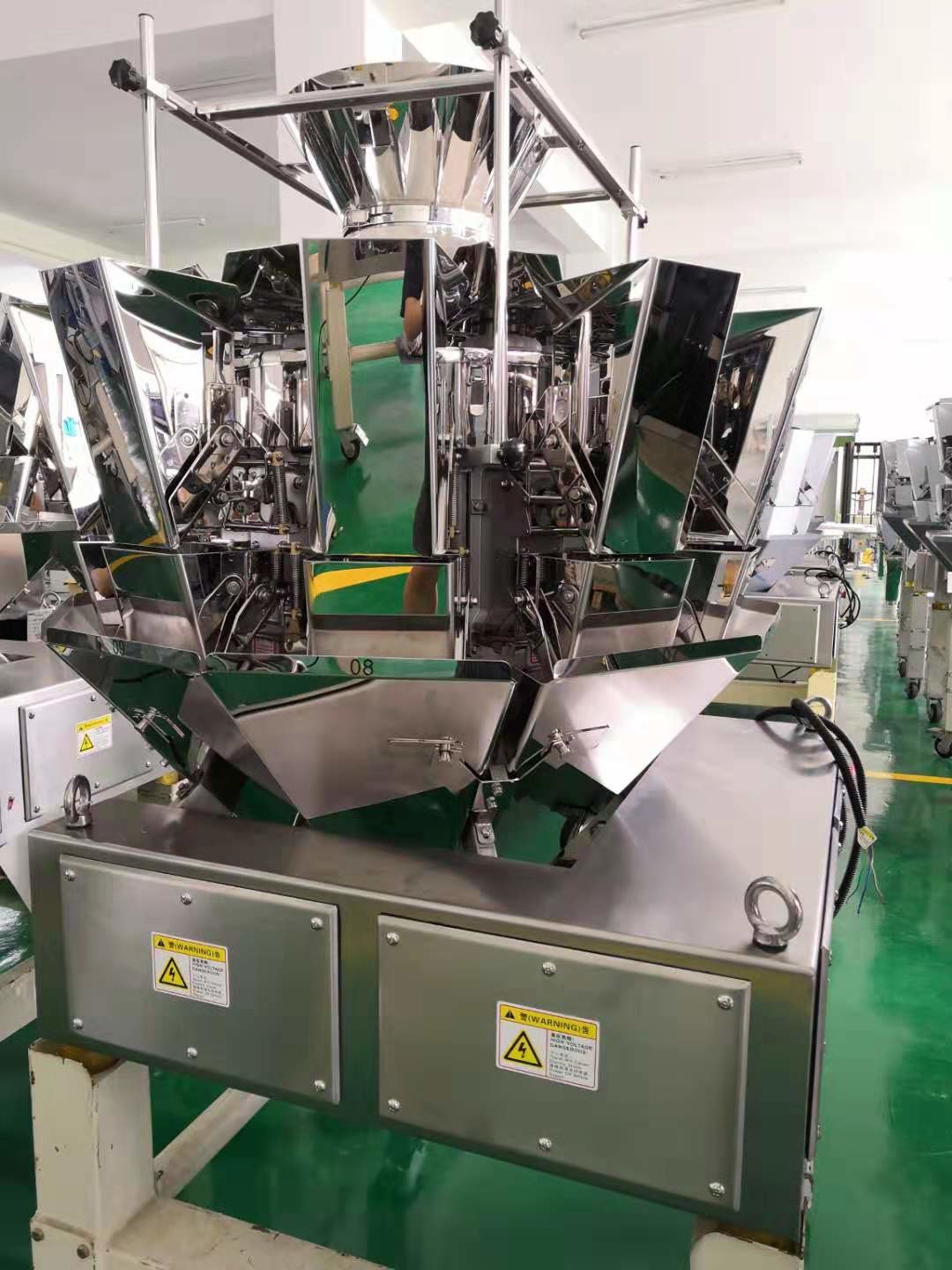

2. Multihead weigher:
For product weighing.There are different heads of multihead weigher.
3. Working platform:
Support multihead weigher.

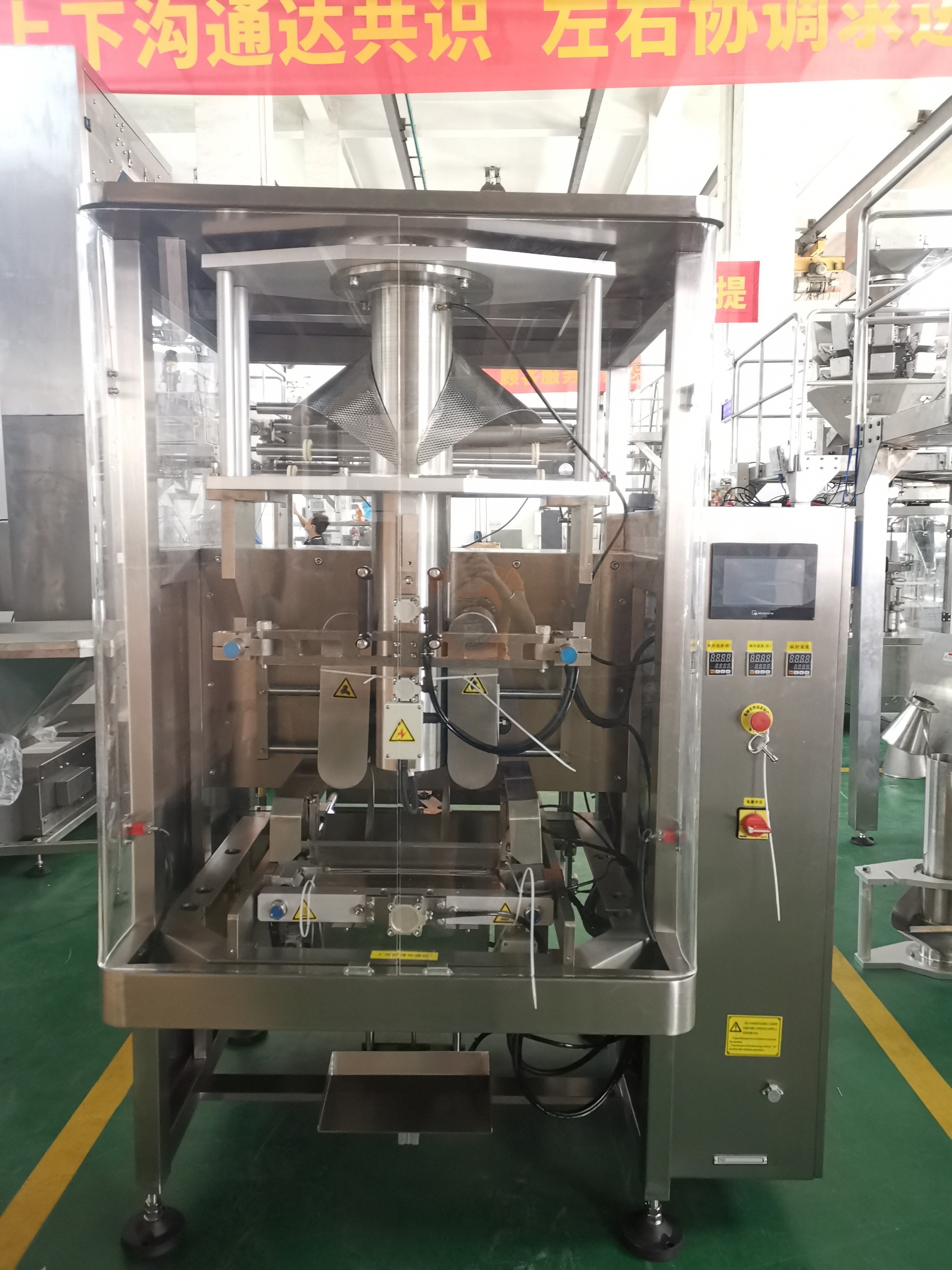

4. Vertical packing machine:
Pack the product with high speed, and date printed, sealing-off and bag cutting is completed automatically.
5. Finishe bag conveyor:
Convey the finished bag to rotary table.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
