Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Automatic Food Packing Machine | VFFS: | 620 |
|---|---|---|---|
| Bag Size: | W:100-300mm L:100-400mm | Max Film Width: | 620mm |
| Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag | Packing Speed: | 25-50bag/min,depends On Your Product |
| Packing Material: | Laminated Film ,PE Film | Power: | 220V 50/60HZ Single Phase |
| Language: | Standard Is Chinese +English | Warranty: | 12 Months |
| High Light: | 500g vertical form fill seal packaging machine,200g vertical form fill seal packaging machine,500g frozen food packaging machine |
||

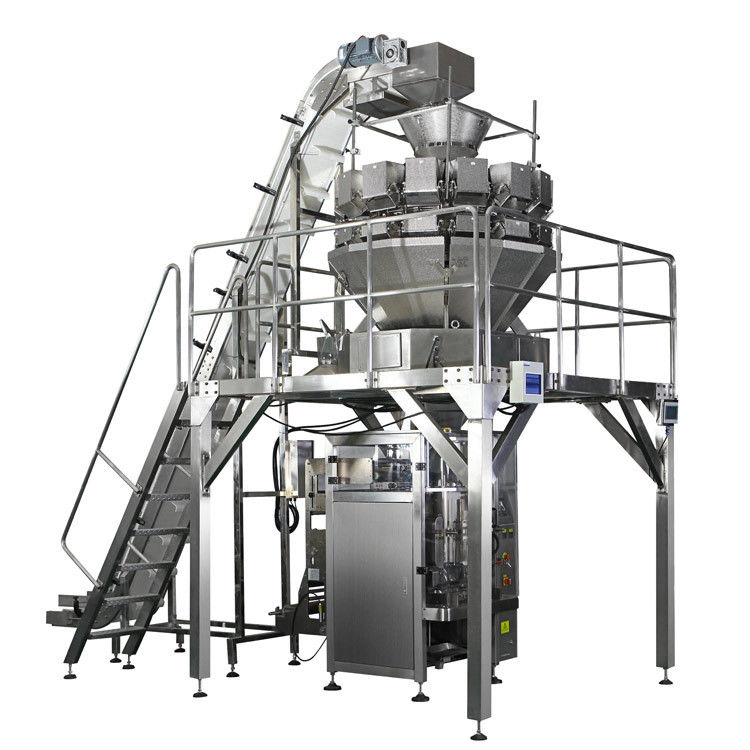

Automated vertical form fill seal frozen food packing machine for 200g 500g
Technical Feature
1.English and Chinese screen display, operation is simple.
2.PLC computer system, function is more stable, adjustment any parameters not need stop machine.
3.It can stock ten dispose, simple to change variety.
4.Sever motor drawing film, position accurately.
5.Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
6.Packing type diversification, pillow sealing, standing type, punching etc.
7.Bag-making, sealing, packing, print date in one operation.
| Technical Specification | |
| Model | ZH-BL10 automatic food packing machine |
| Packing Speed | 25-50 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.09 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) |
VFFS520: (W) 100-300 (L)100-400
|
| Max roll film width(mm) | 620 |
| Language | Chinese +English |
Application of Machine
It is suitable for all kinds of stuffs packing, such as chips, candies, sugar, salt, rice, beans, nuts, coffee beans,
jelly, macaroni, frozen food, pet food, screw and small parts.
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.

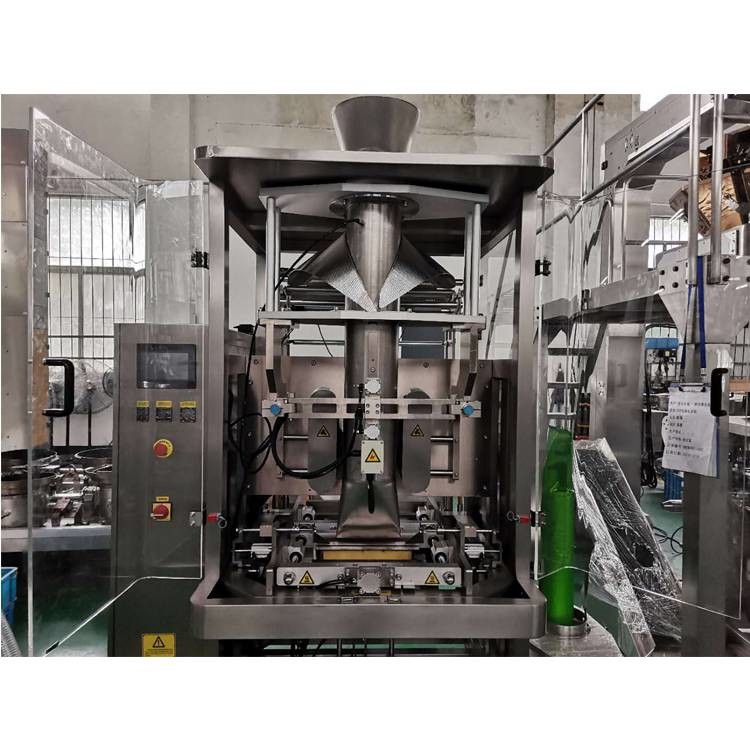

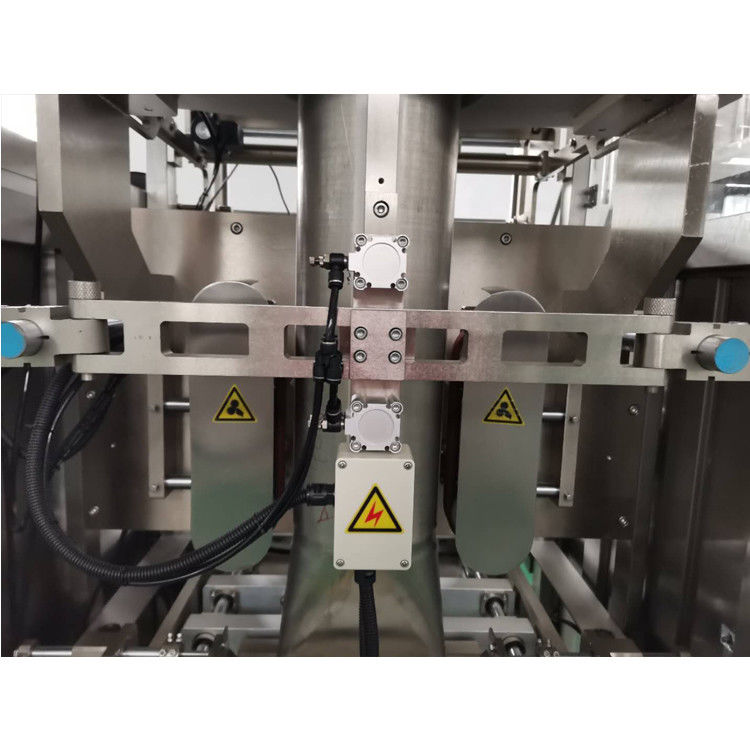

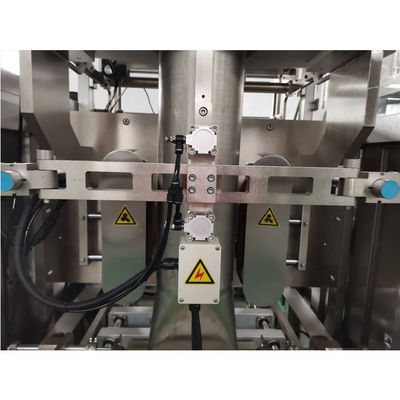

Machine details:
Optional Functions:
1. Date printer
2. Quad seal bag assembly
3. Bag-in-bag configuration
4. Flat bottom bag assembly
5. Hole punch (Euro slot or round)
6. Load shelf
7. Product settler
8. Gas flush
9. Static elimination
10.Tear notch
11 In-feed and take-away conveyors

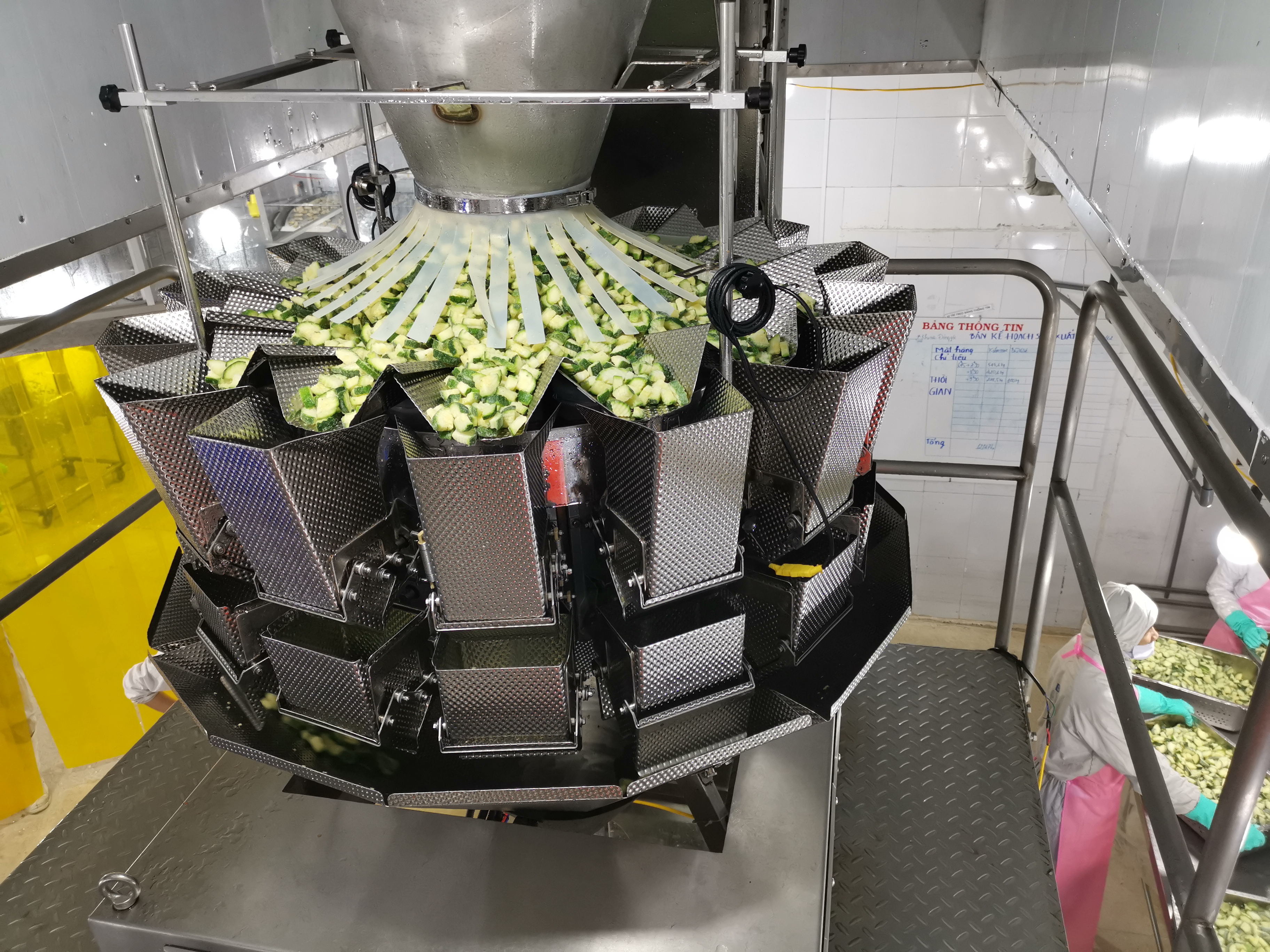

Our cases
The machine main parts brand
