Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Puffed Food Packing Machine | Condition: | New |
|---|---|---|---|
| Function: | Feeding ,Filling ,Weighing,Sealing | It Can Make: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
| Packing Material: | Laminated Film ,PE Film | Material: | 304SS Frame |
| Weighing Range: | 5-2000g | Accuracy: | +/-0.1g-1.5g |
| Packing Speed: | 30-70 Bags/Min | Power: | 220V 50/60 Hz 2.2KW |
| High Light: | 5000g puffed rice packing machine,304SS puffed rice packing machine,5000g multihead weigher packing machine |
||
Customized machine puffed rice packing machine for 40-60bags/min
Technical Feature
1. Computer PLC control and automatic alarming function
2. English or Chinese screen display, easy operation.
2. High-sensitivity photoelectric eye color tracing.More accuracy.
3. Bag typecan be customised to 4 sides sealing, pillow bag ,and gusset bag.
4. Packaging material :Paper/pe pet/al foil/penylon/pe,tealeaf filtering paper&ect.
5. Famous brand components, ensure the quality and durability of machine.
6. Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.
7. Ribbon code printer, link-bag device is option
8. Imported system of pulling film ad color mark sensor enable accurate positioning, beautiful packaging and
excellent performance.
| Technical Specification | |
| Model | ZH-BL10 puffed food packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |

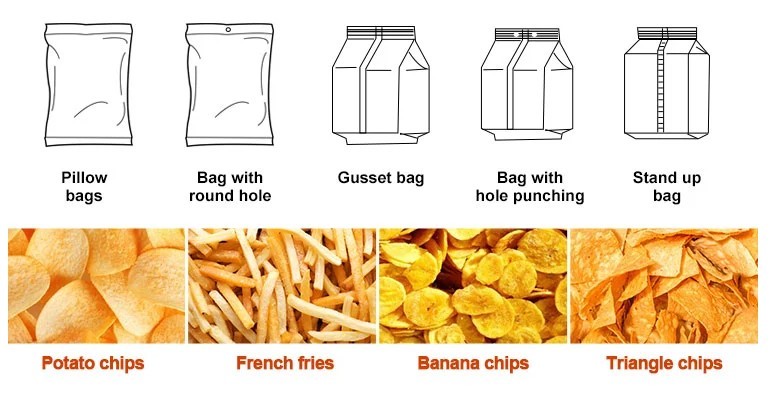

| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET;PE film |
| Range of measuring (g) | 5-5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
| Multihead weigher model | 10 heads 14 heads 20 heads weigher |

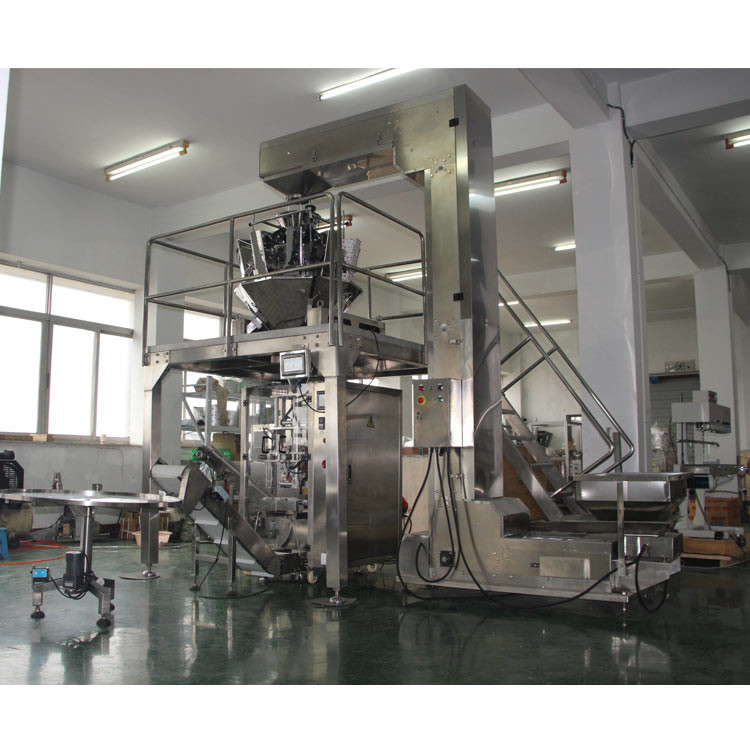

Whole packing line:
1. Infeed bucket conveyor:
Feeds the products to the elevator and transport them to multi-head weigher

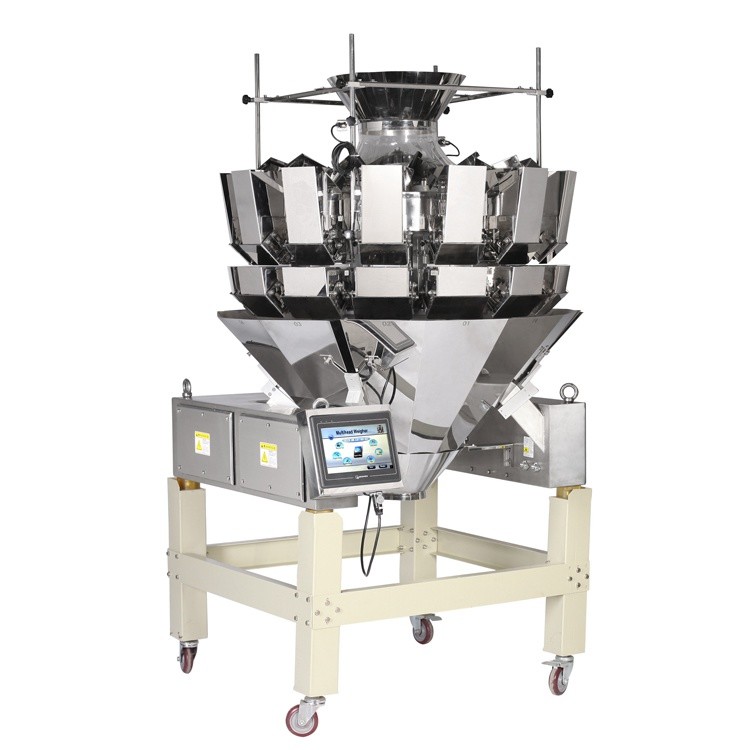

2. Multihead weigher:
Weighing and filling materials to packing machine
3. Working platform:
Support multihead weigher.

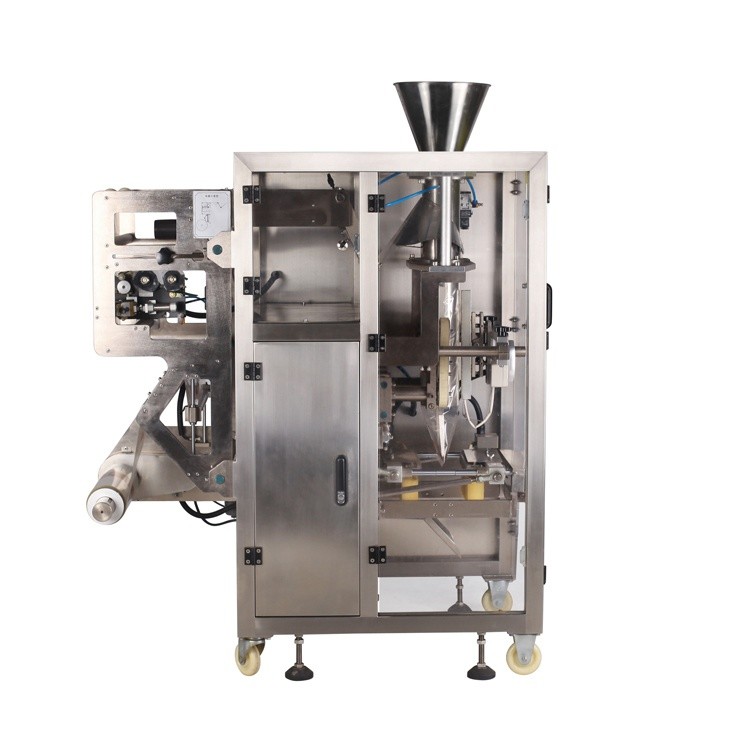

4. Vertical packing machine:
Pack the product with high speed, and date printed, sealing-off and bag cutting is completed automatically.
5. Finishe bag conveyor:
Convey the finished bag to rotary table.
6. Rotary table:
For finished bag collecting.
Application of Machine
It's suitable for puffed food,potato chip,dumpling,rice dumpling and all kinds of grain or granule like coffee, sugar,
rice,salts,beans, seeds and washing powder etc.
Machine Details
Our projects in the world
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
