Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BG10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 35000-40000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-35 Working days |
| Payment Terms: | L/C, D/A, Western Union, D/P, T/T |
| Supply Ability: | 199 Sets per month |
| Name: | Multihead Weigher Rotary Packing Machine | Packaging Type: | Flat Pouch,stand-up Pouch ,zipper Bag |
|---|---|---|---|
| Application: | Chemical, Commodity, Food, Machinery & Hardware | Working Position: | Six Or Eight |
| PLC: | Siemens | Function: | Filling ,weighing ,sealing |
| Packing Speed: | 30-50bags/min | Packaging Accuracy: | ±0.1-1.5g |
| Power: | 380V 50/60HZ | Total Power: | 4.5KW |
| High Light: | 4.5KW Multihead Weigher Packing Machine,50Hz Multihead Weigher Packing Machine,4.5KW sugar pouch packing machine |
||
CE approved 380V 50 Hz/60Hz multihead weigher rotary sugar pouch packing machine
Technical Feature
1. It uses stainless steel 304 shell for food grade required.
2. Automatic detection. No pouch or pouch is not opened completely, no filling, no sealing.
3. Veritical Infeed conveyor suits for bags with zipper, max. put 200pcs each time.
4. Independent temperature control system (Omron/Japan).
5. PLC adjust bag width clamping: Only needs 2mins by auto PLC for adjust different bag width sizes.
6. Automatic lubrication system: PLC control the lubrication time,automatically lubricate the machine parts instead of by manual.
7. It includes ribbon type date code: 3 lines * 13 characters.
8. Guarding: Glass Door Alarm / Air Pressure Abnormal
9. Internal grooved cam design: The technology with high precision, suits for max. packing speed: 50 cycles/min with stable running.
10. Use free oil vacuum pump, avoid polluting the environment in the production.
| Technical Specification | |
| Model | ZH-BG10 |
| Packing Speed | 30-50 Bags/Min |
| Packaging Accuracy | ±0.1-1.5g |
| System Output | ≥8.4 Ton/Day |
| Bag Size |
Width:100-300 Length:150-400mm
|
| Bag types | All kinds of compound bags, such as...Stand up pouch, Flat pouch, PE pouch, Gusset pouch,Zipper pouch, Paper pouch,etc. |
| Target weight | 5-5000g |
Application of Machine
Suits to pack candy, tea, nuts, sugar, dates, biscuit, frozen food, rice, cookies, coffee beans, cereals, dried fruit,
chocolate, expanded food, microwave popcorn, grain, snack food, vegetable, salad, all kinds of nuts
and pet food etc.

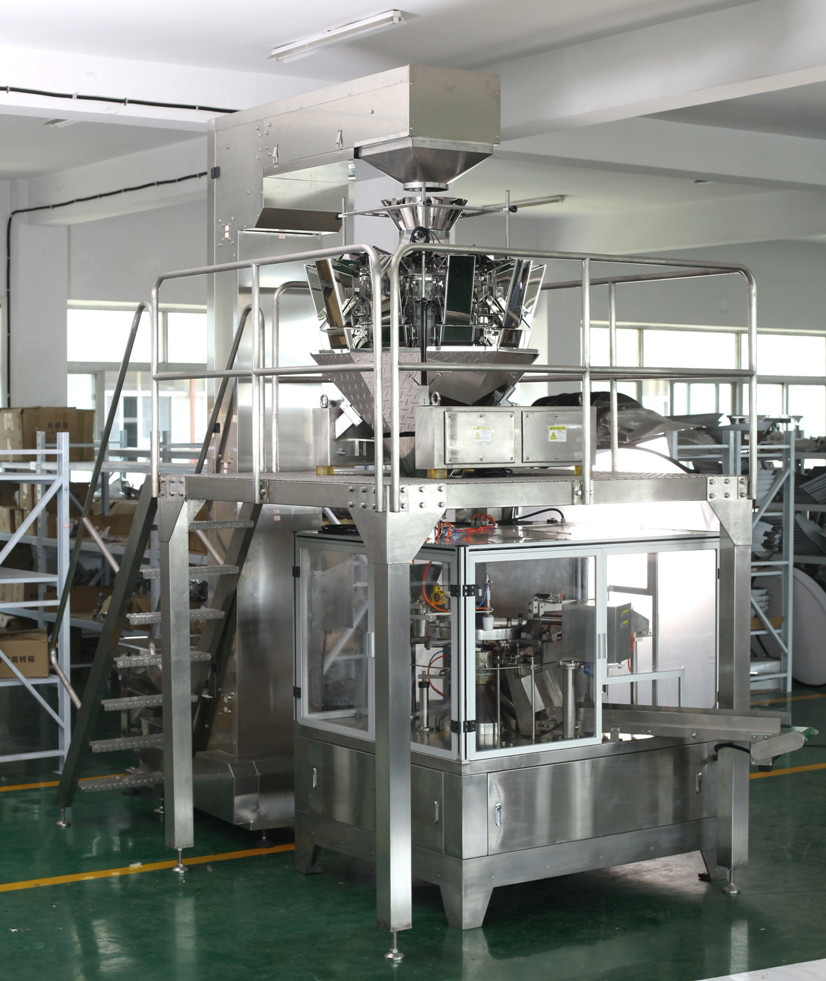

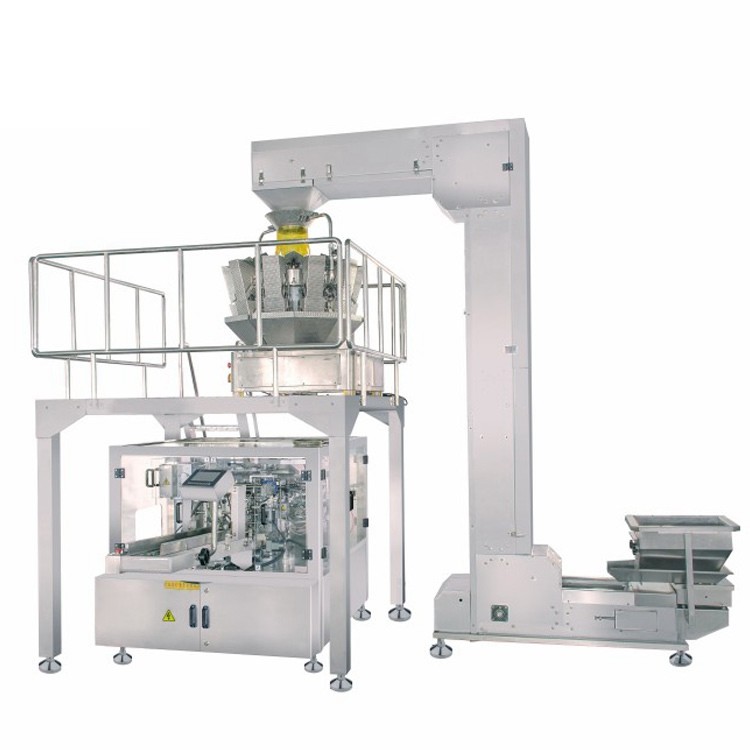

Unit system
1. Infeed bucket conveyor:
For feeding the product to multihead weigher.
2. Multihead weigher:
For weighing the product.
3. Working platform:
For supporting the multihead weigher.

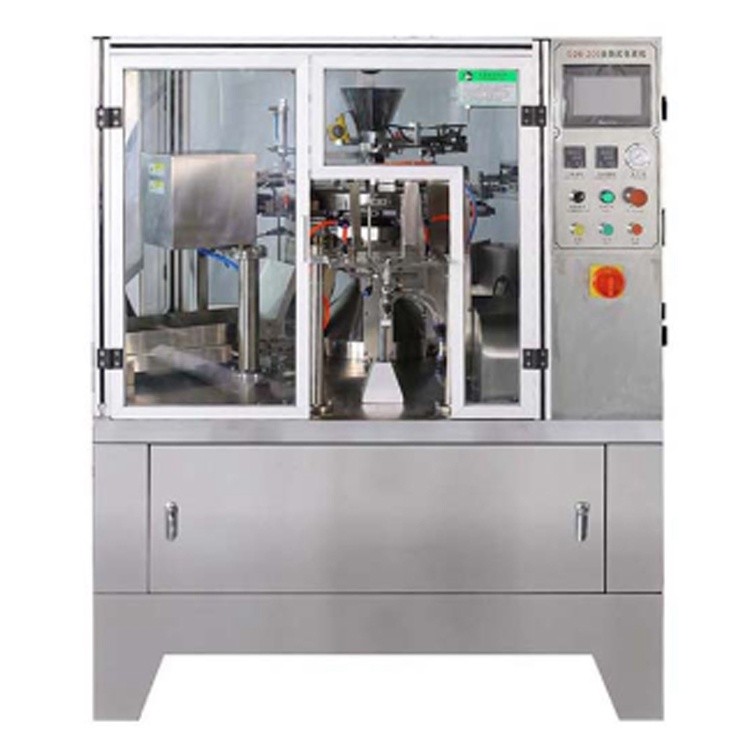

4.Rotary packing machine:
For premade bag sealing .
Station process:
1. Bag Feeding 2. Date Coding 3. Bag Opening 4. Filling
5. Filling 6. Stand by 7.Heat Sealing 8.Forming & Output
More details of machine

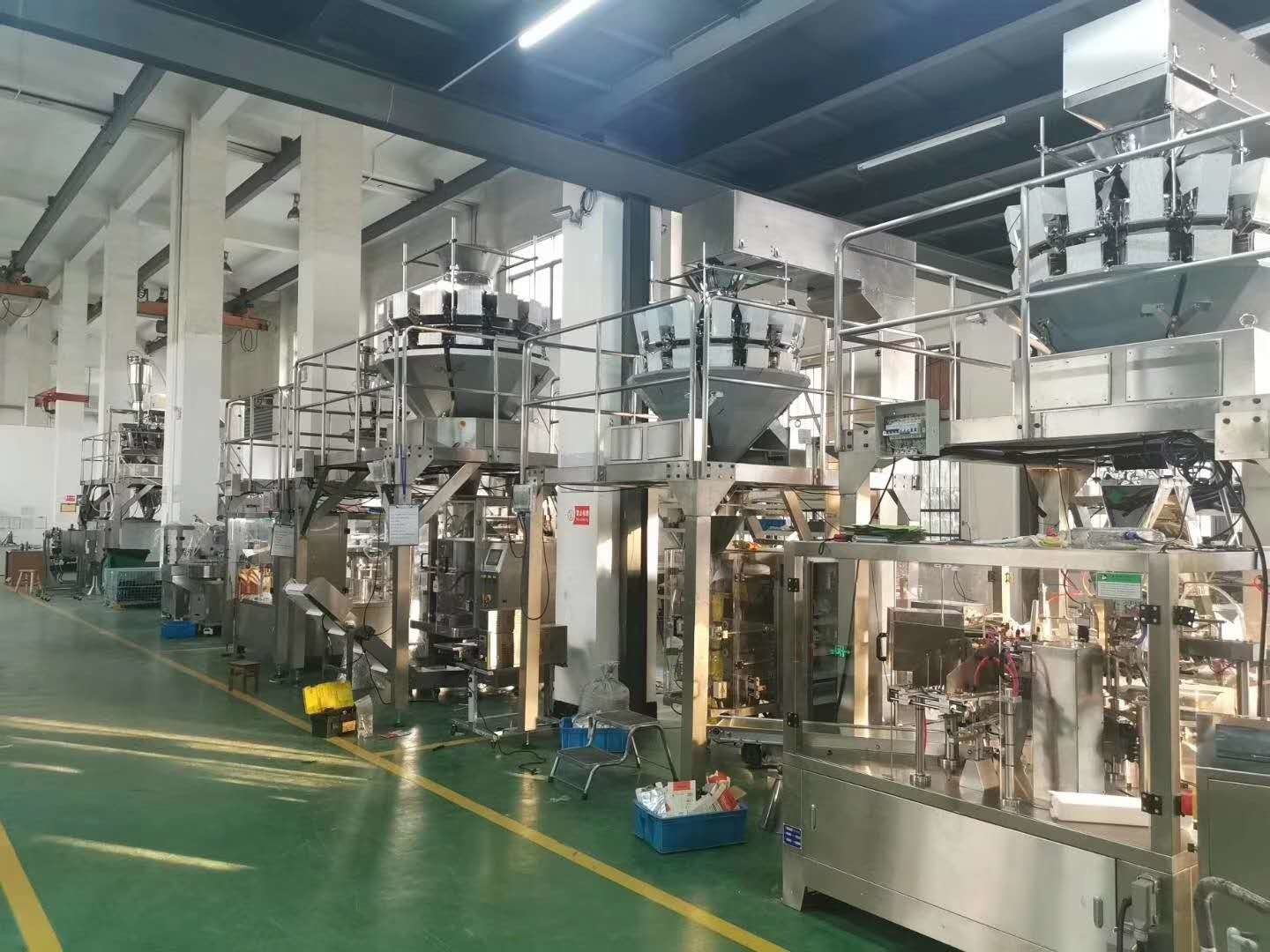

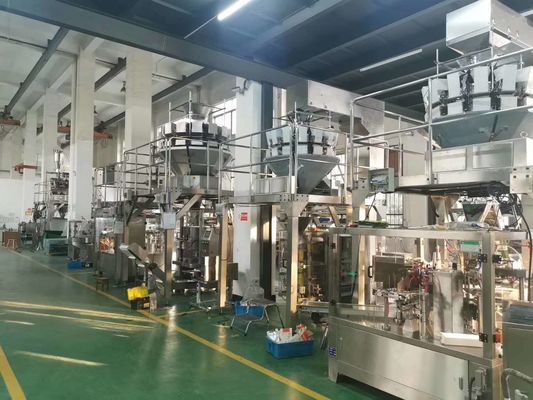

Our cases
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
