Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-DW300 |
| Minimum Order Quantity: | 1 Set |
| Price: | 5000-6000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 300 Sets per month |
| Name: | High Speed Check Weigher | Weighing Range: | 50-5000g |
|---|---|---|---|
| Frame Material: | SUS304 | Power Supply: | 220V |
| Display Type: | Touch Screen | Scale Interval: | 0.2g |
| Belt Speed: | 70m/min | Rejector: | Air Blow, Pusher, Shifter |
| High Light: | 50g online check weigher,0.2g online check weigher,50g checkweigher equipment |
||
Food industry 50-5000g weighing range high speed online check weigher
Technical Feature
1. Man-machine interaction of touch screen
2. Multi-language operation interface
3. Function of weight compensation
5. Secondary operation rights management ,supporting self-set password
6. Preset storage of 100 product formulas
7. Several elimination methods of faulty products,supporting faulty stop function
|
Technical Specification |
|||||||
| Model | ZH-DW160 | ZH-DW230S | ZH-DW230L | ZH-DW300 |
ZH-DW400 |
ZH-DW500 | ZH-DW600 |
| Weighing Range | 10-600g | 20-2000g | 20-2000g | 50-5000g | 0.2-10kg | 0.5-20kg | 10-50kg |
| Scale Interval | 0.05g | 0.1g | 0.1g | 0.2g | 1g | 1g | 5g |
| Best Accuracy | ±0.1g | ±0.2g | ±0.2g | ±0.5g | ±1g | ±2g | ±5g |
| Max Speed | 250 pcs/min | 200 pcs/min | 155pcs/min | 140pcs/min | 105pcs/min | 75pcs/min | 75pcs/min |
| Belt Speed | 70m/min | 70m/min | 70m/min | 70m/min | 70m/min | 60m/min | 60m/min |
| Product Size | 200mm (L) 150mm (W) |
250mm (L) 220mm (W |
350mm (L) 220mm (W) |
400mm (L) 290mm (W) |
550mm (L) 390mm (W) |
700mm (L) 490mm (W) |
1000mm (L) 590mm (W) |
| Weighing Platform Size |
280mm (L) 160mm (W) |
350mm (L) 230mm (W) |
450mm (L) 230mm (W) |
500mm (L) 300mm (W) |
650mm (L) 400mm (W) |
800mm (L) 500mm (W) |
1200mm (L) |
| No. of Sorting Segment | 2 Segments or 3 Segments | ||||||
| Rejector | air blow, Pusher, shifter | ||||||
| Power Parameter | 220V/110V 50/60Hz | ||||||
| Protection Level | IP30/IP54/IP66 | ||||||
| Frame Material | SUS304 | ||||||
Application of the Check Weigher
Checkweigher is designed for fully automated packaging lines,when find the overweight and ultra-light
products the conveyor belt will stop and alarm, the screen will display the weight. When the substandard
product removed from the product line, the belt will run automatically. Auto ejector is optional.
ZH-DW series check weigher is suitable for in line weight check of food, medicine, chemical, consumer
product, etc.It has a widely application.

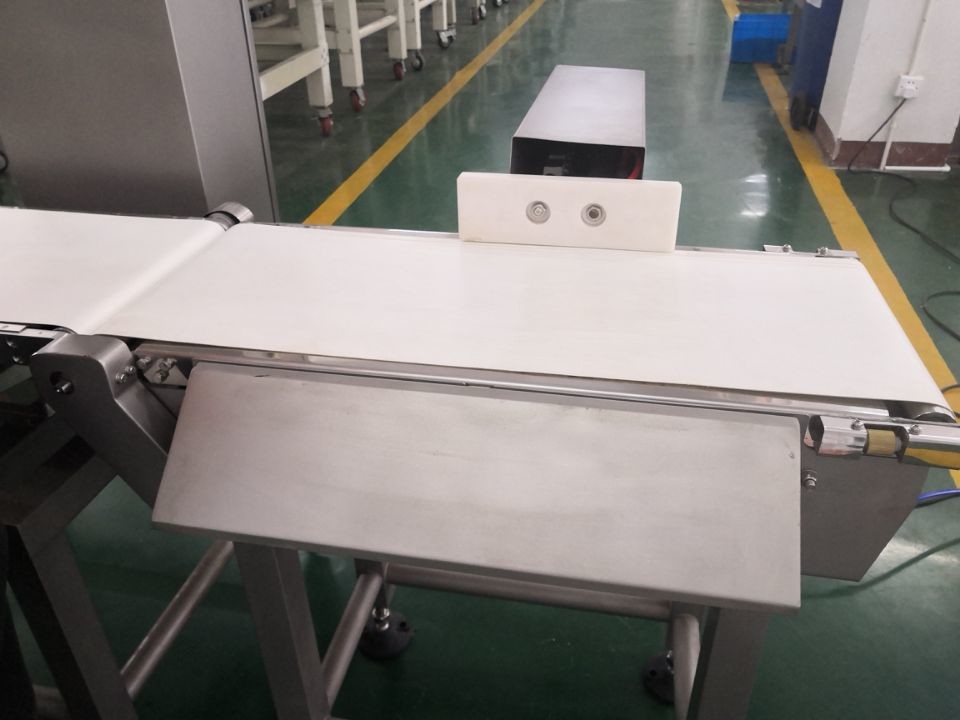

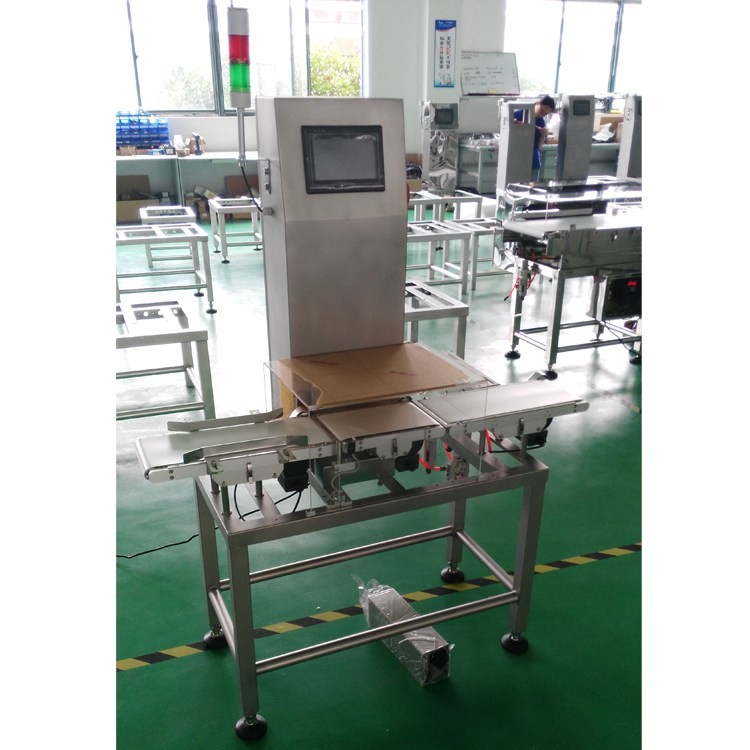

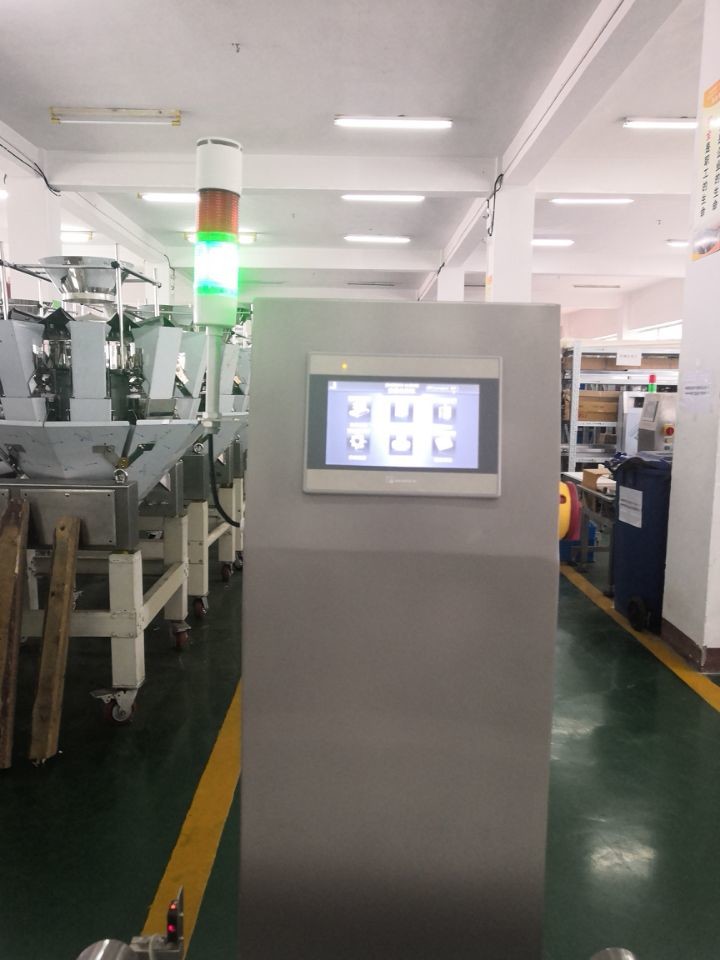

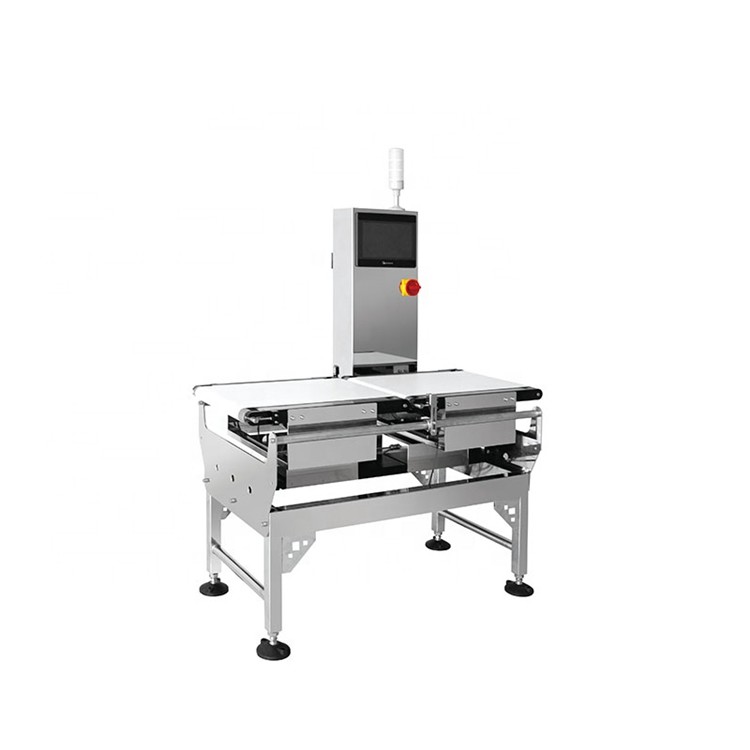

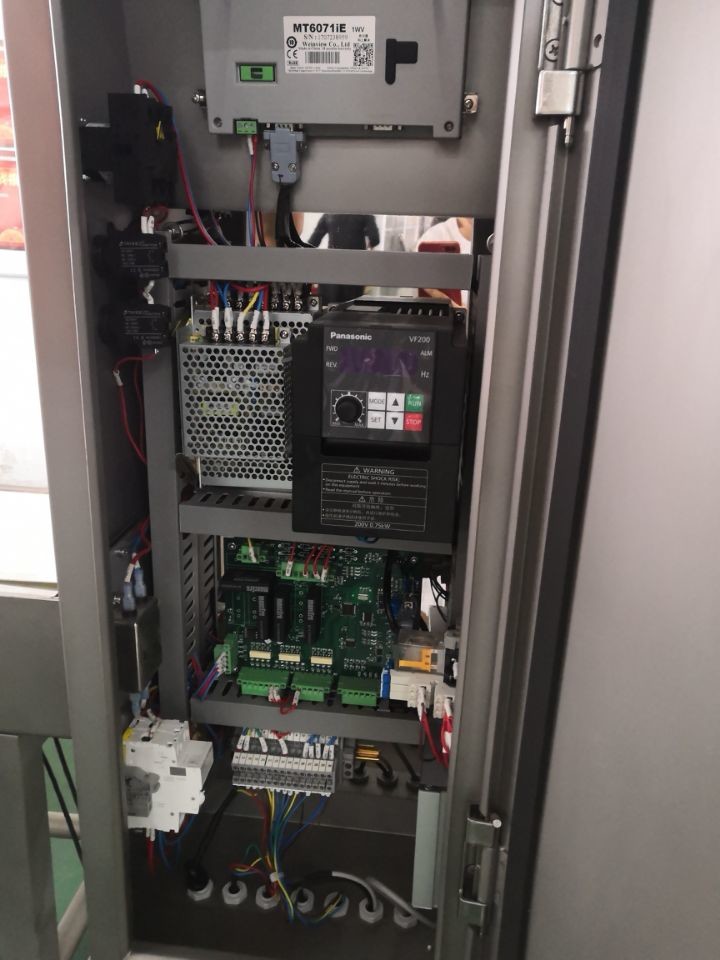

Machine Details
