Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-DW400 |
| Minimum Order Quantity: | 1 Set |
| Price: | 5000-6000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 300 Sets per month |
| Name: | High Speed Check Weigher | Model: | ZH-DW400 |
|---|---|---|---|
| Weighing Range: | 0.2-10kg | Frame Material: | SUS304 |
| Display Type: | Touch Screen | Zero Calibration: | Auto Zero Tracking |
| Scale Interval: | 1g | Belt Speed: | 70m/min |
| Rejector: | Air Blow, Pusher, Shifter | Protection Level: | IP30/IP54/IP66 |
| High Light: | Dynamic High Speed Checkweigher,High Speed Checkweigher Machine,0.2g metal detector checkweigher |
||
High sensitivity 220V/110V 50 Hz/60Hz dynamic high speed check weigher
Technical Feature
1. High speed ,high accuracy online weight checking
2. Advanced and proper rejection system
3. Human-main friendly 7'' HMI panel operation
4. Strong anti-vibration and interference design
5. Special tailor made design and high integrated programme with scanning and printing system
|
Technical Specification |
|||||||
| Model | ZH-DW160 | ZH-DW230S | ZH-DW230L | ZH-DW300 |
ZH-DW400 |
ZH-DW500 | ZH-DW600 |
| Weighing Range | 10-600g | 20-2000g | 20-2000g | 50-5000g | 0.2-10kg | 0.5-20kg | 10-50kg |
| Scale Interval | 0.05g | 0.1g | 0.1g | 0.2g | 1g | 1g | 5g |
| Best Accuracy | ±0.1g | ±0.2g | ±0.2g | ±0.5g | ±1g | ±2g | ±5g |
| Max Speed | 250 pcs/min | 200 pcs/min | 155pcs/min | 140pcs/min | 105pcs/min | 75pcs/min | 75pcs/min |
| Belt Speed | 70m/min | 70m/min | 70m/min | 70m/min | 70m/min | 60m/min | 60m/min |
| Product Size | 200mm (L) 150mm (W) |
250mm (L) 220mm (W |
350mm (L) 220mm (W) |
400mm (L) 290mm (W) |
550mm (L) 390mm (W) |
700mm (L) 490mm (W) |
1000mm (L) 590mm (W) |
| Weighing Platform Size |
280mm (L) 160mm (W) |
350mm (L) 230mm (W) |
450mm (L) 230mm (W) |
500mm (L) 300mm (W) |
650mm (L) 400mm (W) |
800mm (L) 500mm (W) |
1200mm (L) |
| No. of Sorting Segment | 2 Segments or 3 Segments | ||||||
| Rejector | air blow, Pusher, shifter | ||||||
| Power Parameter | 220V/110V 50/60Hz | ||||||
| Protection Level | IP30/IP54/IP66 | ||||||
| Frame Material | SUS304 | ||||||
Application
Check weighers are systems used to assure compliance with label weight regulations and to minimize product givea way.
Our checkweighers will help you make sure items are not missing from packaging, reducing customer complaints, speeding up
production and minimizing your give away.

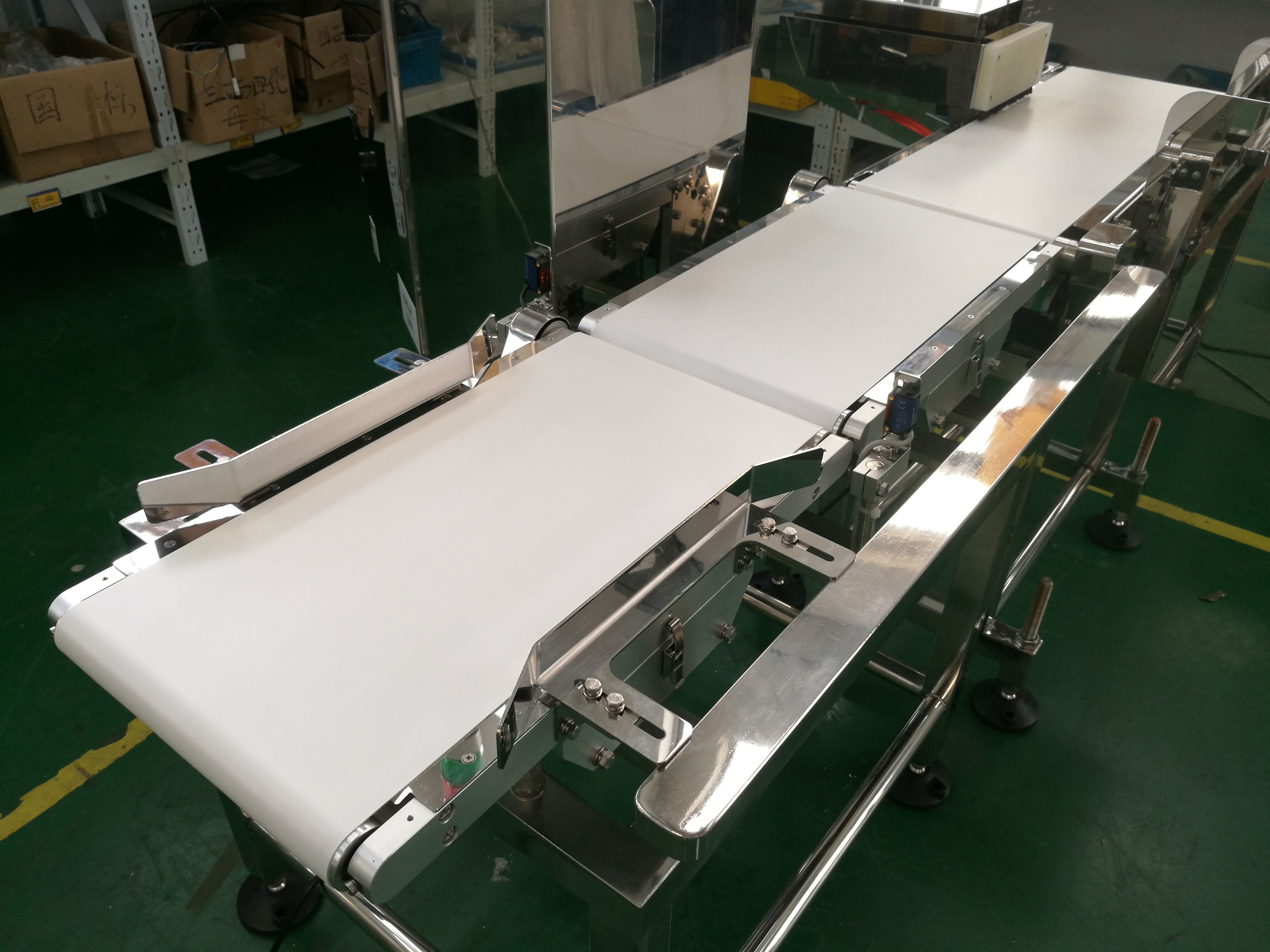

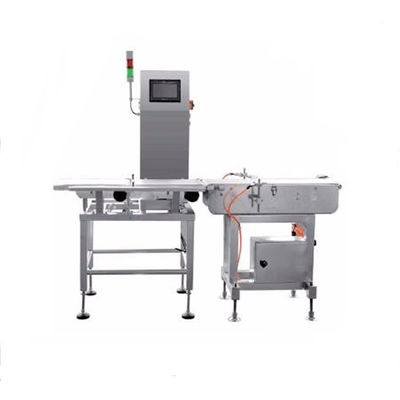

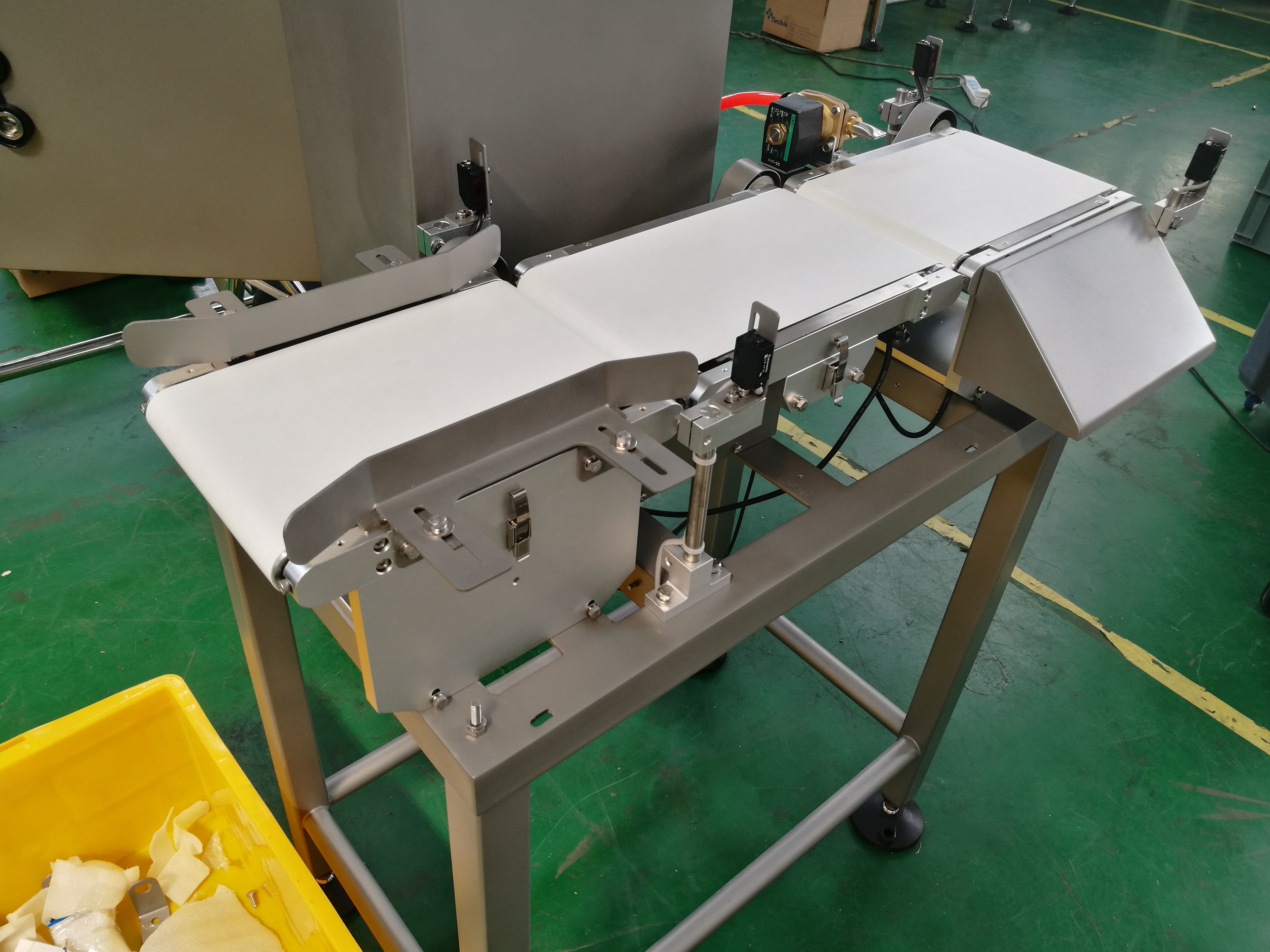

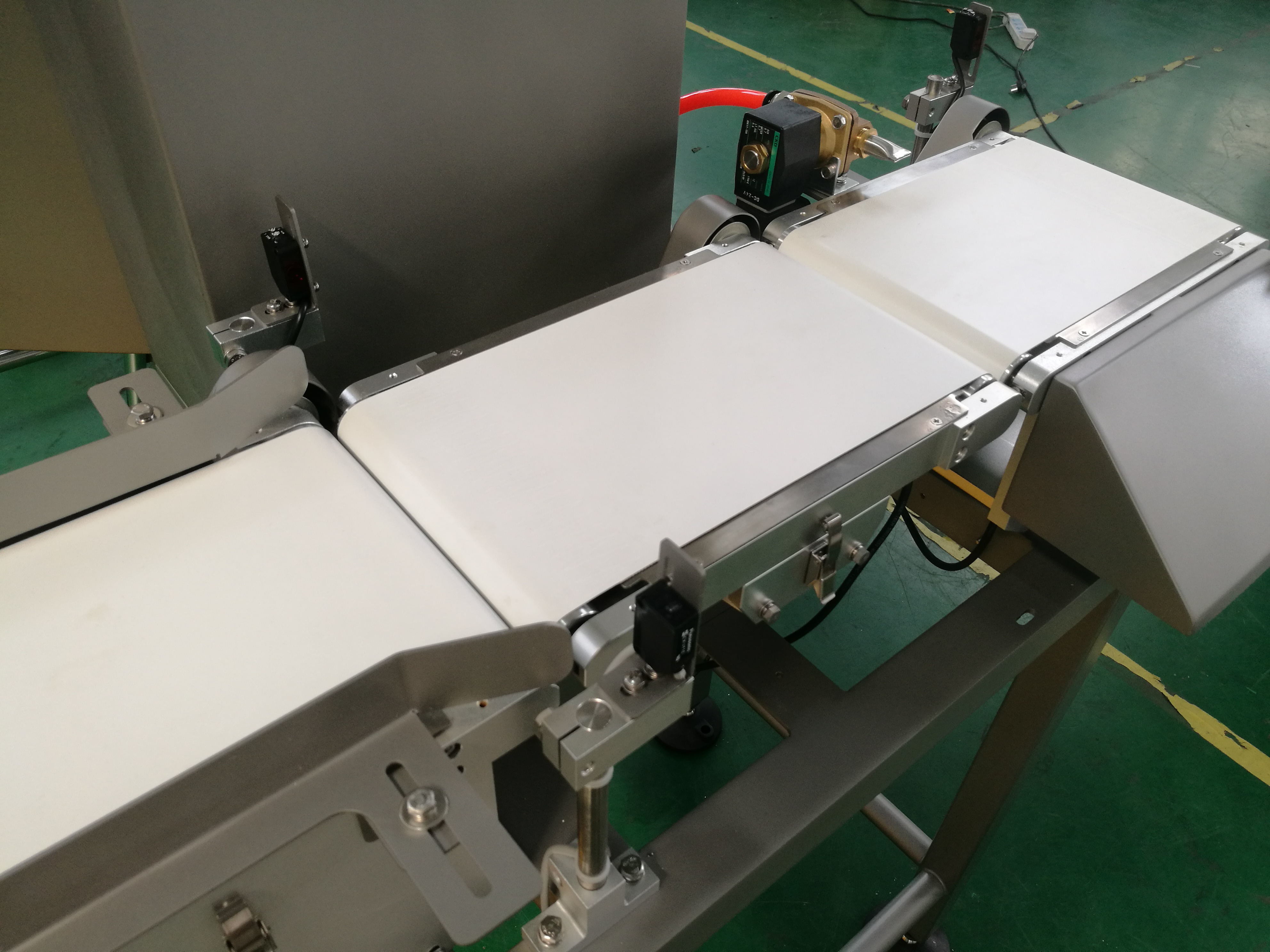

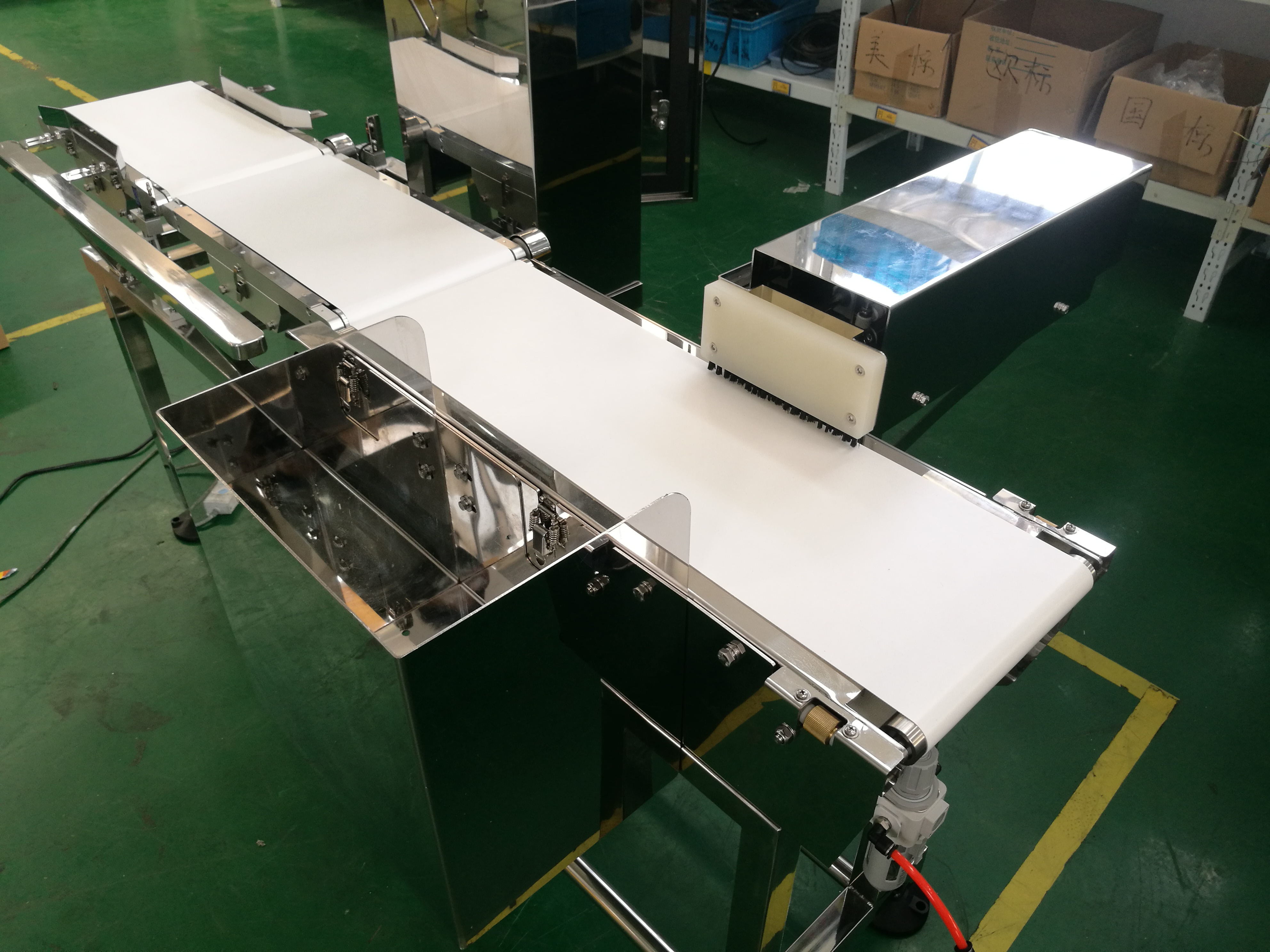

Machine Details
