Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China,zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-V620 |
| Minimum Order Quantity: | 1sets |
| Price: | USD+12500+Sets |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-35working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 99+sets+per month |
| Material: | 304SS | Name: | VFFS Packing Machine |
|---|---|---|---|
| Packaging Type: | Pillow Bag . Punching Bag , Gussted Bag , Connecting Bag | Warranty: | 1 Years |
| Driven Type: | Electric | Condition: | New |
| Function: | Filling , Wrapping , Sealing | Max Film Width: | 620mm |
| Model: | ZH-V620 | Bag Material: | BOPP/CPP , BOPP/VMCPP , BOPP/PE |
| High Light: | 620mm vertical form fill seal packaging machine,3KW vertical form fill seal packaging machine,620mm Puffed Food Packing Machine |
||

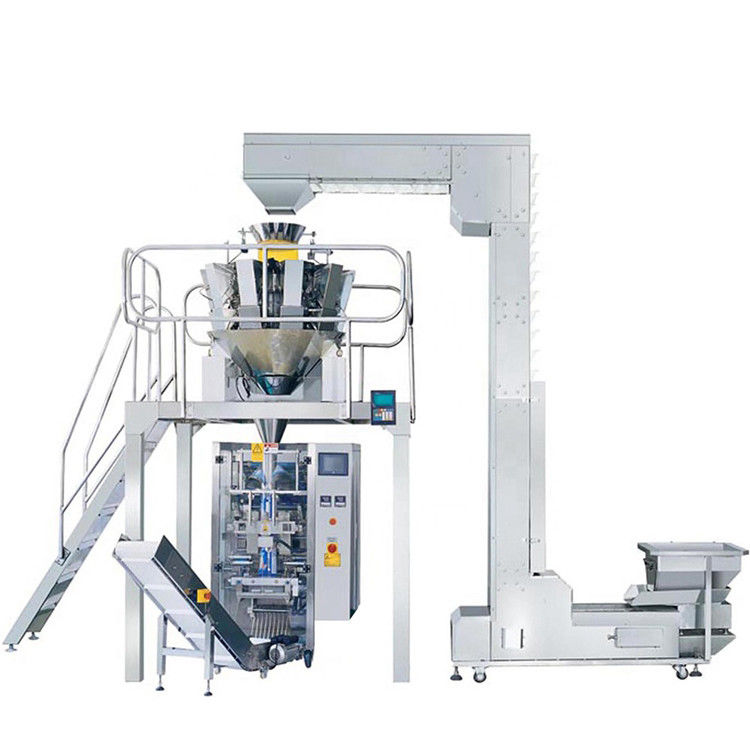

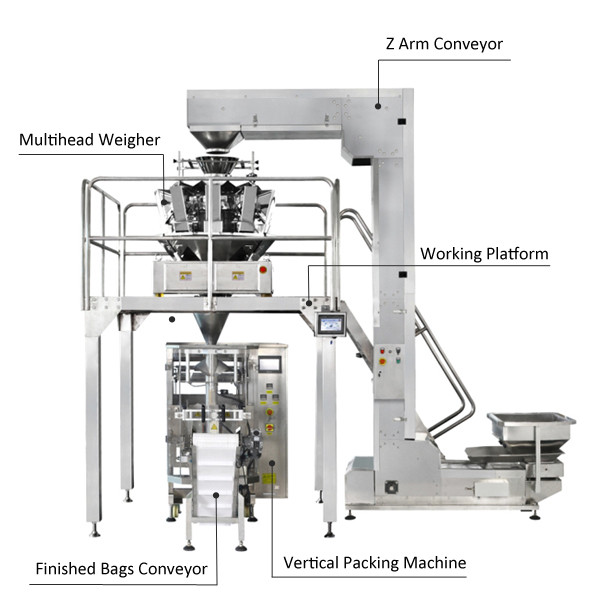

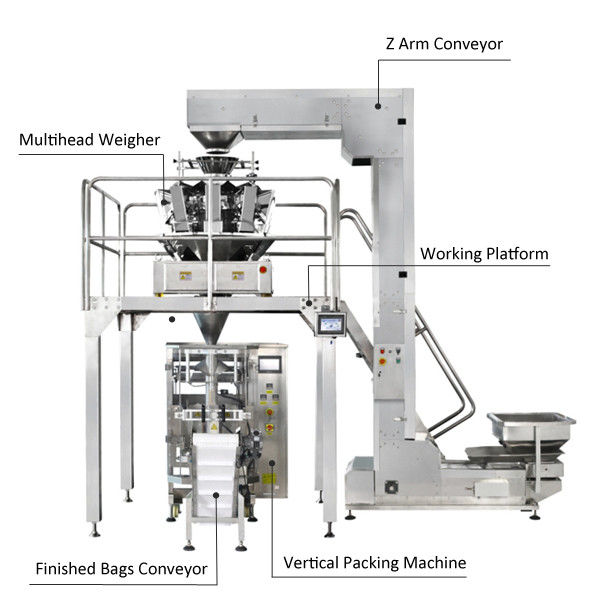

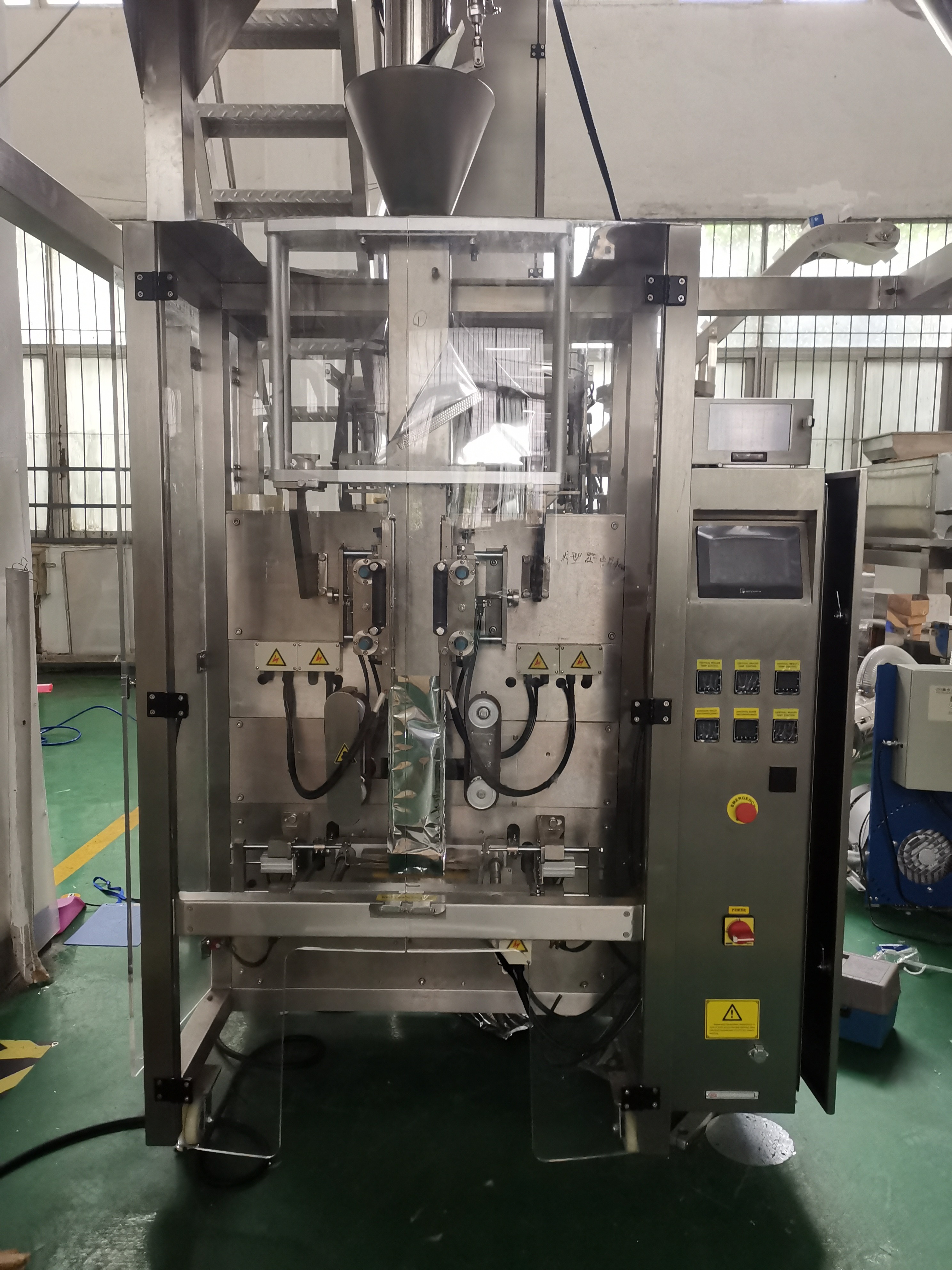

Vertical Form Fill Seal Nitrogen tortilla chips snack packaging machine puffed food packaging machine
I . Technical Feature
1 . Imported PLC control system and color touching screen enable easy and efficient operation
2 . Computer control and English-Chinese touch screen for easy operation without stopping the unit.
3 . Intelligent temperature controller for easy adjustment and good application to various laminated film and paper.
4 . Packaging diversification, such as pillow bag, gusseted bag, hole punched bag etc.
5 . Full automation from bag forming, filling, sealing, cutting and date printing.
6 . Multi-heads scale filling system for filling accuracy and good application to various kinds of products.
II . Technical Specification
| Model | ZH-V620 |
| Packing speed |
25-60 Bags / Min |
| Bag size(mm) | (W) 100-300 (L) 100-400 |
| Bag size(mm) |
ZH-V320 (W) 60-150 (L) 50-200 ZH-V420 (W) 60-200 (L) 60-300 ZH-V520 (W) 90-250 (L) 80-350 ZH-V720 (W) 120-350 (L) 100-450 |
| Bag making mode |
Pillow bag, standing bag (gusseted), punch, Linked bag |
| Maximum width of packing film (mm) | 620 |
| Thickness of film (mm) | 0.04-0.09 |
| Air consumption | 0.4m3/min 0.6MPa |
| Packing Material |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET, |
| Power Parameter | 220V 50/60Hz 3KW |
| Package Volume (mm) | 1620(L)×1340(W)×2100(H) |
| Gross Weight (kg) | 700kg |
III . Application of ZH-V620 Vertical Packing Machine
It is suitable for packing is suitable for pack all kinds of grain material, sheet material, strip material and abnormity material which such as candy, sunflower seeds, peanut, nuts, beans, potato chips, popcorn, etc.
Bag Type of Vertical Packing Machine :
Why choose ZONPACK :
