Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China,Zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-GD8-200 |
| Minimum Order Quantity: | 1sets |
| Price: | USD+23000-40000+Sets |
| Packaging Details: | Wooden case |
| Delivery Time: | 45working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 99+sets+per month |
| Bag Type: | Pre-made Bag , Zipper Bag , Stand Up Pouch Bag | Material: | 304SS , 316SS |
|---|---|---|---|
| Warranty: | 1 Years | Touch Screen: | 7inch , Weinview |
| Speed: | 20-50bags / Min | Accuracy: | ±0.1-0.5gram |
| Working Position: | Eight Position /Six Position | Pouch Size: | W : 100-200mm L : 100-350mm |
| Feature: | PLC & HMI Control , Easy For Parameter Setting And Troubleshooting. | ||
| High Light: | 200mm Premade Bag Packing Machine,0.5g Premade Bag Packing Machine,200mm rotary pouch packing machine |
||

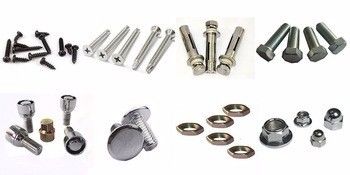

100-200mm bag width rotary packaging machine for fastener screw nut hardware packing machine
1 . Main function
1. Automatically check bag open status, it will not fill and seal when bag is not opened fully. It avoids the wasting of bag and raw material and save cost.
2. Machine working speed can be adjusted continuously with frequency converter
3. PLC from SIEMENS is adopted, the control system is easy to operated with friendly HMI interface.
4. Machine will alarm when the air pressure is abnormal and stop working with overload protect and safety device.
5. Machine can work with dual-fill, filling with two types of material, such as solid and liquid, liquid and liquid.
6. Machine can work with bag that width range from 100-200mm, by adjusting the width of clips.
7. Adopting advanced bearing, where no need to add oil and less pollution for product.
8. With premade bag, the pattern and sealing on the bag is perfect. The finished product looks advanced.
9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
2 . Technical Specification
| Model | ZH-GD8-200/300 |
| Packing Speed | 25-50 bag/min |
| Bag Size (mm) |
W: 100-200mm L: 100-350mm W: 200-300mm L: 200-450mm
|
| Bag Type |
Flat pouch, Stand up pouch, Stand up pouch with zipper |
| Air Consumption | 0.4 m3/min 0.8Ma/ |
| Packing Material | POPP/CPP, POPP/VMCPP,BOPP/PE,PET/AL/PE, NY/PE, PET/PET |
| Power Parameter | AC380V/50Hz/3KW |
| Machine Dimension(mm) | 1770(L) ×1700(W)×1800(H) |
| Gross Weight (Kg) | 1200 |
3 . Application
ZH-GD8 Rotary packing machine is developed for premade bag, stand-up bag with or without zipper. It is suitable for packing product of powder, irregular shape, thick liquid and liquid, such as gourmet powder, chicken powder, seasoning powder, candy, fruits, nut, pet food, roasted seeds, puffed food, frozen food, small hardware and hand sanitizer.

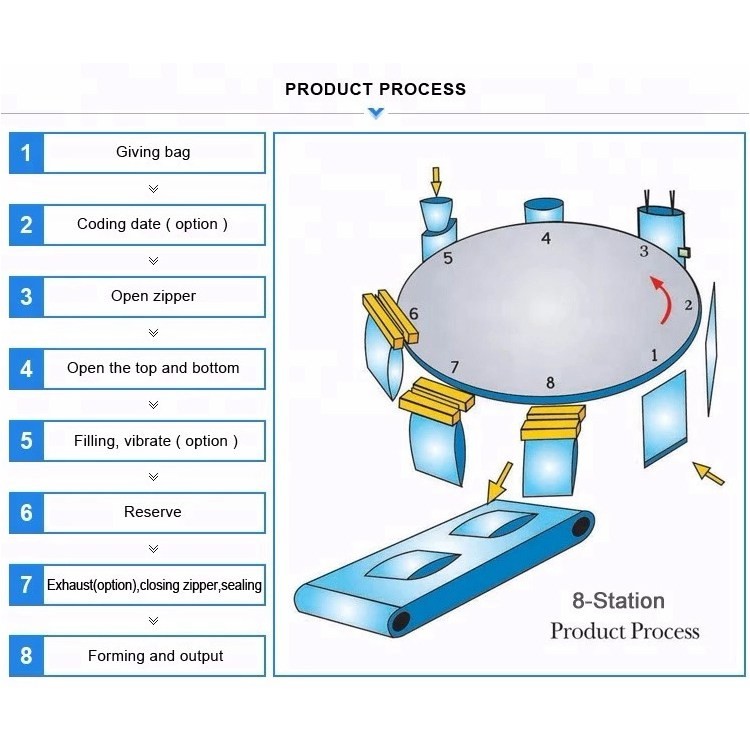

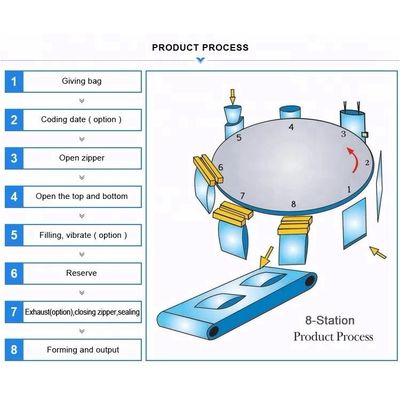

4 . Working process of Pre-made bag Packing Machine

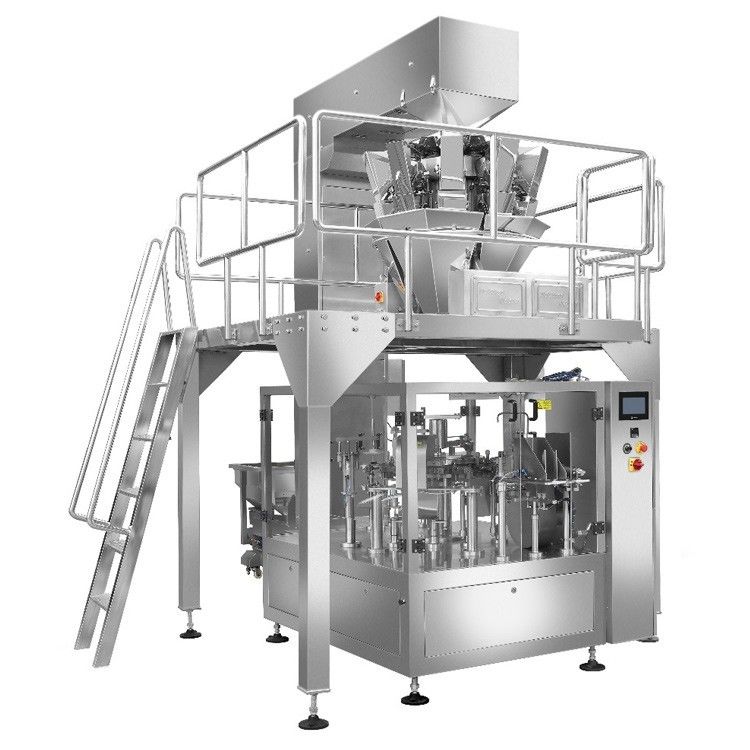

System Compostion
1 . Infeed bucket conveyor:
Feed nuts to multihead weigher which controls the start and stop of the hoister.
2 . 10 / 14 heads multi weigher:
Used for nuts weighing.
3 . Working platform:
Support the 10 /14 heads multi weigher.

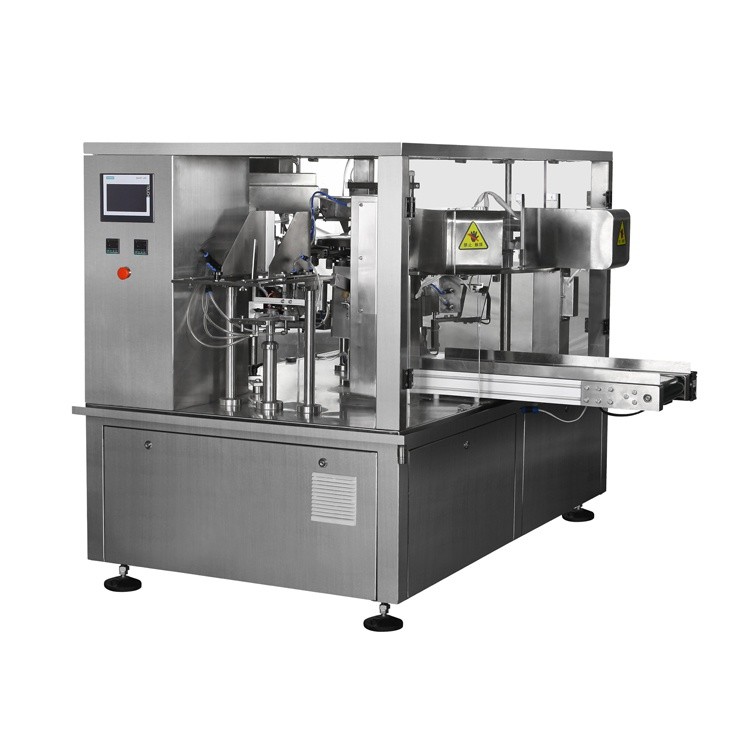

4 . Rotary packing machine:
Packing for pre-made bag with zipper,stand up pouch bag,date-printing.
