Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Zhejiang,China |
|---|---|
| Brand Name: | Zon Pack |
| Certification: | CE |
| Model Number: | ZH-A10 |
| Minimum Order Quantity: | 1Set |
| Price: | USD5000/Set |
| Packaging Details: | Wooden cases |
| Delivery Time: | 30-40days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 99Sets/month |
| Machine Name: | Multihead Weigher | Weighing Range: | 10-2000g |
|---|---|---|---|
| Max Weighing Speed: | 65bags/min | Accuracy: | ±0.1-1.5g |
| Hopper Volume: | 1.6/2.5L | Gross Weight: | 400kg |
| Driver Method: | Stepper Motor | Interface: | 7''HMI/10''HMI |
| High Light: | 4 Heads Multihead Weigher,Stepper Motor Multihead Weigher,2000g Automatic Vegetable Packing Machine |
||

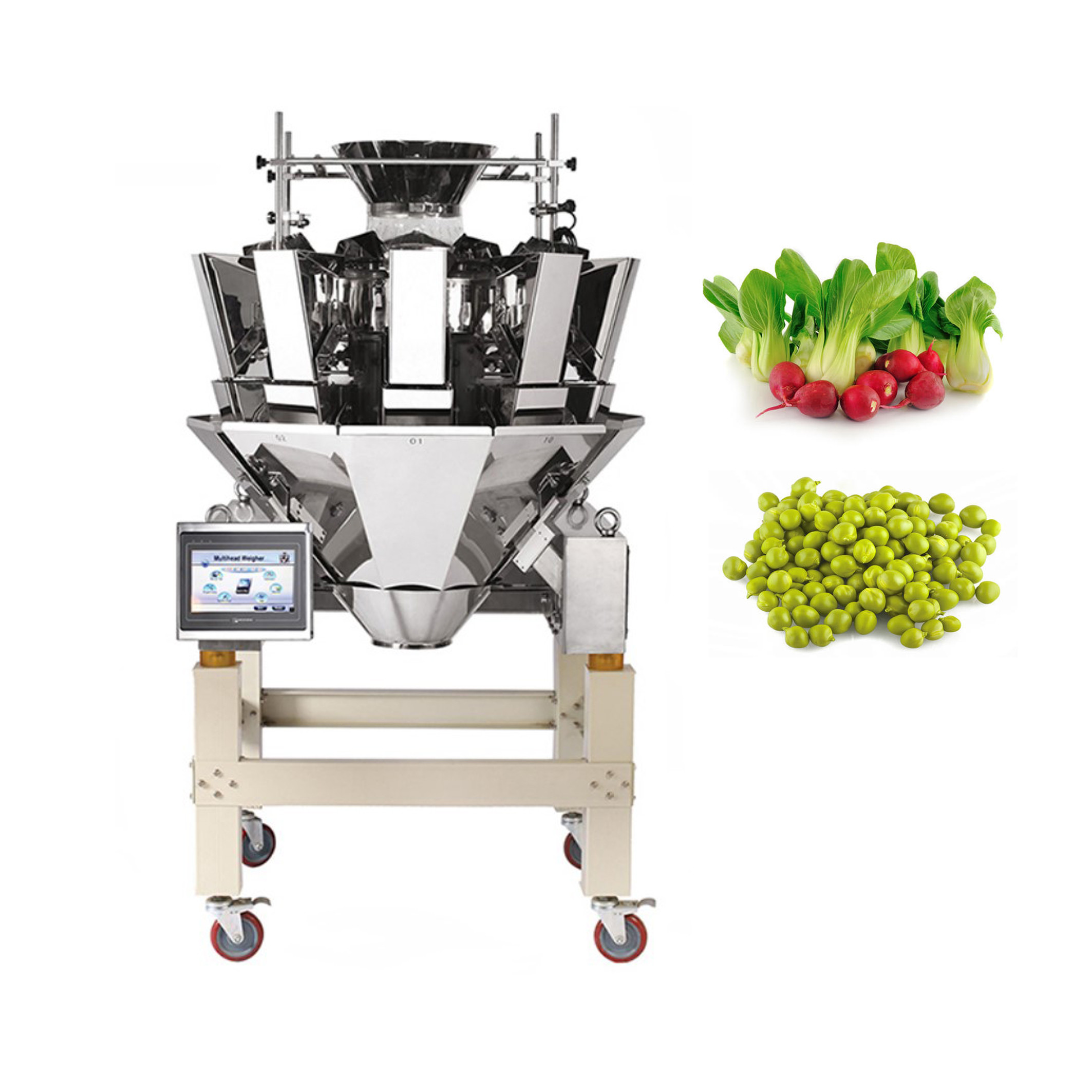

10/14 Heads Multihead Weigher Weighing Filling Food Fruits Vegetable Nuts Packing Machine
Multi-language Automatic peanut almonds prawn cracker multiheads weigher packaging machine
Ⅰ . Application

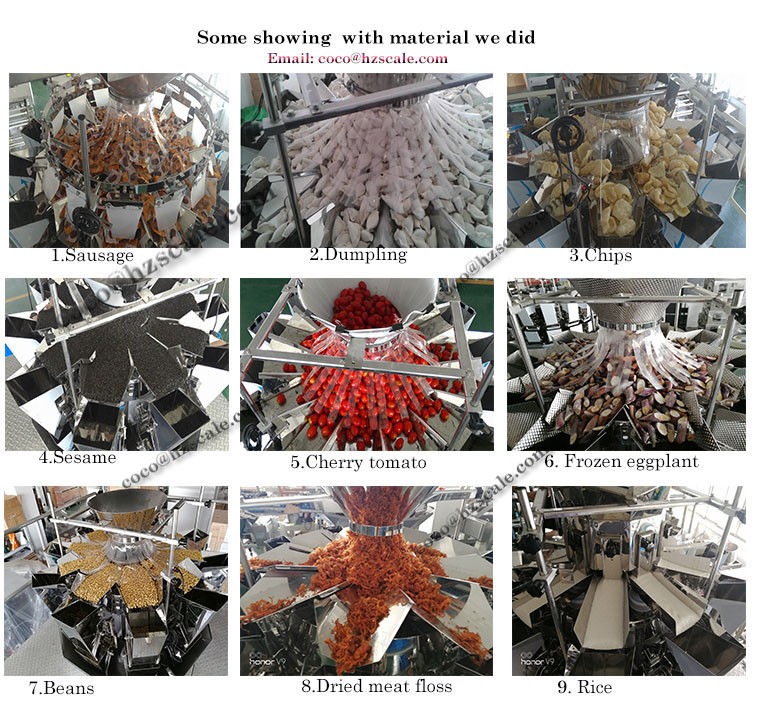

ZH-A10 is developed for precise and high-speed quantitative weighing packaging system. It is suitable for weighing material of grain, stick, slice, globose, irregular shape such as candy, fruits, nut, pet food, roasted seeds, puffed food, frozen food, small hardware.
Ⅱ . Parameters
| Model | ZH-A10 |
| Weighing Range | 10-2000g |
| Accuracy | ±0.1g-1.5g |
| Hopper Volume | 0.5L/1.6L/2.5L/5L |
| Driver Method | Stepper motor |
| Option |
Timing Hopper/ Double door Hopper/ Dimple Hopper/ Printer/ Overweight Identifier / Rotary Vibrator |
| Interface | 7'HMI or 10"HMI |
| Power Parameter | 220V/ 50/60HZ 1000W |
| Package Volume (mm) | 1650(L)×1120(W)×1150(H) |
| Gross Weight(Kg) | 400 |
III.Main function
1. Vibrator modifies the amplitude basing on different target to make material down more equably and get higher combination rate.
2. High precise digital weighing sensor and AD module have been developed.
3. Modify hopper open speed and open angle basing on the characteristics of measured material can prevent material blocking the hopper.
4. Material collecting process system with difference automatic identified and one drag two function can remove unqualified product and deal with material drop signals from two packaging machines.
5. Components which touch the material are all manufactured with stainless steel. Hermetic and waterproof design has been adopted for preventing particles entering and cleaning easily.
6.1.6L/2.5L hopper, suitable for all kinds of common standard materials, can be widely used;
