Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Automatic Food Packing Machine | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Function: | Filling ,Weighing,Sealing,Packing |
| Driven Type: | Electric | Power Parameter: | 220V 50/60Hz 2.2KW |
| Filling Range: | 5-5000g | System Output: | ≥8.4 Ton/Day |
| Control: | PLC | Language: | Multi-language |
| High Light: | Multihead Weigher Automatic Food Packing Machine,PE Film Automatic Food Packing Machine,70Bag/Min Automatic Food Packing Machine |
||
Factory Price Automatic Food Weighing And Packing Machine For Biscuit
Technical Feature
1. It is for conveying, weighing, filling, bag-making, date-printing, finished product outputting.
2. High precision weighing and efficiency.
3. Packing efficiency will be high with vertical packing machine and easy to operate.
4. All main brand of packing machine is famous in the world.
5. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.
6. Close down type mechanism, defending powder into inside of machine.
7. Multi-head weighter measuring, packing weight more precision, product cost more low.
| Technical Specification | |
| Model | ZH-BL10 food packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film ,PE film |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application of Machine
Suits to pack candy, tea, nuts, sugar, dates, biscuit, frozen food, rice, cookies, coffee beans, cereals, dried fruit,
chocolate, expanded food, microwave popcorn, grain, snack food, vegetable, salad, all kinds of nuts and pet food etc.

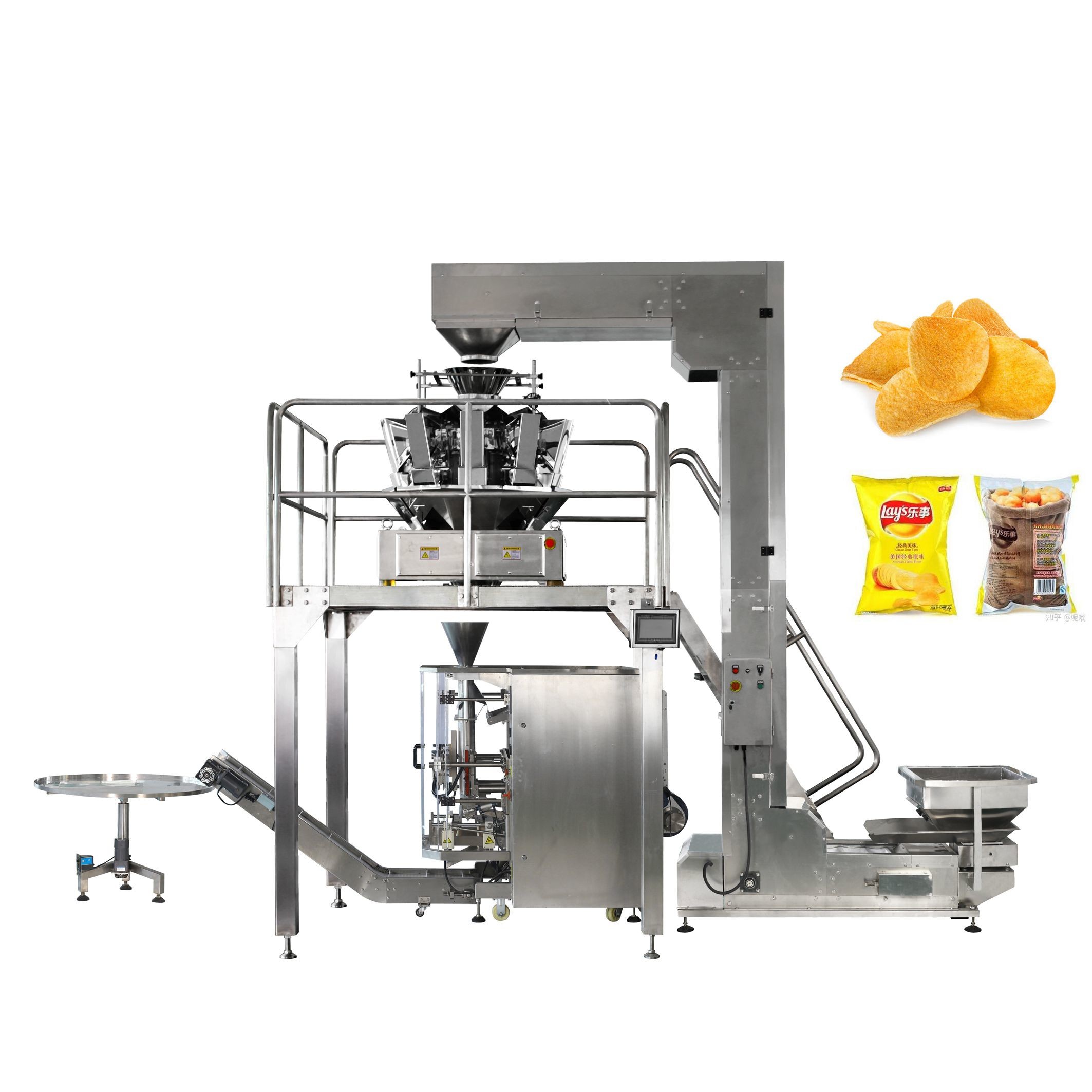

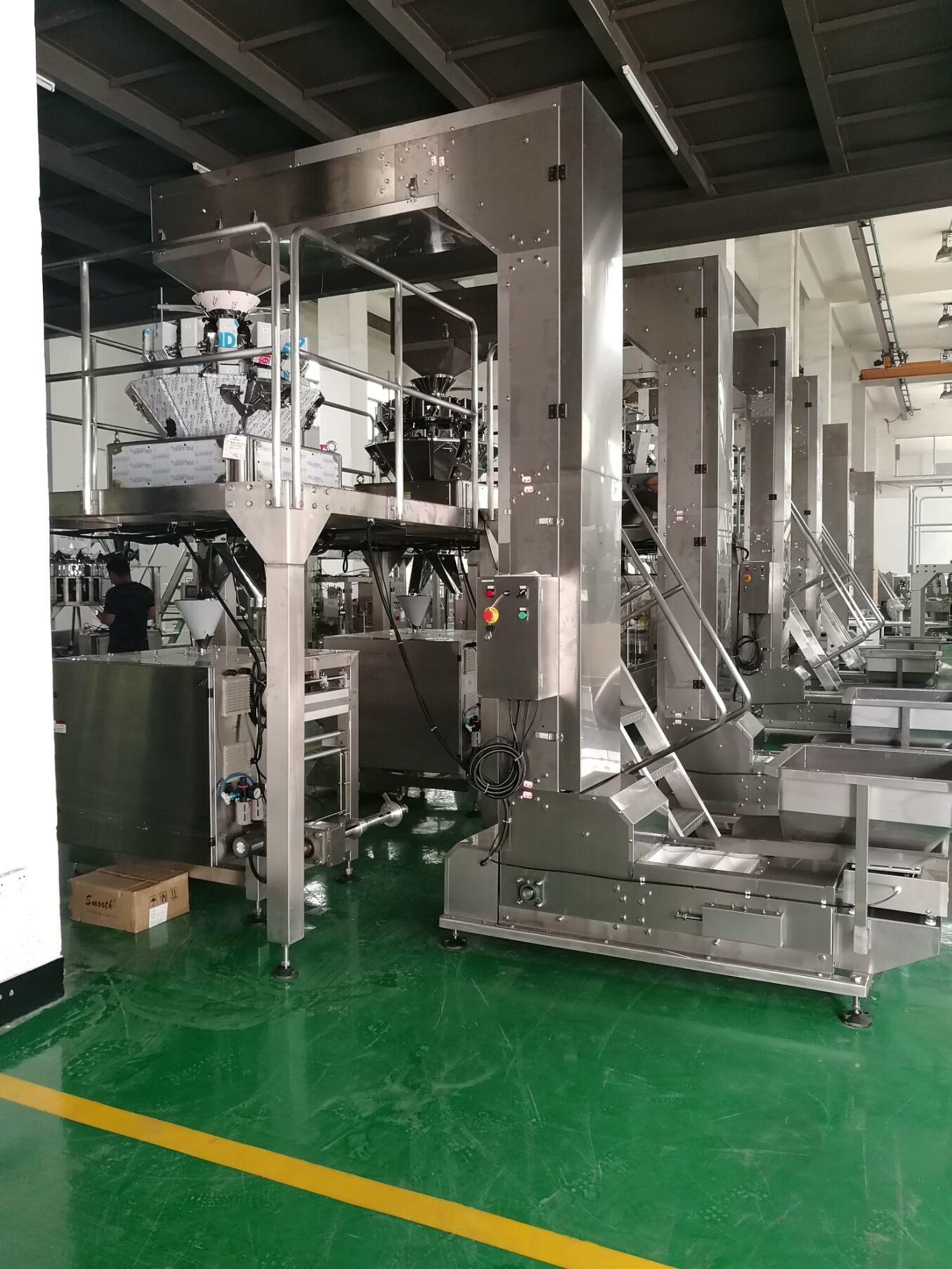

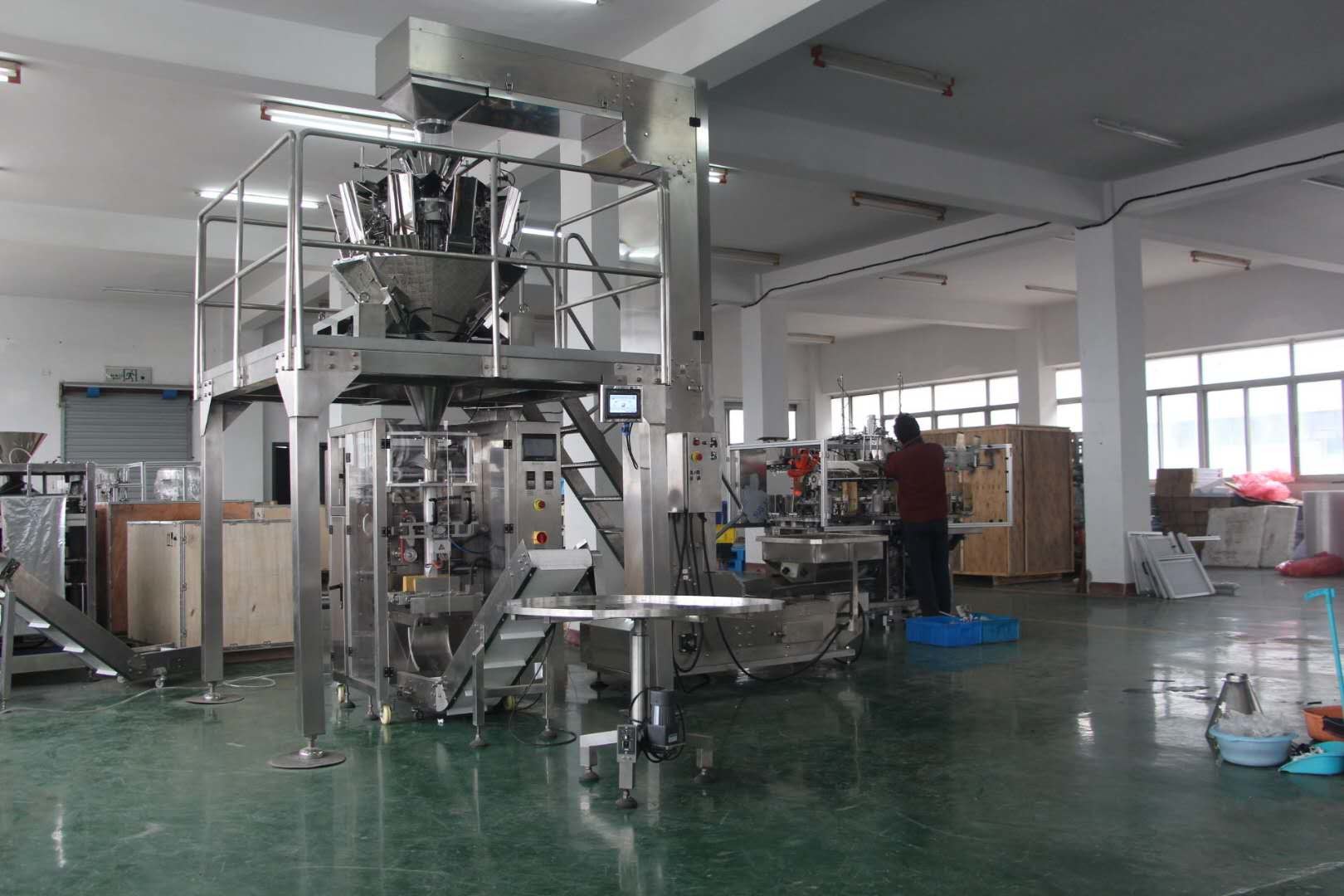

System Construction
1. Inclined conveyor:
Convey the product to multihead weigher
2. 10 heads/14 heads multihead weigher:
For product weighing.
3. Working platform:
Support the multihead weigher.

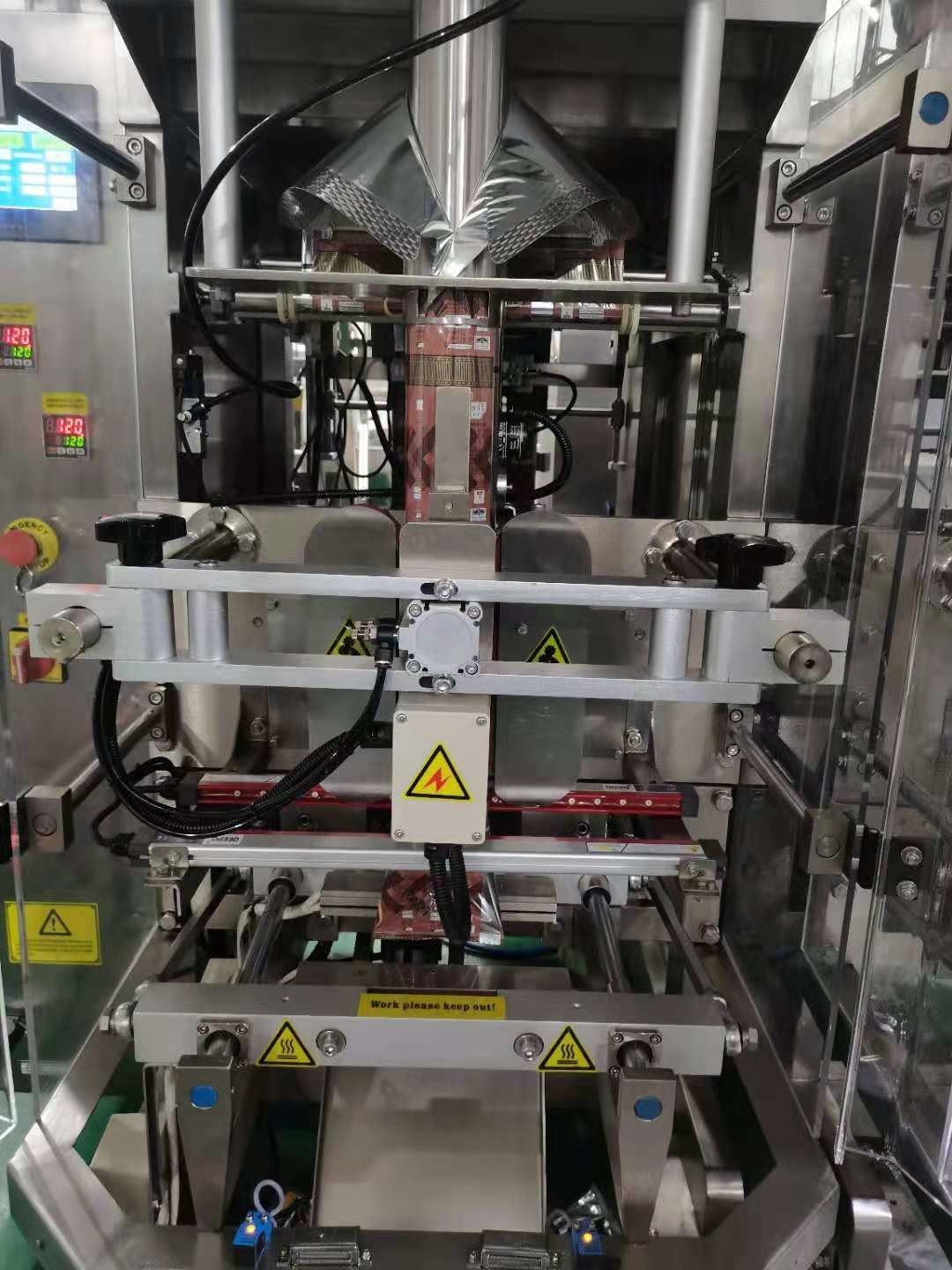

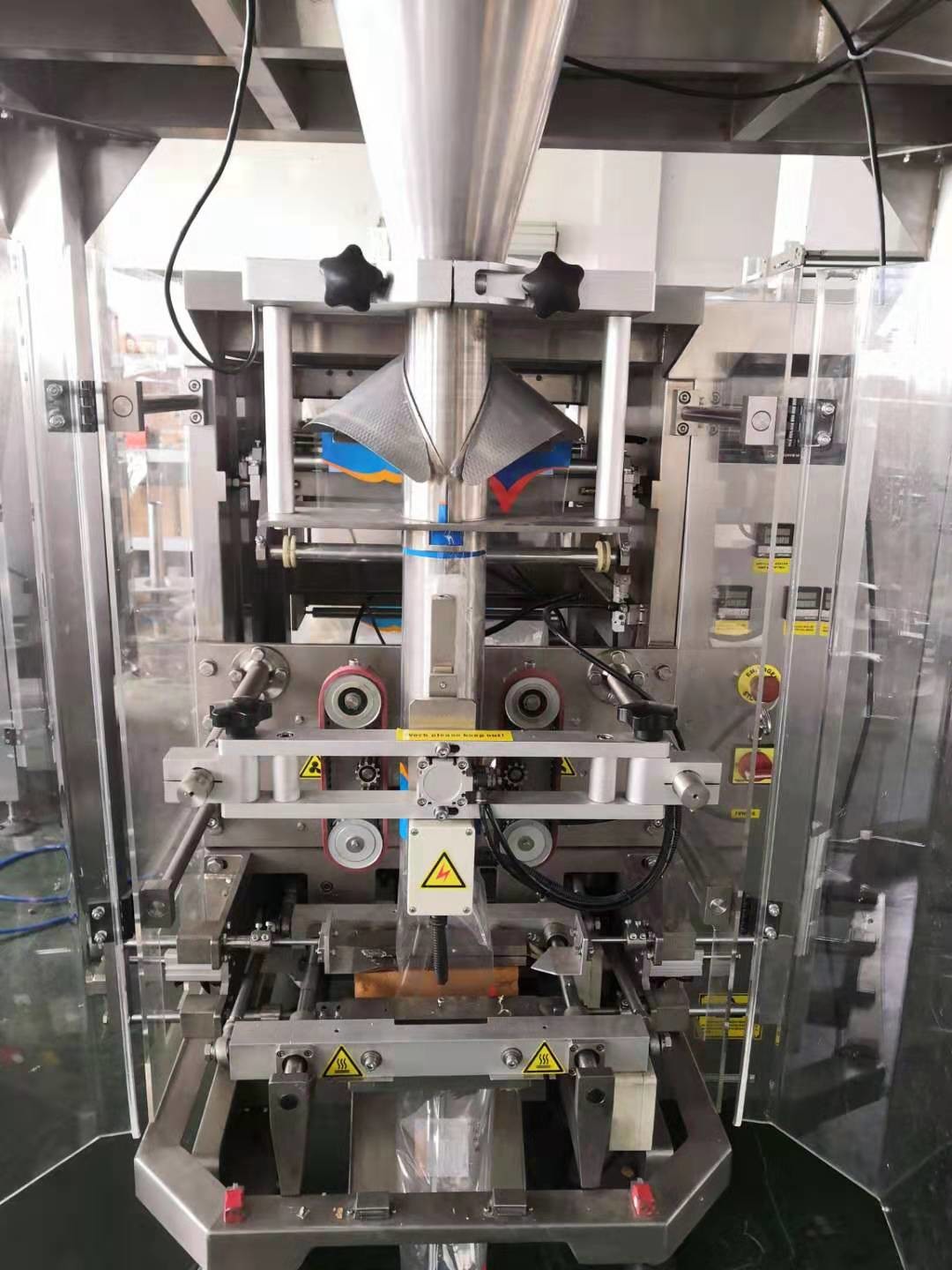

4. Vertical packing machine:
For bag forming and bag sealing.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
