Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Zhejiang，China |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE,SGS |
| Model Number: | ZH-V320 |
| Minimum Order Quantity: | 1 set |
| Price: | USD+7200+USD |
| Packaging Details: | wooden case |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 20+sets+per month |
| Automatic Grade: | Automatic | Main Function: | Forming Filling Sealing Packing |
|---|---|---|---|
| Packing Speed: | 25-70 Bags / Min | Control: | PLC Control |
| Bag Size(mm): | (W) 50-150 (L) 80-200 | Thickness Of Film: | 0.04-0.08 |
| Driven Type: | Electric | Production Capacity: | 25-70bags/min |
| Power Parameter: | 220V 50/60Hz 2.2KW | Material: | 304SS |
| High Light: | Siemens PLC Granule Packing Machine,Pillow Bag Granule Packing Machine,70Bags/Min Automatic Rice Packing Machine |
||
Siemens PLC Control Automatic Grain Sugar Rice Packing Machine For Bag
Siemens PLC Control Grain Sugar Rice Packing Machine
I. Application of ZH-V320 Vertical Packing Machine
It is suitable for packing grain, corn, rice,slice, irregular shape products such as puffy food, snacks, candy, chocolate, nuts, pistachio, pasta, coffee bean, sugar, chips, cereals, pet food, frozen food, small hardware, etc.
II. Technical Feature
1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.

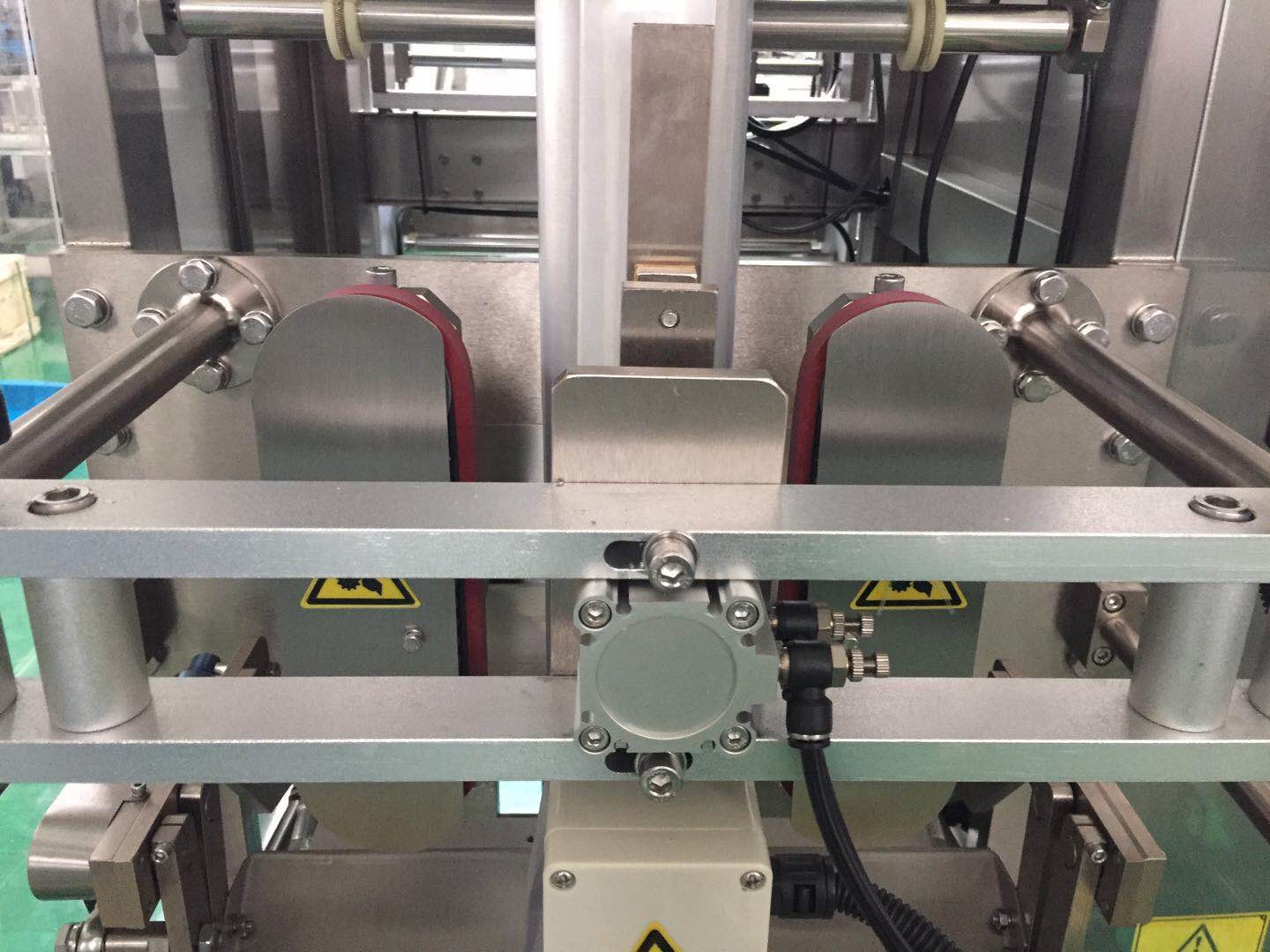

3. Double-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
4. Perfect alarm system to make problem solved quickly.
III. Technical Specification
| Model | ZH-V320 |
| Packing speed | 25-70Bags/Min |
| Bag size(mm) |
W:60-150mm L:50-200mm |
| Bag making mode | Pillow bag, standing bag (gusseted), Punching bag Connecting bag |
| Max film width (mm) | 320 |
| Thickness of film (mm) | 0.04-0.09mm |
| Air consumption | 0.3m3/min 0.8MPa |
| Packing Material |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE ,NY/PE, PET/ PET. |
| Power Parameter | 220V50/60Hz 3KW |
| Dimension(mm) | 1150(L)×800(W)×1370(H) |
| Gross Weight(kg) | 300 |

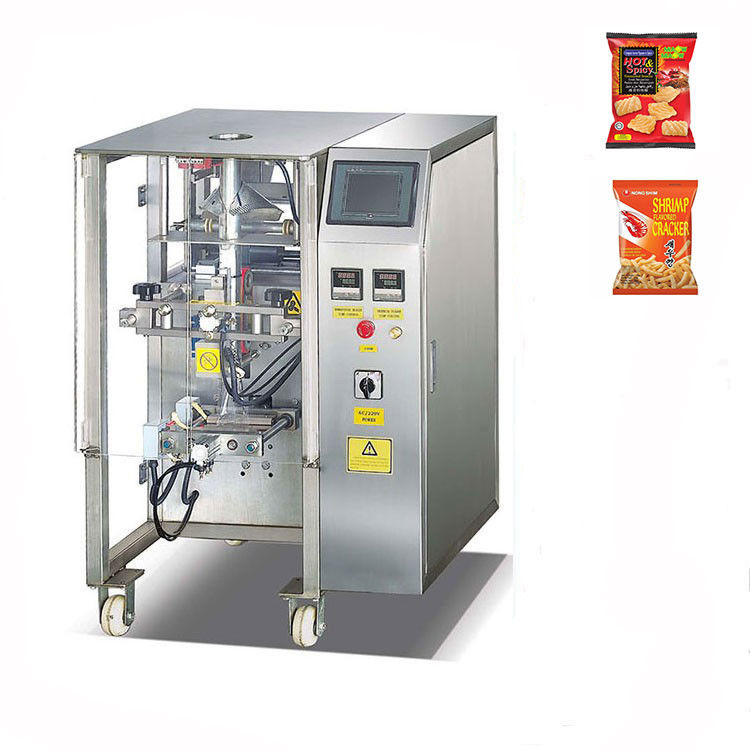

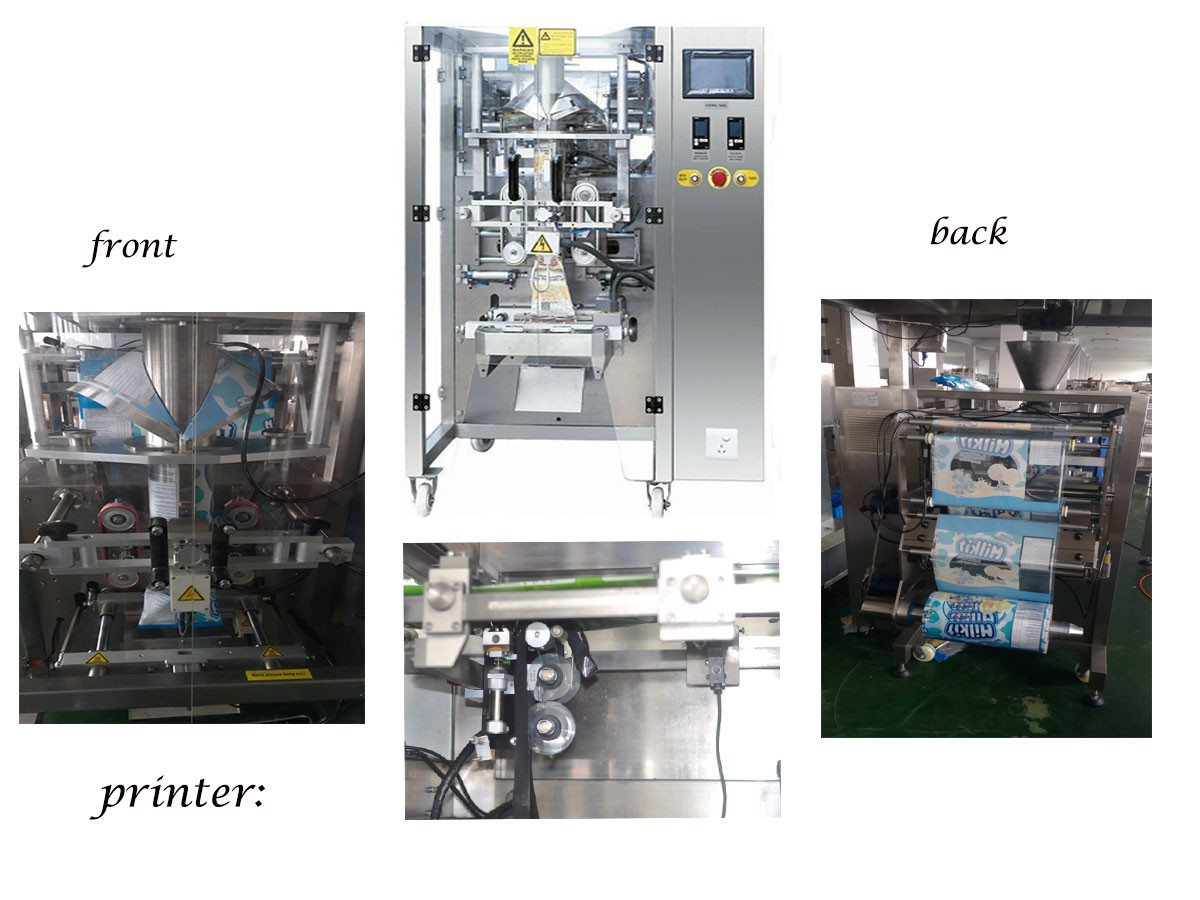

Machine's picture
Our projects
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
