Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China , zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE Certification |
| Model Number: | ZH-A4 |
| Minimum Order Quantity: | 1sets |
| Price: | USD+3000+USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-40 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 99+sets+per month |
| Automatic Grade: | Automatic | Condition: | New |
|---|---|---|---|
| TypePackaging: | Bag Or Box | After-sales Service Provided: | Online Support,Video Technical Support,Engineers Available To Service Machinery Overseas |
| Voltage: | 220V/50Hz | Power: | 2.2kw |
| Materials: | 304SS Frame | Option: | 2head/4head |
| High Light: | 304SS Frame 4 Head Linear Weigher,4 Head Vffs Packing Machine,Sweet Popcorn 4 Head Linear Weigher |
||

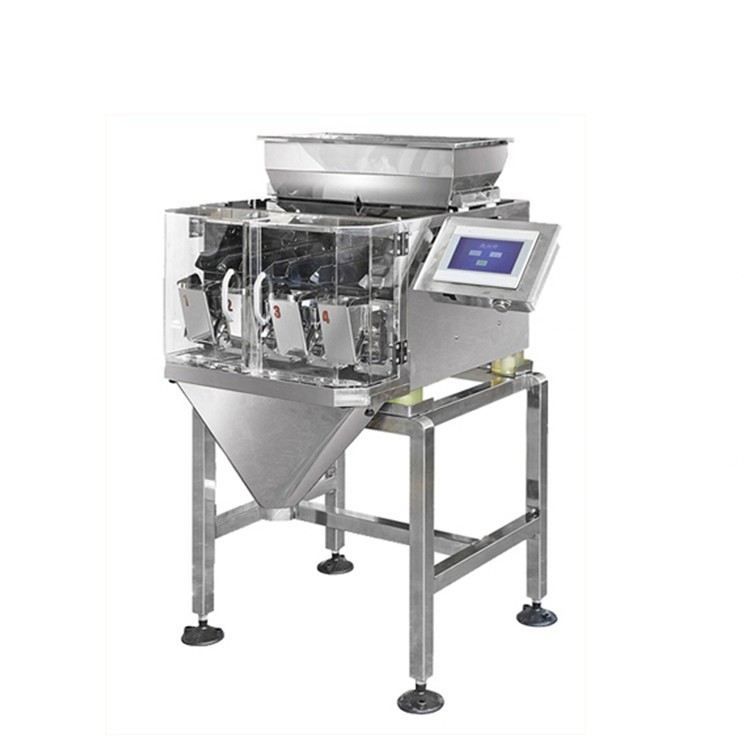

Factory Directly 4 Head Linear Weigher Vffs Packing Machine For Sweet Popcorn
Auto 304SS 4head Linear Weigher For Grain Bean Rice Packing Machine
1 . Application of ZH-A4 4 Head Linear weigher

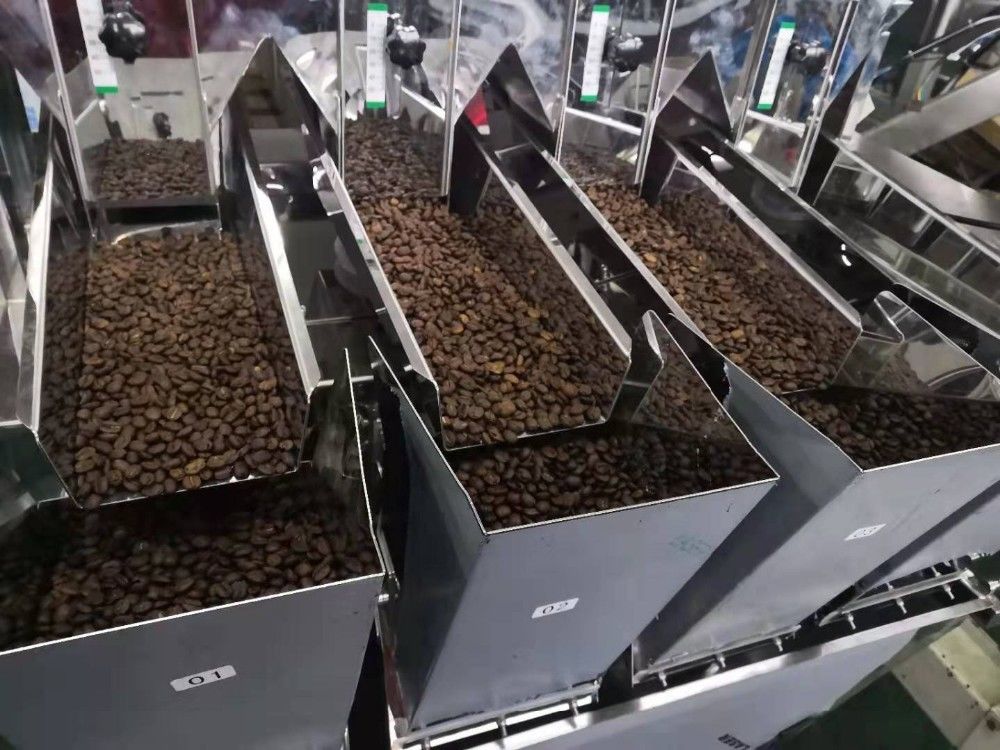

ZH-A4 It is suitable for weighing material of small grain with good uniformity, such as oatmeal, sugar, salt, seeds, rice, sesame, milk powder coffee, etc.linear weighers can be applied in many ways by both the food and non-food industry. Due to the low drop heights in the Atoma linear weighers, they are mostly used for fragile products.
2 . Parameters
| Model | ZH-A4 |
| Weighing Range | 10-3000g |
| Max Weigh Speed | 60 Bags/Min |
| Accuracy | 0.2-2g |
| Hopper Volume | 3000ml |
| Max Products | 4 |
| Interface | 5.4"HMI |
| Power | 220V / 50/60HZ / 8A/ 800W |
| Dimension(mm) | 1010(L)*960(W)*1207(H) |
3 . Main function
1 . High precise digital weighing sensor and AD module have been developed.
2 . Touch screen with human-based interface.
3 . The hoppers are easy to remove without tool .
4 . Chinese/English/Spanish multi language operation system can be selected basing on customer’s requests.
5 . The 4head linear weigher can work with different type packing machine,It's very easy to install and opeartion.
Our factory :
Our Service:
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to providing
customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted
