Place of Origin: | China |
---|---|
Brand Name: | Zon Pack |
Certification: | CE |
Model Number: | ZH-BG |
Minimum Order Quantity: | 1sets |
Price: | USD21000-25000/SET |
Packaging Details: | Wooden Cases |
Delivery Time: | 30-40days |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Supply Ability: | 99sets/month |
Machine Name: | Rotary Packing System | Packing Speed: | 30-50bags/min |
---|---|---|---|
Packing Accuracy: | ±0.1-1.5g | System Output: | ≥8.4ton/day |
Pouch Material: | PE/PET | Interface: | 7''hmi |
Material: | 304SS | Control: | Siemens PLC |
High Light: | 304SS Dry Fruit Packaging Machine,45Bags/Min Automatic Food Packing Machine,Siemens PLC Automatic Food Packing Machine |

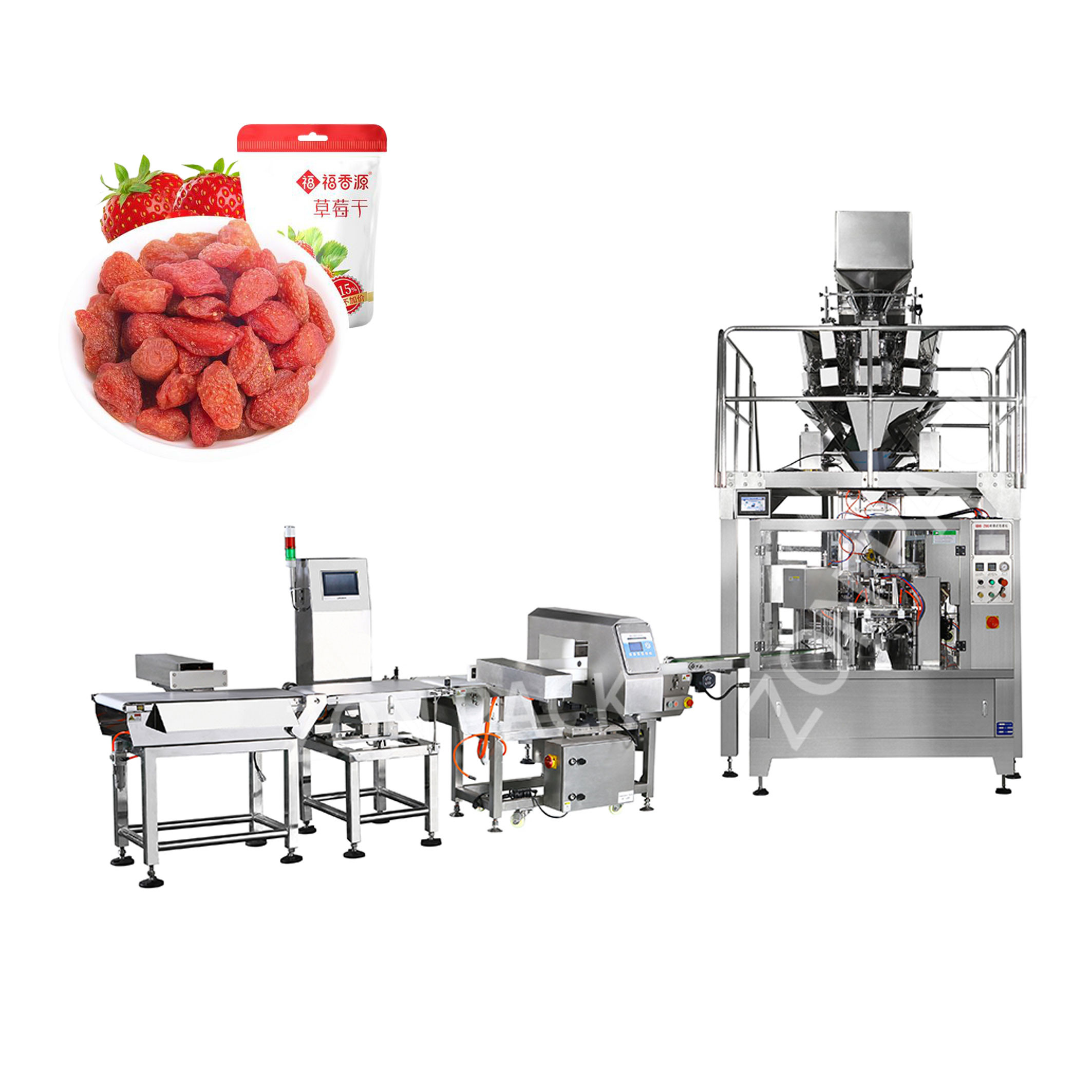

Automatic 25-45 bags/min Doypack Zipper Bag Pouch Packaging Machine For Dried Fruit
Application:
This 8 rotary packing machine is suitable for irregular lumpy and granular materials, such as candy, puffed food,
small biscuits, fired dried fruit, sugar, frozen food and hardware and plastic products,etc.
Technical Feature
1. Easy to operate, adopt advanced PLC controller, mate with touch screen and electric control system,
the man-machine interface is friendly.
2. Automatic checking: no pouch or pouch open error, no fill, no seal.
3. The machine could be protected well when it stops with parking brake function.
4. Low consumption of the packing material. The machine is advanced with perfect sealing and leaving
complete prints with pre-made bags.
5. The measuring machine could be added based on the packing material(such as automatic screw filling machine,
intelligent combined weigher, liquid filling machine).
6. It conform to hygienic standards of food processing industry. The contact parts are made of stainless steel or
other materials which suits the hygienic standards to ensure the hygienic security.
7. It is suitable for a broad range packing materials, suit for multi-lay compound, monolayer PE , PP and so on
preformed bagmade by film and paper.
Technical Specification | |
Model | ZH-BG10 |
Packing Speed | 30-50 Bags/Min |
Packaging Accuracy | ±0.1-1.5g |
System Output | ≥8.4 Ton/Day |
Bag Size | Width:100-300 Length:150-400mm |
Bag types | stand up bag,zipper bag,flat bag |
Target weight | 5-5000g |

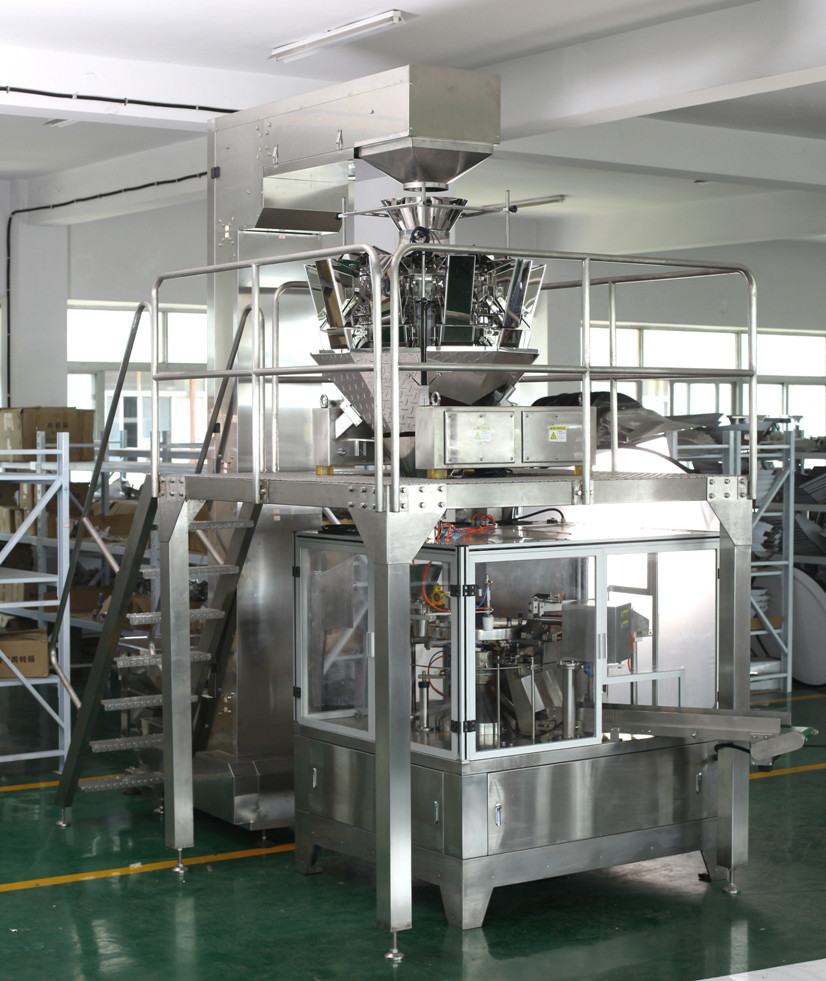

Unit system
1. Infeed bucket conveyor:
For feeding the product to multihead weigher.
2. Multihead weigher:
For weighing the product.
3. Working platform:
For supporting the multihead weigher.

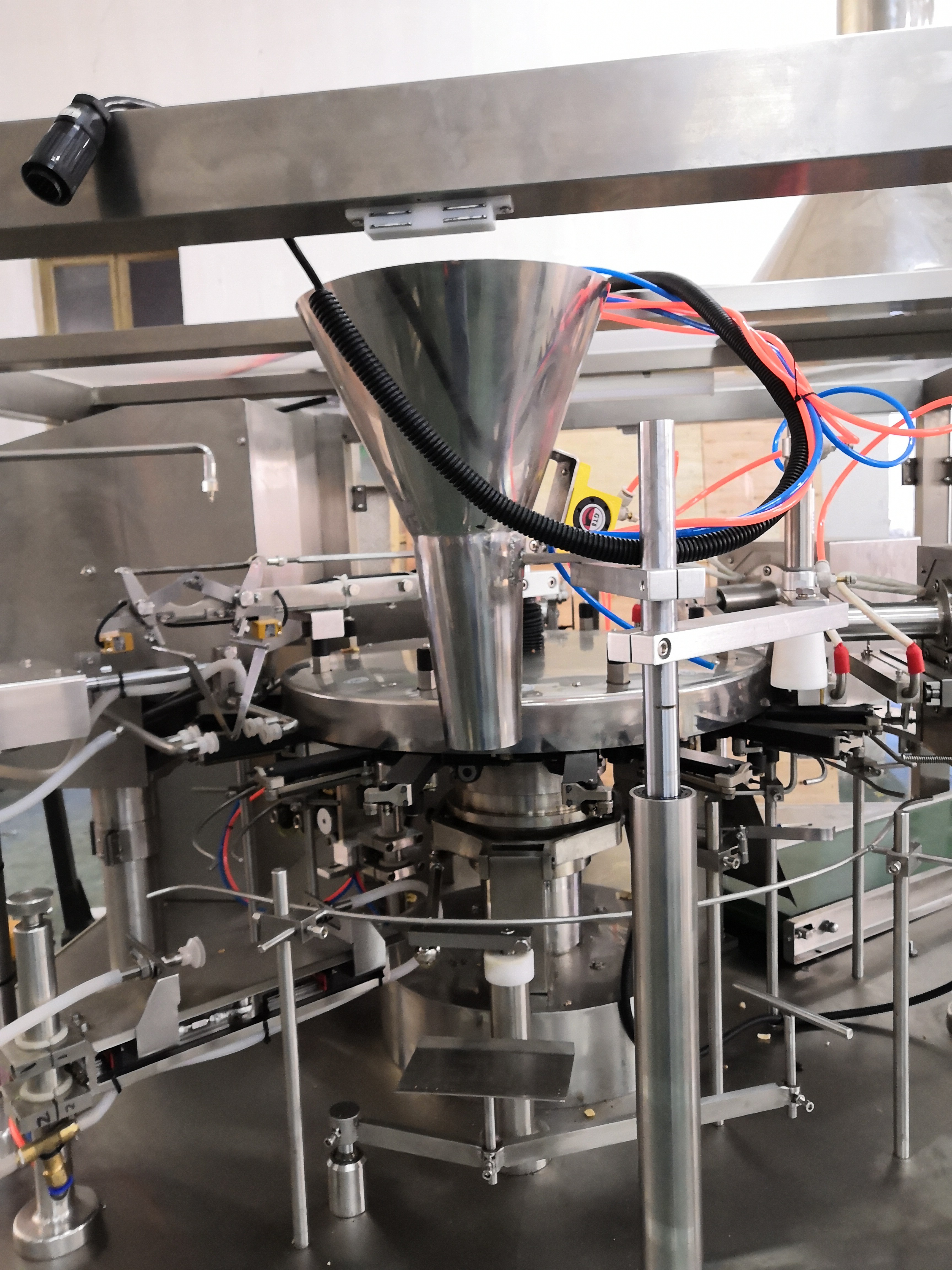

4.Rotary packing machine:
For premade bag sealing .
Station process:
1. Bag Feeding 2. Date Coding 3. Bag Opening 4. Filling
5. Filling 6. Stand by 7.Heat Sealing 8.Forming & Output
Our partners:

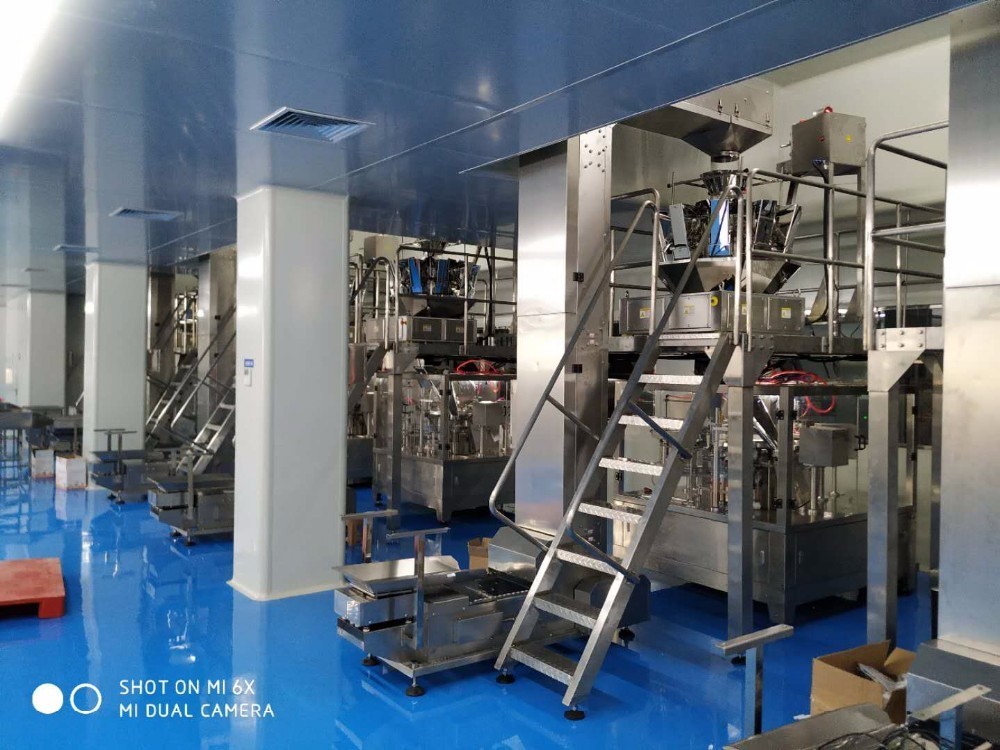

Our Cases:
Pre-sales service After-sales
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
