Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BG10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 35000-40000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-35 Working days |
| Payment Terms: | L/C, D/A, Western Union, D/P, T/T |
| Supply Ability: | 199 Sets per month |
| Name: | Multihead Weigher Rotary Packing Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Machine Material: | Food Grade SS304 | Packaging Type: | Flat Pouch,stand-up Pouch ,zipper Bag |
| Function: | Filling ,weighing ,sealing | Packing Speed: | 30-50bags/min |
| Packaging Accuracy: | ±0.1-1.5g | Working Position: | Six Or Eight |
| System Output: | ≥8.4 Ton/Day | Power: | 380V 50/60HZ |
| High Light: | GMP Multihead Weigher Packing Machine,304SS Stand Up Pouch Packing Machine,50bags/min Stand Up Pouch Machine |
||

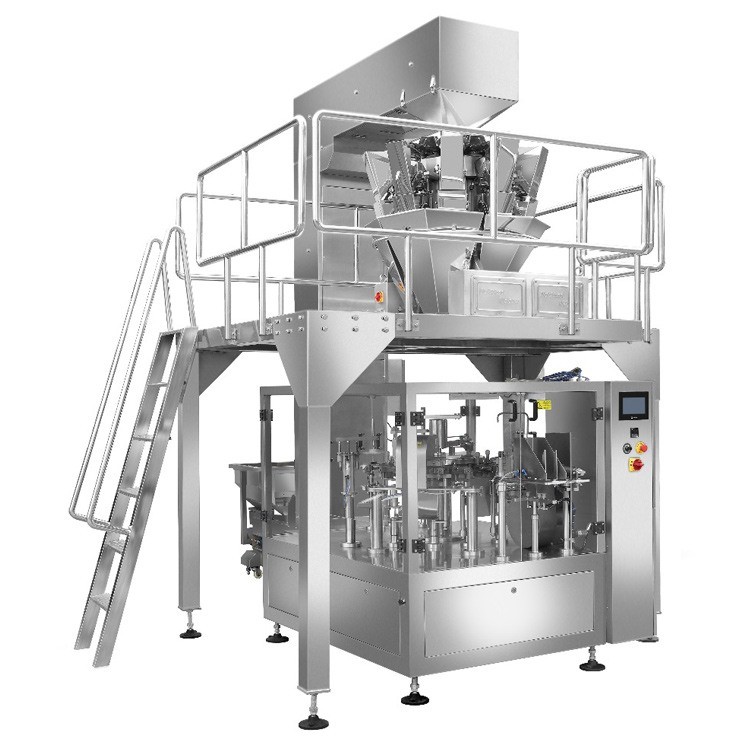

Food Grade 304 Stainless Steel Beef Jerky Stand Up Pouch Packing Machine
Technical Feature
1. SUS304 steel material, which conforms to the health standards of food QS and GMP
2. Advanced PLC control system
3. Working speed of the machine can be adjusted by the variable frequency speed regulating device
4. Overload protection, safety device, automatic alarnot
5. Can intelligently detect whether the bag is opened and whether the bag is completed. If the bag is not properly filled, it will not be
heat seal or wasted.
6. Can automatically adjust the width of the bag at the same time by mechanical swinging 8 stations, which is suitable for bags
different width.
7. Can be used to pack prefabricated bags and paper bags made of multi-layer composite film, single layer PE, PP and other materials.
8. Safety performance, when the door of the machine is opened, it will stop automatically to prevent being injured by the machine
| Technical Specification | |
| Model | ZH-BG10 |
| Packing Speed | 30-50 Bags/Min |
| Packaging Accuracy | ±0.1-1.5g |
| System Output | ≥8.4 Ton/Day |
| Bag Size |
Width:100-300 Length:150-400mm
|
| Bag types | stand up bag,zipper bag,flat bag,doy bag |
| Target weight | 5-5000g |
Application of Machine
It is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly,
pasta,melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum,
cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food,
small hardware, etc.

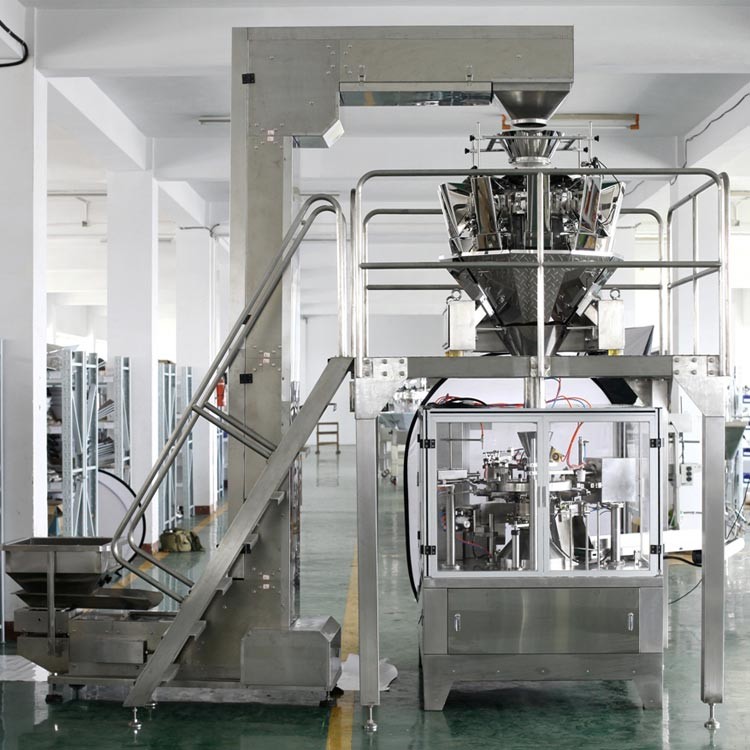

Unit system
1. Infeed bucket conveyor:
For feeding the product to multihead weigher.

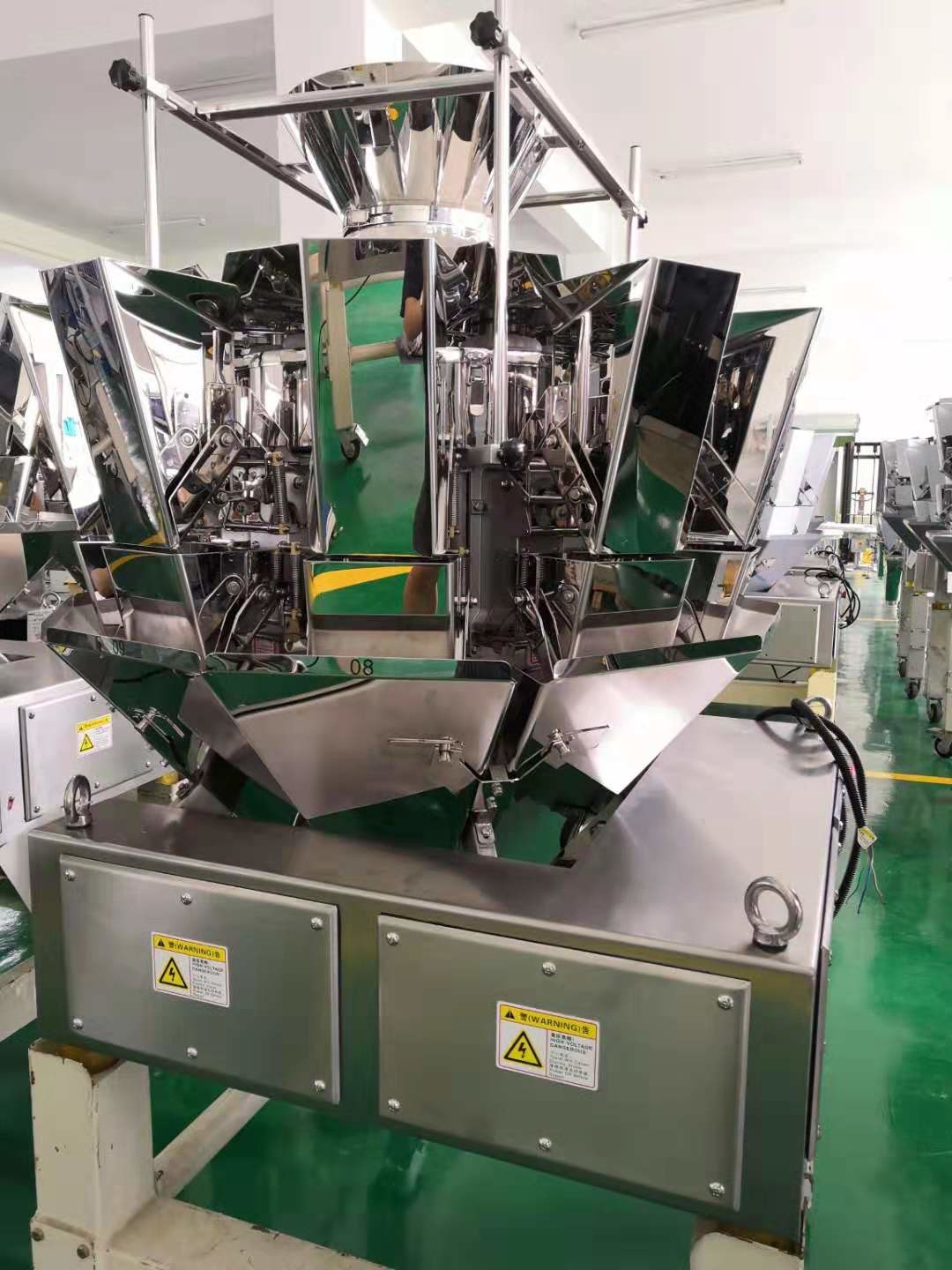

2. Multihead weigher:
For weighing the product.
3. Working platform:
For supporting the multihead weigher.
4. Rotary packing machine:
For premade bag sealing .

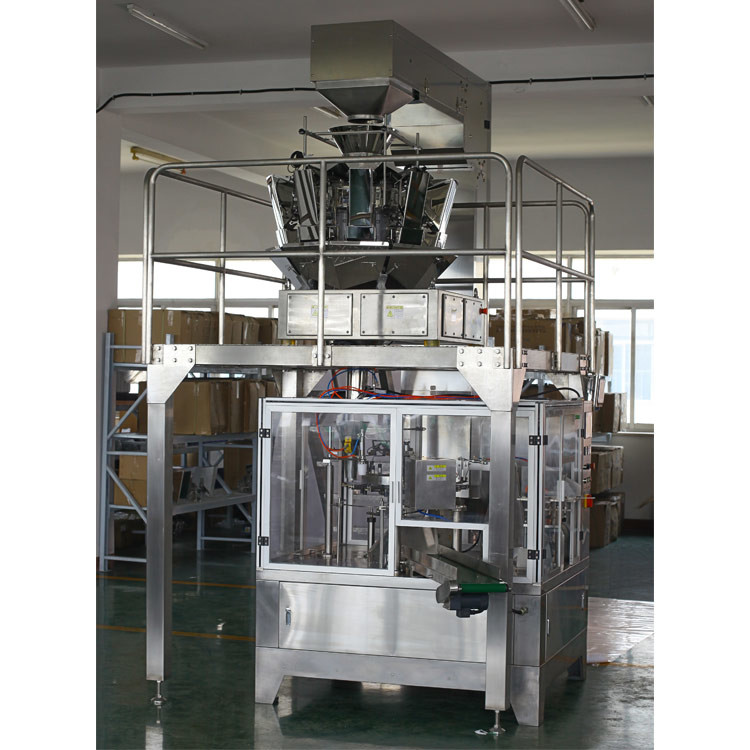

More details of machine

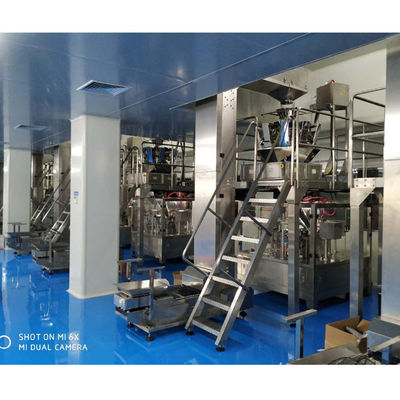

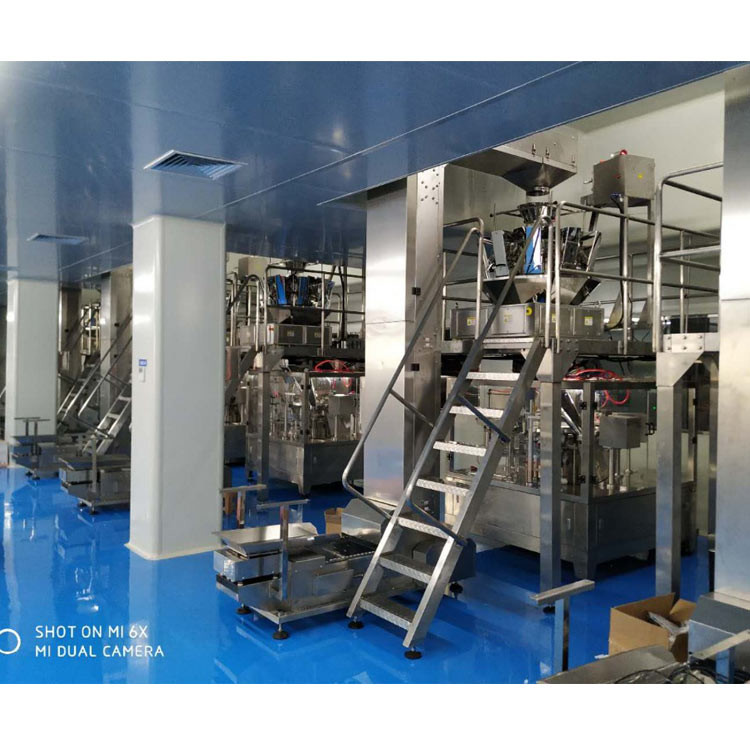

Our cases
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
