Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BG10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 35000-40000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-35 Working days |
| Payment Terms: | L/C, D/A, Western Union, D/P, T/T |
| Supply Ability: | 199 Sets per month |
| Name: | Multihead Weigher Rotary Packing Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Machine Material: | Food Grade SS304 | Packaging Type: | Flat Pouch,stand-up Pouch ,zipper Bag |
| Working Position: | Six Or Eight | Function: | Filling ,weighing ,sealing |
| Feature: | Easy Operation | Packing Speed: | 30-50bags/min |
| Packaging Accuracy: | ±0.1-1.5g | Power: | 380V 50/60HZ |
| High Light: | Chocolate Multihead Weigher Packing Machine,SS 304 Multihead Weigher Packing Machine,Flat Pouch Multihead Weigher Packing Machine |
||

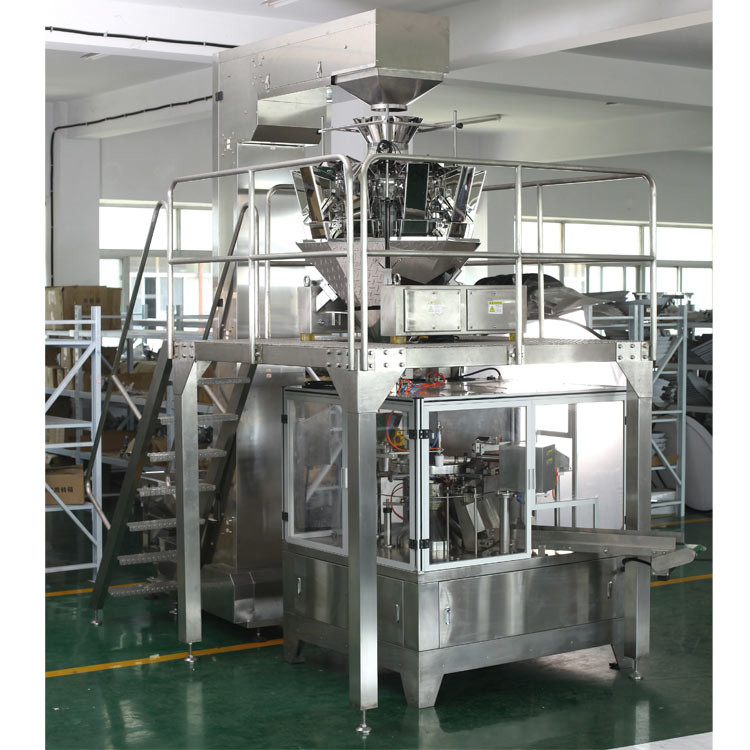

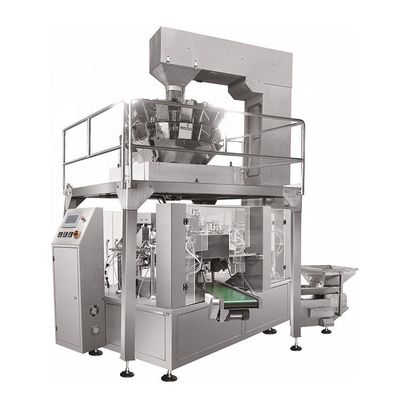

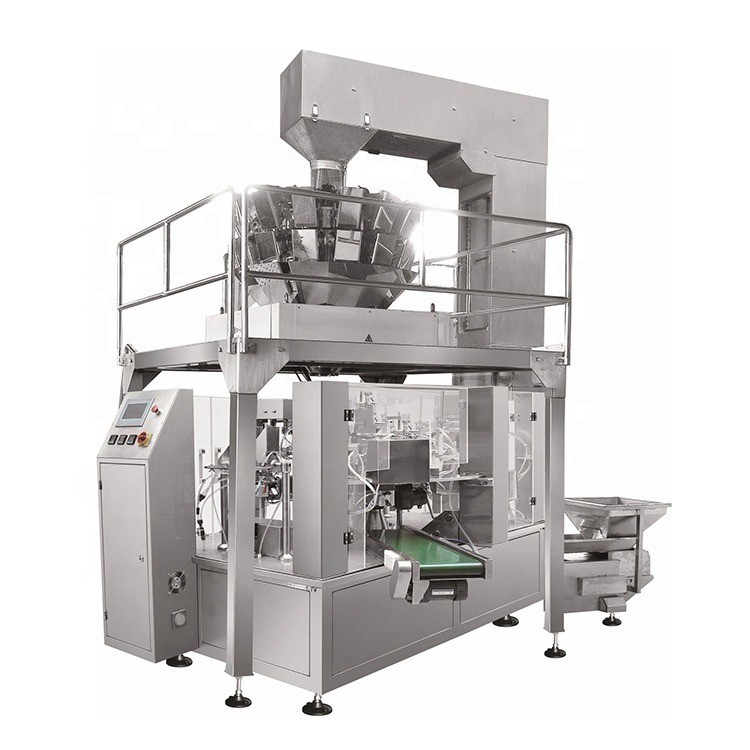

Food Industrial Application Chocolate Zipper Pouch Multihead Weigher Packing Machine
Technical Feature
1. Advanced PLC and touch screen control system.
2. The quick-change bag specifications, a one-time adjustment,automatic robot width.
3. Inverter control different speed.
4. Automatic memory to adjust the angle value of each pneumatic components.
5. Automatic self-testing, information feedback, and other functions
6. Central lubrication automatic refueling system.
7. The stable mechanical cam drive technology.
8. bagless - Machine alarm / shutdown.
9. No product - the machine stops.
10. The bag error - no filling - not seal.
11. 0 temperature fault - Machine alarm / machine stop.
12. The display Problem - Simple exclude.
13. Safety door open - the machine is stopped.
| Technical Specification | |
| Model | ZH-BG10 |
| Packing Speed | 30-50 Bags/Min |
| Packaging Accuracy | ±0.1-1.5g |
| System Output | ≥8.4 Ton/Day |
| Bag Size |
Width:100-300 Length:150-400mm
|
| Bag types | stand up bag,zipper bag,flat bag |
| Target weight | 5-5000g |
Application of Machine
Suitable for the measuring and packing anomalous lumpish and granule materials, such as candy, puffed food,
biscuit, roasted seeds and nuts, granulated sugar, deep frozen food, milk powder, milk tea, amylum, sauce and so on.
Unit system
1. Infeed bucket conveyor:
For feeding the product to multihead weigher.
2. Multihead weigher:
For weighing the product.
3. Working platform:
For supporting the multihead weigher.
4.Rotary packing machine:
For premade bag sealing .

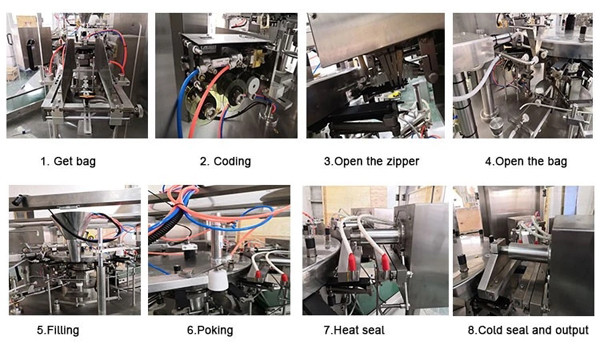

Station process:
1. Bag Feeding 2. Date Coding 3. Bag Opening 4. Filling
5. Filling 6. Stand by 7.Heat Sealing 8.Forming & Output
Bag types
More details of machine

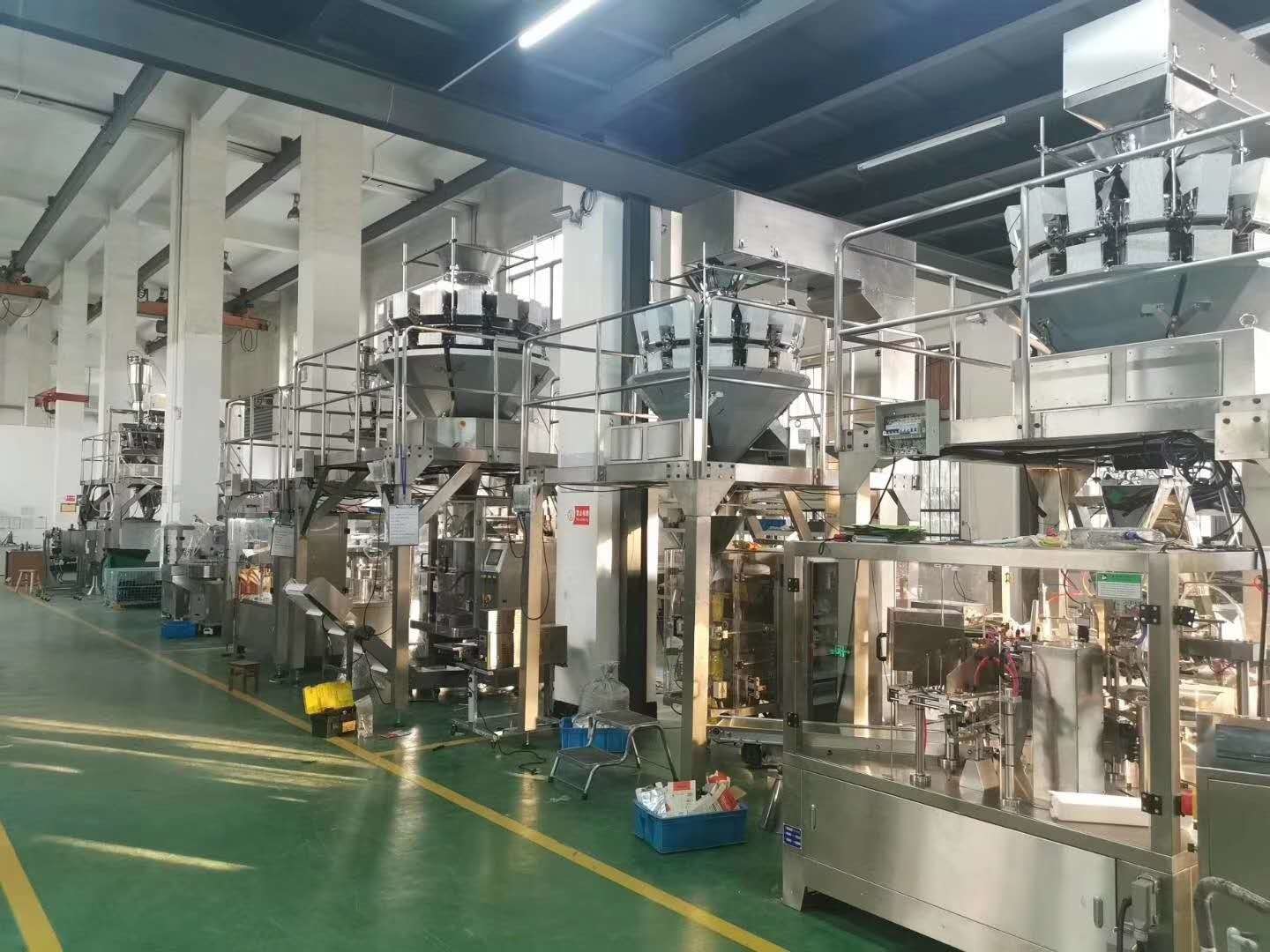

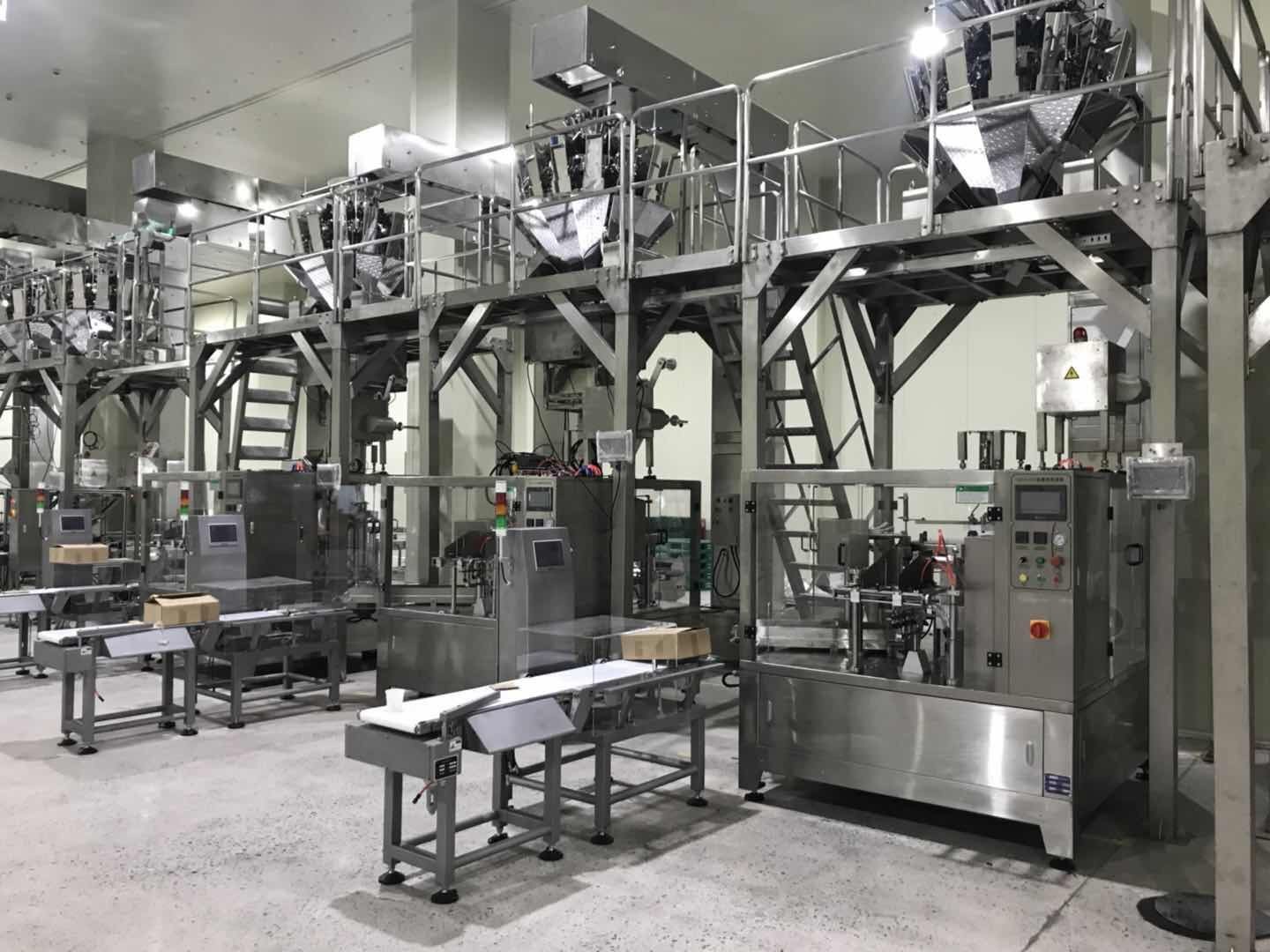

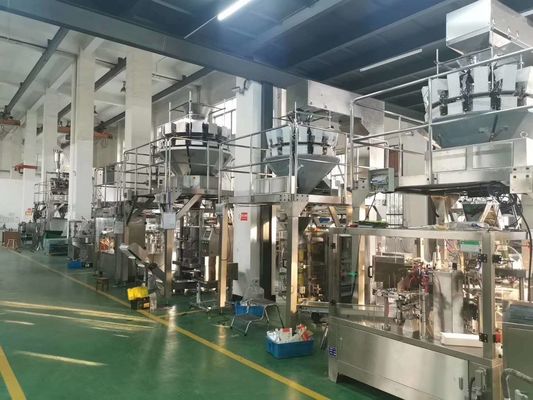

Our cases
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
