Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Sets per month |
| Name: | Multihead Weigher Packing Machine | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Function: | Feeding ,Filling ,Weighing,Sealing |
| Packing Speed: | 30-70bag/min,depends On Your Product | Control: | PLC |
| Language: | Multi-language | Packing Speed: | 30-70 Bags/Min |
| Packing Accuracy: | ±0.1-1.5g | Range Of Measuring (g): | 5000 |
| High Light: | Sugar Multihead Weigher Packing Machine,60bags/min Multihead Weigher Packing Machine,Multi Language Multihead Weigher Packing Machine |
||
High Speed 60bags/min 200g 500g Sugar Multihead Weigher Packing Machine
Technical Feature
1. Material conveying, weighing, filling, bag-making, date-printing, finished bag outputting are all completed
automatically.
2. High weighing precision and efficiency.
3. Packing efficiency will be high with vertical packing machine
4. easy to operate.
5. All main brand of packing machine is famous in the world.
6. Multi-union roll film pulling system makes film running more smooth.
| Technical Specification | |
| Model | ZH-BL10 multihead weigher packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application of Machine
It's suitable to use in packing the high accuracy and easy fragile material , such as : Potato Chips,Snacks,
candy,puffed rice,pistachio,sugar,lentil,small hardware etc.

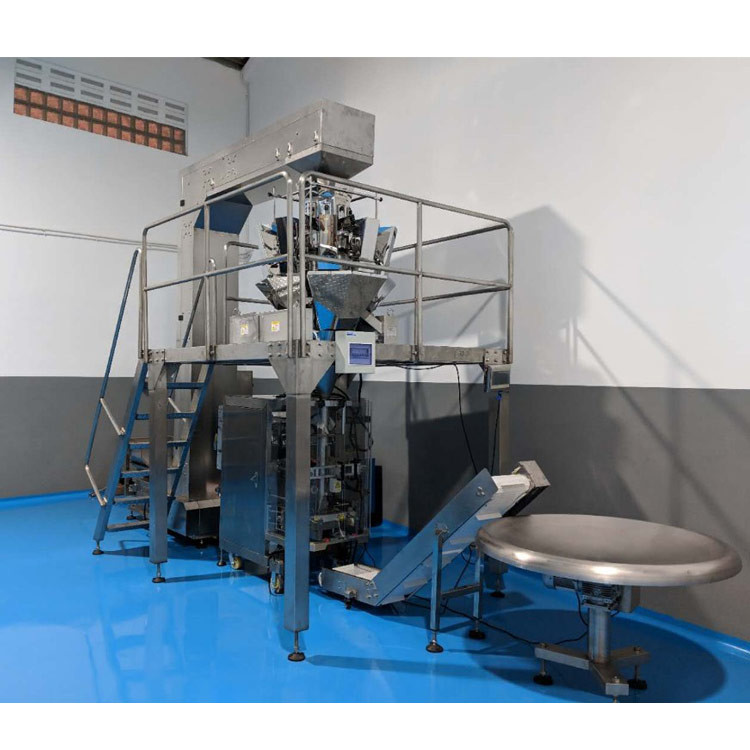

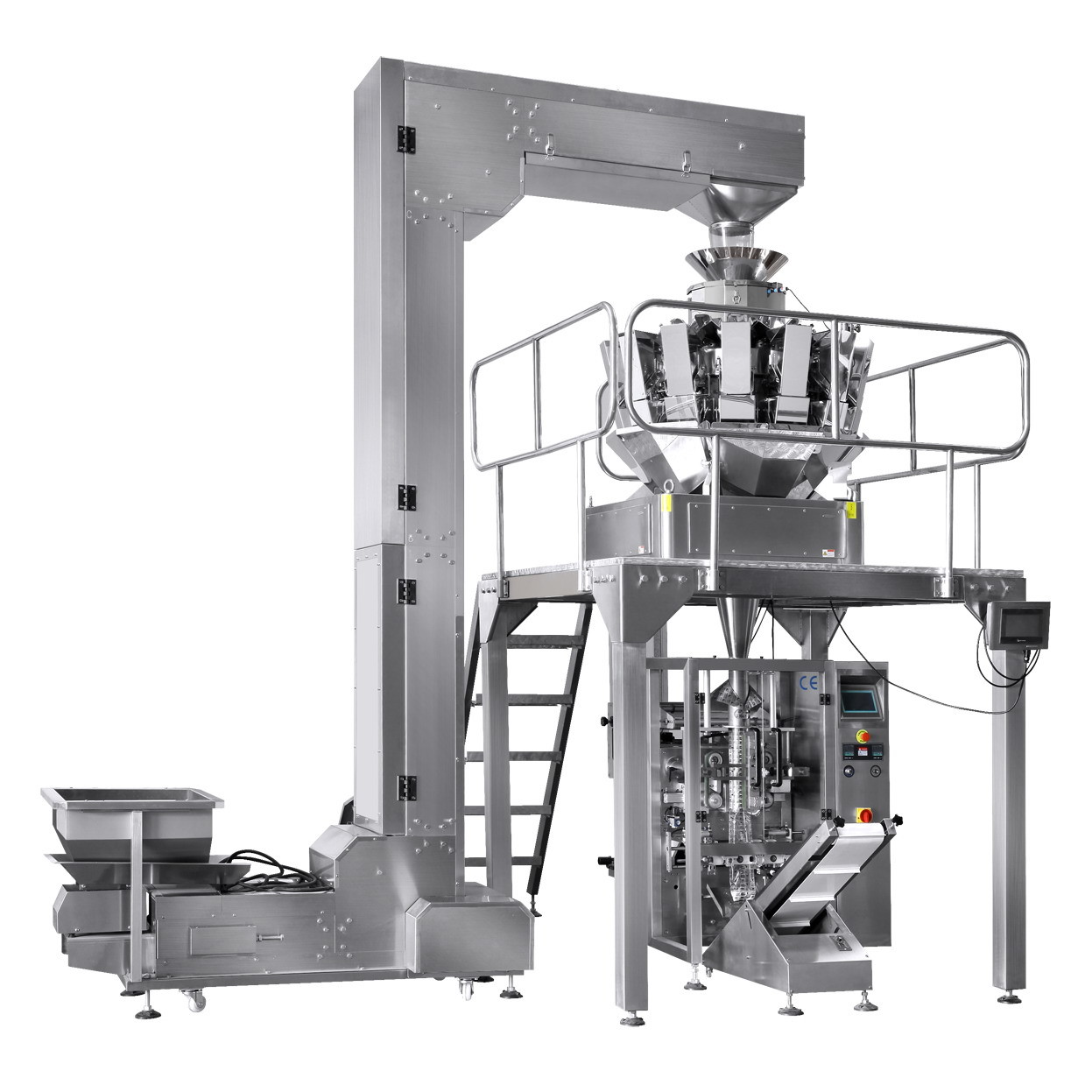

System Composition
1. Infeed bucket conveyor:
Feed material to multihead weigher
2. Multihead weigher:
For product weighing.There are different heads of multihead weigher.
3. Working platform:
Support multi weigher.

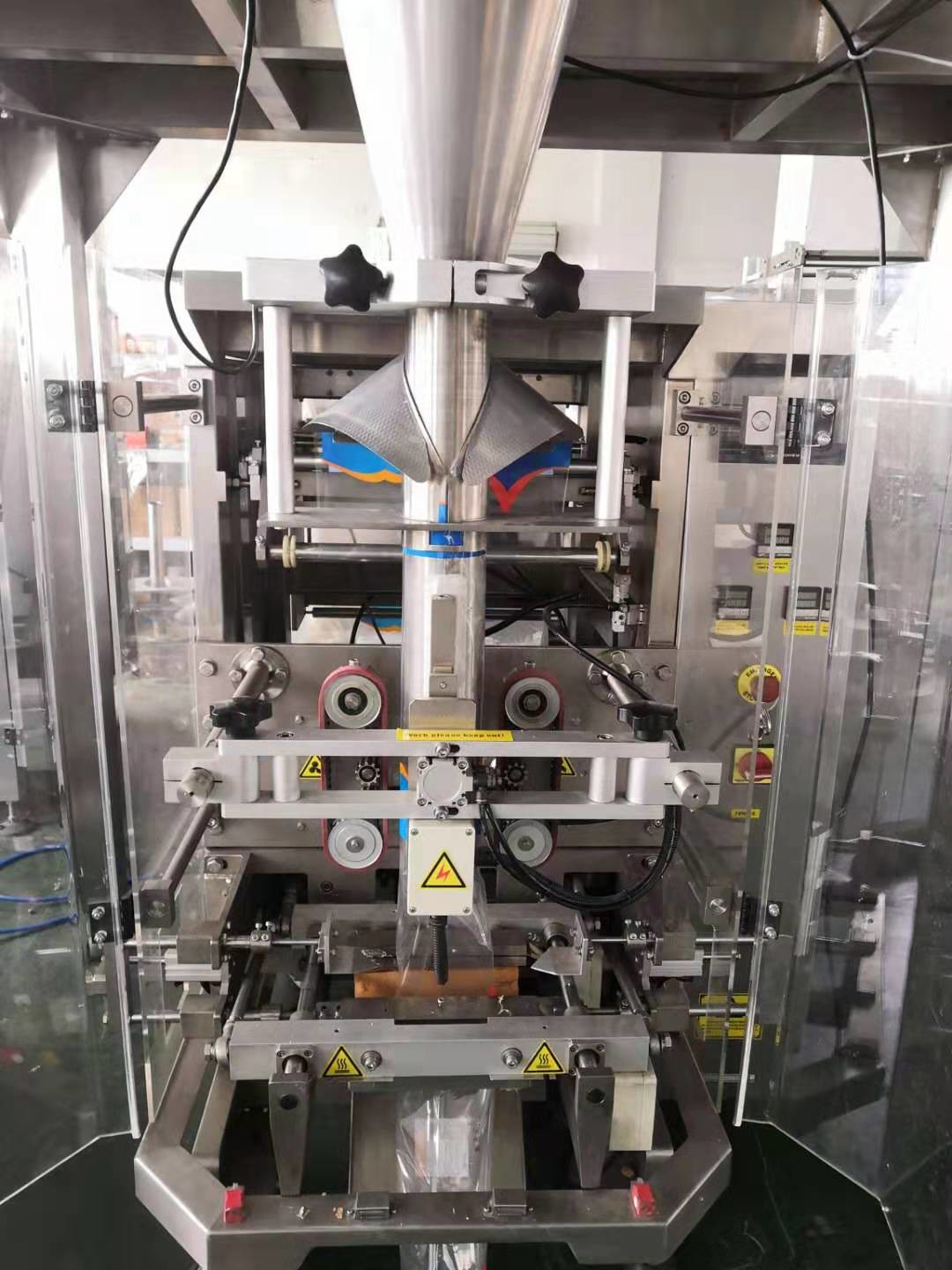

4. Vertical packing machine:
Pack the material with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
