Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Hangzhou,Zhejiang,China |
|---|---|
| Brand Name: | Zonpack |
| Certification: | CE |
| Minimum Order Quantity: | 1sets |
| Price: | USD18000-22000/sets |
| Packaging Details: | wooden cases |
| Delivery Time: | 35-50working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 99sets/month |
| Suitable: | Weighing And Packing | System Output: | ≥8.4Ton/Day |
|---|---|---|---|
| Packing Speed: | 30-70bags/min | Packing Accuracy: | ±0.1-1.5g |
| Advantage: | Easy To Operate | Feature: | High Speed |
| Bag Type: | Pillow Bag,Gusset Bag | ||
| High Light: | Automatic Food Packing Machine 70bags/min,PLC Control Pillow Bag Packing Machine,Puffed Food Pillow Bag Packing Machine |
||

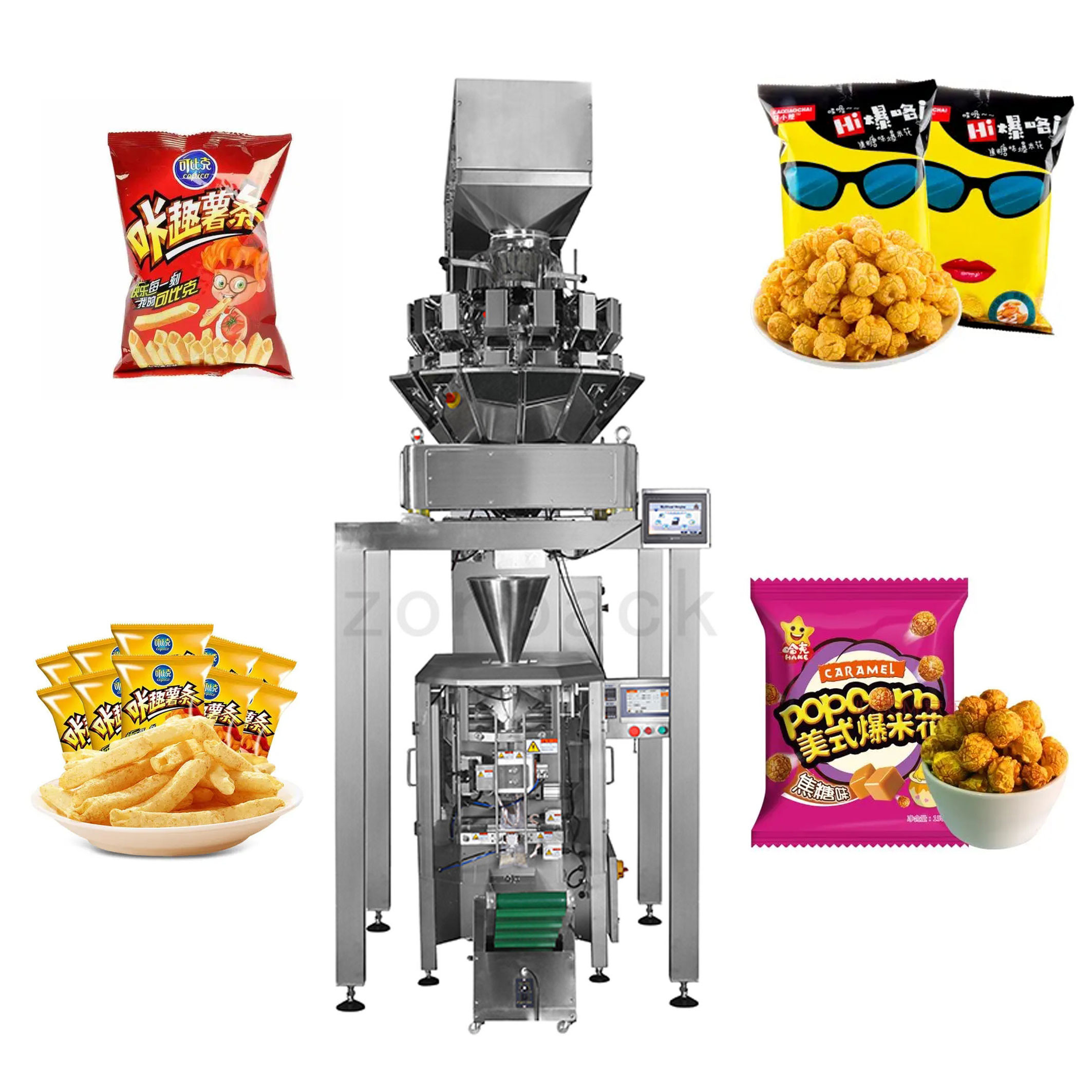

Fully Automatic Potato Chips Puffed Food Weighing And Packing Pillow Bag Vertical Packing Machine
All-Automatic Potato Chips Nuts Food Candy Weighing Pillow Bag Vertical Packing Machine
High effieciency 304ss frame automatic frozen food packing machine for dumpling and shrimp
imp
Technical Feature
1. PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling,
printing, cutting, be finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Independent temperature controller with heat balance enables different packing materials;
4. Packing speed and bag length can be set through the screen without part changes;
| Technical Specification | |
| Model | ZH-BL10 automatic food packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) |
VFFS 320: (W) 60-150 (L)50-200 VFFS720: (W) 120-350 (L)100-450 |
Application of Machine
It is suitable for packing of several of granule, slice, stripe, such as grain,candies, potato chips, shrimp chips,
jelly, peanut, hardware, etc.

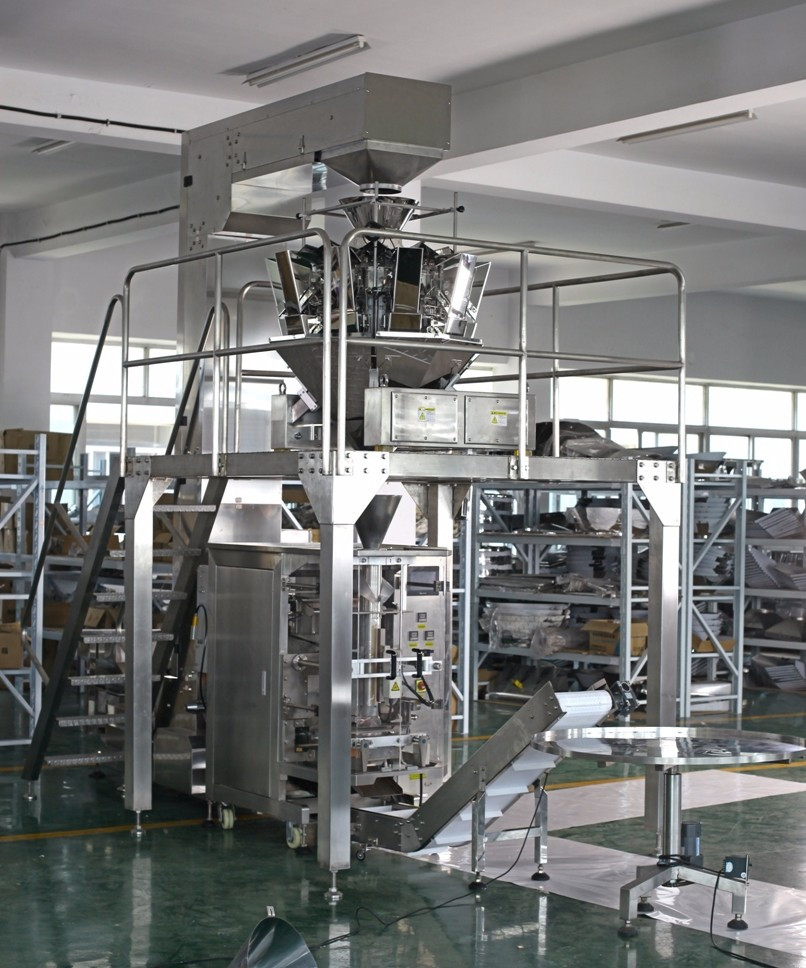

System Construction
1. Infeed bucket conveyor:
Convey the product to multihead weigher
2. 10 heads multi weigher:
For product weighing.
3. Working platform:
Support the 10 heads multi weigher.
4. Vertical packing machine:
For bag forming and bag sealing.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.

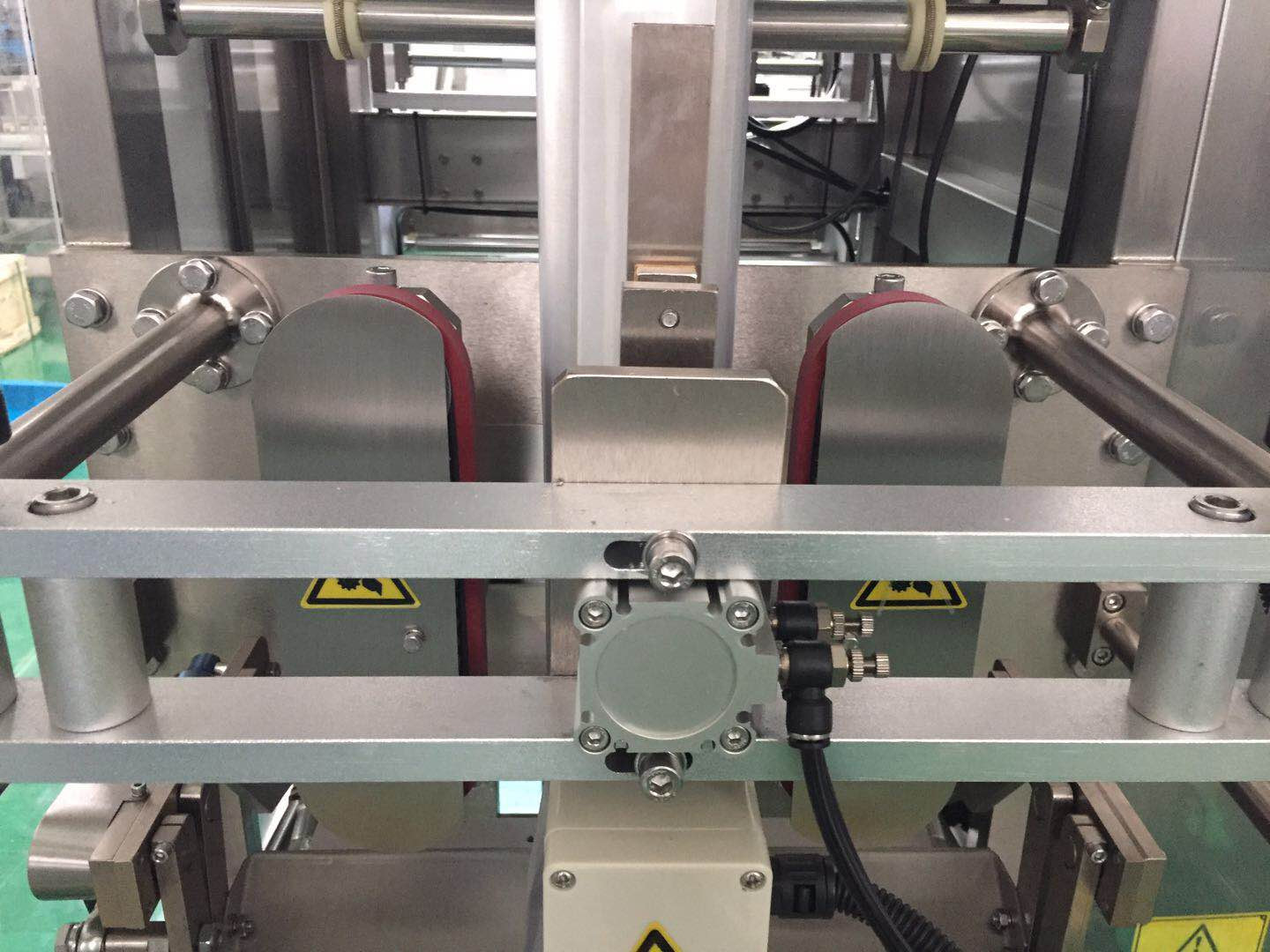

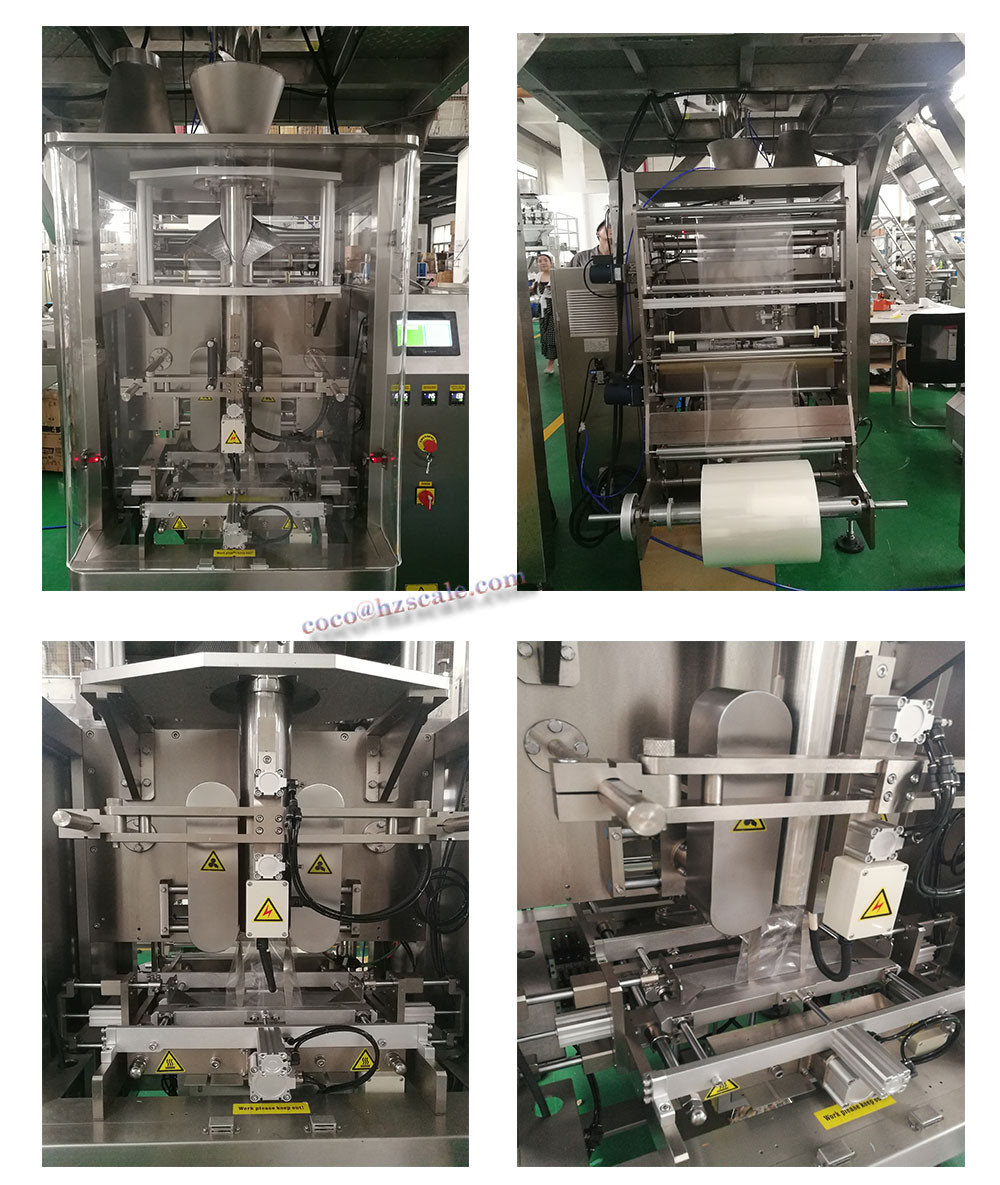

Machine Details
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
